Austempered ductile iron (ADI) is a high-performance material made by subjecting ductile iron to a specialized heat treatment process called austempering. This process significantly enhances the mechanical properties of ductile iron, resulting in a material that combines the toughness of ductile iron with the strength and hardness of steel. The resulting microstructure—primarily composed of ausferrite—improves the material’s performance in demanding applications, including automotive, mining, and heavy machinery industries.
This article covers every aspect of the austempering process, from its technical steps to the benefits it imparts on ductile iron. We will also explore the applications, challenges, and considerations for using ADI in different industrial contexts.
1. What is the Austempered Ductile Iron (ADI) Process?
The austempering process is a heat treatment technique that modifies the microstructure of ductile iron to enhance its mechanical properties. Ductile iron, in its natural state, is a strong, tough material, but the austempering process elevates its performance for specialized applications by improving its strength, wear resistance, and fatigue resistance.

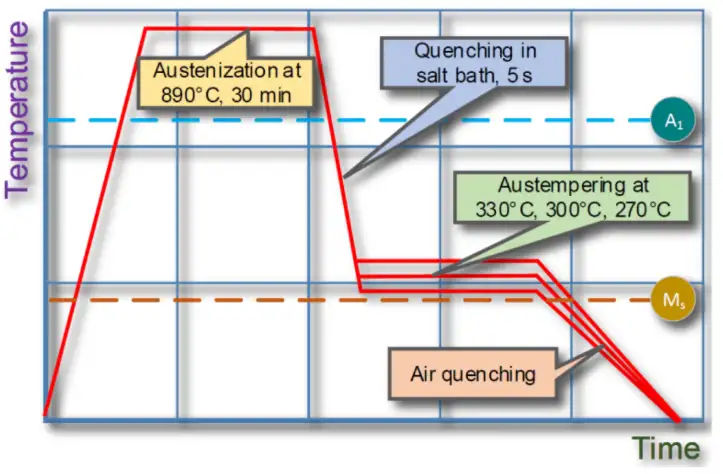

Steps Involved in the Austempering Process:
-
Austenitizing: The first step involves heating the ductile iron to a temperature between 800°C and 900°C (1472°F to 1652°F). At this temperature, the iron transforms into austenite, a phase where carbon is dissolved in the iron’s crystal structure.
-
Quenching: The heated ductile iron is then rapidly cooled, usually by immersing it in a molten salt bath or polymer. This cooling is done at a controlled rate to avoid thermal stresses and cracking.
-
Austempering: After quenching, the material is held at a lower temperature (typically between 250°C and 400°C or 482°F to 752°F) for a certain period. This stage allows the transformation of the austenite into a combination of ferrite and martensite, forming a fine-grained structure known as ausferrite.
| Step | Temperature Range | Duration | Microstructure Formed | Effect on Properties |
|---|---|---|---|---|
| Austenitizing | 800°C – 900°C | 30-60 minutes | Austenite | Prepares the iron for transformation |
| Quenching | Rapid cooling | Seconds to minutes | Partial ausferrite transformation | Begins phase transformation |
| Austempering | 250°C – 400°C | 1-4 hours | Ausferrite (Ferrite + Martensite) | Improves strength and toughness |
2. Benefits of the Austempered Ductile Iron Process
The austempering process offers several distinct advantages over other heat treatments, such as traditional quenching and tempering. Here are the key benefits of ADI:
Key Benefits:
-
High Strength and Hardness: ADI can achieve tensile strengths of up to 1,400 MPa, significantly higher than traditional ductile iron.
-
Excellent Wear Resistance: The martensite phase formed during austempering enhances wear resistance, making ADI suitable for heavy-duty applications.
-
Fatigue Resistance: The fine, uniform microstructure of ADI contributes to exceptional fatigue resistance, making it ideal for components subject to cyclic loading.
-
Improved Toughness: The presence of ferrite in the microstructure helps maintain toughness, even with the higher hardness achieved through austempering.
Applications of ADI:
-
Automotive Industry: Engine components, suspension parts, and gears.
-
Mining: Crusher parts, excavator teeth, and heavy-duty machinery components.
-
Power Generation: Turbine components and gears.
-
Heavy Machinery: Drive shafts, axles, and housings.
3. Microstructure of Austempered Ductile Iron
The microstructure of ADI is key to its enhanced mechanical properties. It consists primarily of two phases:
-
Ferrite: A relatively soft and ductile phase that provides toughness.
-
Martensite: A hard and brittle phase that increases strength and hardness.
When combined, these two phases form ausferrite, a microstructure that provides an excellent balance of strength, toughness, and wear resistance.
Impact on Mechanical Properties:
-
Strength: The martensite phase imparts strength to ADI, making it suitable for load-bearing applications.
-
Toughness: The ferrite phase ensures that ADI maintains its toughness and resistance to fracture, even under high stress.
-
Wear Resistance: The fine, evenly distributed structure of ausferrite improves ADI’s wear resistance compared to regular ductile iron.
4. Factors Affecting the Austempering Process
Several factors influence the quality and properties of ADI, including:
-
Austenitizing Temperature: The higher the austenitizing temperature, the more likely the material is to retain carbon in solution, affecting the final hardness and strength.
-
Cooling Rate: The rate of cooling during quenching is crucial for determining the distribution of phases in the microstructure. Too rapid cooling can result in undesirable residual stresses, while too slow cooling may lead to lower hardness.
-
Austempering Temperature and Time: The final hardness and toughness of ADI are determined by the temperature and time spent in the austempering stage. Shorter times may result in softer material, while longer times increase hardness.
5. Comparison of ADI with Other Cast Iron Materials
| Material | Microstructure | Strength | Wear Resistance | Toughness | Applications |
|---|---|---|---|---|---|
| Gray Cast Iron | Graphite flakes, pearlite | Moderate | Low | Moderate | Engine blocks, pipes |
| Ductile Iron | Graphite nodules, ferrite | Higher than gray | Moderate | High | Automotive parts, pipes |
| Austempered Ductile Iron (ADI) | Ausferrite (ferrite + martensite), graphite nodules | Very high (up to 1400 MPa) | Very high | Very high | Heavy machinery, automotive, mining |
6. Common Challenges in the Austempered Ductile Iron Process
Despite the benefits, there are challenges associated with the austempering process that must be carefully managed:
-
Cracking During Quenching: If the quenching rate is not controlled properly, thermal stresses may cause cracking in the material.
-
Inconsistent Microstructure: Uneven cooling during quenching can result in a heterogeneous microstructure, which may negatively impact material performance.
-
Cost: The austempering process is more complex and requires more equipment than traditional heat treatment, leading to higher production costs.
7. Common Applications of ADI
The versatility of ADI makes it suitable for a wide range of industrial applications. Some common uses include:
-
Automotive Industry: ADI is used for manufacturing high-performance engine components, suspension systems, and drivetrain parts. The combination of strength and fatigue resistance makes ADI ideal for these applications.
-
Mining and Construction: Components subjected to heavy wear, such as crusher parts, excavator teeth, and mining machinery, benefit from ADI’s wear resistance.
-
Power Generation: Turbine blades, gears, and other components in power plants are often made from ADI due to its high strength and resistance to thermal fatigue.
8. How to Optimize the Austempering Process
Optimizing the austempering process requires close control of several variables:
-
Temperature Control: Maintaining precise control over the temperature during the austenitizing, quenching, and austempering stages is critical for achieving the desired microstructure.
-
Time Management: Adjusting the time spent in the austempering bath can fine-tune the hardness and toughness of the material.
-
Cooling Medium: The choice of cooling medium (salt bath, polymer, or air) affects the rate of cooling and the resulting microstructure.
9. Common Questions About the Austempered Ductile Iron Process
Q1: What makes the austempering process different from traditional heat treatments?
The main difference between the austempering process and traditional heat treatments like quenching and tempering lies in the temperature and cooling rates. Traditional heat treatment usually involves quenching followed by tempering to relieve stresses, whereas austempering eliminates the need for tempering by cooling at a controlled rate to form ausferrite directly, which provides a better combination of strength and toughness.
Q2: How does the austempering process affect the material’s wear resistance?
The austempering process enhances wear resistance by creating a microstructure with fine ausferrite. The hard martensitic phase increases surface hardness, while the ferritic phase provides toughness, making ADI highly resistant to abrasion and wear in harsh environments.
Q3: Can the austempering process be applied to all types of ductile iron?
While the austempering process is effective for most grades of ductile iron, its results depend on the chemical composition and the heat treatment conditions. The presence of alloying elements like nickel, copper, and chromium can influence the final properties of ADI.
Q4: What industries benefit from ADI’s high strength and toughness?
Industries such as automotive, aerospace, mining, and construction benefit from ADI’s strength and toughness. ADI is especially useful for high-stress applications like engine components, gears, and heavy machinery parts.
Q5: How does ADI compare to other materials in terms of cost-effectiveness?
Although the initial cost of producing ADI is higher than traditional ductile iron, its enhanced performance in terms of strength, wear resistance, and fatigue resistance makes it a cost-effective solution in the long run, especially for high-performance applications.
Q6: What are the environmental considerations in the austempering process?
The austempering process involves the use of high temperatures and specific quenching mediums, which require energy and may have environmental implications. However, ADI’s durability and longer lifespan often outweigh the initial energy costs associated with its production.
Conclusion
The austempering process enhances the properties of ductile iron, making it an ideal material for industries that demand high performance, such as automotive, mining, and power generation. By carefully controlling the heat treatment parameters, manufacturers can produce ADI components with superior strength, wear resistance, and toughness. This advanced material continues to revolutionize industrial applications, offering an efficient and reliable alternative to traditional materials.
