Backflow preventers and check valves are essential components in many plumbing and irrigation systems. Though they serve similar functions by preventing water from flowing backward, they have different mechanisms, applications, and capabilities. Understanding the distinctions between these two devices is crucial for selecting the right one for your system.
This article will explore the differences between a backflow preventer and a check valve, their respective uses, types, and how they contribute to maintaining water quality and system efficiency.
1. What is a Backflow Preventer?
A backflow preventer is a device designed to protect the potable water supply from contamination due to backflow. Backflow occurs when water reverses its direction of flow, potentially allowing contaminants to enter the water system. Backflow preventers are specifically designed to stop this from happening.
There are different types of backflow preventers, including the double check valve, reduced pressure zone (RPZ) valve, and pressure vacuum breaker (PVB). These devices are often used in systems where the risk of contamination is high, such as irrigation systems, fire sprinkler systems, and industrial applications.

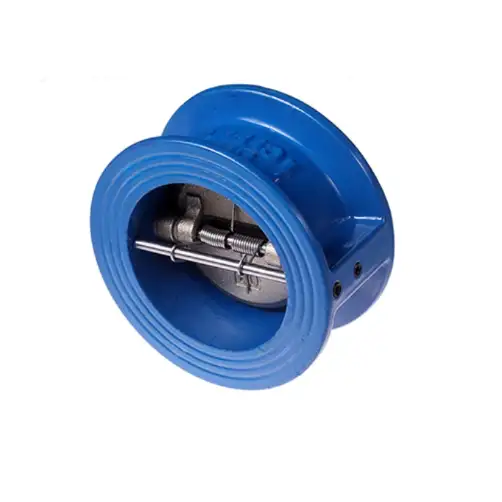

2. What is a Check Valve?
A check valve is a simple one-way valve that allows fluid to flow in one direction only. It’s a basic device used to prevent reverse flow in systems, which could cause damage or inefficiency. Unlike backflow preventers, check valves don’t have multiple mechanisms to address backflow under various conditions; instead, they rely on a single valve that closes when reverse flow is detected.
Check valves are typically used in systems where backflow is not a significant concern but preventing water from draining backward is necessary, such as in pump systems or water pipelines.
3. How Do Backflow Preventers Work?
Backflow preventers use more complex mechanisms than check valves to prevent reverse flow. These devices include two or more check valves and may incorporate additional components like relief valves, air gaps, or spring-loaded mechanisms. Their main function is to stop water from flowing back into the potable water system by creating a physical barrier or pressure difference that prevents backflow.
For example:
-
Double Check Valve (DCV): Contains two check valves in series, offering increased protection.
-
Reduced Pressure Zone (RPZ): Incorporates a relief valve that discharges water if the pressure drops below a certain level, providing greater protection against backflow.
-
Pressure Vacuum Breaker (PVB): Uses a spring-loaded valve to break the vacuum and prevent siphoning.
4. How Do Check Valves Work?
A check valve works by using a simple mechanism: a disc or ball that sits against a seat in the valve. When water flows in the intended direction, the pressure lifts the disc or ball, allowing water to pass through. When the flow reverses, the disc or ball presses against the seat, sealing the valve and preventing backflow.
Check valves are generally less complex than backflow preventers and only act to stop backflow in low-risk scenarios. They don’t have the same ability to handle high-pressure differentials or provide multiple layers of protection.
5. Key Differences Between Backflow Preventers and Check Valves
| Feature | Backflow Preventer | Check Valve |
|---|---|---|
| Function | Prevents water contamination by stopping backflow | Prevents water from flowing backward |
| Mechanism | Multiple components (valves, relief valves, air gaps) | Simple one-way valve, often a spring or ball |
| Complexity | More complex with multiple layers of protection | Simple and straightforward |
| Applications | Used in high-risk systems (irrigation, fire systems, industrial) | Used in low-risk systems (pumps, pipelines) |
| Pressure Handling | Can handle high-pressure differentials and varying conditions | Primarily for low-pressure systems |
| Compliance | Often required by law for certain installations | Generally not regulated for compliance |
6. Applications of Backflow Preventers and Check Valves
Backflow Preventers:
-
Irrigation Systems: Backflow preventers are commonly used in irrigation systems to ensure that water from the sprinkler system doesn’t flow back into the potable water supply, which could potentially contaminate it with fertilizers or chemicals.
-
Fire Protection Systems: Many fire sprinkler systems are required by law to have backflow preventers to avoid contamination of the water supply in case of reverse flow during a fire emergency.
-
Industrial Applications: Backflow preventers are used in industrial systems where chemicals or other hazardous materials are used to prevent contamination of the public water supply.
Check Valves:
-
Pumps and Pipelines: In many industrial and residential applications, check valves are used in pumps and pipelines to prevent water from draining backward into the pump or system.
-
Sewage and Drainage Systems: Check valves are often used in sewage systems to prevent wastewater from flowing back into the building.
7. Benefits of Using Backflow Preventers
Backflow preventers offer several key benefits, including:
-
Protection of Potable Water Supplies: Prevents contaminants from entering drinking water, ensuring the water supply remains safe.
-
Compliance with Regulations: Many local and national plumbing codes require the installation of backflow preventers in specific systems, such as irrigation and fire protection systems.
-
Multiple Layers of Protection: The multiple check valves and other components provide more comprehensive protection against backflow and contamination.
8. Benefits of Using Check Valves
Check valves offer several advantages as well:
-
Simplicity and Cost-Effectiveness: Check valves are straightforward and typically less expensive than backflow preventers, making them a practical solution for low-risk applications.
-
Reduced Risk of Damage: By preventing reverse flow, check valves protect pumps, valves, and other components from damage due to backflow.
-
Low Maintenance: Check valves have fewer components than backflow preventers, making them easier to maintain and replace.
9. Comparison Table: Backflow Preventers vs. Check Valves
| Feature | Backflow Preventer | Check Valve |
|---|---|---|
| Primary Use | Protection against water contamination | Prevention of reverse flow |
| Structure | Multiple valves and components | One-way valve |
| Complexity | High (multiple functions) | Low (single function) |
| Flow Direction | Ensures water flows in one direction, preventing backflow | Prevents water from flowing backward |
| Pressure Resistance | Handles high pressure and varying conditions | Low pressure, typically not designed for high pressure |
| Maintenance | Requires regular inspection and maintenance | Low maintenance, easier to service |
| Regulations | Often regulated and required by law | Generally not regulated |
10. FAQs
Q1: Can a check valve be used as a backflow preventer?
While both devices prevent reverse flow, a check valve does not offer the same level of protection as a backflow preventer. A backflow preventer is designed to handle various conditions, including high-pressure situations, and often includes multiple layers of protection like relief valves or air gaps, which a simple check valve cannot provide. Therefore, check valves should not be used as a substitute for a backflow preventer in high-risk applications.
Q2: What is the best application for a backflow preventer?
Backflow preventers are ideal for situations where there is a risk of contamination to the potable water supply. These include irrigation systems, fire protection systems, industrial processes, and any system where harmful chemicals or waste products could backflow into the water supply. Their complexity and multiple safety mechanisms make them suitable for high-risk environments.
Q3: How do I know if I need a backflow preventer or check valve?
The choice between a backflow preventer and a check valve depends on the level of protection required. If the system only needs basic protection from reverse flow, such as preventing water from draining out of a pump or pipeline, a check valve is sufficient. However, if the risk of contamination to the potable water supply is high, a backflow preventer is necessary to comply with regulations and ensure the safety of the water.
Q4: How often should backflow preventers be tested?
Backflow preventers should be tested annually to ensure they are functioning correctly. Testing should be done by a certified professional who can check the components of the device, including the check valves, relief valves, and seals. In some areas, local regulations may require more frequent testing.
Q5: Can a check valve fail?
Yes, a check valve can fail if debris accumulates, causing the valve to become stuck or if the disc or ball inside the valve wears out over time. Regular maintenance, such as cleaning and inspecting the valve, can help prevent failure.
Q6: Are backflow preventers expensive to maintain?
Backflow preventers can require more maintenance than check valves due to their complex structure and the need for regular testing and inspections. However, the cost of maintenance is generally lower than the cost of dealing with contamination or a failure in the system. It’s important to factor in the cost of proper maintenance to ensure the system functions effectively.
Conclusion
Understanding the differences between backflow preventers and check valves is essential for selecting the right component for your water system. Both devices serve the important function of preventing water from flowing backward, but backflow preventers offer a more comprehensive solution to prevent contamination in high-risk environments. Check valves, on the other hand, are more suited for lower-risk systems where simplicity and cost-effectiveness are key considerations.
By making the right choice between these two devices, you can ensure that your water system remains safe, efficient, and in compliance with local regulations.
