ASTM Ductile Iron Pipe Sizes: Comprehensive Guide

Time:2025-05-09

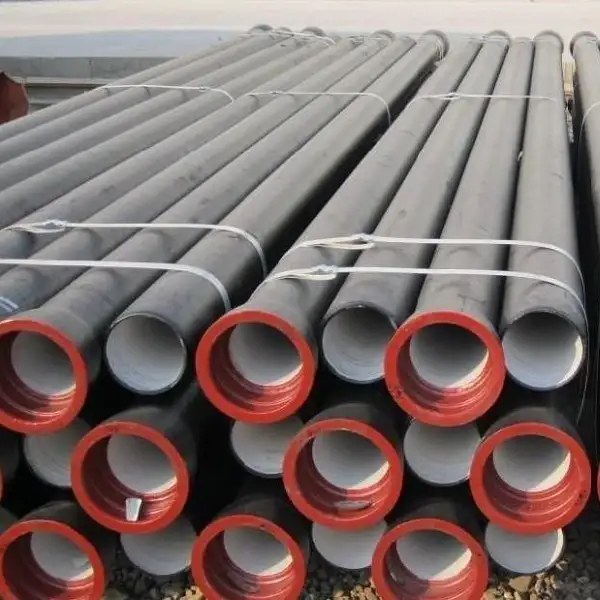

Ductile iron pipes are widely used in water and wastewater systems due to their strength, durability, and corrosion resistance. The sizing of these pipes is governed by various standards, with ASTM A536 and AWWA C151 being the most prominent. These standards define the dimensions, pressure classes, and other specifications to ensure the pipes meet the necessary performance criteria.

ASTM Ductile Iron Pipe Sizes: Comprehensive Guide
ASTM Ductile Iron Pipe Sizes: Comprehensive Guide

1. Understanding ASTM A536 and AWWA C151 Standards

ASTM A536

ASTM A536 is the standard specification for ductile iron castings. It outlines the requirements for ductile iron materials used in various applications, including pipes. The standard specifies the chemical composition, mechanical properties, and testing methods to ensure the quality and performance of ductile iron products.

AWWA C151

AWWA C151 is the standard for ductile iron pipe, centrifugally cast, for water and wastewater systems. It provides the minimum requirements for the design, materials, and construction of ductile iron pipes. The standard covers pipe sizes from 3 inches to 64 inches in nominal diameter and includes specifications for pressure classes, wall thicknesses, and joint types.

2. Nominal Pipe Sizes and Their Dimensions

Ductile iron pipes are available in various nominal sizes, typically ranging from 3 inches to 64 inches. The dimensions of these pipes, including outside diameter (OD), inside diameter (ID), and wall thickness, vary based on the nominal size and pressure class.

Nominal Size (inches) Outside Diameter (inches) Wall Thickness (inches)
3 3.96 0.25
4 4.80 0.25
6 6.90 0.25
8 9.05 0.25
10 11.10 0.25
12 13.20 0.25
14 15.30 0.25
16 17.40 0.25
18 19.50 0.25
20 21.60 0.25
24 25.80 0.25
30 32.00 0.25
36 38.30 0.25
42 44.50 0.25
48 50.70 0.25
54 56.90 0.25
60 63.10 0.25
64 67.30 0.25

Note: The wall thicknesses mentioned above are typical for standard pressure classes. Specific wall thicknesses may vary based on the pressure class and manufacturer specifications.

3. Pressure Classes and Wall Thicknesses

Ductile iron pipes are classified into different pressure classes based on their ability to withstand internal pressure. The pressure class is determined by the pipe’s wall thickness and material strength.

Pressure Class (psi) Wall Thickness (inches)
150 0.25
200 0.31
250 0.37
300 0.43
350 0.50
400 0.56

Note: The above table provides typical wall thicknesses for standard pressure classes. Actual wall thicknesses may vary based on specific requirements and manufacturer specifications.

4. Comparison of ASTM and AWWA Standards

While both ASTM A536 and AWWA C151 pertain to ductile iron pipes, they serve different purposes and have distinct specifications.

Specification Scope Application Area Pipe Sizes Covered
ASTM A536 Ductile iron castings General manufacturing Not specified
AWWA C151 Ductile iron pipes for water systems Water and wastewater systems 3 inches to 64 inches

Note: ASTM A536 provides material specifications for ductile iron, while AWWA C151 provides design and construction standards for ductile iron pipes.

5. Applications of Ductile Iron Pipes

Ductile iron pipes are used in various applications, including:

  • Potable Water Systems: Transporting clean drinking water.

  • Wastewater Systems: Carrying sewage and wastewater.

  • Stormwater Systems: Managing rainwater runoff.

  • Fire Protection Systems: Supplying water for firefighting purposes.

The versatility and durability of ductile iron pipes make them suitable for a wide range of infrastructure projects.

6. Installation and Maintenance Best Practices

Installation

  • Trenching: Ensure trenches are wide enough to accommodate the pipe and allow for proper bedding.

  • Bedding: Use a stable foundation material to support the pipe.

  • Joints: Align and secure joints according to manufacturer specifications.

Maintenance

  • Inspection: Regularly check for signs of corrosion or damage.

  • Cleaning: Remove debris and sediment buildup.

  • Repairs: Address any issues promptly to prevent system failures.

Proper installation and maintenance ensure the longevity and reliability of ductile iron pipes.

7. Environmental Considerations

Ductile iron pipes are environmentally friendly due to:

  • Recyclability: Ductile iron is 100% recyclable.

  • Durability: Long service life reduces the need for replacements.

  • Energy Efficiency: Lower energy consumption during production compared to other materials.

Choosing ductile iron pipes contributes to sustainable infrastructure development.

8. Frequently Asked Questions (FAQs)

Q1: What is the difference between ASTM A536 and AWWA C151?

ASTM A536 is a material specification standard for ductile iron castings, outlining the chemical composition and mechanical properties of the material. AWWA C151, on the other hand, is a design and construction standard for ductile iron pipes, specifying dimensions, pressure classes, and other requirements for pipe manufacturing and installation.

Q2: How are ductile iron pipe sizes determined?

Ductile iron pipe sizes are determined based on the nominal diameter, which is a dimensionless number representing the pipe’s internal diameter. The actual dimensions, including outside diameter and wall thickness, vary depending on the nominal size and pressure class, as specified in standards like AWWA C151.

Q3: Can ductile iron pipes be used for both potable water and wastewater systems?

Yes, ductile iron pipes are suitable for both potable water and wastewater systems. They are designed to withstand the pressures and conditions associated with these applications, ensuring reliable performance over time.

Q4: What factors influence the selection of a pressure class for ductile iron pipes?

The selection of a pressure class depends on factors such as the internal pressure the pipe will experience, the pipe’s wall thickness, and the material strength. These factors are considered to ensure the pipe can safely handle the operating conditions without failure.

Q5: Are there any limitations to using ductile iron pipes?

While ductile iron pipes are durable and versatile, they may not be suitable for all environments. In highly acidic or alkaline soils, or areas with aggressive chemicals, alternative materials may be preferred to prevent corrosion and ensure longevity.

Q6: How can I determine the appropriate ductile iron pipe size for my project?

Determining the appropriate pipe size involves considering factors like flow requirements, pressure conditions, and system layout. Consulting with engineers and referring to standards like AWWA C151 can help in selecting the right size to meet the project’s needs.
