As a piping systems expert, I often guide clients through selecting cost-effective cast iron pipes that meet performance, regulatory, and longevity requirements. Whilst cast iron may seem traditional, its robustness ensures low life-cycle cost when specified correctly. This article dives deep into categories, sizing standards, pricing in China, India, and the U.S., plus supplier tips—especially spotlighting Luokaiwei.
1. Cast Iron Pipe Categories
I typically classify cast iron pipes into several types:
-
Soil & Waste (SW) pipes: For drain, waste, and vent (DWV) systems in buildings.
-
Ductile Iron (DI) pipes: Employed for high-pressure water and sewage mains.
-
Hub‑and‑spigot Soil Pipes (CISPI/ANSI‑rated)—used with lead-oakum or compression gaskets.
-
No‑Hub (Sewer‑Line) Pipes: Featuring cast ends and rubber couplings for quick installs compliant with ASTM A888/EN 877.
-
SML/EN 877 Pipes: Fully epoxy-lined for external/internal corrosion resistance.

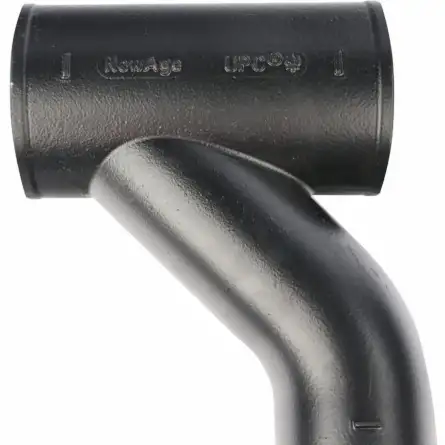

Different fittings (teess, bends, couplings, manhole covers) complement each category. In choosing, consider the intended use, joint type, and site conditions (trench depth, ground type, etc.).
2. Models & Specifications
I evaluate pipe models through dimensions, joints, coatings, and pressure classes:
Category | Standard / Spec | Diameters | Joint Type | Lining / Coating | Pressure Class |
---|---|---|---|---|---|
Soil Pipes | CISPI 301, ASTM A74 | 2–15 in | Hub‑and‑spigot, gasket | Bituminous | N/A |
No‑Hub | ASTM A888, EN 877 | 1½–15 in | No‑hub with rubber gasket | Epoxy or Bitumen | N/A |
Ductile Iron | ISO 2531 / EN 545 | DN80–DN1200+ | Flanged, mechanical | Cement mortar, PE/PU | K9-K12 |
For example, ASTM A888 sets dimensional tolerances and gasket specs for no‑hub pipes, ensuring consistent installation.
3. Size Ranges & Imperial/Metric Standards
Cast iron and ductile pipes are sized under different regimes:
-
Imperial Soil Pipes: Follow BS 78 (e.g., 3–40 inch OD) and CISPI.
-
Ductile Iron: Metric DN standards under EN/ISO (DN 80→DN 1200) with classes K9/K10 specifying wall thickness.
-
Nominal Pipe Size (NPS): Used in U.S. for schedule wall thicknesses.
It’s crucial to match OD, ID, and wall thickness to avoid compatibility issues—say retrofitting imperial hub pipes alongside metric ductile lines.
4. Advantages & Disadvantages
Here’s my balanced take:
✅ Advantages
-
Durability: Typically 50–65 years, with many lasting 75–100 years.
-
Strength: Withstands pressures and temperatures (up to ~650 °F) .
-
Noise Suppression: Cast iron dampens sound more than plastic.
-
Fire Resistance: Non-combustible—ideal for fire-rated assemblies.
-
Low Maintenance: Requires minimal upkeep once properly installed .
⚠️ Disadvantages
-
Weight: Heavy and needs strong handling setup.
-
Corrosion Risk: Especially in aggressive soils or hard water; hence coatings like epoxy are essential.
-
Cost: Pipe cost ($10–30/ft) plus labor for installation.
-
Joiner Skill: Hub joints need skilled installation; gaskets require proper cleanliness.
-
Limited Pressure Class: DI is suitable for pressurized networks—SW pipes are not.
5. Lifespan & Durability
Soil pipes in sandy soils often exceed 100 years, while those in clay may corrode faster. Proper external coatings (bituminous, epoxy, cement mortar) are vital. Ductile iron, with thinner walls but internal cement/PU lining, handles pressure and corrosion well—especially against sulfuric sewage corrosion.
Soil pipes: 50–100 years. Ductile iron: 75+ years with maintenance.
6. Price Comparison by Country
Below is a cost comparison (typical pricing; subject to fluctuations):
Country | Soil Pipe Cost (USD/ft) | DI Pipe Cost (USD/ft) | Notes |
---|---|---|---|
China | $3–8 | $5–12 | Lowest base cost; extra shipping. |
India | $4–10 | $6–14 | Local foundries; emerging export. |
USA | $10–30 | $15–35+ | Includes local distribution, meet ANSI standards. |
China’s lower labor and raw material costs make it the cheapest source, provided import logistics and duties are managed. Luokaiwei (Shanxi Jincheng Jingang) specializes in DI and soil cast iron, offering custom sizes/coatings with ISO/EN compliance.
7. Supplier Selection Strategy
Here’s my supplier checklist:
-
Certifications: ISO 9001, CISPI, EN 877, ANSI/ASTM compliance.
-
Capacity & QC: Evidence of foundry, testing, radiation screening, coating control.
-
Product Range: Soil, DI, fittings, gaskets, manhole covers.
-
Customization: Access to custom diameters, thicknesses, lining options.
-
Delivery & Support: Warehouse in destination, installation guidance, technical docs.
-
Pricing: FOB vs CIF comparisons, including warranty and after-sales.
Luokaiwei ticks nearly all the boxes: certified, wide range, custom services, global shipping, plus direct factory prices.
8. Case Study: Los Angeles Residential Retrofit
I recently assisted a client replacing 40-year-old hub-and-spigot soil pipes under a 1950s slab home in L.A.:
-
Challenge: Corrosion and sewer backups.
-
Solution: Replacement with no‑hub ASTM A888 pipes (4″, 6″, 8″) with epoxy coating.
-
Supplier: Luokaiwei products (EN 877, epoxy-lined) imported FOB Shanghai—arrived in 45 days.
-
Cost: $6/ft pipe + $900 shipping (80 ft length), vs $22/ft USA local option.
-
Outcome: System passed city inspection; no leaks in 18 months; significant cost savings (~60%).
This outcome shows how sourcing directly from China cut spending by two-thirds while meeting U.S. regulatory requirements.
9. Frequently Asked Questions (FAQs)
1. Is cast iron cheaper than PVC?
PVC pipe cost is low—$2–6/ft—and installation is lighter, but it lacks cast iron’s durability, sound-deadening, and fire resistance. For high-rise, fire-rated, or long-term systems, cast iron may be more economical long-term.
2. Can I mix cast iron with PVC or steel?
Yes—use transition couplings (e.g., Fernco/Span), ensuring compatible gasket, internal electrostatic bonding, and slope alignment. EPDM-lined couplings between DI to PVC are common.
3. What coatings extend cast iron life best?
External bituminous plus internal cement mortar or epoxy lining are preferred for corrosion protection. EN 877 requires 120 µm epoxy inside and 80 µm base coat outside.
4. What inspections are needed after installation?
Hydrostatic test, visual joint inspection, leakage test per IPC/CPC. Proper slope per code (1/4″ per foot) and installation manuals are vital.
5. How do Chinese products like Luokaiwei compare with U.S. brands?
Luokaiwei offers ISO and EN certification and custom coatings at lower prices. Brands like McWane or Charlotte offer strong warranty/support—but higher cost. Evaluate total project budget vs lead time and local support.
