ASTM A536 Grade 70-50-05 ductile iron has direct equivalents in several international standards, offering similar 70 ksi tensile strength, 50 ksi yield strength, and 5% elongation. Key equivalents include:
-
EN-GJS-500-7 (EN 1563) – European standard with comparable mechanical properties
-
GGG-50 (DIN 1693) – German designation for similar nodular cast iron
-
FCD500 (JIS G5502) – Japanese standard matching strength and ductility
This grade is widely used for gears, hydraulic components, and high-stress castings requiring enhanced strength with moderate elongation. Compare global standards to ensure material compatibility for your industrial or manufacturing needs.
1. Introduction: What is ASTM A536 Grade 70-50-05?
ASTM A536 is a widely recognized standard specification for ductile iron castings. It includes multiple grades based on specific mechanical properties that dictate the material’s suitability for various industrial applications. ASTM A536 Grade 70-50-05 is one of the most commonly used grades in ductile iron, known for its strength, flexibility, and durability. The designation 70-50-05 refers to the material’s mechanical properties, specifically the tensile strength (70 ksi), yield strength (50 ksi), and elongation (5%).
This grade is often chosen for its balance of strength and ductility, making it ideal for use in parts that must endure high loads and impact.
2. Mechanical Properties of ASTM A536 Grade 70-50-05
The mechanical properties of ASTM A536 grade 70-50-05 are critical to its performance in various applications. These properties are as follows:
-
Tensile Strength: 70 ksi (480 MPa) – The maximum stress that the material can withstand before failure.
-
Yield Strength: 50 ksi (345 MPa) – The stress at which the material begins to deform plastically.
-
Elongation: 5% – The ability of the material to stretch before breaking, indicating its ductility.
These properties make ASTM A536 Grade 70-50-05 particularly useful for components subjected to high stress and wear.
3. Chemical Composition of ASTM A536 Grade 70-50-05
The chemical composition of ASTM A536 grade 70-50-05 ensures that the material has the right balance of strength and ductility. It typically contains:
| Element | Range (%) |
|---|---|
| Carbon (C) | 3.10% – 3.50% |
| Silicon (Si) | 2.00% – 3.00% |
| Manganese (Mn) | 0.50% – 0.90% |
| Phosphorus (P) | Max 0.10% |
| Sulfur (S) | Max 0.08% |
| Magnesium (Mg) | 0.03% – 0.06% |
This composition, combined with the alloying elements such as magnesium, plays a crucial role in creating the microstructure of ductile iron, which provides its enhanced mechanical properties.
4. What Does ASTM A536 Grade 70-50-05 Represent?
ASTM A536 grade 70-50-05 is a designation used to identify the mechanical properties of ductile iron. The first number (70) represents the tensile strength in ksi (thousand pounds per square inch). The second number (50) refers to the yield strength in ksi, while the final number (05) represents the elongation percentage.
This nomenclature system helps engineers and manufacturers quickly identify the material’s strength and suitability for specific applications, such as automotive, heavy machinery, and infrastructure projects.
5. Equivalent Materials to ASTM A536 Grade 70-50-05
Understanding the equivalents of ASTM A536 grade 70-50-05 is crucial when sourcing ductile iron for specific applications, especially in international contexts. Various global standards and grades are equivalent to this material. Let’s look at a few key equivalents:
International Equivalents
-
EN 1563 GJS-500-7: This European standard for spheroidal graphite cast iron is equivalent to ASTM A536 grade 70-50-05. It exhibits similar tensile and yield strength, making it a viable alternative.
-
ISO 1083:2004 500-7: The ISO standard for cast iron also provides an equivalent to ASTM A536 grade 70-50-05, confirming the material’s compatibility in international markets.
Other Ductile Iron Grades
-
ASTM A536 Grade 80-55-06: This grade has higher tensile strength and yield strength than 70-50-05 but sacrifices some elongation. It is ideal for applications requiring additional strength.
-
ASTM A536 Grade 60-40-18: This grade offers lower mechanical properties but greater elongation, making it more suitable for applications requiring higher flexibility.
Comparison of Mechanical Properties
| Grade | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) |
|---|---|---|---|
| 70-50-05 | 70 | 50 | 5 |
| 80-55-06 | 80 | 55 | 6 |
| 60-40-18 | 60 | 40 | 18 |
| GJS-500-7 | 70 | 50 | 7 |
As shown in the table, the mechanical properties of ASTM A536 grade 70-50-05 lie between the stronger grades like 80-55-06 and the more flexible grades like 60-40-18, making it suitable for a wide range of applications.
6. Applications of ASTM A536 Grade 70-50-05
ASTM A536 grade 70-50-05 is a versatile material used in a variety of industries due to its excellent mechanical properties. Some common applications include:
-
Automotive Industry: Components like engine blocks, crankshafts, and suspension parts that require both strength and durability.
-
Heavy Machinery: Parts that need to withstand high-stress loads, such as gears, pulleys, and housings.
-

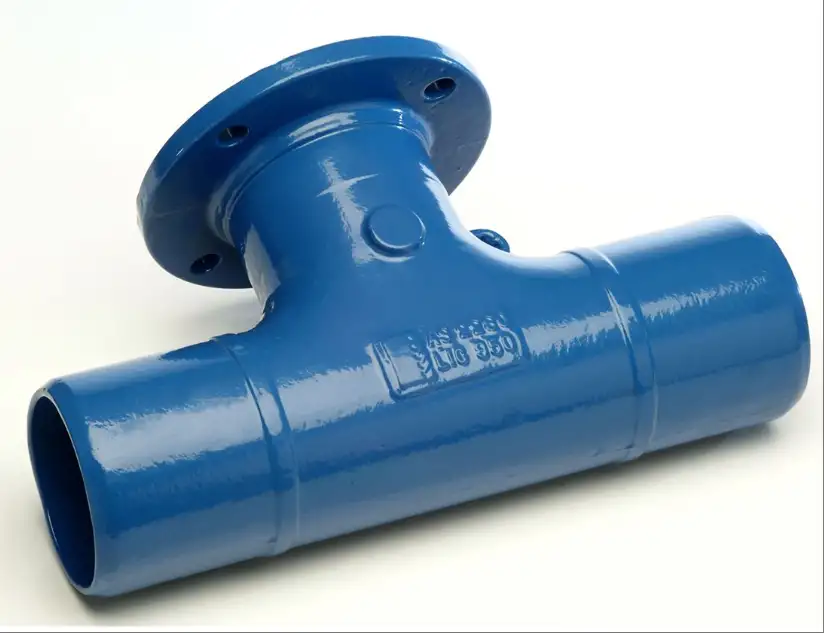

Piping Systems: Used in water, sewage, and gas piping systems due to its excellent resistance to stress and corrosion.
-
Construction and Infrastructure: Parts like manhole covers, pipe fittings, and structural components that need a combination of strength and flexibility.
7. Key Differences Between ASTM A536 Grade 70-50-05 and Other Ductile Iron Grades
While ASTM A536 grade 70-50-05 is a versatile and reliable material, it is essential to understand its differences from other ductile iron grades to select the appropriate material for a given application. The key differences lie in:
-
Strength: Higher-grade ductile irons like ASTM A536 grade 80-55-06 offer better tensile and yield strength, making them suitable for more demanding applications.
-
Elongation: ASTM A536 grade 70-50-05 provides a good balance of strength and ductility, but grades like 60-40-18 offer more elongation, making them better for parts requiring more flexibility.
8. Benefits of Using ASTM A536 Grade 70-50-05
The use of ASTM A536 grade 70-50-05 offers several benefits, including:
-
High Strength: With a tensile strength of 70 ksi, it can handle high loads and stresses, making it ideal for mechanical parts.
-
Good Ductility: The 5% elongation ensures the material can absorb some deformation before breaking.
-
Cost-Effectiveness: It offers a good balance between performance and cost, making it an economical choice for various applications.
-
Corrosion Resistance: Ductile iron is naturally resistant to corrosion, especially when coated, making it suitable for underground and underwater applications.
9. Common Questions about ASTM A536 Grade 70-50-05
1. What is the equivalent of ASTM A536 Grade 70-50-05 in Europe?
The European equivalent to ASTM A536 grade 70-50-05 is EN 1563 GJS-500-7, which has similar mechanical properties and is used in applications such as automotive and heavy machinery.
2. Can ASTM A536 Grade 70-50-05 be used for water piping systems?
Yes, ASTM A536 grade 70-50-05 is commonly used in water and sewage piping systems. Its combination of strength and ductility ensures that it can handle the stresses involved in such applications without failure.
3. How does the chemical composition of ASTM A536 Grade 70-50-05 affect its properties?
The chemical composition, including elements like carbon, silicon, and magnesium, helps form the unique microstructure of ductile iron. This microstructure contributes to the material’s excellent mechanical properties, such as high strength and good elongation.
4. What industries benefit from using ASTM A536 Grade 70-50-05?
Industries such as automotive, construction, and heavy machinery benefit from using this material due to its strength, toughness, and corrosion resistance.
5. How does ASTM A536 Grade 70-50-05 compare to ASTM A536 Grade 80-55-06?
ASTM A536 grade 70-50-05 offers lower strength but better elongation than ASTM A536 grade 80-55-06. The latter is suitable for applications requiring higher strength, but the former provides a better balance between strength and flexibility.
10. Conclusion
ASTM A536 grade 70-50-05 is a widely used material for various industrial and infrastructure applications. Its mechanical properties and chemical composition make it a reliable choice for parts that need to withstand high stresses, impacts, and corrosion. Understanding the equivalents to this grade, such as EN 1563 GJS-500-7 and other ductile iron grades, allows engineers to choose the appropriate material for their needs, ensuring performance and longevity.
