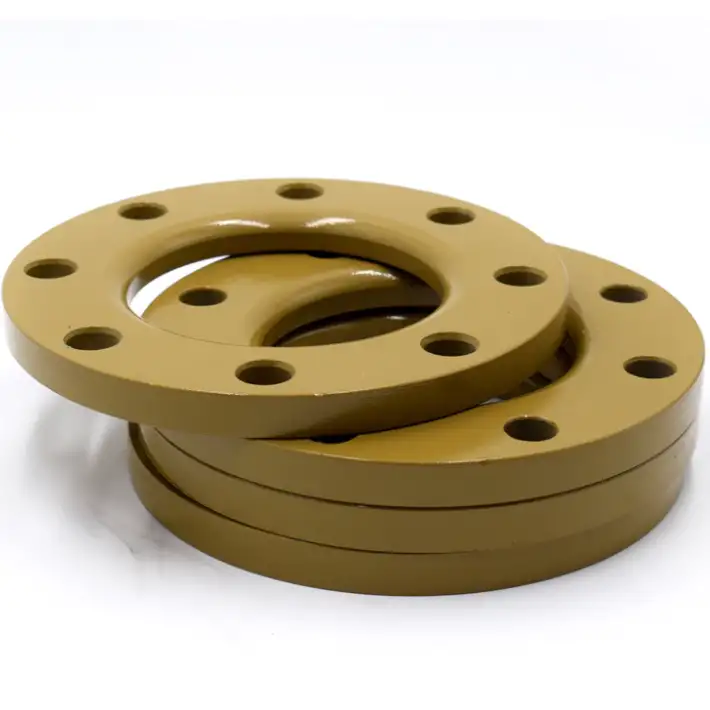

Ductile iron flanges are key components used in the piping systems of various industries. These flanges are made from ductile iron, a material known for its high tensile strength, flexibility, and resistance to corrosion. Ductile iron flanges are crucial for connecting pipes and ensuring a secure, leak-free connection in fluid transport systems.
1. Introduction to ASME B16.42
Overview of ASME B16.42
The ASME B16.42 standard, titled “Ductile Iron Pipe Flanges and Flanged Fittings,” provides the minimum requirements for the design, materials, dimensions, and performance of ductile iron flanges and flanged fittings. It applies to Class 150 and Class 300 flanges and fittings used in piping systems.
Importance in the Industry
ASME B16.42 ensures compatibility and interchangeability of ductile iron flanges and fittings across different manufacturers. This standard is crucial for maintaining system integrity, safety, and reliability in various applications, including water distribution and industrial processes.
2. Material Specifications
ASTM A395 and ASTM A536
Ductile iron flanges and fittings covered by ASME B16.42 must conform to specific material standards:
-
ASTM A395: Ferritic ductile iron pressure-retaining castings for use at elevated temperatures.
-
ASTM A536: Standard specification for ductile iron castings.
Material Properties and Grades
The standard primarily references ASTM A536 Grade 65-45-12, which denotes:
-
65: Minimum tensile strength of 65,000 psi.
-
45: Minimum yield strength of 45,000 psi.
-
12: Minimum elongation of 12%.
These material properties ensure the flanges and fittings possess the necessary strength and ductility for demanding applications.
3. Flange Classes and Pressure Ratings
Class 150 and Class 300
ASME B16.42 specifies two pressure classes for ductile iron flanges and fittings:
-
Class 150: Suitable for lower pressure applications.
-
Class 300: Designed for higher pressure systems.
Pressure-Temperature Ratings
The pressure-temperature ratings for these classes are as follows:
| Class | Max Pressure (psi) | Max Temperature (°F) |
|---|---|---|
| 150 | 250 | 100 |
| 300 | 500 | 100 |
These ratings are critical for selecting the appropriate flange class based on system requirements.
4. The Role of ASME Standards in Ductile Iron Flanges
ASME standards are essential for ensuring that ductile iron flanges meet the necessary criteria for strength, durability, and safety. These standards specify the dimensions, material properties, pressure ratings, and testing methods that manufacturers must adhere to when producing flanges.
By adhering to ASME standards, manufacturers can ensure that their flanges are reliable, safe, and suitable for use in critical infrastructure systems. These standards also ensure that ductile iron flanges meet the stringent requirements for industries such as water treatment, oil and gas, and power generation.
5. Key ASME Standards for Ductile Iron Flanges
-
ASME B16.1: Cast Iron Pipe Flanges and Flanged Fittings
This standard applies to cast iron flanges used in piping systems. It defines the materials, dimensions, and pressure ratings for cast iron flanges, including those made from ductile iron. -
ASME B16.42: Ductile Iron Pipe Flanges and Flanged Fittings
ASME B16.42 specifically covers the design, dimensions, and pressure ratings of ductile iron flanges. This standard is key for manufacturers and engineers working with ductile iron flanges. -
ASME B16.5: Pipe Flanges and Flanged Fittings
Although this standard is more general, it includes requirements for ductile iron flanges used in certain pressure systems. It covers flange designs, materials, and sizes for a variety of industries.
Each of these standards ensures that ductile iron flanges are produced to meet the mechanical, dimensional, and safety requirements necessary for their application.
6. Design Considerations for Ductile Iron Flanges
When designing ductile iron flanges, several factors must be considered to ensure strength and durability:
-
Material Strength: Ductile iron is chosen for its high tensile strength, which makes it ideal for high-pressure systems.
-
Flange Dimensions: The size and thickness of the flange determine its pressure rating and compatibility with other components.
-
Connection Methods: Flanges can be designed for bolted, welded, or threaded connections, depending on the application.
ASME standards ensure that these design elements meet the necessary criteria for performance and safety.
7. Pressure Rating and Size Considerations
The pressure rating of a flange is determined by its size and thickness. Flanges are designed to withstand a specific range of internal pressure, and the material properties of ductile iron ensure that it can handle high-pressure applications.
-
Size Considerations: The size of a flange depends on the pipe diameter it is designed to fit. Larger pipes typically require larger and thicker flanges to handle the increased pressure.
-
Pressure Ratings: ASME B16.42 provides guidelines for pressure ratings based on the size and thickness of the flange.
8. Applications of Ductile Iron Flanges
Ductile iron flanges are used in various industries, including:
-
Water Treatment: Ductile iron flanges are commonly used in water distribution systems to connect pipes, valves, and fittings.
-
Oil and Gas: The high strength and corrosion resistance of ductile iron make it ideal for oil and gas pipelines and refineries.
-
Power Generation: In power plants, ductile iron flanges are used in steam, gas, and water systems to maintain secure, high-pressure connections.
9. Manufacturing Process of Ductile Iron Flanges
The manufacturing of ductile iron flanges involves several steps:
-
Casting: The ductile iron is melted and poured into molds to form the flange shape.
-
Machining: After casting, the flanges are machined to meet the required dimensions and specifications.
-
Testing and Quality Control: Flanges are tested for material properties, pressure resistance, and dimensional accuracy to ensure they meet ASME standards.
10. Future Trends in Ductile Iron Flange Manufacturing
The future of ductile iron flange manufacturing will likely see improvements in materials and production techniques, driven by the demand for stronger, more durable components. Innovations in casting technology, corrosion-resistant coatings, and sustainability initiatives will shape the future of flange production.
11. Frequently Asked Questions (FAQs)
1. What is the difference between Class 150 and Class 300 ductile iron flanges?
Class 150 flanges are rated for a maximum pressure of 250 psi at 100°F, while Class 300 flanges are rated for 500 psi at the same temperature. The higher pressure rating of Class 300 flanges makes them suitable for applications with higher pressure requirements.
2. Can ductile iron flanges be used in high-temperature applications?
Ductile iron flanges are suitable for temperatures up to 100°F. For higher temperature applications, materials like steel or other alloys may be more appropriate due to their higher temperature resistance.
3. Are ductile iron flanges interchangeable with cast iron flanges?
No, ductile iron flanges conform to ASME B16.42, while cast iron flanges conform to ASME B16.1. The dimensions and pressure ratings differ, making them not interchangeable.
4. Can ductile iron flanges be used in high-pressure systems?
Yes, ductile iron flanges are designed to handle high-pressure systems. The pressure rating depends on the size and thickness of the flange, as specified in ASME B16.42.
5. What is the manufacturing process for ductile iron flanges?
The manufacturing process for ductile iron flanges involves casting the material into molds, followed by machining to the required dimensions and testing for quality control. Flanges are then coated to prevent corrosion and ensure durability.
6. What industries use ductile iron flanges?
Ductile iron flanges are used in industries such as water treatment, oil and gas, power generation, and construction. Their durability and resistance to corrosion make them ideal for critical applications in these sectors.
