Understanding Allowable Leakage in Ductile Iron Pipes

Time:2025-05-09

Ductile iron pipes are integral components in water distribution systems due to their strength, durability, and resistance to corrosion. Ensuring the integrity of these pipes is crucial, and one of the key aspects is understanding and managing allowable leakage during hydrostatic testing.

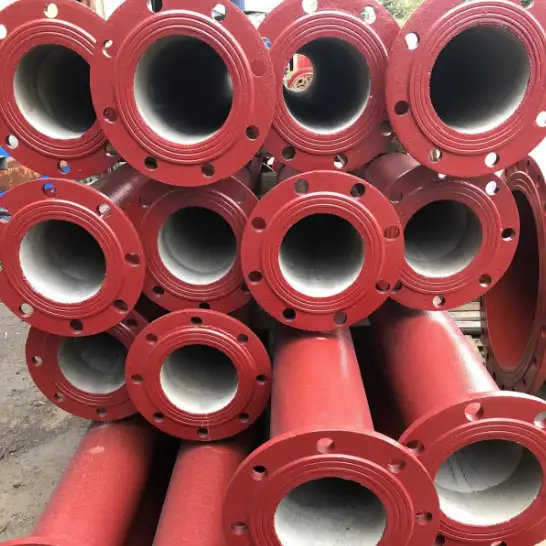

Allowable Leakage in Ductile Iron Pipes
Allowable Leakage in Ductile Iron Pipes

1. What Is Allowable Leakage?

Allowable leakage refers to the maximum permissible amount of water that can escape from a pipeline during a hydrostatic pressure test. This leakage is typically quantified in gallons per hour per 1,000 feet of pipe length. The concept is vital for assessing the quality of pipe installations and ensuring that the infrastructure meets the required standards for water tightness.

2. Standards and Guidelines

Several standards provide guidelines for allowable leakage in ductile iron pipes:

  • AWWA C600: This standard outlines the installation of ductile iron mains and their appurtenances, including procedures for hydrostatic testing and allowable leakage calculations.

  • AWWA C605: Pertains to the installation of PVC pressure pipe and fittings, offering similar guidelines for leakage testing.

  • Local Regulations: Municipalities and regions may have specific requirements that align with or build upon these standards.

3. Factors Affecting Leakage Rates

Several factors can influence the leakage rates in ductile iron pipes:

  • Pipe Diameter: Larger diameter pipes have higher allowable leakage due to their increased volume.

  • Test Pressure: Higher test pressures can lead to increased leakage rates.

  • Installation Quality: Proper installation techniques, including correct joint assembly and gasket placement, minimize leakage.

  • Pipe Condition: New pipes typically exhibit lower leakage rates compared to older or corroded pipes.

  • Environmental Conditions: Soil type, moisture levels, and external pressures can impact the integrity of the pipe and its joints.

4. Calculating Allowable Leakage

The formula for calculating allowable leakage is:

allowable leakage formula for ductile iron pipe​
allowable leakage formula for ductile iron pipe​

Where:

  • L = Allowable leakage (gallons per hour)

  • S = Length of pipe tested (feet)

  • D = Nominal diameter of the pipe (inches)

  • P = Average test pressure (psi)

This formula is derived from AWWA C600 and provides a standardized method for determining acceptable leakage rates during testing.

5. Testing Procedures

Hydrostatic testing involves filling the pipeline with water, expelling all air, and pressurizing the system to a specified test pressure. The pressure is maintained for a set duration, typically two hours, while monitoring for any pressure drops that would indicate leakage. The amount of water added to maintain pressure is measured to determine the leakage rate.

6. Leakage in Different Pipe Sizes

Allowable leakage varies with pipe size. For example, at a test pressure of 150 psi, the allowable leakage per 1,000 feet of ductile iron pipe is approximately:

  • 4-inch pipe: 0.33 gallons per hour

  • 6-inch pipe: 0.50 gallons per hour

  • 8-inch pipe: 0.66 gallons per hour

  • 10-inch pipe: 0.83 gallons per hour

  • 12-inch pipe: 0.99 gallons per hour

  • 16-inch pipe: 1.32 gallons per hour

These values are based on standard calculations and may vary depending on specific conditions and local regulations.

7. Comparison with Other Pipe Materials

Pipe Material Allowable Leakage (gph per 1,000 ft) Notes
Ductile Iron Varies by size and pressure Standard material for water mains
PVC Generally lower than ductile iron Susceptible to joint separation under pressure
Steel Varies; typically higher than ductile iron Requires protective coatings to prevent corrosion

8. Maintenance and Monitoring

Regular maintenance and monitoring are essential to ensure the continued integrity of ductile iron pipelines. This includes routine inspections, pressure testing, and addressing any identified issues promptly to prevent significant leakage or system failures.

9. Frequently Asked Questions (FAQs)

Q1: What is the significance of allowable leakage in ductile iron pipes?

Allowable leakage is a critical parameter in assessing the quality of pipe installations. It ensures that the pipeline maintains its integrity under pressure and does not lose an excessive amount of water, which could indicate potential issues such as joint failures or material defects.

Q2: How is allowable leakage calculated?

Allowable leakage is calculated using a formula that considers the length of the pipe, its diameter, and the test pressure.

Q3: What factors influence allowable leakage rates?

Several factors can affect leakage rates, including:

  • Pipe Diameter: Larger pipes have higher allowable leakage due to their increased volume.

  • Test Pressure: Higher test pressures can lead to increased leakage rates.

  • Installation Quality: Proper installation techniques minimize leakage.

  • Pipe Condition: New pipes typically exhibit lower leakage rates compared to older or corroded pipes.

  • Environmental Conditions: Soil type, moisture levels, and external pressures can impact the pipe’s integrity.

Q4: How does ductile iron compare to other materials regarding leakage?

Ductile iron pipes generally exhibit lower leakage rates compared to materials like PVC and steel. This is due to their strength, durability, and resistance to corrosion, which help maintain the integrity of the joints and prevent leakage.

Q5: What maintenance practices help minimize leakage?

Regular maintenance practices include:

  • Routine Inspections: Regularly check for signs of wear, corrosion, or joint failures.

  • Pressure Testing: Conduct hydrostatic tests to assess the pipeline’s integrity.

  • Prompt Repairs: Address any identified issues promptly to prevent further damage.

  • Proper Installation: Ensure that pipes and joints are installed according to manufacturer specifications.

Q6: Are there any tools to assist in calculating allowable leakage?

Yes, tools like the McWane Pocket Engineer’s Hydrotest Allowance Calculator can assist in calculating allowable leakage based on pipeline information. These tools provide results per ANSI/AWWA C600 standards.
