Top Uses of Black Iron Pipe: Gas, Sprinklers, Steam & Design

Time:2025-06-10

I’ve worked in piping and construction for over a decade. In that time, black iron pipe has become a trusty workhorse in my toolkit. I still recall my first job welding gas mains—watching black iron pipes being threaded and slotted into place. That moment stuck with me. Today, I want to share what I know about its uses, standards, pros and cons, and even a real‑life project that showcases its value.

1. Definition & Composition

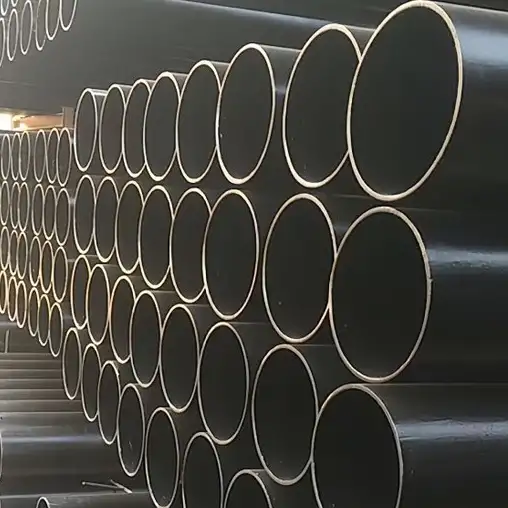

Black iron pipe is essentially a carbon steel pipe with a dark, oxidized surface finish. It gets its name simply because it lacks any galvanizing or zinc coating. That black oxide skin isn’t paint—it’s iron oxide formed during hot‑rolling.

It’s made from mild steel—either welded or seamless—and is designed to carry gas, water (non-potable), and steam. But what really sets it apart is the rugged coating and threading that make it the go-to for gas mains.

2. Standards & Specifications

In professional work, I always check pipe markings against recognized standards:

Standard Uses Brief
ASTM A53/A53M Gas/water piping (Schedule 40/80) Defines black steel classification
ANSI B36.10 / B36.19 Nominal thickness standards Includes schedule tolerances
ASME B31.1 / B31.3 Boiler/Process piping codes Ensures pressure & temp capability
NFPA 13 Fire sprinkler systems Black iron is acceptable for wet systems
UL/FM certified Commercial fire sprinkler systems Required for UL/FM listing

These standards ensure reliability when high pressures—or lives—are at stake.

3. Primary Applications

A. Residential & Commercial Gas Lines

Black iron pipe is still THE standard for natural gas and propane distribution within buildings. It’s strong, self‑threading, and reliable. The National Fuel Gas Code (ANSI Z223.1) formally permits its use due to tight threading and pressure capability.

B. Fire Sprinkler Systems

When I installed a sprinkler system on a retrofit job, we used black iron for all risers and mains. Its heat‑resistant properties (melting point >538 °C) made it ideal under NFPA 13.

C. Steam & Hydronic Heating

Used in older boiler plants and hydronic systems. Black iron resists steam-induced stresses, provided coils and pressure are managed. You won’t see it in chilled systems.

D. Oil & Petrochemical Pipelines

High-strength black steel pipes (∼300 psi working pressure) are used in field gathering lines and oilfield service.

E. Architectural & Industrial Design

These days, black iron pipes serve in loft-style décor—handrails, shelving, lighting fixtures—thanks to their industrial chic.

F. Structural & Agricultural Uses

They also appear in fences, scaffolding, irrigation systems, and rural water lines, though often with extra coatings.

What Is Black Iron Pipe Used For?
What Is Black Iron Pipe Used For?

4. Pros & Cons

Pros

  • Durability: Strong, heat-resistant, and survives mechanical stress.

  • Ease of Threaded Assembly: No welding required—simple for field work.

  • Cost‑Effective: Cheaper than galvanized steel, PVC, and copper for gas or fire lines.

  • Industry Trusted: Preferred codes/specs for gas, fire, steam.

Cons

  • Corrosion Prone: Black oxide offers little rust resistance; not for potable or exposed water lines.

  • Heavy & Rigid: Harder to transport and install than PVC or copper.

  • Leak Risk at Threads: Must wrap joints carefully (PTFE tape, pipe dope).

  • Interior Rust: Can degrade water quality if used improperly.

5. Comparisons with Alternatives

Feature Black Iron Pipe Galvanized Steel PVC/CPVC/Copper
Corrosion Resistance Low High Excellent
Threading Required Yes Yes No
Load Tolerance High High Moderate
Cost Low–Mid Mid Low‑High (depending)
Suitable for Gas ✅ Yes ❌ No ❌ No
Suitable for Water ❌ Potable? No ✅ Yes ✅ Yes

I always choose black iron for gas/fires, galvanized for outdoor exposed water, PVC or copper for potable water.

6. Installation Practices & Best Practices

  • Corrosion Protection: Paint or wrap underground lines to prevent rust.

  • Proper Thread Sealing: Use PTFE (“Teflon”) tape and pipe compound on male threads.

  • Use of Bushings/Adapters: Transition to copper/PVC requires dielectric unions to avoid corrosion.

  • Pressure Testing: Hydro-test all systems past 1.5× working pressure.

  • Support & Hanger Spacing: Per B31.1—every 3 ft for horizontal pipe, 1 ft for vertical risers.

  • Heat Monitoring in Fire Systems: Don’t overheat during welding or torch work.

7. Case Study: Retro-Fitting a Fire Sprinkler System

Project: Historic theater retrofit (circa 1925)
Challenge: Add modern sprinkler system while preserving original architectural elements.

Solution:

  • Installed black iron risers and mains under stage floors—threaded assembly minimized welding heat exposure.

  • Branch sprinklers to wood ceilings used drops with galvanized adapters.

  • Pressure tested system to 200 psi per NFPA 13 before concealment.

  • All underground segments painted with epoxy primer to prevent soil corrosion.

Outcome:

  • Successful 25-year UL certification.

  • Zero leaks.

  • Historic aesthetics preserved.

  • Cost savings compared to welded systems.

This high‑stakes environment proved black iron’s strength and practicality—thread‑in fittings saved us from costly welding.

8. Common FAQs

1. Can black iron pipes be used for drinking water?

No—because they rust internally. Instead, use galvanized steel, copper, or plastic pipes for potable water systems.

2. Why is black iron standard for gas lines?

Rust resistance isn’t critical with dry gas. The threaded fittings and pressure capability (>150 psi) make it ideal per ANSI/NFPA standards.

3. What protects black iron from rust underground?

Coating methods like epoxy paint, polyethylene wrap, and cathodic protection. Without them, it can rust within a few years.

4. What has changed from older black iron pipes to modern steel pipes?

Today’s standards (ASTM A53) specify tolerances and testing. Welded, seamless, galvanization, and high-pressure ratings now improve consistency and safety.

5. How do I choose between black iron and alternatives for a project?

Match material to application:

  • Gas/fire → black iron

  • Outdoor water → galvanized

  • Interior potable water → copper/PVC/CPVC

  • Cost-effective and code-compliant: black iron is often the winner in gas/fire jobs.

Real-World Takeaways

I value black iron pipe not just because it’s rugged. It’s versatile, universally accepted in codes, and carries a storied legacy in gas, fire, and industrial use. But it isn’t a cure‑all—it’s just right for certain jobs. Future projects should assess environment, pressure, fluids, and code demands. If those align with black iron’s strengths, few materials compare.
