SG Iron, also known as Spheroidal Graphite Iron or Ductile Iron, is an advanced form of cast iron that is prized for its high strength, durability, and versatility. It is often used in the manufacturing of heavy-duty mechanical components, engine blocks, pipes, and other structural parts that require high performance in demanding environments. SG Iron is produced by modifying the graphite structure found in cast iron, which enhances its mechanical properties, making it superior to traditional grey cast iron in many ways.
In this comprehensive guide, we will explore SG Iron in-depth, including its composition, manufacturing processes, mechanical properties, advantages, and applications. We will also discuss the various industries that rely on SG Iron for critical components, along with a comparison of SG Iron against other materials like steel and grey cast iron.
What is SG Iron?
SG Iron is a type of cast iron in which the graphite is not flake-shaped but rather forms spherical or nodular shapes, hence the name “Spheroidal Graphite Iron.” This structure significantly improves the material’s mechanical properties, such as tensile strength, impact resistance, and elongation.
The key difference between SG Iron and other forms of cast iron (like grey cast iron or white cast iron) lies in the structure of the graphite phase. In grey cast iron, graphite is in the form of flakes, which can act as stress concentrators, making the material brittle. However, in SG Iron, the graphite is spheroidal, which enhances ductility, toughness, and the material’s ability to absorb impact.
Composition of SG Iron
SG Iron is primarily composed of iron, carbon, and silicon, similar to traditional cast iron, but with a controlled amount of other alloying elements to ensure the formation of spherical graphite. The basic chemical composition of SG Iron typically includes:
-
Carbon (C): 3.0 – 4.0%
-
Silicon (Si): 2.0 – 3.0%
-
Manganese (Mn): 0.2 – 1.0%
-
Sulfur (S): <0.02%
-
Phosphorus (P): <0.10%
-
Magnesium (Mg): 0.03 – 0.06% (this is the key element used to promote spheroidal graphite formation)
Other elements like copper, nickel, and chromium may be added to achieve specific material properties such as improved corrosion resistance or increased strength.
Properties of SG Iron
SG Iron offers a combination of strength, ductility, and resistance to wear and corrosion, making it ideal for a wide range of engineering applications. The properties of SG Iron can be further enhanced by adjusting its composition and using various heat treatment processes.
Mechanical Properties:
-
Tensile Strength: SG Iron typically has a tensile strength ranging from 300 MPa to over 800 MPa, depending on the grade. This is significantly higher than that of grey cast iron.
-
Yield Strength: The yield strength is also improved compared to traditional cast iron, making SG Iron suitable for applications where the material must withstand high loads.
-
Elongation: SG Iron offers better elongation (up to 12-20%), making it more ductile and capable of deforming before breaking. This property is particularly useful in applications where impact resistance is critical.
-
Hardness: SG Iron has a Rockwell hardness of 20-25, which gives it excellent wear resistance.
-
Impact Resistance: The spherical graphite structure allows SG Iron to absorb shock loads better than grey cast iron, making it more suitable for high-impact applications.
Physical Properties:
-
Density: 6.9 g/cm³
-
Melting Point: Approximately 1,200°C
-
Thermal Conductivity: Similar to grey cast iron, making it useful for heat exchangers and engine blocks.
Manufacturing Process of SG Iron
The process of making SG Iron involves several critical steps, with one of the most important being the addition of magnesium to molten cast iron to induce the formation of spheroidal graphite. Below is a simplified overview of the manufacturing process:
-
Melting: The raw iron is melted in a furnace (either an electric arc furnace or an induction furnace).
-
Addition of Alloying Elements: Magnesium is added to the molten iron to initiate the formation of spheroidal graphite. The amount of magnesium is carefully controlled.
-
Inoculation: After magnesium addition, the iron is inoculated with other elements like silicon, manganese, and copper to refine the grain structure and enhance the material properties.
-
Casting: The molten SG Iron is poured into molds to form the desired shape, which could be pipes, engine components, or industrial machinery parts.
-
Heat Treatment: After casting, SG Iron may undergo heat treatment processes like annealing or tempering to further enhance its mechanical properties, especially strength and hardness.
Applications of SG Iron
SG Iron is used in a wide range of industries due to its excellent mechanical properties. Some of the most common applications include:
1. Automotive Industry
SG Iron is extensively used for manufacturing engine blocks, cylinder heads, crankshafts, and other critical engine components. Its ability to withstand high pressures, resist wear, and absorb impact makes it the material of choice for these applications.
2. Pipe Manufacturing

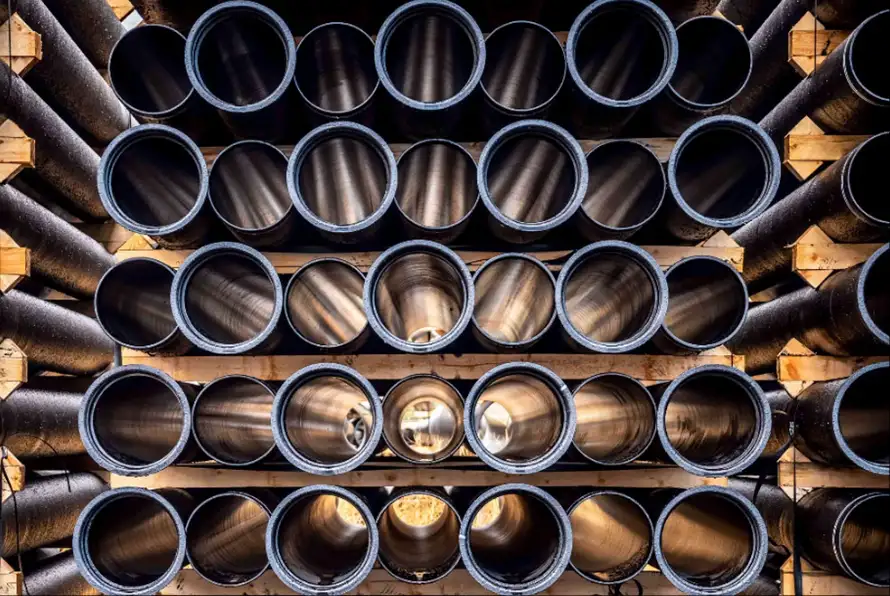

Ductile iron pipes made from SG Iron are widely used in water and wastewater distribution systems due to their corrosion resistance and strength. SG Iron pipes are preferred for their ability to handle high pressure and for their longevity.
3. Machinery and Equipment
SG Iron is used to produce parts for heavy machinery such as gearboxes, pumps, and industrial valves. The material’s combination of toughness and wear resistance makes it ideal for such applications.
4. Structural Components
SG Iron is also used in the manufacturing of structural components like beams, columns, and frames for industrial buildings. Its strength and resistance to fatigue make it suitable for supporting heavy loads.
Comparison of SG Iron with Other Materials
| Material | Tensile Strength (MPa) | Elongation (%) | Hardness (HB) | Cost (per ton) | Applications |
|---|---|---|---|---|---|
| SG Iron (Ductile Iron) | 300 – 800 | 12 – 20 | 180 – 250 | Moderate | Automotive, pipes, machinery |
| Grey Cast Iron | 150 – 300 | 1 – 2 | 150 – 200 | Low | Engine blocks, pipes, frames |
| Steel | 400 – 900 | 15 – 25 | 150 – 250 | High | Structural components, tools |
| Aluminum Alloys | 150 – 400 | 5 – 20 | 40 – 100 | High | Lightweight parts, automotive |
Frequently Asked Questions (FAQs)
1. What is the difference between SG Iron and Grey Cast Iron?
SG Iron and Grey Cast Iron are both types of cast iron but differ in their graphite structure. While Grey Cast Iron has flake-like graphite, SG Iron has spheroidal (nodular) graphite. This structural difference gives SG Iron superior mechanical properties, such as higher tensile strength, improved ductility, and greater impact resistance. Grey Cast Iron, while cheaper, is more brittle and less suited for high-stress applications.
2. What industries use SG Iron the most?
SG Iron is widely used in industries like automotive (for engine components), construction (for pipes and structural parts), and heavy machinery (for gears and mechanical components). Its high strength, durability, and resistance to wear make it ideal for demanding environments where reliability is critical.
3. How is SG Iron produced?
SG Iron is produced by adding magnesium to molten cast iron, which induces the formation of spherical graphite. This process is called “nodularization” and is followed by inoculation with other alloying elements. The molten iron is then cast into molds to create the desired parts.
4. Is SG Iron more expensive than regular cast iron?
Yes, SG Iron tends to be more expensive than regular cast iron due to the more complex manufacturing process and the addition of magnesium and other alloying elements. However, its superior mechanical properties make it a cost-effective choice for high-performance applications, as it often leads to longer-lasting and more reliable products.
5. Can SG Iron be used in high-temperature applications?
While SG Iron has good thermal conductivity and can withstand moderately high temperatures, it is not ideal for extreme high-temperature environments (above 600°C). For higher temperature applications, materials like steel or nickel alloys are more suitable. However, SG Iron is commonly used in applications like engine blocks and exhaust systems, where it can handle the typical operating temperatures.
Conclusion
SG Iron is a versatile and high-performance material with a wide range of applications across various industries. Its enhanced mechanical properties—thanks to the spherical graphite structure—make it ideal for critical components that require strength, durability, and impact resistance. Whether in automotive manufacturing, pipe systems, or heavy machinery, SG Iron proves to be a reliable choice for engineers and manufacturers worldwide.
