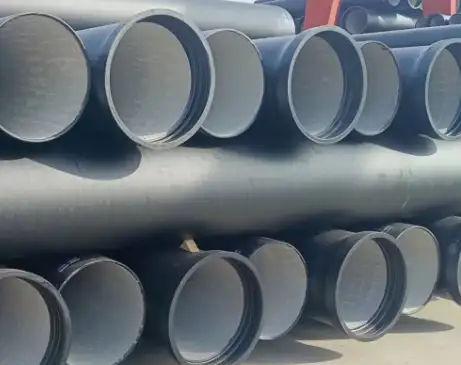

Restrained joint ductile iron pipe (RJDI) is an essential component of modern water distribution, wastewater systems, and other fluid transportation infrastructure. It is designed to provide a secure, leak-proof connection in a variety of pipeline systems that experience high pressure and dynamic forces. The restrained joint design prevents the pipe from separating under conditions like ground movement, pressure surges, and extreme loading conditions.
This article delves into the dimensions, benefits, materials, installation methods, and applications of restrained joint ductile iron pipes. We will also explore the most common standards for these pipes and the various factors that engineers and professionals need to consider when specifying or installing these fittings in real-world applications.
1. What is a Restrained Joint Ductile Iron Pipe?
A restrained joint ductile iron pipe is a type of ductile iron pipe that features a specialized joint system to prevent the pipe from pulling apart under pressure. The restrained joint typically uses mechanical components such as restraining bolts, locking devices, or internal and external restraining rings that provide additional force to hold the joint together. This is particularly important in systems where high-pressure fluctuations, surge forces, or external ground movement may occur.
These pipes are used in various water and wastewater applications, and their restrained joints help ensure that the pipeline remains intact and fully operational under pressure.
2. Key Features and Benefits of Restrained Joint Ductile Iron Pipe
Restrained joint ductile iron pipes are popular because of their numerous benefits over traditional pipe systems, including their enhanced strength, flexibility, and durability. Below are the key features:
2.1. Strength and Durability
Ductile iron, the base material for these pipes, is known for its remarkable tensile strength, resistance to impact, and fatigue resistance. These properties ensure that restrained joint ductile iron pipes can withstand significant external forces and pressure surges in the pipeline.
2.2. Leak-Proof Design
The restrained joint design provides a secure and watertight seal that prevents leakage at the joints. This is especially important in critical infrastructure, such as water distribution and sewage systems, where even minor leaks can lead to costly repairs and system failures.
2.3. Flexibility and Impact Resistance
Ductile iron is much more flexible than traditional cast iron, making restrained joint ductile iron pipes more resistant to cracking under stress or external forces, such as seismic activity or soil movement.
2.4. Corrosion Resistance
Ductile iron is highly resistant to corrosion, especially when coated with additional protective layers like epoxy or bituminous coatings. This ensures the pipes have a long service life, even in aggressive environments.
2.5. Ease of Installation
Restrained joint ductile iron pipes are relatively easy to install, especially compared to welded pipes or other rigid pipeline solutions. The joint system allows for quick assembly and alignment, saving time during construction or repair projects.
3. Types of Restrained Joints for Ductile Iron Pipes
Various types of restrained joints are available, and each has distinct characteristics that suit different installation scenarios. The most common types of restrained joints include:
3.1. Mechanical Joint
Mechanical joints use a combination of rubber gaskets, bolts, and flanges to secure the pipe together. The bolts tighten the joint, ensuring that it remains in place, while the gasket provides a watertight seal. This is one of the most commonly used restrained joint designs for ductile iron pipes.
3.2. Push-On Joint with Restraint
Push-on joints with restraint typically feature a specially designed restraint ring or locking mechanism that prevents separation. The push-on feature simplifies installation, while the restraint ensures a secure connection.
3.3. Flanged Joint
Flanged joints use flanged ends that are bolted together with a gasket in between to prevent leaks. The flange offers additional strength and stability, making it ideal for high-pressure applications.
3.4. Compression Joint
Compression joints combine a rubber gasket and an internal ring, providing additional restraint. These joints are especially useful in situations where the pipeline may be exposed to shifting ground or seismic activity.
4. Applications of Restrained Joint Ductile Iron Pipe
Restrained joint ductile iron pipes are commonly used in various critical applications, especially those involving high-pressure systems or environments that pose risks of ground movement. Key applications include:
4.1. Water Distribution Systems
In municipal water systems, restrained joint ductile iron pipes are used to carry potable water from treatment plants to homes, businesses, and other facilities. The pipes’ ability to withstand high pressure and prevent leaks makes them an excellent choice for maintaining a reliable water supply.
4.2. Wastewater Systems
Restrained joint ductile iron pipes are also used in sewage and wastewater systems, where pressure and external forces can be unpredictable. The durability and corrosion resistance of these pipes ensure long-term performance in harsh environments.
4.3. Industrial Applications
In industrial settings, restrained joint ductile iron pipes can be used to transport chemicals, oil, and gas, providing a robust solution that prevents leakage and maintains safety even in high-pressure environments.
4.4. Fire Suppression Systems
Ductile iron pipes with restrained joints are often used in fire suppression systems due to their ability to carry high-pressure water safely, ensuring quick access to water in case of fire emergencies.
5. Comparison Table of Ductile Iron Pipe Types and Their Applications
| Type of Pipe | Material | Application | Advantages | Limitations |
|---|---|---|---|---|
| Restrained Joint Ductile Iron Pipe | Ductile Iron | Water distribution, sewage, industrial | Leak-proof, high pressure, corrosion-resistant | Higher initial cost compared to PVC |
| PVC Pipe | PVC | Residential water supply | Lightweight, cost-effective | Prone to cracking under high pressure |
| Steel Pipe | Steel | Industrial applications | Strong, durable | Susceptible to corrosion, expensive |
| Cast Iron Pipe | Cast Iron | Older water distribution | Long service life | Brittle, prone to cracking under stress |
6. Installation of Restrained Joint Ductile Iron Pipe
Installing restrained joint ductile iron pipes requires careful attention to detail to ensure a secure and leak-free system. The process involves the following steps:
6.1. Site Preparation
The area where the pipe will be installed must be cleared of debris, and trenches should be dug to the required depth and width. Proper alignment is essential to ensure that the joints will fit securely.
6.2. Joint Assembly
Each joint of the ductile iron pipe is carefully assembled, with the restraining components (such as bolts or locking devices) installed to ensure the joint stays in place.
6.3. Pipe Alignment and Support
The pipes should be properly aligned with the supporting structures, and necessary restraints should be applied to prevent movement under pressure. It is crucial to ensure the correct torque is applied when tightening bolts to achieve the desired level of restraint.
6.4. Testing
Once installation is complete, the system should be pressure-tested to ensure no leaks or weak points in the joints.
7. Standards and Specifications for Restrained Joint Ductile Iron Pipe
Several national and international standards govern the manufacturing and installation of restrained joint ductile iron pipes. Some key standards include:
7.1. AWWA C151
The American Water Works Association (AWWA) C151 standard provides specifications for the manufacture of ductile iron pipes. This standard ensures that the pipes meet performance criteria, including tensile strength, pressure ratings, and other critical characteristics.
7.2. ANSI/AWWA C111
This standard covers the design and installation of mechanical joints for ductile iron pipes, including restrained joints. It ensures that the mechanical joint system can safely handle the pressures and stresses placed on the pipe.
7.3. ISO 2531
The International Organization for Standardization (ISO) provides specifications for ductile iron pipes under ISO 2531, which applies globally. This standard covers pipe dimensions, materials, and test procedures.
8. Frequently Asked Questions (FAQs)
1. How does a restrained joint ductile iron pipe prevent separation?
A restrained joint ductile iron pipe prevents separation by using mechanical means, such as bolts, locking mechanisms, or restraint rings, to hold the joints together securely. These restraints counteract the pressure and forces that could otherwise cause the pipe sections to disconnect.
2. What are the advantages of using restrained joint ductile iron pipes over other pipe types?
Restrained joint ductile iron pipes offer significant advantages, such as better leak prevention, higher pressure resistance, and improved durability, especially in harsh environments where other pipes may fail. Their ability to resist corrosion and withstand seismic activity makes them ideal for critical infrastructure projects.
3. Can restrained joint ductile iron pipes be used in both potable water and sewage systems?
Yes, restrained joint ductile iron pipes are used in both potable water and sewage systems. Their durability and resistance to corrosion make them suitable for carrying both clean water and wastewater, ensuring the long-term performance of the pipeline systems.
4. How do restrained joint ductile iron pipes perform under high pressure?
These pipes are designed to handle high-pressure systems, making them suitable for municipal water systems, fire suppression systems, and industrial applications. The restrained joints provide additional stability and prevent pipe separation under high-pressure conditions.
5. What is the expected lifespan of a restrained joint ductile iron pipe?
With proper installation and maintenance, restrained joint ductile iron pipes can last for over 50 years. Their corrosion resistance, strength, and impact resistance ensure they perform reliably over time, even in challenging environments.
Conclusion
Restrained joint ductile iron pipes are a vital part of modern pipeline systems due to their durability, leak-proof design, and high-pressure resistance. By understanding their benefits, types, installation methods, and real-world applications, professionals can make informed decisions when choosing the right pipe system for water distribution, sewage, and industrial applications.
