Internal Protection Ductile iron pipe&fittings

Product Description

Our ductile iron pipes and fittings with internal protection are engineered to deliver reliable performance in both potable water and wastewater systems. Each product is internally lined with high-quality cement mortar, epoxy coating, or other food-grade materials, depending on application requirements, to prevent corrosion, ensure water purity, and extend service life.

As a leading manufacturer, Jingang LuoKaiWei follows strict international standards such as ISO 2531 and EN 545, ensuring that all pipes and fittings meet the safety, quality, and durability expectations of global infrastructure projects.

Internal protection plays a critical role in minimizing scaling, maintaining smooth flow, and resisting chemical or biological deposits. Whether you’re working on a municipal water supply system, an industrial installation, or a wastewater treatment plant, our internally protected ductile iron pipes and fittings provide a long-term, low-maintenance solution.

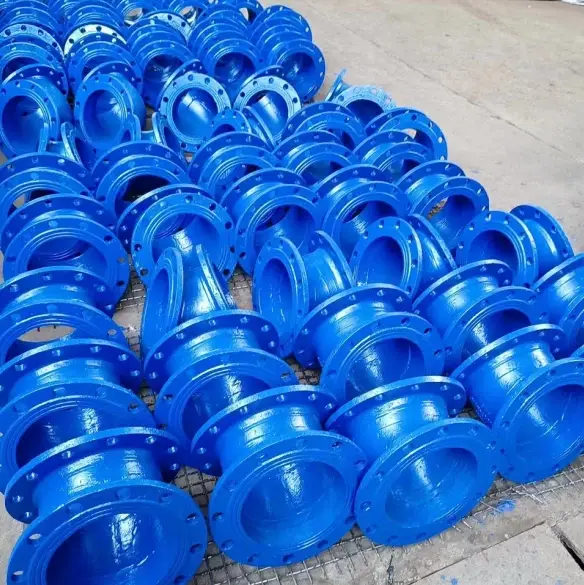

We offer a full range of fittings including socket spigot, flanged tees, elbows, reducers, and dismantling joints, all with protective linings to match your system’s specific needs.

Product Show

Product Details

Ductile iron pipes refer to pipes that are cast by high-speed centrifugal casting using a centrifugal ductile iron machine after adding nodulizing agent to cast molten iron above No. 18. They are referred to as ductile iron pipes, ductile iron pipes and ductile cast pipes. It is mainly used for the transportation of tap water and is an ideal material for tap water pipelines.

Technical Specification of Ductile lron Pipes and Fittings

The ductile iron materia features similar mechanical properties with carbon steel such as highmechanical strength,good ductility,and the same anti-corrosion performance as cast iron. Thereforeit has gradually become the world’s most safe and reliable pipes and fittings in the field of watersupply and drainage. Jingang LuoKaiWei (ShanXi) Company Limited provides ductile iron pipes and fittings ranging fromDN80mm-DN2600mmin accordance with ISO2531/EN545/598 or GB13295.

Product parameters

Standard Product Nominal Diameter DN(mm) Tensile Strength N/mm2 Yield Strength N/mm2 Elongation% Hardness HB
ISO2531/EN545/GB13295 Ductile lron Pipes DN80-1000mm ≥420 ≥300 10 ≤230
DN1100-2600mm ≥300 7
Ductile lron Fittings DN80-2600mm ≥420 ≥300 5 ≤25

Standard of Hydrostatic Testing Pressure (Class K9)

Standard Product Nominal Diameter DN(mm) Testing Pressure(Bar) Time( second)
ISO2531/EN545/GB13295 Ductile lron Pipes DN80-300mm 50 ≥10
DN350-600mm 40
DN700-1000mm 32
DN1100-2000mm 25
DN2200-2600mm 18
Ductile lron Fittings DN80-300mm 25 ≥10
DN350-600mm 16
DN700-2600mm 10

Transaction screenshot  and Packing and shipping

Jingang Luokaiwei (Shanxi) Co., Ltd.Specializing in the production of centrifugal ductile iron pipes and supporting fittings. The annual output of ductile iron pipe is 300,000 tons,
