High-Quality Ductile Cast Iron Pipes | Class K8 K9 K10 | Factory Direct Supply

Product Description

Looking for strong and reliable ductile cast iron pipes for your next project? Our Class K8, K9, and K10 ductile iron pipes offer excellent performance for water distribution, sewage, and infrastructure systems. Manufactured by Jingang LuoKaiWei, a trusted ductile iron pipe supplier with over 20 years of experience, these pipes meet strict ISO 2531 and BS EN 545 standards.

Available in a wide range of diameters and pressure classes, our DI pipes are designed to handle high-pressure flow with exceptional corrosion resistance and mechanical strength. Whether for municipal pipelines, industrial applications, or rural water projects, our products deliver long-lasting performance with minimal maintenance.

We provide factory-direct supply, ensuring competitive pricing, timely delivery, and consistent quality control. Trusted by engineers, contractors, and government projects worldwide—our ductile cast iron pipes are your smart choice for durable pipeline solutions.

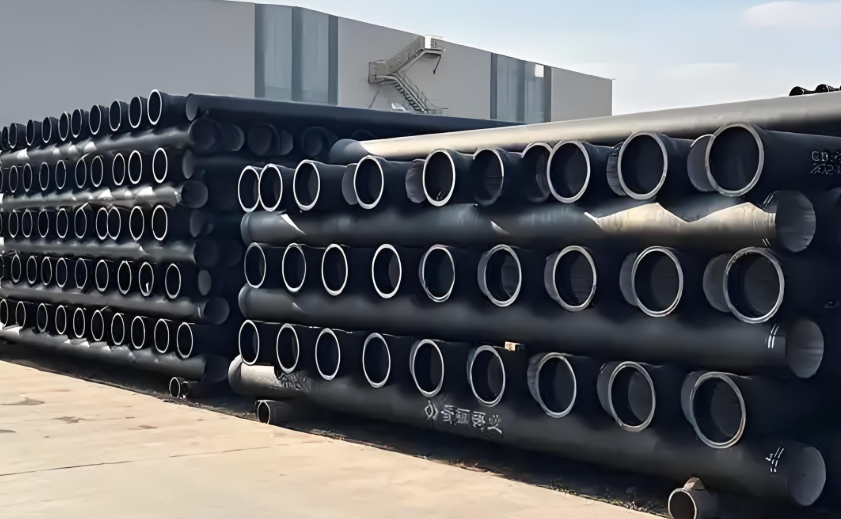

Product Show

Product Details

Ductile iron pipes refer to pipes that are cast by high-speed centrifugal casting using a centrifugal ductile iron machine after adding nodulizing agent to cast molten iron above No. 18. They are referred to as ductile iron pipes, ductile iron pipes and ductile cast pipes. It is mainly used for the transportation of tap water and is an ideal material for tap water pipelines.

Technical Specification of Ductile lron Pipes and Fittings

The ductile iron materia features similar mechanical properties with carbon steel such as highmechanical strength,good ductility,and the same anti-corrosion performance as cast iron. Thereforeit has gradually become the world’s most safe and reliable pipes and fittings in the field of watersupply and drainage. Jingang LuoKaiWei (ShanXi) Company Limited provides ductile iron pipes and fittings ranging fromDN80mm-DN2600mmin accordance with ISO2531/EN545/598 or GB13295.

Product parameters

Standard	Product	Nominal Diameter DN(mm)	Tensile Strength N/mm2	Yield Strength N/mm2	Elongation%	Hardness HB
ISO2531/EN545/GB13295	Ductile lron Pipes	DN80-1000mm	≥420	≥300	10	≤230
	Ductile lron Pipes	DN1100-2600mm	≥420	≥300	7	≤230
	Ductile lron Fittings	DN80-2600mm	≥420	≥300	5	≤25

Standard of Hydrostatic Testing Pressure (Class K9)

Standard	Product	Nominal Diameter DN(mm)	Testing Pressure(Bar)	Time( second)
ISO2531/EN545/GB13295	Ductile lron Pipes	DN80-300mm	50	≥10
		DN350-600mm	40
		DN700-1000mm	32
		DN1100-2000mm	25
		DN2200-2600mm	18
	Ductile lron Fittings	DN80-300mm	25	≥10
		DN350-600mm	16
		DN700-2600mm	10

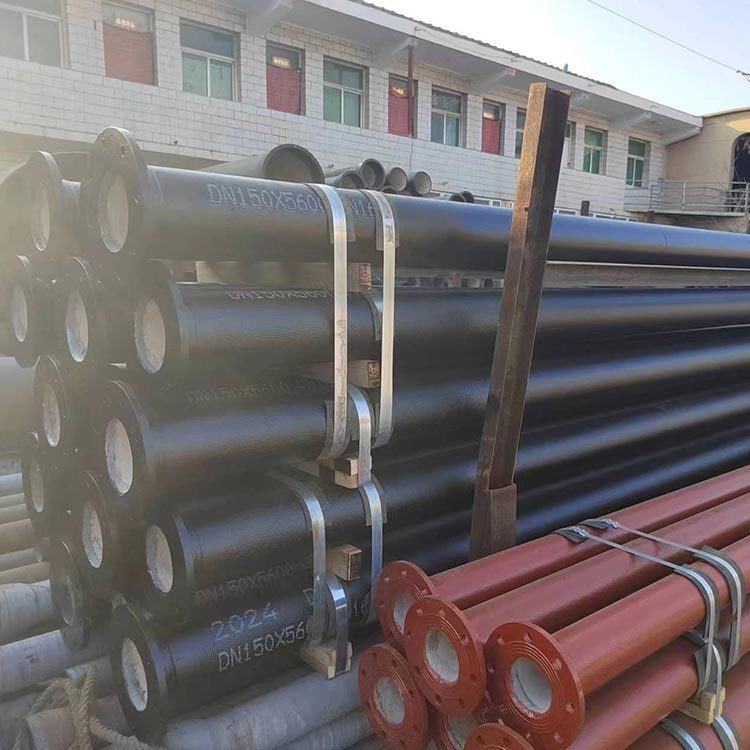

Transaction screenshot and Packing and shipping

Jingang Luokaiwei (Shanxi) Co., Ltd.Specializing in the production of centrifugal ductile iron pipes and supporting fittings. The annual output of ductile iron pipe is 300,000 tons,
