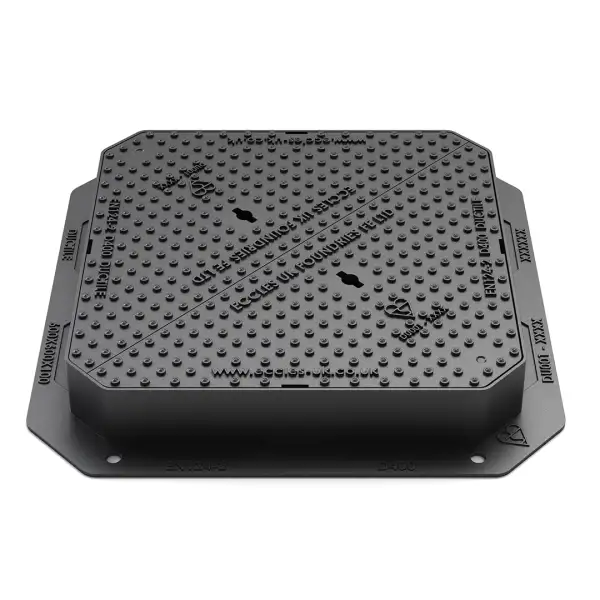

Our 700 × 500 mm rectangular manhole cover is certified to BS EN 124:2015 Class D400, designed to resist 400 kN (40 tonne) static loads for carriageways, hard shoulders, parking areas, and block paving installations. The clear opening precisely measures 700 × 500 mm, fitting standard rectangular inspection chambers, while the robust frame stands 100 mm tall to accommodate paving depths and ensure flush, stable seating. Manufactured from high‑grade GGG500‑7 ductile iron for exceptional strength and ductility, the frame is finished in cold‑applied bitumen for corrosion resistance (optional epoxy powder‑coat available). A reversible brick‑support flange allows seamless block‑paving recessing, matching surfacing profiles without additional trimming. Part of EJ’s proven D400 rectangular cover range, it integrates effortlessly with existing frame systems and is stocked by leading suppliers like Drainage Superstore for rapid delivery worldwide.
Key Features
-
Standards‑Compliant Load Class: BS EN 124:2015 Class D400, tested to 400 kN (40 t) static load for vehicular areas and block paving.
-
Precise Dimensions: 700 × 500 mm clear opening; nominal frame outer ≈ 820 × 620 mm with 100 mm depth for secure seating.
-
Premium Material: GGG500‑7 ductile iron casting offers high tensile strength and fatigue resistance.
-
Corrosion Protection: Cold‑applied bitumen finish standard; optional epoxy or powder coat for enhanced aesthetics and durability.
-
Block Paving Compatibility: Reversible brick‑support flange enables recessed installation flush with block paving without cutting.
-
Global Availability: Part of EJ’s D400 rectangular range and widely stocked by Drainage Superstore for fast lead times.
Technical Specifications
| Specification | Details |
|---|---|
| Standard | BS EN 124:2015 (EN 124‑2:2015, cast iron) |
| Load Class | D400 (400 kN / 40 t) |
| Clear Opening (C × D) | 700 × 500 mm |
| Frame Outer (A × B) | Approx. 820 × 620 mm |
| Frame Height (H) | 100 mm |
| Material | Ductile Iron (GGG500‑7) |
| Finish | Cold‑applied bitumen (optional epoxy/powder coat) |
| Installation Type | Drop‑in with reversible brick‑support flange |
Applications
Our D400 700 × 500 mm cover is ideal for:
-
Block Paving Installations: Recessed flange ensures a flush, vandal‑resistant finish.
-
Carriageways & Parking Areas: Rated for heavy traffic, including lorries and emergency vehicles.
-
Hard Shoulders & Service Roads: Durable frame handles repeated wheel loads without deformation.
-
Asphalt & Concrete Surfaces: Versatile drop‑in design suits multiple surfacing types.
Installation & Compatibility
Simply drop the cover‑and‑frame assembly into a prepared aperture, ensuring the brick‑support flange rests on paving edges for block installations or on concrete bedding as required. No additional bedding mortar is needed for flush seating; optional neoprene gaskets can be inserted for watertight performance if specified.
Why Choose Our D400 700 × 500 mm Cover?
-
Certified Safety & Compliance: Fully tested to BS EN 124:2015 D400 standards for legal and operational assurance.
-
Superior Durability: GGG500‑7 ductile iron resists crack propagation and maintains structural integrity under cyclic loading.
-
Low Lifecycle Cost: Bitumen finish and optional coatings minimise maintenance and extend service life.
-
Seamless Aesthetics: Brick‑support flange integration provides a neat, continuous surface finish in block‑paved areas.
-
Global Support Network: Readily available through EJ channels and leading distributors like Drainage Superstore for reliable supply.
For technical drawings, pricing, or bespoke options, please contact our sales team. We deliver durable, compliant access solutions that simplify installation and ensure long‑term performance.
| Family: | Municipal |
| Packaging Qty: | 10 |
| Product Type: | Access Covers |
| Certified Class: | D400 |
| Standards: | EN124 |
| Surface Finish: | Anti-slip surface |
| Clear Opening Length (Hinge Side): | 700 mm |
| Clear Opening Width: | 500 mm |
| Flange Outer Length: | 840 mm |
| Flange Outer Width: | 640 mm |
| Frame Height: | 100 mm |
| Weight: | 72 kg |
| Mass Per Unit Area: | 130 kg |
| Watertight: | No |
| Cover/Grating Shape: | Square |
| Cover/Grating Length: | 545 mm |
| Hinged: | No |
| Opening Direction: | Vertical |
| Frame Style: | Monoblock as Cast |
| Frame Shape on Vertical Section: | Flat |
| Frame Surface Protection By: | Water-Based Paint |
| Installation Type: | With Concrete |
| Handling Key: | CLE BA1 BS / 511793 |
Ductile iron manhole cover specifications and parameters
| Parameter | Specification/Value |
|---|---|
| Material | Ductile Cast Iron (Grade 500-7) |
| Standard Compliance | EN 124, BS 497, ASTM A536, ISO 1083 |
| Shape | Round, Square, Oval |
| Load Rating | A15, B125, C250, D400, E600, F900 (EN 124 load classes) |
| Load Bearing Capacity | 1.5 – 90 tons (depending on the rating) |
| Size (Diameter/Length) | 300mm – 1500mm (depending on type and design) |
| Thickness of Lid | 20mm – 60mm (depending on the load class) |
| Weight | 10 kg to 150 kg (depending on size and class) |
| Cover Surface | Smooth, Anti-slip, Textured for grip |
| Corrosion Resistance | Excellent, with epoxy coatings or bituminous treatment |
| Gasket Type | Rubber, Neoprene, EPDM |
| Sealing Mechanism | Bolt-down, Locking system, Hinged |
| Drainage Holes | Yes, optional (for water drainage) |
| Coating Type | Bitumen coated, Epoxy coating, Hot-dip galvanizing |
| Temperature Resistance | -30°C to +150°C (depending on coating type) |
| Fire Resistance | Flame-retardant (meets local standards for fire resistance) |
| Noise Level | Low noise design for urban areas |
| Ventilation | Optional vented covers for gas or sewage systems |
| Color | Black, Gray, Custom colors available |
| Manufacturing Process | Sand casting, Lost wax casting, Centrifugal casting |
| Edge Type | Flat, Raised, Beveled, or Reinforced edges |
| Bearing Surface | Cast iron, Epoxy, Stainless Steel (optional) |
| Longevity | 50+ years with proper maintenance |
| Environmental Compliance | RoHS, REACH, and other regional environmental standards |
