In industrial piping systems, valves play a crucial role in controlling the flow of fluids and gases. Understanding the different types of valves, their functions, and applications is essential for engineers, technicians, and decision-makers to ensure system efficiency, safety, and compliance with industry standards.

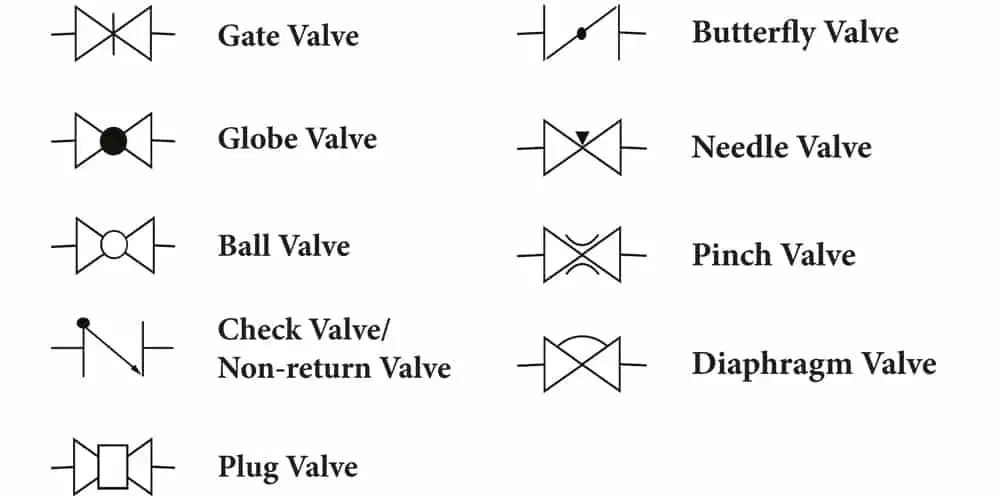

1. Gate Valves
Function and Operation
Gate valves are linear motion valves used to start or stop fluid flow. They operate by lifting a gate out of the path of the fluid. When fully open, they provide minimal flow resistance.
Applications
Commonly used in pipelines where the flow needs to be fully opened or closed, such as in water supply systems, oil and gas pipelines, and fire protection systems.
Advantages
-
Minimal pressure drop when fully open.
-
Suitable for large pipe diameters.
-
Durable and reliable for on/off control.
Disadvantages
-
Not suitable for throttling applications.
-
Slower operation compared to other valve types.
-
Prone to seat wear if used for throttling.
2. Globe Valves
Function and Operation
Globe valves are linear motion valves used for regulating flow. They consist of a movable plug and a stationary ring seat in a generally spherical body. The flow is controlled by moving the plug closer to or further from the seat.
Applications
Ideal for applications requiring precise flow control, such as in steam systems, chemical processing, and HVAC systems.
Advantages
-
Excellent throttling capabilities.
-
Provides tight shutoff.
-
Suitable for high-pressure applications.
Disadvantages
-
Higher pressure drop compared to gate valves.
-
More expensive due to complex design.
-
Requires more space for installation.
3. Ball Valves
Function and Operation
Ball valves are quarter-turn valves that use a hollow, perforated, and pivoting ball to control flow. When the valve handle is turned, the ball rotates to align the hole with the flow path.
Applications
Widely used in applications requiring quick shutoff and minimal space, such as in water treatment plants, gas pipelines, and residential plumbing.
Advantages
-
Quick and easy operation.
-
Provides tight shutoff.
-
Suitable for both high and low-pressure systems.
Disadvantages
-
Not suitable for throttling applications.
-
Ball can wear over time, affecting performance.
-
May require frequent maintenance in certain applications.
4. Butterfly Valves
Function and Operation
Butterfly valves are quarter-turn valves with a rotating disc to control flow. The disc is mounted on a shaft and rotates to open or close the valve.
Applications
Commonly used in large diameter pipelines where space and weight are concerns, such as in water distribution systems, HVAC systems, and fire protection systems.
Advantages
-
Compact and lightweight design.
-
Quick operation.
-
Suitable for large diameter pipes.
Disadvantages
-
Less effective for throttling applications.
-
Potential for leakage if not properly maintained.
-
Disc can cause turbulence in the flow.
5. Check Valves
Function and Operation
Check valves are automatic valves that allow flow in one direction and prevent backflow. They operate by a disc or ball that moves to open or close the flow path based on pressure differences.
Applications
Essential in systems where backflow could cause damage or contamination, such as in sewage systems, water treatment plants, and chemical processing.
Advantages
-
Prevents backflow and protects equipment.
-
Automatic operation without external control.
-
Available in various designs to suit different applications.
Disadvantages
-
May cause water hammer if not properly sized.
-
Can be prone to wear and tear.
-
Requires careful selection to match system conditions.
6. Plug Valves
Function and Operation
Plug valves are quarter-turn valves that use a tapered or cylindrical plug to control flow. The plug has a hole or slots that align with the flow path when turned.
Applications
Used in applications requiring quick shutoff and minimal space, such as in gas pipelines, oil refineries, and chemical processing.
Advantages
-
Simple and reliable design.
-
Quick operation.
-
Suitable for high-pressure applications.
Disadvantages
-
Not suitable for throttling applications.
-
Plug can wear over time, affecting performance.
-
May require frequent maintenance in certain applications.
7. Needle Valves
Function and Operation
Needle valves are linear motion valves with a small port and a threaded, needle-like plunger. They are designed for precise flow control.
Applications
Ideal for applications requiring fine flow regulation, such as in laboratory settings, fuel lines, and instrumentation systems.
Advantages
-
Provides precise flow control.
-
Compact design.
-
Suitable for low flow applications.
Disadvantages
-
Not suitable for high flow rates.
-
Can be prone to clogging.
-
Requires careful handling to maintain accuracy.
8. Pressure Relief Valves
Function and Operation
Pressure relief valves are safety devices designed to protect pressure vessels and piping systems from overpressure conditions. They automatically release pressure when it exceeds a preset limit.
Applications
Critical in systems where overpressure could lead to equipment failure or safety hazards, such as in boilers, pressure vessels, and gas pipelines.
Advantages
-
Protects equipment from overpressure.
-
Automatic operation.
-
Available in various designs to suit different applications.
Disadvantages
-
Requires regular maintenance and testing.
-
May cause system downtime during operation.
-
Improper sizing can lead to ineffective protection.
9. Pinch Valves
Function and Operation
Pinch valves are linear motion valves that control the flow of fluids by pinching a flexible tube or sleeve. The valve body compresses the tube, restricting or stopping the flow.
Applications
Ideal for handling slurries, powders, and other media that could clog other valve types. Commonly used in mining, food processing, and wastewater treatment industries.
Advantages
-
Excellent for handling abrasive and viscous materials.
-
No internal moving parts, reducing wear.
-
Provides tight shutoff.
Disadvantages
-
Limited to specific applications; not suitable for all fluids.
-
The flexible sleeve may require periodic replacement.
-
Not suitable for high-temperature or high-pressure applications.
10. Diaphragm Valves
Function and Operation
Diaphragm valves use a flexible diaphragm to control the flow of fluid. The diaphragm is pressed against the valve seat to stop the flow and lifted to allow it.
Applications
Commonly used in the pharmaceutical, food and beverage, and chemical industries due to their ability to provide a tight seal and prevent contamination.
Advantages
-
Provides excellent shutoff capabilities.
-
Suitable for sanitary applications.
-
Minimal risk of contamination.
Disadvantages
-
Limited to low-pressure applications.
-
The diaphragm may wear over time.
-
Not suitable for all fluid types.
11. Pressure Relief Valves
Function and Operation
Pressure relief valves are safety devices designed to protect pressure vessels and piping systems from overpressure conditions. They automatically release pressure when it exceeds a preset limit.
Applications
Critical in systems where overpressure could lead to equipment failure or safety hazards, such as in boilers, pressure vessels, and gas pipelines.
Advantages
-
Protects equipment from overpressure.
-
Automatic operation.
-
Available in various designs to suit different applications.
Disadvantages
-
Requires regular maintenance and testing.
-
May cause system downtime during operation.
-
Improper sizing can lead to ineffective protection.
12. Float Valves
Function and Operation
Float valves are automatic valves that control the level of liquid in a tank or reservoir. They use a floating ball or disk to open or close the valve based on the liquid level.
Applications
Commonly used in water tanks, cooling towers, and irrigation systems to maintain a constant liquid level.
Advantages
-
Simple and reliable design.
-
Automatic operation without external control.
-
Suitable for maintaining constant liquid levels.
Disadvantages
-
Limited to specific applications.
-
May require periodic maintenance.
-
Not suitable for all fluid types.
13. Knife Gate Valves
Function and Operation
Knife gate valves are linear motion valves with a sharp-edged gate that cuts through the flow media to provide a shutoff. They are designed for handling slurries and other challenging media.
Applications
Commonly used in wastewater treatment plants, mining, and paper mills.
Advantages
-
Capable of cutting through thick, viscous materials.
-
Provides a tight shutoff.
-
Suitable for high-pressure applications.
Disadvantages
-
Not suitable for all fluid types.
-
The gate may wear over time.
-
Requires regular maintenance.
Comparative Table of Valve Types
| Valve Type | Primary Function | Suitable Applications | Advantages | Disadvantages |
|---|---|---|---|---|
| Gate Valve | On/Off control | Water supply, oil pipelines | Minimal flow resistance | Not suitable for throttling |
| Globe Valve | Flow regulation | Steam systems, chemical processing | Precise flow control | Higher pressure drop |
| Ball Valve | On/Off control | Water treatment, gas pipelines | Quick operation, tight shutoff | Not suitable for throttling |
| Butterfly Valve | Flow regulation | Water distribution, HVAC systems | Compact design, quick operation | Potential for leakage |
| Check Valve | Preventing backflow | Sewage systems, water treatment | Automatic operation | Can cause water hammer |
| Plug Valve | On/Off control | Gas pipelines, oil refineries | Simple design, quick operation | Not suitable for throttling |
| Needle Valve | Precise flow control | Laboratory settings, fuel lines | Accurate flow regulation | Not suitable for high flow rates |
| Pressure Relief Valve | Overpressure protection | Boilers, pressure vessels | Protects equipment | Requires regular maintenance |
| Pinch Valve | Flow control | Handling slurries, powders | No internal moving parts | Limited to specific applications |
| Diaphragm Valve | Flow control | Pharmaceutical, food industries | Prevents contamination | Limited to low-pressure systems |
| Float Valve | Level control | Water tanks, cooling towers | Automatic operation | Limited to specific applications |
| Knife Gate Valve | On/Off control | Wastewater treatment, mining | Cuts through thick materials | Requires regular maintenance |
Frequently Asked Questions (FAQs)
1. What factors should be considered when selecting a valve type for a specific application?
When selecting a valve, consider factors such as the type of fluid (liquid, gas, slurry), pressure and temperature conditions, flow rate, required shutoff capabilities, space constraints, and the need for flow regulation. Additionally, assess the valve’s material compatibility with the fluid and its maintenance requirements.
2. How can valve performance be maintained over time?
Regular maintenance is essential to ensure valve performance. This includes routine inspections for wear and tear, lubrication of moving parts, cleaning of valve components, and testing for leaks. It’s also important to replace seals and gaskets as needed and to ensure that the valve operates within its specified pressure and temperature limits.
3. What is the difference between a gate valve and a globe valve?
Gate valves are primarily used for on/off control and provide minimal flow resistance when fully open. They are suitable for applications where the valve is either fully open or fully closed. Globe valves, on the other hand, are designed for flow regulation and provide precise control over the flow rate. They are suitable for applications where the flow needs to be adjusted or throttled.
4. Why are check valves important in piping systems?
Check valves are crucial for preventing backflow in piping systems. Backflow can cause contamination, damage equipment, or disrupt system operations. Check valves allow fluid to flow in one direction and automatically close to prevent reverse flow, ensuring the integrity and safety of the system.
5. What considerations should be made when choosing a valve material?
The choice of valve material depends on factors such as the type of fluid being handled, temperature and pressure conditions, potential for corrosion or erosion, and compatibility with other materials in the system. Common materials include stainless steel, cast iron, brass, and various alloys. It’s important to select a material that offers durability, resistance to the specific fluid, and compliance with industry standards.
Conclusion
Understanding the various types of valves and their applications is essential for designing efficient and reliable piping systems. Each valve type has its unique features, advantages, and limitations, making it suitable for specific applications. By carefully considering the system requirements and selecting the appropriate valve, engineers can ensure optimal performance, safety, and longevity of the piping system.
