Optimal Burial Depth for Class 52 Ductile Iron Pipe: Guidelines and Best Practices

Time:2025-05-27

Determining the appropriate burial depth for Class 52 ductile iron pipe (DIP) is crucial for ensuring the longevity and structural integrity of water and sewer infrastructure. Class 52 DIP offers a balance between strength and cost-effectiveness, making it a popular choice for various underground applications. This article provides an in-depth analysis of the factors influencing burial depth, including soil conditions, load considerations, and installation practices, to guide engineers and contractors in making informed decisions.

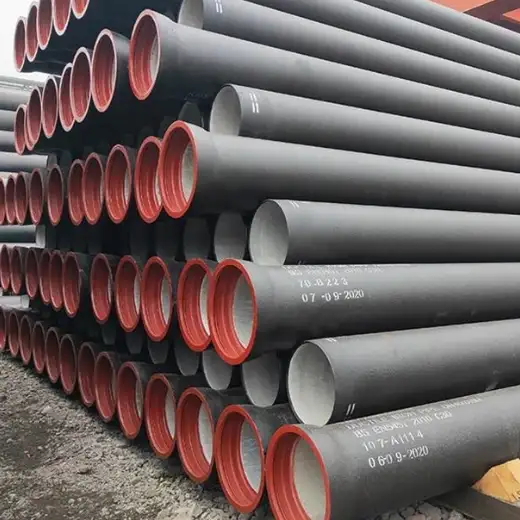

Optimal Burial Depth for Class 52 Ductile Iron Pipe
Optimal Burial Depth for Class 52 Ductile Iron Pipe

1. Understanding Class 52 Ductile Iron Pipe

Material Properties

Ductile iron is known for its high tensile strength, impact resistance, and flexibility. Class 52 refers to a specific wall thickness, providing a balance between structural integrity and material efficiency. The nominal wall thickness for Class 52 varies with pipe diameter, ensuring adequate strength for different applications.

Applications

Class 52 DIP is commonly used in water distribution systems, sewage networks, and industrial pipelines. Its durability makes it suitable for installations under roads, railways, and other areas subjected to heavy loads.

2. Factors Influencing Burial Depth

Soil Conditions

The type of soil significantly affects the required burial depth. Stable soils may allow for shallower installations, while loose or expansive soils might necessitate deeper burial to prevent pipe movement or damage.

Surface Loads

Areas with heavy surface loads, such as roads or industrial zones, require deeper burial to distribute the load and protect the pipe. The AASHTO HS-20 loading standard is often used to assess these requirements.

Groundwater Levels

High groundwater levels can exert additional pressure on buried pipes. In such cases, deeper burial or additional protective measures may be necessary to prevent flotation or infiltration.

3. Industry Standards and Guidelines

AWWA Standards

The American Water Works Association (AWWA) provides guidelines for DIP installation, including burial depth considerations. Standards such as AWWA C150 and C151 outline design and manufacturing requirements.

DIPRA Recommendations

The Ductile Iron Pipe Research Association (DIPRA) offers detailed recommendations on burial depths based on pipe diameter, soil type, and loading conditions. These guidelines help ensure safe and efficient installations.

4. Installation Practices

Trench Design

Proper trench design is essential for maintaining pipe alignment and preventing damage. Trenches should be wide enough to allow for proper bedding and backfill, with sidewalls stable to prevent collapse.

Bedding and Backfill

Using appropriate bedding materials, such as sand or gravel, provides uniform support for the pipe. Backfill should be compacted in layers to minimize settlement and maintain pipe alignment.

Jointing Techniques

Ensuring secure joints between pipe sections prevents leakage and maintains system integrity. Mechanical joints or push-on joints are commonly used, with proper lubrication and alignment during installation.

5. Case Studies and Practical Applications

Municipal Water Systems

In urban settings, Class 52 DIP is often buried at depths ranging from 4 to 6 feet, depending on local regulations and surface load considerations. Proper installation practices ensure long-term performance and minimal maintenance.

Industrial Installations

Industrial facilities may require deeper burial depths to accommodate heavy equipment and vehicular traffic. In such cases, depths of 6 to 10 feet or more may be necessary, along with reinforced bedding and protective measures.

6. Maintenance and Inspection

Regular Inspections

Periodic inspections help identify potential issues such as corrosion, joint separation, or soil movement. Early detection allows for timely repairs and prevents system failures.

Cathodic Protection

In corrosive soil environments, cathodic protection systems can be installed to prevent pipe degradation. These systems extend the service life of the pipeline and reduce maintenance costs.

Comparison Table: Burial Depth Recommendations

Pipe Diameter (inches) Minimum Burial Depth (feet) Maximum Burial Depth (feet)
4 2.5 40
6 2.5 40
8 2.5 40
10 2.5 36
12 2.5 31
14 2.5 26
16 2.5 23
18 2.5 20
20 2.5 18
24 2.5 16

Note: These values are general guidelines. Actual burial depths should be determined based on site-specific conditions and engineering assessments.

Frequently Asked Questions (FAQs)

1. What is the minimum burial depth for Class 52 ductile iron pipe?

The minimum burial depth for Class 52 DIP typically starts at 2.5 feet. However, this can vary based on factors such as soil conditions, surface loads, and local regulations. It’s essential to consult with engineering guidelines and local codes to determine the appropriate depth for specific installations.

2. How does soil type affect the burial depth of ductile iron pipes?

Soil type plays a significant role in determining burial depth. Stable soils like clay or dense sand provide better support, potentially allowing for shallower burial. Conversely, loose or expansive soils may require deeper burial or additional stabilization measures to ensure pipe integrity.

3. Are there specific standards governing the burial depth of Class 52 DIP?

Yes, organizations like the AWWA and DIPRA provide standards and guidelines for DIP installation, including burial depth considerations. These standards take into account factors such as pipe diameter, soil conditions, and surface loads to ensure safe and effective installations.

4. Can Class 52 DIP be used in areas with high groundwater levels?

Yes, but additional precautions are necessary. High groundwater can exert buoyant forces on buried pipes, potentially causing movement or flotation. To mitigate this, deeper burial, proper anchoring, and the use of impermeable backfill materials may be required.

5. How do surface loads influence the required burial depth?

Surface loads, such as vehicular traffic or heavy equipment, increase the stress on buried pipes. To distribute these loads and protect the pipe, deeper burial or reinforced bedding may be necessary. Engineering assessments help determine the appropriate depth based on anticipated surface loads.

6. What maintenance practices are recommended for buried Class 52 DIP?

Regular inspections are crucial to identify potential issues like corrosion or joint separation. In corrosive environments, implementing cathodic protection systems can prevent degradation. Additionally, ensuring proper backfill compaction during installation reduces the risk of future settlement or pipe movement.

References:

1. ANSI/AWWA C150/A21.50 – Thickness Design of Ductile-Iron Pipe

2. DIPRA Installation Guide for Ductile Iron Pipe

3. AASHTO H-20/HS-20 Loading Specifications

4. Iowa Statewide Urban Design and Specifications (SUDAS) – Depth of Bury Tables
