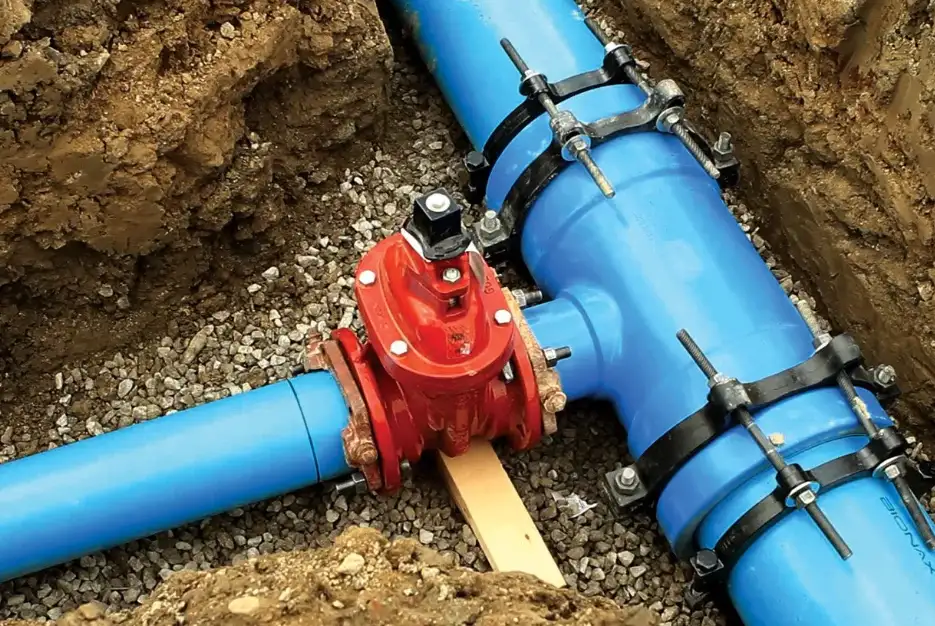

Installing a ductile iron valve on a C900 PVC pipe requires proper adapters and techniques to ensure a secure, leak-free connection. Common methods include using restrained joint adapters, flange kits, or mechanical couplings designed for transitioning between ductile iron and PVC materials.
1. Introduction to Ductile Iron Valve Installation on C900 Pipe
Ductile iron valves are essential components in many piping systems, commonly used for water, gas, and wastewater transport. When it comes to installing these valves on C900 pipes, a correct and effective installation ensures system integrity, operational efficiency, and long-term reliability.
The C900 pipe, a type of PVC (Polyvinyl Chloride) pipe designed specifically for pressurized systems, is widely used in municipal water systems, and combining it with ductile iron valves creates a robust solution that can withstand high pressures and demanding conditions.
This article will cover every detail needed to install ductile iron valves on C900 pipes, from preparation to post-installation testing. Additionally, it will explore common challenges, tools required, industry best practices, and maintenance tips.
2. Materials Needed for Installation
Before beginning the installation process, it’s essential to gather the right materials and tools. This ensures that the installation is efficient and meets safety standards.
2.1. Tools and Equipment Required
-
Pipe Cutter or Saw: To trim the C900 pipe to the required length.
-
Pipe Lubricant: To ensure the smooth fitting of pipe and valve connections.
-
Measuring Tape: To measure the distance and ensure correct placement.
-
Adjustable Wrench: For tightening the valve bolts.
-
Gasket Material: A rubber or elastomer gasket is required for sealing the joint between the valve and pipe.
-
Flange Adapter or Coupling: If the valve and pipe have different connection types, a flange adapter or coupling may be necessary.
2.2. Ductile Iron Valve Components
-
Valve Body: The main structure of the valve, typically made of ductile iron for strength.
-
Valve Stem: The mechanism that opens and closes the valve.
-
Gasket: Used to ensure a water-tight seal between the valve and pipe.
-
Bolts and Nuts: Used to secure the valve onto the pipe flanges.
3. Types of Ductile Iron Valves Compatible with C900 Pipe
Not all ductile iron valves are the same, and it’s essential to choose the correct valve type for your specific application. Some of the most common ductile iron valve types used with C900 pipes include:
3.1. Gate Valves
Gate valves are widely used for regulating flow in pressurized systems. They provide minimal resistance to flow when fully open.
3.2. Ball Valves
Ball valves are often used in applications requiring quick shutoff and are commonly used in systems where high pressure is expected.
3.3. Butterfly Valves
These are used for controlling the flow of liquids or gases and are particularly suitable for large-diameter pipe systems.
3.4. Check Valves
Check valves are designed to prevent backflow and are often used in water distribution systems to maintain one-way flow.
4. Step-by-Step Guide: How to Install a Ductile Iron Valve on C900 Pipe
The installation process for a ductile iron valve on C900 pipe involves several key steps. Each step is crucial for ensuring the correct installation and avoiding future issues such as leaks or mechanical failures.
4.1. Preparation and Safety Measures
Before starting the installation process:
-
Ensure the system is depressurized: Before any work begins, ensure that there is no pressure in the pipeline to avoid accidents.
-
Wear safety gear: Gloves, goggles, and steel-toe boots should be worn to protect against injury during installation.
-
Check the valve and pipe dimensions: Verify that the valve size matches the C900 pipe dimensions, including the diameter and pressure rating.
4.2. Pipe Cutting and Preparation
-
Measure the Pipe: Measure the length of the C900 pipe where the valve will be installed.
-
Cut the Pipe: Using a pipe cutter or saw, cut the C900 pipe to the required length. Ensure that the cut is straight and clean to allow a proper seal with the valve.
-
Deburr the Pipe Ends: After cutting, use a deburring tool to remove any sharp edges or debris that could interfere with the seal.
4.3. Preparing the Valve
-
Check Valve Components: Inspect the ductile iron valve for any signs of damage or manufacturing defects.
-
Apply Pipe Lubricant: Apply an appropriate lubricant to the pipe ends and inside the valve flanges to ensure smooth assembly.
-
Install the Gasket: Place the gasket on the valve flange or pipe end, ensuring it sits securely without any folds.
4.4. Installing the Valve
-
Position the Valve: Align the ductile iron valve with the C900 pipe flange. The valve must be positioned in such a way that the flow direction matches the pipeline’s design.
-
Attach the Valve to the Pipe: Use bolts to attach the valve to the pipe. Tighten the bolts in a star pattern to ensure even pressure on the gasket.
-
Torque the Bolts: Use a torque wrench to tighten the bolts to the manufacturer’s recommended torque specifications. Over-tightening or under-tightening can cause leaks or valve damage.
4.5. Testing the Installation
Once the valve is installed:
-
Pressure Test: Conduct a pressure test to ensure that there are no leaks around the valve and pipe joints.
-
Functional Test: Open and close the valve to ensure it operates smoothly without resistance or sticking.
5. Common Challenges and How to Overcome Them
During the installation process, several challenges may arise. Here are some of the most common issues and solutions:
5.1. Leaks at the Valve-Pipe Connection
-
Solution: Ensure that the gasket is properly installed and that the bolts are tightened to the recommended torque. If the gasket is damaged, replace it.
5.2. Misalignment of Valve and Pipe
-
Solution: Check the valve and pipe alignment before tightening the bolts. Use a level or pipe alignment tool to ensure proper placement.
5.3. Difficulties with Tightening the Bolts
-
Solution: Use a torque wrench to tighten the bolts in a cross-pattern to ensure an even seal. If bolts are difficult to turn, apply a small amount of lubricant to the threads.
6. Best Practices for Long-Term Maintenance
After the installation, it’s essential to follow proper maintenance practices to ensure the valve operates efficiently over time.
6.1. Regular Inspection
-
Inspect the valve periodically for signs of wear or corrosion, especially in areas where water or gas pressure is high.
6.2. Lubrication
-
Regularly lubricate the valve stem and seals to prevent friction and wear.
6.3. Pressure Testing
-
Conduct periodic pressure tests to ensure the valve remains sealed and operational.
7. FAQ Section
Q1: What is the importance of using a gasket during installation?
Answer: The gasket creates a water-tight seal between the valve and pipe, preventing leaks. Without it, water could escape from the joint, compromising the integrity of the system and causing inefficiencies. The type of gasket used must be compatible with the fluids and pressure levels in the system to ensure proper sealing.
Q2: How do I know if my ductile iron valve is compatible with C900 pipe?
Answer: To ensure compatibility, check the valve’s size, pressure rating, and connection type against the specifications of the C900 pipe. The valve’s flange should match the pipe’s dimensions, and the pressure rating should meet or exceed that of the C900 pipe.
Q3: Can I install a ductile iron valve on a PVC C900 pipe without additional parts?
Answer: In most cases, you will need a flange adapter or a special coupling to connect the ductile iron valve to the PVC C900 pipe. These components are necessary to match the differing connection types and ensure a secure fit.
Q4: What are the risks of improper installation of a ductile iron valve?
Answer: Improper installation can lead to leaks, valve failure, or compromised system performance. It is essential to follow installation instructions carefully and use the proper tools to avoid issues such as misalignment, improper sealing, or valve malfunction.
Q5: How often should I perform maintenance on a ductile iron valve?
Answer: Regular maintenance should be performed at least once a year. This includes visual inspections, lubrication of the valve stem, and pressure testing to ensure the valve is functioning correctly. Maintenance frequency may increase depending on the usage and environmental conditions of the system.
Q6: How can I improve the longevity of a ductile iron valve installed on a C900 pipe?
Answer: Proper installation, regular maintenance, and periodic inspections are key to extending the life of the valve. Using the correct gasket material, applying lubrication, and ensuring proper torque on bolts can all help prevent premature wear and failure.
8. Conclusion
Installing a ductile iron valve on C900 pipe is a critical process that requires precision and attention to detail. By following the steps outlined in this guide, and understanding the tools and materials needed, professionals can ensure a successful installation. Regular maintenance and testing are also key to ensuring the system remains efficient and functional over the long term.
