Connecting PVC pipe to cast iron pipe requires the right fittings and techniques to ensure a secure, leak-proof seal. Common methods include using a rubber transition coupling (Fernco coupling), a hub-and-spigot connection with lead and oakum, or a PVC-to-cast iron adapter. These solutions accommodate different pipe sizes and applications, whether for drain lines, sewer systems, or plumbing repairs. Proper preparation—cleaning pipe ends, ensuring alignment, and tightening clamps—is crucial for long-term durability.
1. Introduction: Why Attaching PVC to Cast Iron Pipe Matters
Importance in Plumbing Systems
Attaching PVC pipe to cast iron pipe is a common task in plumbing systems, whether during new installations or system repairs. This process is crucial in maintaining the integrity of the plumbing system, as improper connections can lead to leaks, reduced water flow, and costly repairs. Understanding how to properly make this connection ensures a long-lasting, secure plumbing system.
PVC (Polyvinyl Chloride) pipes are lightweight, easy to install, and resistant to corrosion, which makes them a popular choice for modern plumbing. Cast iron pipes, while durable and strong, can corrode over time, especially in older plumbing systems. When a replacement is needed, or when transitioning from old cast iron to new PVC, a secure connection between these two different materials is essential for system performance.
Common Use Cases and Applications
-
Repairs: Many homeowners and plumbers encounter situations where they need to replace old cast iron pipes with PVC. Whether it’s a burst pipe or a worn-out section of the system, connecting PVC to cast iron is an essential skill.
-
Upgrades: As more homes upgrade to PVC piping due to its durability and ease of installation, connecting PVC to existing cast iron systems allows for cost-effective plumbing upgrades.
-
New Installations: In some cases, new construction may require connecting PVC to existing cast iron piping during remodeling or expansion projects.
2. Materials and Tools Required
PVC Pipe and Cast Iron Pipe Overview
-
PVC Pipes: Lightweight, durable, and resistant to rust, PVC pipes are commonly used in residential and commercial plumbing systems. They are easy to cut and fit together using various methods such as solvent welding or mechanical couplings.
-

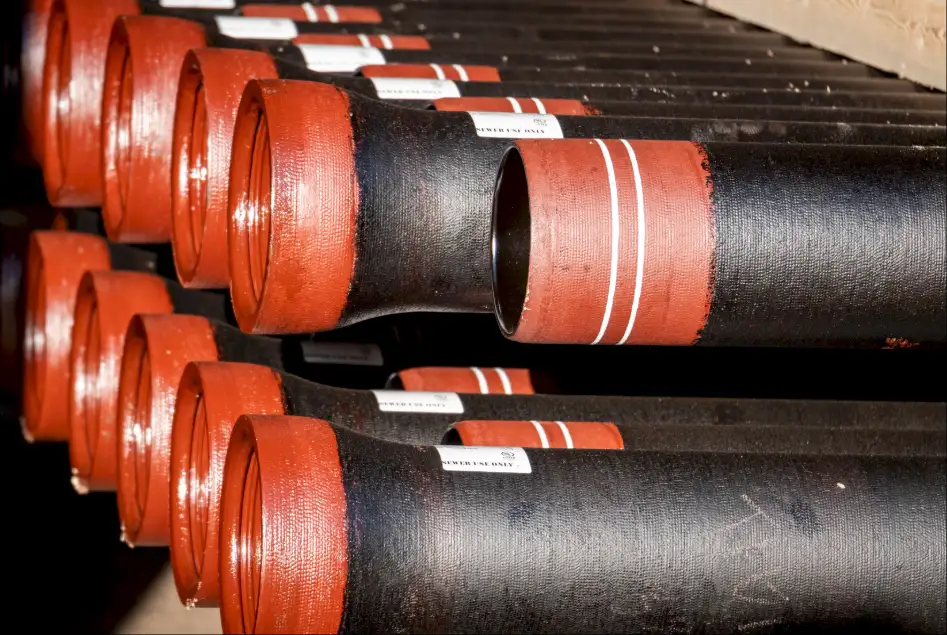

Cast Iron Pipes: Cast iron pipes are heavy, durable, and resistant to damage but can corrode over time, especially if exposed to water or moisture for long periods. Common in older homes and buildings, cast iron pipes are often replaced or repaired with PVC in modern plumbing systems.
Tools Needed for the Job
-
PVC-to-Cast Iron Transition Couplings: Special couplings designed to bridge the gap between PVC and cast iron pipes.
-
Pipe Cutter or Hacksaw: For cutting both PVC and cast iron pipes to the appropriate length.
-
Pipe Cleaner: For preparing the surfaces of PVC and cast iron pipes before connection.
-
Rubber Gasket or Mechanical Coupling: Used in mechanical couplings for a tight seal.
-
Solvent Cement (if using solvent welding): Special adhesive for connecting PVC pipes.
-
Wrench: For tightening any mechanical couplings or nuts.
-
Tape Measure: For accurate measurements when cutting pipes.
-
Sandpaper or Wire Brush: To remove rust or corrosion from cast iron pipe ends.
3. Methods to Attach PVC to Cast Iron Pipe
Using a PVC-to-Cast-Iron Transition Coupling
This is one of the most straightforward and commonly used methods for connecting PVC to cast iron pipes. These transition couplings are designed to fit securely on both PVC and cast iron pipe ends, ensuring a leak-proof connection. The coupling generally has a rubber gasket inside to create a tight seal, and some models may feature a compression mechanism.
Advantages:
-
Easy to install and requires minimal tools.
-
Durable and effective in preventing leaks.
-
Ideal for most standard residential and commercial plumbing needs.
Using a Mechanical Coupling
A mechanical coupling consists of two metal halves that clamp around the pipe ends. Inside the coupling, rubber seals create a watertight connection between the PVC and cast iron. This method does not require any adhesives, making it suitable for situations where disconnection might be necessary in the future.
Advantages:
-
Ideal for high-pressure systems.
-
Does not require glue or solvents.
-
Allows for disconnection and reusability.
Using a Flanged Joint Connection
Flanged connections are often used when a more permanent, secure connection is required. The cast iron pipe is fitted with a flange, and a corresponding flange is attached to the PVC pipe using bolts. This method is more labor-intensive and is typically used in larger industrial systems where high-pressure resistance is necessary.
Advantages:
-
Provides a strong, secure, and permanent connection.
-
Ideal for industrial or high-pressure systems.
Solvent Cement vs. Compression Fittings: Which Is Better?
-
Solvent Cement: This method involves applying solvent cement to the ends of the PVC pipe and inserting them into the transition fitting. Solvent cement creates a chemical bond between the PVC pipes and fittings, resulting in a permanent, leak-proof joint.
-
Best for: Low to medium-pressure residential plumbing systems.
-
Limitations: Not suitable for cast iron without using a transition fitting that can hold solvent cement.
-
-
Compression Fittings: These fittings use a rubber gasket and mechanical pressure to form a seal. While not as permanent as solvent welding, they allow for easy disassembly.
-
Best for: Temporary installations or systems that may need future disconnection.
-
4. Step-by-Step Guide to Attaching PVC Pipe to Cast Iron
Preparing the Cast Iron Pipe
-
Inspect the Pipe: Check the cast iron pipe for any signs of rust, corrosion, or damage. Clean off any rust with a wire brush or sandpaper to ensure a smooth surface for connection.
-
Cut the Pipe: If necessary, use a pipe cutter or hacksaw to cut the cast iron pipe to the desired length. Make sure the cut is straight and smooth to allow for a secure connection.
-
Deburr the Edges: Smooth the edges of the pipe with a file or sandpaper to remove any burrs that could interfere with the connection.
Preparing the PVC Pipe
-
Cut the PVC Pipe: Use a pipe cutter or hacksaw to cut the PVC pipe to the desired length.
-
Clean the Surface: Use a pipe cleaner or PVC cleaner to prepare the ends of the PVC pipe. This removes any dirt, oil, or debris, ensuring a clean bond when solvent cement is applied.
-
Apply Solvent Cement (if using): Apply a thin, even coat of solvent cement to the end of the PVC pipe. Insert the pipe into the fitting immediately and twist slightly to ensure an even coating.
Connecting the Pipes: Detailed Process
-
Install the Transition Coupling or Mechanical Coupling: For a transition coupling, slide the coupling over the cast iron pipe and tighten it securely. For a mechanical coupling, insert the rubber gasket and clamp the two halves of the coupling around the pipes.
-
Tighten the Connection: Use a wrench to tighten the coupling if necessary. For transition couplings, ensure the gasket is securely compressed to prevent leaks.
5. Common Challenges and How to Overcome Them
Dealing with Rust and Corrosion
Cast iron pipes often experience rust and corrosion, which can complicate the connection process. Before making any attachment, thoroughly clean the pipe ends. Use a wire brush or sandpaper to remove any corrosion, ensuring a smooth, clean surface for a tight fit.
Managing Misalignment Between Pipes
Misalignment can occur, especially in older plumbing systems. To mitigate this, ensure that the pipes are cut to the correct length and that the connection fittings are properly aligned before tightening. Using a level or alignment tool can help achieve a perfect connection.
Handling Temperature Changes
Extreme temperature fluctuations can cause pipes to expand and contract, potentially leading to leaks. When using transition couplings or compression fittings, ensure that they are rated for the temperatures in which the system will operate. Additionally, leave some room for expansion and contraction during installation.
6. Maintenance Tips for PVC and Cast Iron Pipe Connections
Regular Inspections
Inspect your PVC to cast iron pipe connections regularly for signs of leaks or wear. Check the connections for any visible cracks, rust, or corrosion. If any issues are detected, repair or replace the affected parts promptly to avoid more significant problems.
Common Issues and Their Fixes
-
Leaks at Connection Points: If you notice water leakage, it may indicate that the fitting is loose or the gasket is damaged. Tighten the fitting or replace the gasket.
-
Corrosion Around Cast Iron Pipes: Cast iron pipes can corrode over time. Ensure that the transition fittings are properly sealed to prevent moisture from reaching the pipe.
Table: Comparison of Methods to Attach PVC to Cast Iron Pipe
| Method | Advantages | Disadvantages | Best Use |
|---|---|---|---|
| PVC-to-Cast Iron Transition Coupling | Easy to install, leak-proof, minimal tools required | May require professional installation for tight spaces | Residential repairs and new installations |
| Mechanical Coupling | No glue required, reusable, ideal for high-pressure systems | Can be more expensive than transition couplings | Industrial or high-pressure applications |
| Flanged Joint Connection | Strong, permanent, secure connection | Labor-intensive, requires special tools and materials | Industrial systems, high-pressure environments |
| Solvent Cement | Creates a permanent, leak-proof seal | Cannot be easily undone, not suitable for cast iron without special fittings | Residential systems, low-pressure plumbing |
7. FAQs
1. How long will a PVC to cast iron pipe connection last?
A well-installed PVC to cast iron pipe connection can last for many years, typically ranging between 30 to 50 years. The lifespan depends on several factors, such as the quality of the materials, the method of connection used, and the environment in which the pipes are installed. Regular maintenance and inspection can further extend the life of the connection.
2. Can I connect PVC to cast iron without glue?
Yes, it is possible to connect PVC to cast iron without using glue. Mechanical couplings are one method that does not require glue or adhesives. These couplings use a compression system to create a secure seal, making it ideal for installations where disconnection may be needed.
3. What is the best transition coupling for PVC to cast iron pipe?
The best transition coupling for connecting PVC to cast iron depends on your specific needs. For residential plumbing, a standard rubber gasket coupling is typically sufficient. For high-pressure systems or industrial applications, a mechanical or flanged coupling might be better suited due to their durability and ability to handle higher stress.
4. Is it necessary to clean cast iron pipes before attaching PVC?
Yes, it is essential to clean cast iron pipes before attaching PVC. Cast iron pipes often accumulate rust and corrosion, which can affect the quality of the connection. Cleaning the pipe with a wire brush or sandpaper ensures that the surface is smooth and free of debris, allowing for a secure, leak-proof fit.
5. Can I attach PVC to a cast iron pipe under pressure?
Attaching PVC to a cast iron pipe under pressure is generally not recommended unless specifically designed fittings and materials are used. Special couplings and methods, such as mechanical couplings, can help create a secure connection under pressure, but the system should be depressurized before beginning work to ensure safety and prevent accidents.
Conclusion: Successfully attaching PVC to cast iron pipe is an essential skill for plumbers and DIY enthusiasts alike. By understanding the different methods, using the proper tools, and following the right procedures, you can ensure a secure, long-lasting connection that will maintain the integrity of your plumbing system for years to come.
