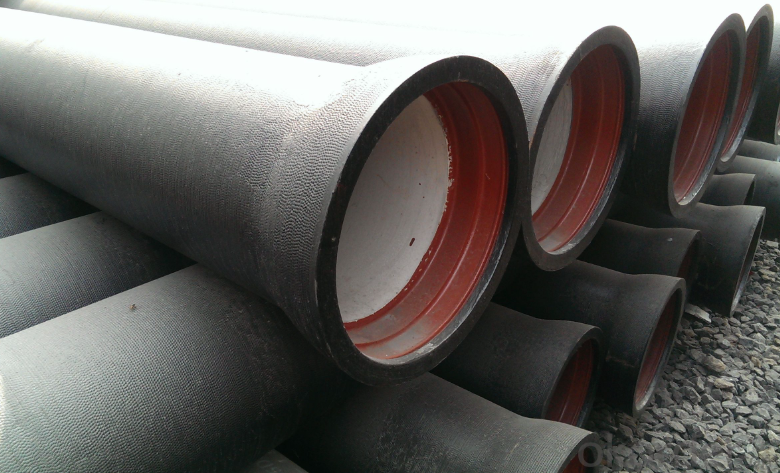

Ductile iron pipes are widely used in water and wastewater systems due to their strength and durability. The weight of these pipes varies based on several factors:
-
Nominal Diameter (DN): The internal diameter of the pipe.
-
Class: Indicates the wall thickness and pressure rating.
-
Coatings: Protective layers like cement mortar or epoxy can add weight.
📊 Weight Chart for Ductile Iron Pipes
Below is a table detailing the approximate weight per foot for ductile iron pipes, based on nominal diameter and class:
| Nominal Diameter (inches) | Class 50 Weight (lbs/ft) | Class 51 Weight (lbs/ft) | Class 52 Weight (lbs/ft) |
|---|---|---|---|
| 3 | 11.40 | 11.60 | 11.80 |
| 4 | 14.40 | 14.70 | 15.00 |
| 6 | 22.20 | 22.60 | 23.00 |
| 8 | 31.50 | 32.00 | 32.50 |
| 10 | 41.10 | 41.60 | 42.10 |
| 12 | 51.60 | 52.10 | 52.60 |
| 14 | 63.60 | 64.10 | 64.60 |
Note: Values are approximate and can vary based on manufacturer and specific pipe specifications.
⚖️ Weight Per Meter Conversion
For international standards, here’s the weight per meter for ductile iron pipes:
| Nominal Diameter (mm) | Class K7 Weight (kg/m) | Class K9 Weight (kg/m) |
|---|---|---|
| 100 | 18.91 | 21.28 |
| 150 | 28.37 | 31.92 |
| 200 | 37.83 | 42.56 |
| 250 | 47.29 | 53.20 |
| 300 | 56.75 | 63.84 |
| 350 | 66.21 | 74.48 |
Source: MEP Rate Schedule
🧪 Factors Influencing Pipe Weight
-
Diameter: Larger diameters require more material, increasing weight.
-
Class: Higher classes have thicker walls, adding weight.
-
Coatings: Protective coatings like cement mortar or epoxy can add additional weight.
-
Length: Longer pipes naturally weigh more.
❓ Frequently Asked Questions
Q1: How is the weight of a ductile iron pipe calculated?
The weight is determined by the pipe’s dimensions, material density, and any additional coatings.
Q2: Does the weight affect transportation costs?
Yes, heavier pipes incur higher transportation costs due to increased fuel consumption and handling requirements.
Q3: Are there lightweight alternatives to ductile iron pipes?
Yes, materials like PVC or HDPE are lighter but may not offer the same durability and pressure resistance as ductile iron.
📌 Conclusion
Understanding the weight of ductile iron pipes is crucial for planning, budgeting, and logistics in infrastructure projects. By considering factors like diameter, class, and coatings, professionals can make informed decisions to ensure the efficiency and cost-effectiveness of their projects.
