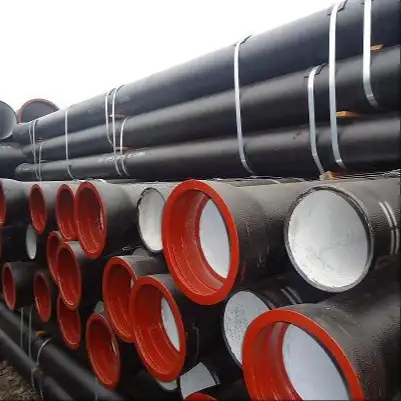

Galvanized ductile iron pipes combine the strength and flexibility of ductile iron with the corrosion resistance of a zinc coating. This fusion results in a durable piping solution suitable for various applications, including water distribution, industrial processes, and structural support.
1. Technical Specifications and Standards
1.1 Material Composition
-
Base Material: Ductile iron, known for its high tensile strength and impact resistance.
-
Galvanization: A protective zinc coating applied to the pipe’s exterior to prevent corrosion.
1.2 Dimensions and Sizes
Galvanized ductile iron pipes are available in various sizes to meet different application requirements.
Nominal Diameter (inches) | Outside Diameter (inches) |
---|---|
3 | 3.96 |
4 | 4.80 |
6 | 6.90 |
8 | 9.05 |
10 | 11.10 |
12 | 13.20 |
14 | 15.30 |
16 | 17.40 |
18 | 19.50 |
20 | 21.60 |
24 | 25.80 |
30 | 32.00 |
Note: Dimensions are based on standard specifications and may vary slightly depending on the manufacturer.
1.3 Standards Compliance
Galvanized ductile iron pipes adhere to various international standards to ensure quality and compatibility:
-
AWWA C151: Standard for ductile iron pipe, centrifugally cast, for water.
-
ISO 2531: Ductile iron pipes, fittings, accessories, and their joints for water applications.
-
EN 545: Ductile iron pipes, fittings, accessories, and their joints for water pipelines.
2. Benefits of Galvanized Ductile Iron Pipes
2.1 Corrosion Resistance
The zinc coating provides a protective barrier against corrosion, extending the pipe’s lifespan, especially in environments with high moisture or chemical exposure.
2.2 Strength and Durability
Ductile iron offers high tensile strength and impact resistance, making these pipes suitable for high-pressure applications and areas prone to mechanical stresses.
2.3 Longevity
With proper installation and maintenance, galvanized ductile iron pipes can last for decades, reducing the need for frequent replacements and associated costs.
2.4 Versatility
These pipes are suitable for a wide range of applications, including water supply, sewage systems, industrial processes, and structural support.
2.5 Cost-Effectiveness
While the initial cost may be higher than some alternatives, the long-term benefits, including reduced maintenance and replacement costs, make them a cost-effective choice.
3. Pricing and Cost Considerations
3.1 Factors Influencing Price
-
Pipe Diameter and Length: Larger diameters and longer lengths increase material and coating costs.
-
Coating Thickness: Thicker zinc coatings provide enhanced protection but at a higher cost.
-
Market Demand and Supply: Fluctuations in raw material prices and demand can affect overall costs.
3.2 Price Range
Prices for galvanized ductile iron pipes vary based on specifications and market conditions. For instance, a 4-inch pipe may cost approximately $25 per foot, while a 24-inch pipe could be priced around $150 per foot.
3.3 Cost Comparison Table
Pipe Diameter (inches) | Approximate Price per Foot |
---|---|
4 | $25.00 |
8 | $50.00 |
12 | $90.00 |
16 | $120.00 |
24 | $150.00 |
Note: Prices are indicative and subject to change based on market conditions and specific project requirements.
4. Applications of Galvanized Ductile Iron Pipes
4.1 Water Supply Systems
These pipes are extensively used in municipal water supply networks due to their corrosion resistance and strength.
4.2 Sewage and Wastewater Management
Their durability makes them suitable for transporting sewage and industrial effluents.
4.3 Industrial Processes
Industries utilize these pipes for transporting chemicals, gases, and other fluids, benefiting from their durability and resistance to harsh substances.
4.4 Structural Support
The mechanical strength of galvanized ductile iron pipes makes them ideal for structural applications, including scaffolding and support frameworks.
4.5 Agricultural Irrigation
Their resistance to corrosion and mechanical damage makes them suitable for irrigation systems in agriculture.
5. Installation and Maintenance
5.1 Installation Guidelines
-
Jointing Methods: Common methods include push-on joints and mechanical joints, ensuring leak-proof connections.
-
Handling: Proper handling during transportation and installation prevents damage to the zinc coating.
-
Trenching: Adequate trenching practices ensure the pipe’s stability and longevity.
5.2 Maintenance Practices
-
Regular Inspections: Periodic checks help identify and address potential issues early.
-
Protective Coatings: Reapplying protective coatings as needed maintains corrosion resistance.
-
Cathodic Protection: In highly corrosive environments, cathodic protection systems can be employed to enhance durability.
6. Environmental Considerations
6.1 Sustainability
Galvanized ductile iron pipes are environmentally friendly due to their recyclability and long service life, reducing the need for frequent replacements.
6.2 Health and Safety
These pipes do not leach harmful substances into water, making them safe for potable water applications.
6.3 Energy Efficiency
The smooth interior surface reduces friction, leading to lower energy consumption for fluid transport.
7. Comparison with Other Pipe Materials
Feature | Galvanized Ductile Iron | PVC | Stainless Steel |
---|---|---|---|
Corrosion Resistance | High | Moderate | Very High |
Strength | High | Low | High |
Lifespan | Long | Moderate | Long |
Cost | Moderate | Low | High |
Environmental Impact | Low | High | Moderate |
Frequently Asked Questions (FAQs)
Q1: What is the lifespan of galvanized ductile iron pipes?
A: Galvanized ductile iron pipes are known for their durability and longevity. With proper installation and maintenance, these pipes can last for several decades, often exceeding 50 years. The zinc coating provides a protective barrier against corrosion, which is a common cause of pipe degradation. Additionally, the inherent strength of ductile iron allows the pipe to withstand high pressures and mechanical stresses, further extending its service life. Regular inspections and maintenance can help identify and address any potential issues early, ensuring the pipe system remains functional for as long as possible.
Q2: Are galvanized ductile iron pipes suitable for potable water systems?
A: Yes, galvanized ductile iron pipes are suitable for potable water systems. The zinc coating used in galvanization is non-toxic and provides a protective barrier that prevents corrosion, ensuring the purity of the water being transported. Additionally, these pipes often comply with various international standards for water quality and safety, making them a reliable choice for drinking water distribution. It’s essential to ensure that the pipes are manufactured and installed according to the relevant standards to maintain water quality and system integrity.
Q3: How does the galvanization process enhance the performance of ductile iron pipes?
A: The galvanization process involves applying a protective zinc coating to ductile iron pipes, significantly enhancing their performance in various ways:
-
Corrosion Resistance: The zinc coating acts as a barrier, preventing moisture and corrosive elements from reaching the iron surface, thereby extending the pipe’s lifespan.
-
Durability: Galvanized coatings provide robust protection against mechanical damage and environmental factors, making the pipes suitable for harsh conditions.
-
Maintenance Reduction: The enhanced resistance to corrosion and wear reduces the frequency and cost of maintenance over the pipe’s service life.
-
Versatility: Galvanized ductile iron pipes are suitable for various applications, including water supply, sewage systems, and industrial processes, due to their improved performance characteristics.
Overall, galvanization significantly improves the reliability and longevity of ductile iron pipes, making them a cost-effective solution for many infrastructure projects.
Q4: What are the environmental considerations associated with using galvanized ductile iron pipes?
A: Galvanized ductile iron pipes offer several environmental benefits, aligning with sustainable development goals:
-
Recyclability: Both ductile iron and zinc are recyclable materials. At the end of their service life, these pipes can be recycled, reducing environmental impact.
-
Longevity: The extended lifespan of galvanized ductile iron pipes means fewer replacements and less resource consumption over time.
-
Reduced Leakage: The strength and integrity of these pipes minimize the risk of leaks, conserving water and preventing soil contamination.
-
Lower Energy Consumption: The smooth interior surface of ductile iron pipes reduces friction, leading to lower energy requirements for pumping fluids.
By incorporating galvanized ductile iron pipes into infrastructure projects, municipalities and industries can achieve more sustainable and environmentally friendly operations.
References:
- AWWA Standards – American Water Works Association
- ISO 2531: Ductile Iron Pipes, Fittings, Accessories, and Their Joints — International Organization for Standardization (ISO)
- EN 545: Ductile Iron Pipes, Fittings, Accessories, and Their Joints for Water Pipelines — European Committee for Standardization (CEN)
- Safe Drinking Water Act (SDWA) – U.S. Environmental Protection Agency (EPA)
- Galvanization – Wikipedia
