Fusion Bonded Epoxy Ductile Iron Pipes: Costs, Price And Features

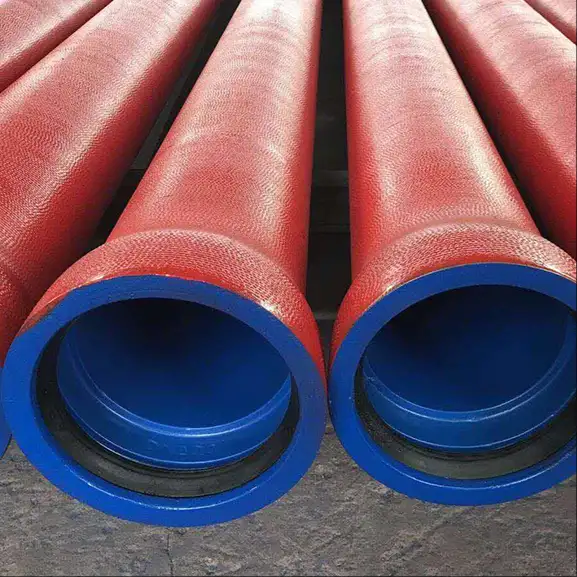

Fusion Bonded Epoxy (FBE) coated ductile iron pipes are widely recognized for their superior corrosion resistance and durability. The FBE coating is a thermosetting epoxy powder applied to preheated ductile iron surfaces, forming a protective layer that adheres strongly to the substrate. This coating method is prevalent in industries such as water distribution, wastewater treatment, and industrial piping systems.

1. Technical Specifications and Standards

1.1 Material Composition

• Base Material: Ductile iron, known for its strength and flexibility.

• Coating Material: Fusion bonded epoxy powder, typically applied at a thickness of 8 to 20 mils.

1.2 Application Standards

• AWWA C116/A21.16: Specifies the requirements for FBE coatings on ductile iron and gray iron fittings for water, wastewater, and reclaimed water systems.

• ISO 2531 & BS EN545: Standards for ductile iron pipes used in potable water applications.

1.3 Coating Process

The FBE coating process involves cleaning the ductile iron surface, heating it to the required temperature, applying the epoxy powder, and curing it to form a uniform, adherent coating. This process ensures optimal protection against corrosion and mechanical damage.

2. Advantages of FBE Coated Ductile Iron Pipes

2.1 Corrosion Resistance

FBE coatings provide excellent protection against corrosion, extending the service life of ductile iron pipes, especially in aggressive environments.

2.2 Mechanical Strength

The coating enhances the pipe’s resistance to abrasion and mechanical wear, making it suitable for high-pressure applications.

2.3 Chemical Resistance

FBE coatings exhibit strong resistance to a wide range of chemicals, including acids, alkalis, and solvents, making them ideal for industrial applications.

2.4 Thermal Stability

These coatings maintain their protective properties across a broad temperature range, ensuring reliability in various operating conditions.

2.5 Environmental Benefits

FBE coatings are environmentally friendly, with low volatile organic compound (VOC) emissions during application, contributing to safer working conditions and reduced environmental impact.

3. Pricing and Cost Considerations

3.1 Factors Influencing Price

• Pipe Diameter and Length: Larger diameters and longer lengths increase material and coating costs.

• Coating Thickness: Thicker coatings provide enhanced protection but at a higher cost.

• Market Demand and Supply: Fluctuations in raw material prices and demand can affect overall costs.

3.2 Price Range

Prices for FBE coated ductile iron pipes vary based on specifications and market conditions. For instance, a 4-inch pipe may cost approximately $22.71 per foot, while a 48-inch pipe could be priced around $342.26 per foot.

3.3 Cost Comparison Table

Note: Prices are indicative and subject to change based on market conditions and specific project requirements.

4. Applications of FBE Coated Ductile Iron Pipes

4.1 Water Distribution Systems

FBE coated pipes are extensively used in municipal water supply networks due to their corrosion resistance and longevity.

4.2 Wastewater Treatment

Their chemical resistance makes them suitable for transporting sewage and industrial effluents.

4.3 Industrial Piping

Industries utilize these pipes for transporting chemicals, gases, and other fluids, benefiting from their durability and resistance to harsh substances.

4.4 Fire Protection Systems

The mechanical strength and reliability of FBE coated ductile iron pipes make them ideal for fire suppression systems.

5. Installation and Maintenance

5.1 Installation Guidelines

• Surface Preparation: Ensure the pipe surface is clean and free from contaminants before installation.

• Handling: Use appropriate lifting equipment to prevent damage to the coating.

• Joining Methods: Mechanical joints or flanged connections are commonly used, depending on the application.

5.2 Maintenance Practices

• Regular Inspections: Periodically check for signs of coating damage or corrosion.

• Repair Procedures: In case of coating damage, follow manufacturer-recommended repair methods to restore protection.

6. Comparison with Other Coating Types

Frequently Asked Questions (FAQs)

Q1: What is the lifespan of FBE coated ductile iron pipes?

A: FBE coated ductile iron pipes are designed for longevity, often exceeding 50 years of service life under normal operating conditions. The fusion bonded epoxy coating provides excellent protection against corrosion and mechanical wear, significantly extending the pipe’s lifespan compared to uncoated alternatives. However, actual service life can vary based on factors such as environmental conditions, installation practices, and maintenance routines. Regular inspections and adherence to proper installation guidelines can help maximize the lifespan of these pipes.

Q2: Are FBE coated pipes suitable for potable water applications?

A: Yes, FBE coated ductile iron pipes are suitable for potable water applications. The fusion bonded epoxy coating is non-toxic and complies with standards such as AWWA C116/A21.16, ensuring it does not leach harmful substances into the water supply. Additionally, the coating provides a smooth internal surface, reducing friction and improving water flow efficiency. It’s essential to ensure that the specific FBE coating used is certified for potable water use by relevant health and safety authorities.

Q3: How does FBE coating compare to cement mortar lining?

A: FBE coating offers several advantages over cement mortar lining. While cement mortar provides a basic level of corrosion protection, FBE coatings deliver superior resistance to a wide range of chemicals and environmental conditions. FBE coatings are also more flexible, reducing the risk of cracking under stress, and they adhere more strongly to the pipe surface, ensuring long-term protection. Furthermore, the thinner FBE coating allows for a larger internal diameter, improving flow capacity compared to the thicker cement mortar lining.

Q4: What maintenance is required for FBE coated pipes?

A: FBE coated ductile iron pipes require minimal maintenance due to the durability of the coating. However, regular inspections are recommended to detect any potential damage or degradation. If the coating is compromised, prompt repair using manufacturer-approved methods is essential to prevent corrosion. In environments with aggressive chemicals or mechanical stress, more frequent inspections may be necessary to ensure the integrity of the coating.

Q5: What are the environmental benefits of using FBE coated ductile iron pipes?

A: Fusion Bonded Epoxy (FBE) coatings offer several environmental advantages, making them a sustainable choice for piping systems:

• Reduced Environmental Impact: FBE coatings are solvent-free, resulting in lower volatile organic compound (VOC) emissions during application. This contributes to improved air quality and reduced environmental pollution.

• Enhanced Durability: The superior corrosion resistance of FBE coatings extends the service life of ductile iron pipes, reducing the frequency of replacements and conserving resources.

• Recyclability: Ductile iron pipes are recyclable, and the use of FBE coatings does not hinder the recycling process, supporting circular economy principles.

• Compliance with Environmental Standards: FBE coatings comply with various environmental regulations and standards, ensuring safe use in potable water systems and minimizing ecological risks.

By choosing FBE coated ductile iron pipes, industries and municipalities can achieve long-term sustainability goals while maintaining efficient and reliable piping infrastructure.
