Ductile iron pipe fittings play a vital role in ensuring the durability and performance of water distribution systems, sewage systems, and industrial piping networks. Known for their strength, flexibility, and resistance to corrosion, these fittings are preferred in both municipal and industrial applications. With an ever-growing demand for reliable and cost-effective piping solutions, ductile iron pipe fittings continue to be an essential component in a wide range of infrastructure projects.
In this article, we will explore the various types of ductile iron pipe fittings, their advantages and disadvantages, the standards they must meet, installation methods, and why the brand Luokaiwei has emerged as a leading player in the market.

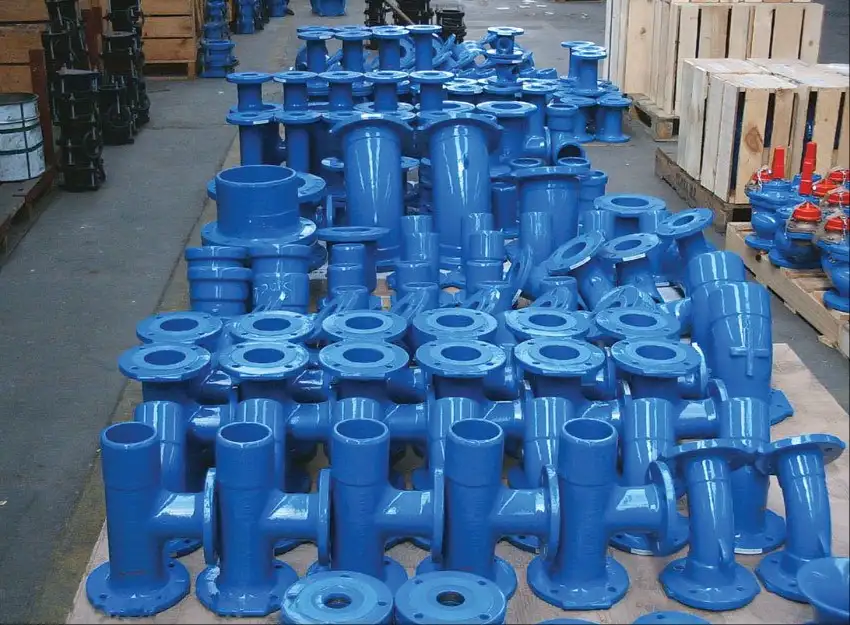

Types of Ductile Iron Pipe Fittings
Ductile iron pipe fittings come in a wide range of designs and sizes to accommodate various plumbing and piping needs. Each type serves a distinct purpose and is suitable for different applications. Below are the most commonly used types of ductile iron pipe fittings.
1. Flanged Fittings
Flanged fittings are one of the most common types of ductile iron fittings used for connecting pipes. These fittings consist of a flange, a flat disc-like structure that is bolted to the pipes. Flanged fittings are used when a secure and leak-proof connection is required, particularly in systems that will undergo frequent disassembly or maintenance.
Applications:
-
Used for connecting larger diameter pipes.
-
Common in industrial and municipal water systems.
-
Suitable for high-pressure applications.
Advantages:
-
Easy to install and remove.
-
Provide a strong, durable, and leak-proof seal.
-
Allow for flexibility in pipe alignment.
Disadvantages:
-
Require gaskets and bolts, which may need regular maintenance.
-
More expensive compared to some other fittings.
2. Mechanical Joint Fittings
Mechanical joint fittings are widely used for connecting ductile iron pipes. They feature a mechanical joint with a rubber gasket and bolts that create a secure seal between the pipe and fitting. These types of fittings are often used in applications where flexibility is necessary and can be adjusted or disassembled as needed.
Applications:
-
Common in both water and sewage systems.
-
Used in systems that require maintenance or realignment.
-
Typically employed for connecting pipes in tight spaces.
Advantages:
-
Flexible and easy to install.
-
Ideal for installation in areas where pipes may need to be realigned.
-
Strong, leak-resistant seal.
Disadvantages:
-
Requires periodic maintenance of bolts and gaskets.
-
Not ideal for very high-pressure applications.
3. Push-On Fittings
Push-on fittings offer an easy and efficient way to connect ductile iron pipes. These fittings are designed to “push” onto the pipe ends without the need for bolts or welding. The push-on design allows for quick installation, reducing labor time and costs.
Applications:
-
Often used in low-pressure water and sewer systems.
-
Ideal for residential, commercial, and industrial projects.
-
Common in trenchless installation methods.
Advantages:
-
Fast and simple installation.
-
No bolts, gaskets, or welding needed.
-
Lower installation costs.
Disadvantages:
-
Limited to applications with lower pressures.
-
May not be as robust as flanged or mechanical joint fittings in demanding environments.
4. Socket Fittings
Socket fittings are designed to fit snugly over the ends of pipes. They are often used for smaller diameter pipes where a simple and secure connection is needed. Socket fittings are used for connecting pipes in various configurations, such as elbows, tees, or reducers.
Applications:
-
Common in both residential and industrial piping systems.
-
Used in places where space constraints require compact connections.
Advantages:
-
Easy to install and remove.
-
Ideal for smaller-scale applications.
-
Cost-effective.
Disadvantages:
-
Not suitable for high-pressure applications.
-
Limited to smaller diameter pipes.
Advantages and Disadvantages of Ductile Iron Pipe Fittings
Ductile iron pipe fittings are renowned for their excellent mechanical properties, but like any material, they come with both advantages and disadvantages. Understanding these pros and cons is key to selecting the right fitting for your project.
Advantages of Ductile Iron Pipe Fittings
-
Strength and Durability: Ductile iron is known for its superior strength and toughness. These fittings can withstand extreme pressures, making them ideal for water systems in urban infrastructure and industrial applications.
-
Corrosion Resistance: Ductile iron is resistant to corrosion, especially when coated with materials like cement or epoxy. This makes it a preferred choice for underground and outdoor installations.
-
Longevity: Ductile iron pipe fittings have a long lifespan, often exceeding 50-100 years when properly maintained. This longevity is essential for water distribution systems and sewage networks.
-
Impact Resistance: Ductile iron can absorb impact without cracking, which is a critical property when it comes to installations in earthquake-prone or high-traffic areas.
-
Recyclability: Ductile iron is made from recycled iron, making it an eco-friendly option. It can be reused multiple times without losing its material properties.
Disadvantages of Ductile Iron Pipe Fittings
-
Weight: One of the primary drawbacks of ductile iron fittings is their weight. These fittings are significantly heavier than plastic or even some steel options, making installation more labor-intensive and costly.
-
Cost: While ductile iron fittings offer great durability, they come at a higher initial cost compared to other materials like PVC. This can be a consideration for cost-conscious projects.
-
Corrosion in Harsh Environments: Although ductile iron is resistant to corrosion, it is not entirely immune. In environments where extreme chemicals or aggressive water conditions exist, corrosion can still occur, requiring additional protection such as coatings.
-
Complex Installation: Ductile iron fittings often require special tools for installation, especially for flanged and mechanical joint fittings. This can add complexity and cost to the installation process.
International Standards and Certifications for Ductile Iron Pipe Fittings
Ductile iron pipe fittings must meet various international standards to ensure they provide the required performance and safety for their intended use. These standards define everything from material composition to testing procedures, ensuring that fittings are fit for purpose and compliant with regulations.
ISO Standards
ISO 2531:2019 specifies the requirements for ductile iron pipes, fittings, and accessories used in water and sewage systems. It covers the manufacturing process, mechanical properties, testing methods, and acceptable tolerances for ductile iron fittings.
EN Standards
The European Standard EN 545:2010 specifies requirements for ductile iron pipes and fittings, including their design, manufacturing, testing, and marking. It is widely used across European countries for both water and sewage systems.
AWWA Standards
The American Water Works Association (AWWA) provides standards for ductile iron fittings through AWWA C110 and AWWA C153. These standards cover the specifications for fittings, their materials, and testing methods to ensure they meet the quality required for drinking water distribution.
Brand Spotlight: Luokaiwei
When it comes to choosing high-quality ductile iron pipe fittings, one brand that stands out is Luokaiwei. Known for its commitment to excellence, Luokaiwei offers a wide range of ductile iron fittings designed to meet international standards and the specific needs of modern infrastructure projects.
Quality Control and Certifications
Luokaiwei’s products are manufactured according to stringent quality control measures, ensuring that every fitting meets or exceeds industry standards. The company holds certifications from ISO, EN, and AWWA, which guarantees that its fittings are safe, reliable, and durable.
Innovative Solutions
Luokaiwei invests in cutting-edge technology to improve its manufacturing processes. Their ductile iron fittings come with corrosion-resistant coatings and advanced sealing technology, making them a top choice for applications requiring long-term reliability.
Customer Support
Luokaiwei offers excellent customer service, providing clients with technical assistance, installation guides, and after-sales support to ensure that their projects run smoothly.
Comparison Table: Types of Ductile Iron Fittings
| Type of Fitting | Best Use Case | Advantages | Disadvantages | Cost |
|---|---|---|---|---|
| Flanged Fittings | High-pressure systems | Durable, easy to disassemble, high sealing capability | Requires regular maintenance | High |
| Mechanical Joint Fittings | Water and sewage systems | Flexible, leak-resistant seal, easy installation | Needs maintenance, not for high-pressure | Moderate |
| Push-On Fittings | Low-pressure applications | Fast installation, no welding needed | Limited to lower pressure | Low |
| Socket Fittings | Smaller diameter pipes | Compact, cost-effective, easy installation | Limited to lower pressures | Low |
Frequently Asked Questions (FAQs)
1. What are ductile iron pipe fittings used for?
Ductile iron pipe fittings are primarily used to connect and secure pipes in water, sewage, and industrial piping systems. These fittings are essential in applications that require durability, resistance to corrosion, and the ability to withstand high pressure. Ductile iron is particularly well-suited for underground installations, as it offers superior strength and resistance to environmental factors.
2. What is the difference between ductile iron and cast iron pipe fittings?
Ductile iron pipe fittings are made from a more flexible material compared to cast iron, which allows them to absorb impact without cracking. This flexibility makes ductile iron fittings more reliable in areas with seismic activity or heavy traffic. Cast iron, while strong, is more brittle and can crack under stress.
3. How do I choose the right ductile iron pipe fitting for my project?
Choosing the right fitting depends on factors like the type of fluid being transported, the pressure requirements, the environment (indoor vs. outdoor), and budget. Flanged fittings are best for high-pressure systems, while mechanical joint and push-on fittings offer flexibility and ease of installation for moderate-pressure systems.
4. Are Luokaiwei ductile iron pipe fittings compliant with international standards?
Yes, Luokaiwei ductile iron pipe fittings are manufactured to meet international standards such as ISO, EN, and AWWA. This ensures that they meet the highest levels of quality, safety, and reliability, making them suitable for use in municipal water systems, sewage networks, and industrial applications.
5. How long do ductile iron pipe fittings last?
Ductile iron pipe fittings can last for 50-100 years, depending on the environmental conditions and the type of coating used. Proper maintenance and regular inspections can help extend their lifespan, making them a cost-effective long-term solution for piping systems.
Conclusion
Ductile iron pipe fittings are an integral part of modern infrastructure, offering strength, flexibility, and corrosion resistance. Whether you’re working on water, sewage, or industrial piping systems, selecting the right fitting ensures a long-lasting, reliable connection. With various types like flanged, mechanical joint, push-on, and socket fittings, each serving a distinct purpose, it’s important to consider factors like pressure requirements, installation ease, and the overall application when making your choice.
Brands like Luokaiwei provide top-tier products that meet global standards, ensuring that your projects are not only successful but also sustainable for decades.
