Exploring Ductile Iron Grades: Composition, Properties, and Applications

Time:2025-05-21

Ductile iron (also called nodular cast iron) offers engineers an exceptional combination of strength, durability, and cost-effectiveness for demanding industrial applications. This comprehensive guide examines the ‌chemical composition‌ (3.0-4.0% carbon, 1.8-3.5% silicon), ‌mechanical properties‌ (400-900 MPa tensile strength), and ‌specialized applications‌ of major grades including ASTM A536 (60-40-18, 65-45-12), EN-GJS-400-15/500-7, and SAE J434 standards.

Ductile Iron Grades: Composition, Properties, and Applications
Ductile Iron Grades: Composition, Properties, and Applications

1. Chemical Composition of Ductile Iron

The chemical composition of ductile iron plays a pivotal role in determining its mechanical properties and suitability for specific applications. While the exact composition can vary based on the desired grade and application, certain elements are fundamental to its structure and performance.

1.1 Primary Elements

  • Carbon (C): Typically ranges from 3.0% to 4.0%. Carbon is essential for forming graphite nodules, which contribute to the iron’s ductility.

  • Silicon (Si): Ranges between 1.8% and 3.0%. Silicon promotes graphite formation and enhances strength and hardness.

  • Manganese (Mn): Generally kept below 0.5%. Manganese influences the matrix structure and can affect strength and hardness.

  • Phosphorus (P) and Sulfur (S): Both are undesirable impurities. Phosphorus is typically limited to 0.05%, and sulfur to 0.02%, as they can lead to brittleness.

  • Magnesium (Mg): Added in small amounts (0.03% to 0.05%) to facilitate the formation of spheroidal graphite.

1.2 Alloying Elements

  • Nickel (Ni): Enhances toughness and corrosion resistance.

  • Copper (Cu): Improves strength and hardness.

  • Chromium (Cr): Increases wear resistance.

  • Molybdenum (Mo): Enhances strength at elevated temperatures.

1.3 Typical Chemical Composition Table

Element Typical Range (%)
Carbon (C) 3.0 – 4.0
Silicon (Si) 1.8 – 3.0
Manganese (Mn) 0.1 – 0.5
Phosphorus (P) ≤ 0.05
Sulfur (S) ≤ 0.02
Magnesium (Mg) 0.03 – 0.05
Nickel (Ni) 0.1 – 1.0
Copper (Cu) 0.1 – 1.0
Chromium (Cr) 0.03 – 0.1
Molybdenum (Mo) 0.02 – 0.05

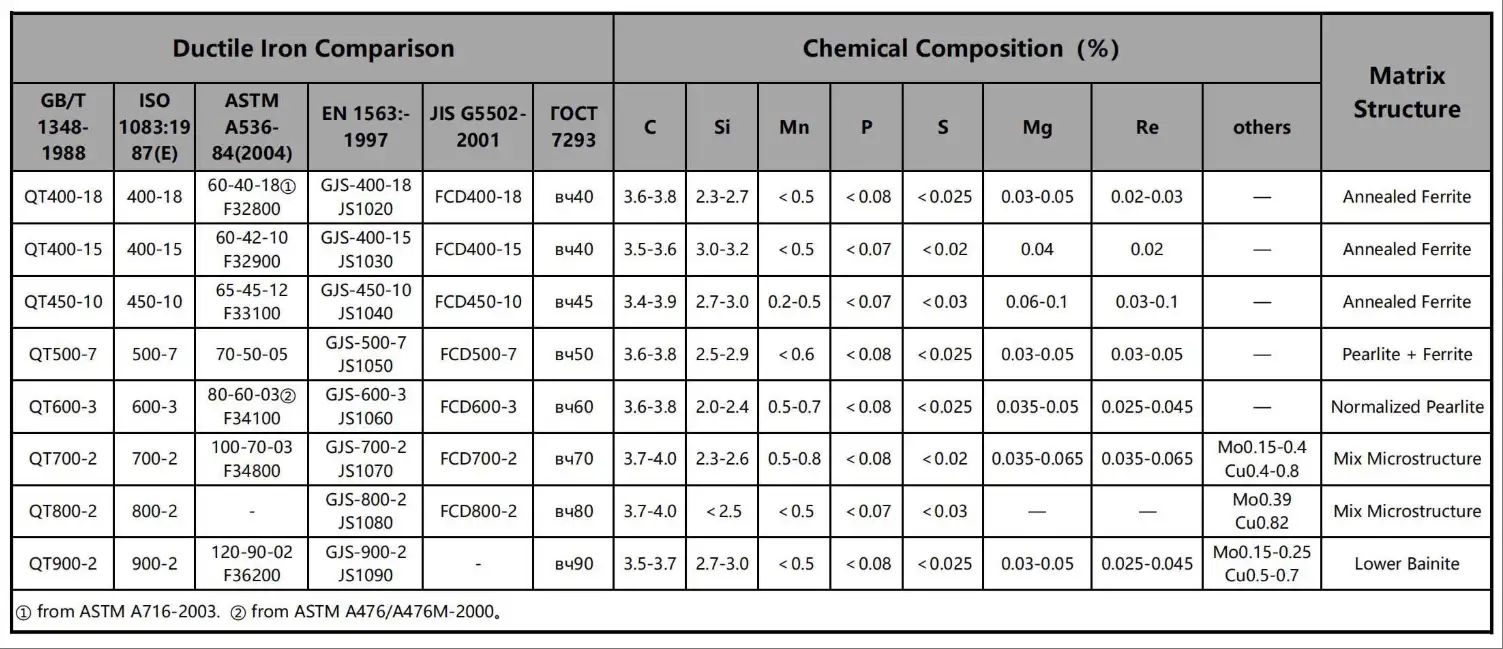

2. Classification of Ductile Iron Grades

Ductile iron grades are primarily classified based on their mechanical properties, particularly tensile strength, yield strength, and elongation. Different standards exist globally to categorize these grades, with ASTM A536 and ISO 1083 being among the most recognized.

2.1 ASTM A536 Standard

The ASTM A536 standard specifies the mechanical properties of ductile iron castings. Common grades under this standard include:

Grade Tensile Strength (psi) Yield Strength (psi) Elongation (%)
60-40-18 60,000 40,000 18
65-45-12 65,000 45,000 12
80-55-06 80,000 55,000 6
100-70-03 100,000 70,000 3
120-90-02 120,000 90,000 2

2.2 ISO 1083 Standard

The ISO 1083 standard classifies ductile iron grades based on tensile strength and elongation. Examples include:

Grade Tensile Strength (MPa) Elongation (%)
ISO 1083/JS/350-22 350 22
ISO 1083/JS/400-18 400 18
ISO 1083/JS/500-7 500 7
ISO 1083/JS/600-3 600 3
ISO 1083/JS/700-2 700 2

2.3 Comparative Analysis

While both standards aim to categorize ductile iron based on mechanical properties, ASTM A536 is predominantly used in the United States, whereas ISO 1083 is more common internationally. The choice between standards often depends on regional preferences and specific application requirements.

3. Mechanical Properties of Ductile Iron Grades

The mechanical properties of ductile iron are influenced by its chemical composition and microstructure. Understanding these properties is crucial for selecting the appropriate grade for a given application.

3.1 Tensile and Yield Strength

  • 60-40-18: Offers excellent ductility with moderate strength, making it suitable for applications requiring flexibility.

  • 65-45-12: Balances strength and ductility, commonly used in automotive components.

  • 80-55-06: Provides higher strength with reduced ductility, ideal for structural applications.

  • 100-70-03 and 120-90-02: High-strength grades with lower elongation, suitable for heavy-duty applications.

3.2 Hardness and Wear Resistance

Hardness increases with higher strength grades. For instance, 100-70-03 exhibits greater hardness compared to 60-40-18, making it more wear-resistant.

3.3 Impact Resistance

Lower strength grades like 60-40-18 have superior impact resistance due to higher ductility, whereas higher strength grades may be more brittle under impact loads.

3.4 Fatigue Strength

Ductile iron’s fatigue strength is influenced by its microstructure and the presence of graphite nodules. Proper heat treatment and alloying can enhance fatigue resistance.

4. Applications of Various Ductile Iron Grades

The versatility of ductile iron allows its use across a broad spectrum of industries. Selecting the appropriate grade ensures optimal performance and longevity.

4.1 Automotive Industry

  • 60-40-18 and 65-45-12: Used in suspension components, steering knuckles, and brake calipers due to their balance of strength and ductility.

  • 80-55-06: Ideal for crankshafts and gears requiring higher strength.

4.2 Water and Sewage Systems

Ductile iron pipes, especially grades like 60-40-18, are extensively used for water and sewage transportation due to their corrosion resistance and durability.

4.3 Construction and Infrastructure

High-strength grades like 100-70-03 are employed in heavy machinery, bridge components, and structural supports where load-bearing capacity is critical.

4.4 Agricultural Equipment

Components such as plowshares and tractor parts benefit from the wear resistance and strength of grades like 80-55-06.

5. Heat Treatment and Microstructure of Ductile Iron

Heat treatment is a critical process in tailoring the microstructure and, consequently, the mechanical properties of ductile iron. By manipulating the cooling rates and thermal cycles, various microstructures such as ferrite, pearlite, bainite, and martensite can be achieved, each imparting distinct characteristics to the material.

5.1 Ferritic Microstructure

Ferrite is a soft and ductile phase consisting of nearly pure iron with a body-centered cubic (BCC) crystal structure. In ductile iron, a ferritic matrix is achieved through slow cooling or annealing processes, which allow carbon to diffuse out of the austenite phase, leading to the formation of graphite nodules and a ferritic matrix. This microstructure offers excellent ductility, impact resistance, and machinability, making it suitable for applications requiring high toughness and elongation.

5.2 Pearlitic Microstructure

Pearlite is a lamellar mixture of ferrite and cementite (Fe₃C) that forms during the eutectoid transformation of austenite upon cooling. This microstructure provides higher strength and hardness compared to ferrite but at the expense of ductility. Pearlitic ductile iron is commonly used in applications where wear resistance and strength are prioritized over ductility.

5.3 Bainitic Microstructure

Bainite is a microstructure that forms at cooling rates faster than those producing pearlite but slower than those forming martensite. It consists of a fine mixture of ferrite and cementite, offering a combination of strength and toughness. Bainitic ductile iron is achieved through austempering, a heat treatment process involving austenitizing followed by rapid cooling to an intermediate temperature and holding until transformation is complete. This results in Austempered Ductile Iron (ADI), which exhibits superior strength and wear resistance.

5.4 Martensitic Microstructure

Martensite is a hard and brittle phase formed by rapid quenching of austenite, leading to a diffusionless transformation. In ductile iron, a martensitic matrix can be achieved through quenching, but due to its brittleness, it is often tempered to improve toughness. Tempered martensitic ductile iron offers high strength and hardness, suitable for applications requiring wear resistance.

5.5 Comparative Microstructure Table

Microstructure Formation Process Characteristics Applications
Ferrite Slow cooling/annealing High ductility, low strength Pressure pipes, fittings
Pearlite Moderate cooling Balanced strength and ductility Gears, crankshafts
Bainite (ADI) Austempering High strength and toughness Automotive components
Martensite Rapid quenching High hardness, low ductility Wear-resistant parts

Frequently Asked Questions (FAQs)

Q1: What is the significance of graphite nodules in ductile iron?

Graphite nodules play a crucial role in enhancing the mechanical properties of ductile iron. Unlike flake graphite in gray iron, which acts as stress concentrators leading to brittleness, spheroidal graphite nodules in ductile iron interrupt the continuity of the matrix less severely. This nodular structure allows for better stress distribution, resulting in improved ductility, toughness, and fatigue resistance. The formation of these nodules is facilitated by adding nodulizing elements like magnesium or cerium during the casting process.

Q2: How does heat treatment affect the properties of ductile iron?

Heat treatment alters the microstructure of ductile iron, thereby modifying its mechanical properties. For instance, annealing can produce a ferritic matrix, enhancing ductility and machinability. Normalizing leads to a pearlitic structure, increasing strength and hardness. Austempering results in a bainitic microstructure (ADI), offering a superior combination of strength and toughness. Quenching and tempering can produce a martensitic matrix with high hardness, suitable for wear-resistant applications. Thus, by selecting appropriate heat treatment processes, the properties of ductile iron can be tailored to specific application requirements.

Q3: What are the common applications of different ductile iron grades?

Ductile iron grades are selected based on their mechanical properties for various applications:

  • Ferritic Grades (e.g., 60-40-18): Used in pressure pipes and fittings due to their high ductility and impact resistance.

  • Pearlitic Grades (e.g., 80-55-06): Suitable for automotive components like gears and crankshafts, where strength and wear resistance are essential.

  • Austempered Grades (ADI): Employed in high-performance applications such as suspension components and heavy-duty gears, benefiting from their superior strength and toughness.

  • Martensitic Grades: Applied in wear-resistant parts like dies and cutting tools, where high hardness is required.

Q4: How does alloying influence the properties of ductile iron?

Alloying elements are added to ductile iron to enhance specific properties:

  • Nickel (Ni): Improves toughness and corrosion resistance.

  • Copper (Cu): Increases strength and hardness.

  • Chromium (Cr): Enhances wear resistance.

  • Molybdenum (Mo): Improves high-temperature strength.

The addition of these elements allows for the customization of ductile iron properties to meet the demands of various applications.

Q5: What are the advantages of Austempered Ductile Iron (ADI)?

Austempered Ductile Iron (ADI) offers several advantages over conventional ductile iron:

  • Enhanced Strength and Toughness: ADI exhibits a unique combination of high strength and toughness due to its ausferritic microstructure.

  • Superior Wear Resistance: The presence of acicular ferrite and retained austenite provides excellent wear properties, making ADI suitable for demanding applications.

  • Weight Reduction: The high strength-to-weight ratio of ADI allows for the design of lighter components without compromising performance.

  • Cost-Effectiveness: Compared to other high-performance materials, ADI offers a cost-effective solution with comparable mechanical properties.

These attributes make ADI an attractive material choice for industries such as automotive, construction, and heavy machinery.
