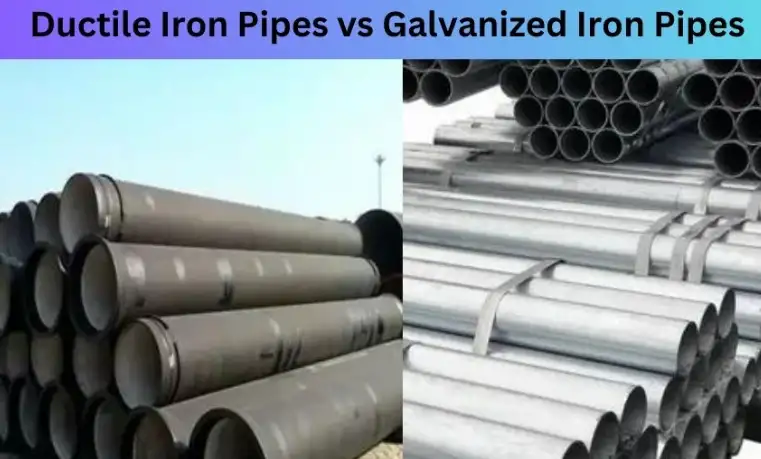

Ductile iron and galvanized steel are two widely used ferrous materials that serve critical roles in piping, structural, and industrial applications. Ductile iron, characterized by its nodular graphite inclusions, offers superior tensile strength, impact resistance, and fatigue life compared to traditional grey cast iron. Galvanized steel, on the other hand, is carbon steel coated with a protective zinc layer via hot-dip galvanization to resist corrosion and extend service life.
While ductile iron can achieve service lifespans exceeding 100 years under optimal conditions, galvanized steel typically provides corrosion protection for 20–50 years depending on environment and maintenance.
Cost-per-foot analysis reveals that ductile iron often carries a higher upfront material cost but lower long-term maintenance expenses, whereas galvanized steel is initially less expensive but may incur higher lifecycle costs due to more frequent re-galvanization or replacement. From an environmental perspective, ductile iron benefits from recyclability of cast materials and long service life, whereas galvanized steel’s zinc coating requires careful end-of-life handling to prevent heavy-metal pollution.
Applications for ductile iron span water and sewage pipelines, heavy-duty automotive parts, and wind-energy components, while galvanized steel is prevalent in building frames, street furniture, and residential plumbing. Installation and maintenance protocols differ substantially, with ductile iron requiring specific jointing methods (flanges, spigots, and gaskets) and internal linings to prevent tuberculation, and galvanized steel needing periodic inspections of the zinc coating integrity.
1. Metallurgical Composition and Production Processes
1.1 Ductile Iron Production
Ductile iron is produced by adding magnesium or cerium to molten grey cast iron, which promotes the formation of spherical graphite nodules rather than flakes, thereby enhancing ductility and toughness. The typical chemical composition includes 3.2–3.6% carbon, 2.1–2.8% silicon, small quantities of manganese, sulfur, and phosphorus, and trace elements such as magnesium for nodulizing. Key production steps involve controlled inoculation, precise temperature management, and subsequent heat treatments (e.g., annealing or austempering) to tailor mechanical properties for specific applications.
1.2 Galvanized Steel Production
Galvanized steel production begins with cold-rolled or hot-rolled carbon steel substrates that undergo surface preparation (degreasing, pickling, fluxing) before immersion in a bath of molten zinc at approximately 450 °C. The resulting zinc-iron alloy layers, topped by a pure zinc coating, adhere metallurgically to the steel, forming a durable barrier that shields the substrate from oxygen and moisture. Variations include batch galvanizing, continuous galvanizing, and electrogalvanizing, each offering different coating thicknesses and uniformity tailored to end-use requirements.
2. Mechanical Properties Comparison
| Property | Ductile Iron | Galvanized Steel |
|---|---|---|
| Tensile Strength | 60,000–100,000 psi (415–690 MPa) | 30,000–80,000 psi (207–550 MPa) |
| Yield Strength | 40,000–70,000 psi (275–480 MPa) | 30,000–70,000 psi (207–480 MPa) |
| Elongation at Break | 10–18% | 10–40% |
| Hardness (Brinell) | 150–250 HB | 120–200 HB |
| Modulus of Elasticity | 28–36 × 10³ ksi (190–250 GPa) | 29–30 × 10³ ksi (200–210 GPa) |
Table 1. Comparative mechanical properties of ductile iron and galvanized steel.
3. Corrosion Resistance and Durability
3.1 Ductile Iron Corrosion Protection
Ductile iron requires coatings and linings—such as cement mortar, polyethylene, or epoxy—to protect the base metal from soil-side and internal water corrosion. Cement mortar lining has virtually eliminated tuberculation in potable water service, providing over 100 years of free‐flowing operation in some installations.
3.2 Galvanized Steel Corrosion Protection
The zinc layer on galvanized steel offers galvanic protection: any breach in the coating still sacrifices zinc preferentially, protecting the underlying steel until the coating is exhausted. Typical service life ranges from 20 to 50 years depending on environmental aggressiveness, requiring periodic inspection and potential re-galvanization to maintain integrity.
4. Cost Analysis and Economic Considerations
Upfront material costs for ductile iron pipes and fittings are generally 10–30% higher than comparable galvanized steel products, reflecting the specialized casting processes and nodulizing additives. However, when factoring in lifecycle costs—maintenance, replacement, downtime—ductile iron often proves more economical for critical infrastructure with projected service lives exceeding 75 years. Galvanized steel’s lower initial cost can be attractive for short-term or less demanding applications but may incur higher total costs if frequent recoating or replacement is necessary in corrosive environments.
5. Applications and Use Cases
5.1 Ductile Iron Applications
-
Water and Sewage Distribution: Primary material for large-diameter mains due to strength and joint flexibility.
-
Automotive Components: Engine crankshafts, brake components, and suspension parts leveraging fatigue resistance.
-
Wind Energy: Hubs and structural frames benefit from high load capacity and castability.
5.2 Galvanized Steel Applications
-
Structural Framing: Buildings, bridges, and street furniture utilize galvanized sections for long-term corrosion resistance.
-
Residential Plumbing: Historically dominant in cold-water supply lines until PVC and PEX gained prevalence.
-
Fencing and Outdoor Furniture: Zinc coating resists weathering and extends service life with minimal upkeep.
6. Environmental Impact and Sustainability
6.1 Ductile Iron Sustainability
Ductile iron is highly recyclable, with scrap readily re-melted without degradation of graphite structure, supporting circular economy principles. The long service life of >100 years reduces material turnover and embodied energy over infrastructure lifecycles.
6.2 Galvanized Steel Sustainability
Galvanized steel is also recyclable; however, zinc recovery processes must manage heavy metal runoff to prevent environmental contamination. End-of-life steel can be re-melted, but zinc removal and recycling require specialized facilities, slightly increasing processing complexity.
7. Installation, Maintenance, and Lifespan
7.1 Ductile Iron Installation and Maintenance
Installation involves flanged, mechanical joint, or push-on joint systems compliant with AWWA C111 (US) or EN 545/598 (Europe). Maintenance focuses on periodic inspection of coatings, cathodic protection systems, and joint integrity, with expected lifespan of 100–110 years in favorable soil conditions.
7.2 Galvanized Steel Installation and Maintenance
Galvanized steel installation follows standard welding or bolting practices; care must be taken to avoid damage to the zinc coating during fabrication and erection. Maintenance includes visual inspections for rust breakthrough, touch-up painting or re-galvanization, typically on a 20–30 year cycle in marine or industrial environments.
8. Frequently Asked Questions
Q1: Which material offers better long-term corrosion resistance for water pipelines?
Ductile iron pipelines, when internally lined with cement mortar, provide exceptional protection against tuberculation and general corrosion, yielding lifespans exceeding 100 years in benign soils. Galvanized steel pipes, while initially corrosion-resistant due to the sacrificial zinc layer, experience gradual depletion of zinc in aggressive or fluctuating pH environments, often requiring recoating or replacement within 30–50 years. Therefore, for critical water distribution systems demanding minimal maintenance and maximum reliability, ductile iron is generally preferred.
Q2: How do installation costs compare between ductile iron and galvanized steel?
Installation of ductile iron pipe typically involves specialized equipment for handling heavy cast sections and precision joint making, resulting in higher labor costs per foot compared to lightweight galvanized steel, which can often be assembled with conventional steel-erection crews. However, reduced maintenance interventions for ductile iron joints and coatings over the pipeline’s service life offset these initial costs, making total installed cost competitive or even favorable relative to galvanized steel in long-term projects.
Q3: Can galvanized steel be used for high-pressure applications?
Standard galvanized steel is typically rated for moderate pressures up to approximately 300 psi (20 bar) depending on wall thickness and grade. For higher pressure applications, specialized high-strength alloy steels or pressure-rated ductile iron classes (e.g., Class 51, 52) provide safer design margins. Galvanized steel fittings must also be selected carefully to withstand internal pressure without compromising the zinc coating integrity.
Q4: What environmental considerations should guide material selection?
When sustainability is paramount, ductile iron’s high recyclability and exceedingly long service life reduce lifecycle embodied energy and CO₂ emissions, aligning with green infrastructure goals. Galvanized steel, while recyclable, demands careful zinc management to prevent ecological toxicity and may incur higher embodied energy due to frequent recoating or part replacement in harsh environments.
Q5: How does the weight of ductile iron compare to galvanized steel for equivalent diameter pipes?
Ductile iron pipe weighs approximately 80–100 lb/ft for large diameters (e.g., 16 in.), whereas similarly sized galvanized steel weighs around 40–60 lb/ft, making galvanized steel easier to handle and install in constrained sites. The heavier weight of ductile iron requires heavier lifting equipment but contributes to its vibration damping and stability under heavy loads.
Q6: Are there compatibility issues when connecting ductile iron to galvanized steel?
Transitioning between ductile iron and galvanized steel requires dielectric fittings or transition couplings to prevent galvanic corrosion where dissimilar metals meet. Manufacturers offer specialized rubber-gasketed couplings with internal insulating liners to ensure electrochemical isolation and maintain joint flexibility.
Q7: Which standards govern the manufacture of these materials?
Ductile iron pipe is standardized by AWWA C151 (US) and ISO 2531/EN 545/598 (Europe), specifying dimensions, mechanical properties, and lining requirements. Galvanized steel adheres to ASTM A123/A123M for hot-dip galvanizing and ASTM A53/A53M for galvanized pipe, outlining tensile strength, coating thickness, and acceptable defects.
Q8: How do repair and rehabilitation strategies differ?
Ductile iron pipelines can be rehabilitated via internal relining (e.g., cured-in-place pipe liners) without excavation, extending service life by 50+ years. Galvanized steel structures typically rely on spot-repair of coatings, sandblasting, and re-galvanizing segments, which may necessitate more frequent maintenance cycles and potential service interruptions.
References:
- AWWA Standards for Ductile Iron Pipe and Fittings — American Water Works Association official standards including AWWA C151, C111, and related documents
- ISO 2531: Ductile Iron Pipes, Fittings, Accessories and Their Joints for Water Applications — International Organization for Standardization authoritative specification for ductile iron pipe systems
- ASTM A123 / A123M – Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products — ASTM International standard governing galvanized steel coating requirements
- ASTM A53 / A53M – Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless — ASTM International specification covering galvanized steel pipe materials and mechanical properties
- Ductile Iron – Wikipedia — Comprehensive overview of ductile iron metallurgy, properties, applications, and standards
