Ductile Iron Pipe Installation Cost Guide: Per Foot Pricing, Labor, & Life-Cycle Savings

Installing ductile iron pipe (DIP) typically costs $60–$150 per linear foot, depending on pipe diameter, joint type, soil conditions, labor rates, and project scale. Material alone ranges from $22–$70/ft for small to medium diameters, but when you add excavation, bedding, backfill, fittings, and restoration, total installed cost jumps significantly. Key cost drivers include:

• Material type & diameter (4″–48″): $22–$342/ft.

• Labor & equipment: $20–$60/ft.

• Site conditions (rocky soils, urban repaving) adding $10–$50/ft.

• Joint/restraint systems (push-on, mechanical, restrained): $2–$15/ft.

Compared to PVC or HDPE, DIP has higher up-front costs but far greater longevity, lower life-cycle maintenance, and superior hydraulic performance.

I. Overview of Ductile Iron Pipe and Installation Importance

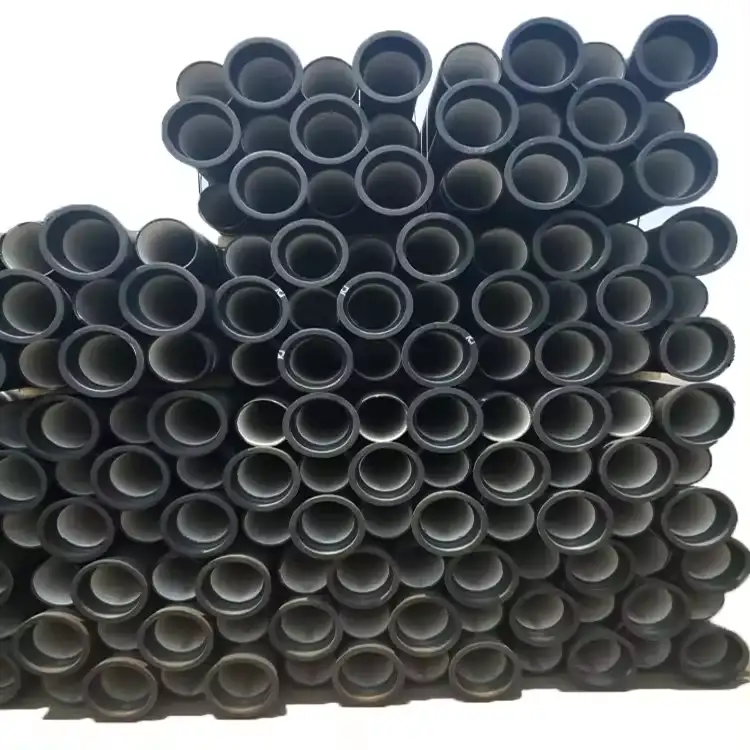

Ductile iron pipe (DIP) is a cast-iron derivative with a spheroidal graphite microstructure, combining strength, flexibility, and corrosion resistance. Invented in the 1950s, DIP quickly became the standard for water mains, sewer lines, and industrial pipelines worldwide. With pressure classes ranging from 150 to 350 psi, DIP is specified per AWWA C151/A21.51 for potable water, and per ISO 2531 for municipal applications. Proper installation is critical: poor bedding or backfill can lead to pipe deformation, joint failure, or leakage — all costly to repair.

II. Key Factors Affecting Installation Cost

1. Pipe Diameter & Class

   • 4″–12″: $22–$45/ft material cost; 14″–48″: $50–$342/ft.

2. Joint Type & Restraint

   • Push-On Joints (AWWA C111): baseline cost;

   • Mechanical Joints (AWWA C111): add $2–$5/ft;

   • Restrained Joints (AWWA C153): add $8–$15/ft.

3. Excavation & Bedding

   • Soft soils: $8–$15/ft;

   • Rocky soils: $20–$40/ft;

   • Urban trenchless methods: $100–$200/ft.

4. Labor Rates & Productivity

   • Regional labor: $50–$100/hr;

   • Crew productivity: 50–150 ft/day.

5. Surface Restoration

   • Asphalt: $10–$25/ft;

   • Concrete: $20–$40/ft.

III. Material Costs by Diameter and Class

Data compiled from regional bid tabulations and manufacturer price lists.

IV. Labor & Equipment Cost Breakdown

• Excavator + Operator: $150–$200/day; average productivity 100 ft/day → $1.50–$2.00/ft.

• Labor Crew (4–5 persons): $60–$85/hr per crew → $20–$40/ft installed.

• Trenchless Options (HDD, pipe-bursting): add $80–$150/ft.

• Other Equipment (compactors, pumps, dewatering): $5–$10/ft.

Typical labor & equipment sum: $25–$60 per foot.

V. Comparative Installed Cost: DIP vs PVC vs HDPE

PVC and HDPE are cheaper up-front but DIP offers greater longevity and resistance to external loads.

VI. Regional & Project-Scale Variations

• Urban North America: $80–$150/ft (high labor, repaving);

• Rural Areas: $60–$100/ft (lower labor, simpler restoration);

• International: China/India $140–$240/m (~$43–$73/ft);

• Large-Scale Utilities: economies of scale can reduce per-foot to $50–$80.

VII. Life-Cycle & Maintenance Costs

While DIP costs more initially, it resists corrosion (with cement mortar lining), withstands heavy loads, and rarely needs replacement for 75–100 years, lowering life-cycle costs by 20–40% compared to PVC/HDPE. Expected maintenance:

• Annual leak detection (~$1–$2/ft/year);

• Cathodic protection (if in corrosive soils): $2–$5/ft initial, minor ongoing.

VIII. Six In-Depth FAQs

1. What is the total installed cost per foot for a 12″ ductile iron water main?
A fully installed 12″ DIP water main typically runs $70–$130 per foot, including all materials, labor, excavation, bedding, fittings, and pavement restoration. Material alone costs roughly $43–$45/ft (Class 52). Excavation in typical soils is $10–$20/ft, with rocky conditions adding up to $30–$40/ft. Bedding (sand or stone) and backfill incur another $5–$10/ft. Mechanical joints or restraining systems add $3–$10/ft depending on the type (push-on vs. restrained). Labor crews (4–5 persons) average $20–$40/ft for pipe laying, plus equipment costs (~$2/ft). Finally, surface restoration (asphalt or concrete) adds $10–$25/ft. Summing these components gives a $70–$130/ft range; projects in dense urban areas trend toward the upper bound.

2. How do soil conditions influence DIP installation cost?
Soil type is one of the most variable cost drivers in DIP installation. In cohesive clay or sandy soils, trenching with a backhoe is straightforward: excavation costs $8–$15/ft, and compaction/backfill adds $5–$8/ft. However, in rocky or shale-laden ground, operators often require rock-drilling buckets or blasting, pushing excavation costs to $25–$40/ft. Trench shoring or dewatering (in high groundwater areas) introduces additional equipment rentals ($500–$1,000/day), effectively adding $5–$10/ft. Urban settings—where trenchless methods (HDD, pipe-bursting) are used to avoid surface disruption—can cost $100–$200/ft due to mobilization of specialized rigs and higher labor rates. Moreover, soils with high clay content may require extended dewatering or import of granular bedding materials, further inflating costs. Planning for these contingencies during design can help utilities budget accurately and minimize mid-project change orders.

3. What are the advantages of mechanical versus restrained joints, and how does each impact cost?
Mechanical joints (MJ) per AWWA C111 use a gland and bolts to clamp the joint, providing moderate axial restraint at a modest cost of $2–$5/ft over push-on joints. MJ systems are easy to assemble, forgiving of minor misalignment, and allow limited pipeline movement. Restrained joints (e.g., TR FLEX®, Fastite Plus®) per AWWA C153 integrate internal restrainers that lock pipe segments together, eliminating thrust blocks in many installations and boosting system robustness under pressure fluctuations. The added hardware and complexity cost $8–$15/ft. While restrained joints raise initial costs, they can reduce excavation volume (no thrust blocks) and minimize future maintenance risks, especially at bends, tees, and dead ends. For large-diameter mains and high-pressure systems, the life-cycle benefits of restrained joints often outweigh their higher up-front expense.

4. How does DIP compare to PVC and HDPE on a life-cycle cost basis?
On a pure up-front basis, PVC (DR18) costs $35–$80/ft installed, and HDPE (PE4710) $45–$100/ft. DIP, at $60–$150/ft, is more expensive initially. However, DIP’s design life of 75–100 years—coupled with its high external load capacity, corrosion resistance (cement mortar lining), and lower hydraulic roughness (C-factor ~140)—yields far lower maintenance and rehabilitation costs over time. PVC and HDPE, while resistant to corrosion, are more susceptible to deformation under heavy live loads, require thicker coverings, and have higher friction loss coefficients (PVC C-factor ~150, HDPE ~150). When accounting for periodic leak repairs, joint replacements, and sensitivity to temperature and abrasion, DIP systems often realize 20–40% lower total cost of ownership over 50 years.

5. What hidden costs should I budget for when planning a DIP installation?
Common “hidden” expenses include traffic control, permit fees, and environmental compliance. Urban roads may require lane closures ($1,000–$3,000/day) and flagging crews. Permits for trenching or water main connections can range from $500–$5,000 depending on municipality. If pipelines cross wetlands or protected areas, additional environmental studies and mitigation (e.g., silt fences, restoration plantings) can add $10–$30/ft. Lastly, testing and disinfection—including hydrostatic pressure tests and chlorination—cost $2–$4/ft. Proactively including a 10–15% contingency in your budget for these items helps avoid cost overruns.

6. How can project scale influence unit costs for DIP installations?
Smaller projects (<1,000 ft) often see higher per-foot costs (up to $150/ft) due to mobilization expenses, minimum crew hours, and limited bulk discounts on pipe and fittings. Large projects (>10,000 ft) leverage volume pricing: material costs can drop by 5–15%, and crews can maintain consistent productivity, reducing labor/equipment costs to $60–$80/ft. Additionally, large utilities may have existing contracts for materials and traffic control, further reducing expenses. Early engagement with suppliers to negotiate unit pricing and coordinating multiple work fronts can yield substantial savings on long pipelines.

References:

• AWWA Standards for Ductile Iron Pipe and Fittings – American Water Works Association (AWWA)
• ISO 2531: Ductile Iron Pipes, Fittings, Accessories and Their Joints for Water Applications – International Organization for Standardization (ISO)
• Ductile Iron Pipe – Wikipedia Overview of Material Properties and Applications
• U.S. EPA Technical Resources on Ductile Iron Pipe for Water Utilities
• Water Infrastructure and Resiliency: Life-Cycle Cost and Performance of Water Mains – National Academies Press
