Ductile Iron Pipe Coating: Complete Guide to Types, Methods & Standards

Ductile iron pipe coatings fall into external (asphaltic, zinc, polyethylene, epoxy) and internal linings (cement-mortar, fusion-bonded epoxy, ceramic-enhanced epoxy, glass, water-based) to protect against corrosion, abrasion, and contamination. Selection depends on service conditions (soil aggressiveness, water chemistry, mechanical stresses), regulatory standards (AWWA, ISO, EN, NSF), application methods (centrifugal spin–cast, fusion bond, thermal spray), and lifecycle requirements. Modern advances—such as V-Bio® polyethylene encasement and ceramic-enhanced linings—offer enhanced performance in aggressive environments.

1. Introduction & Importance of Coating

Ductile iron pipe is inherently strong and durable, but unprotected iron is vulnerable to corrosion from soil and fluids, leading to leaks, reduced flow, and costly repairs. External coatings and internal linings extend service life beyond 100 years by isolating metal from corrosive agents, preventing tuberculation, and improving hydraulic performance. Effective coating systems are critical in potable-water, wastewater, industrial, and marine applications, where failure can compromise public health and infrastructure reliability.

2. Types of External Coatings

2.1 Asphaltic (Seal Coat)

Asphaltic coatings—also called seal coats—are standard for aboveground and buried pipes, applied at ~1 mil thickness per AWWA C151/A21.51. They provide aesthetic finish, moisture barrier, and initial corrosion protection but rely on compatible linings for long-term defense.

2.2 Zinc Coating

Zinc coatings (99.99 % purity) are arc- or paint-applied at 200 g/m² (~1 mil), followed by a bituminous topcoat, per ISO 8180 and AS/NZS 2280. Zinc offers sacrificial protection, corroding preferentially to iron, and is often paired with polyethylene encasement for enhanced performance.

2.3 Polyethylene Encasement

Traditional polyethylene (PE) encasement (4–8 mils) and V-Bio® enhanced PE (>8 mils) wrap the pipe for physical damage resistance and cathodic isolation. Introduced in 1958, PE encasement prevents stray-current corrosion and soil-borne abrasion.

2.4 Fusion-Bonded Epoxy (FBE)

Exterior FBE coatings, conforming to AWWA C116, are applied at 12–15 mils via electrostatic spray and bake, delivering superior chemical resistance, adhesion, and uniform thickness.

3. Types of Internal Linings

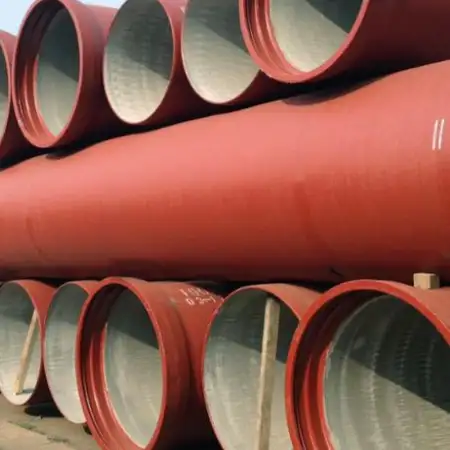

3.1 Cement-Mortar Lining

Cement-mortar lining (1.5 – 3 mm) applied by spin casting per AWWA C104/A21.4 mitigates tuberculation and provides an alkaline barrier to aggressive waters. It also smooths the bore, reducing friction losses.

3.2 Fusion-Bonded Epoxy (FBE)

Interior FBE linings (10–25 mils) per AWWA C116/A21.16 are factory-applied, offering excellent corrosion resistance, easy cleaning, and minimal thickness variation.

3.3 Ceramic-Enhanced Epoxy & Glass Lining

For pH < 4.5 or high-abrasion fluids, ceramic-enhanced epoxies (Tnemec Series 46H-413) and porcelain enamel glass linings deliver exceptional wear and chemical resistance, specified per proprietary standards.

3.4 Water-Based Coatings

Environmentally friendly water-based linings use asphaltene emulsions with low VOCs, protecting both pipe and drinking water from contamination; widely adopted since the 1990s.

4. Comparison Tables

4.1 External Coatings Comparison

4.2 Internal Linings Comparison

5. Coating Application Methods

• Centrifugal Spin Casting: Pipe spun at high speed while mortar or asphalt is trowelled inside or sprayed outside, ensuring uniform thickness and adhesion.

• Thermal Spray (Zinc): Molten zinc sprayed by torch onto pipe surface, followed by bituminous topcoat, per ISO 8180.

• Electrostatic Spray & Bake (FBE): Dry epoxy powder applied to heated pipe, then cured to form a continuous film.

• Wrap/Encasement (PE): PE sheeting wrapped helically around pipe, heat-fused to seal joints, preventing moisture ingress.

6. Standards & Specifications

• AWWA C151/A21.51: Ductile-iron pipe cement-mortar lining & seal coat.

• AWWA C104/A21.4: Cement-mortar lining specs for pipe and fittings.

• AWWA C105/A21.5: Polyethylene encasement guidelines.

• AWWA C116/A21.16: Fusion-bonded epoxy coatings.

• ISO 2531/EN 545: International pipe design & coating requirements.

• NSF 61: Drinking water system materials (water-based linings).

7. Performance Characteristics & Lifespan

External asphaltic coatings resist moisture but can crack under soil movement, typically lasting 25–50 years; zinc + PE encasement systems exceed 100 years in non–aggressive soils. Internal cement-mortar linings maintain hydraulic efficiency for 50+ years but may spall under fluctuating pressures; FBE and ceramic linings extend service life to 75+ years in corrosive environments.

8. Selection Criteria & Material Considerations

Key factors include soil resistivity, pH, chloride/sulfate levels, backfill abrasivity, hydraulic pressure, and temperature. Cost vs. performance trade-offs often favor cement-mortar + seal coat for potable water, whereas industrial or marine lines demand FBE or ceramic systems despite higher initial cost.

9. Environmental & Health Aspects

Solvent-based coatings emit VOCs (benzene, toluene); water-based linings eliminate these hazards and comply with LEED and NSF 61 standards. Zinc and polyethylene systems are inert post-installation but require careful end-of-life disposal and recycling planning.

10. Case Studies & Industry Practices

• Charleston, SC (1922): First use of cement-mortar lining on ductile iron, reducing tuberculation and boosting flow efficiency.

• Midwestern US Water Authority: Adopted zinc + PE encasement in aggressive soils, achieving zero leak rate over 40 years.

• Chemical Plant Piping: Specified ceramic-enhanced epoxy lining for acid service, extending maintenance intervals from 2 to 7 years.

11. Common Questions & Answers

Q1: What advantages does cement-mortar lining offer in ductile iron pipes?

Cement-mortar lining provides a continuous, alkaline barrier that: (1) blocks soil-borne corrosion by raising local pH at the metal interface; (2) prevents tuberculation—localized pits that restrict flow and trap bacteria; (3) smooths the pipe interior, reducing friction losses and energy costs; (4) is cost-effective, leveraging well-understood spin-casting processes; and (5) is robust under typical hydrostatic pressures (up to 350 psi). Spin casting per AWWA C104/A21.4 ensures uniform thickness (1.5–3 mm) and adhesion. While linings may crack under pressure surges, modern formulations incorporate polymer additives for improved ductility. Maintenance is minimal; inspections via robotic cameras detect spall or degradation before leaks occur. Overall, cement-mortar lining remains the baseline for potable water, delivering 50+ years of reliable service in varied water chemistries.

Q2: How does polyethylene encasement protect buried ductile iron pipes?

Polyethylene (PE) encasement isolates ductile iron from corrosive soil and stray currents by creating a physical barrier. Traditional PE sheeting (4–8 mils) wraps helically around the pipe, heat-fused at longitudinal seams to prevent moisture wicking. V-Bio® enhanced PE (>8 mils) incorporates biofilm inhibitors that reduce microbial-induced corrosion in saturated soils. Encased pipes resist abrasive backfill materials (sand, gravel), preventing coating puncture. By eliminating direct metal-to-soil contact, PE encasement virtually stops galvanic corrosion, even in low-resistivity soils (<1 000 Ω-cm). AWWA C105/A21.5 guides installation practices, specifying soil compaction and backfill grading to avoid wrinkles or gaps. Case studies show zero corrosion over 40 years in Midwestern alluvial soils, making PE encasement a cost-effective alternative to cathodic protection systems.

Q3: When should fusion-bonded epoxy coatings be specified?

Fusion-bonded epoxy (FBE) coatings should be specified for applications demanding high chemical resistance, uniform coverage, and minimal porosity. In potable water, FBE linings per AWWA C116/A21.16 offer low leachable organics and NSF 61 compliance. Industrial wastewater, reclaimed water, and corrosive process fluids benefit from FBE’s resistance to acids, alkalis, and solvents. Exterior FBE (12–15 mils) withstands splash zones and marine atmospheres better than asphaltic coatings. Electrostatic deposition onto heated pipe ensures complete circumferential coverage, even in tight geometry. While initial cost is 20–30 % higher than asphaltic coatings, lifecycle analyses show reduced maintenance and superior performance in pH extremes (2–12). FBE is not recommended for soil with high mechanical stresses unless combined with PE encasement. Fusion parameters (temperature, powder blend, bake time) are critical; only certified applicators with regular QA/QC audits per AWWA C116 should perform FBE applications.

Q4: How are coatings inspected and maintained over a ductile iron pipeline’s life?

Inspection begins at manufacture with destructive (holiday detection, pull-off adhesion) and non-destructive (ultrasonic thickness, visual) tests per AWWA and ISO standards. In-field, holiday detectors (wet sponge method) locate pinholes, while ultrasonic probes verify remaining coating thickness without excavation. Robotic crawlers equipped with cameras and laser profilometers assess internal linings for spall or corrosion under deposit. Soil resistivity and soil-pipe potential surveys identify corrosion hotspots externally. Preventive maintenance includes cathodic protection for damaged coatings, localized recoating with repair epoxy kits, and section replacements when linings degrade > 15 %. Replacement schedules are based on remaining service life models calibrated to local soil chemistry, traffic loads, and operational pressures.

Q5: How does pH and water chemistry influence lining choice?

Water chemistry—particularly pH, chloride, sulfate, and dissolved oxygen—determines lining performance. Cement-mortar linings maintain local pH > 10, passivating iron but can leach calcium in very soft waters (pH < 6), reducing barrier effectiveness. Fusion-bonded epoxy resists mild acids (pH 4–10) but may blister in high‐chloride environments (> 1 000 mg/L) unless formulated with plasticizers. Ceramic-enhanced epoxies and glass linings excel at extreme pH (2–12) and slurries containing particulates, though they are brittle under thermal cycles. Water-based linings suit potable services due to low VOCs and NSF 61 compliance but require tight control of water hardness to prevent leaching. Designers must analyze fluid characteristics per AWWA primers and select linings matched to expected pH range, redox potential, and abrasive load.

Q6: Which standards govern ductile iron pipe coatings and linings?

Ductile iron pipe coatings and linings are governed by a suite of standards to ensure consistency, safety, and performance:

• AWWA C151/A21.51: Defines cement-mortar lining & seal coat requirements, specifying thickness, mix design, and application methods.

• AWWA C104/A21.4: Covers cement-mortar lining for fittings, including air-curing and steam-curing protocols.

• AWWA C105/A21.5: Specifies polyethylene encasement properties, installation, and joint wrapping techniques.

• AWWA C116/A21.16: Details fusion-bonded epoxy coating materials, pre-treatment, application, and testing for linings and exterior coatings.

• ISO 2531 / EN 545: International standards for ductile iron pipes include coating requirements (zinc, bitumen, polymeric overlays) and test methods.

• NSF 61: Regulates interior linings for drinking water safety, limiting extractables and ensuring potable-water compatibility.

References:

• American Water Works Association (AWWA) Standards – Authoritative source for ductile iron pipe coatings and linings standards such as AWWA C151, C104, C105, and C116.
• ISO 2531:2012 – Ductile iron pipes, fittings, accessories and their joints for water applications – International standard covering design, coatings, and testing requirements for ductile iron pipe systems.
• NSF/ANSI 61: Drinking Water System Components – Health Effects – Certification standard ensuring safety and low leachable contaminants in pipe linings for potable water systems.
• Ductile iron pipe — Wikipedia – Comprehensive overview including coating types, lining materials, and performance considerations with references to industry standards.
• National Association of Pipe Fabricators (NSPF) – Standards & Certifications – Industry resource detailing coating application methods and quality control practices in line with AWWA and ISO standards.
