Ductile cast iron, also known as nodular cast iron or spheroidal graphite iron (SGI), is a type of cast iron that contains graphite in the form of nodules or spheres. It combines the excellent castability of traditional cast iron with the superior strength and ductility of steel. The key feature of ductile iron is its ability to withstand significant deformation without breaking, making it ideal for a variety of structural and mechanical applications.
The hardness of ductile cast iron is one of the critical factors influencing its performance in service. It is not just a measure of its resistance to indentation but also provides insights into its wear resistance, tensile strength, and overall durability.
1. The Role of Hardness in Ductile Cast Iron
Hardness plays a pivotal role in determining the suitability of ductile cast iron for different applications. While the material offers enhanced strength compared to traditional gray cast iron, its hardness is crucial for:
-
Wear Resistance: The harder the material, the better it resists abrasion, which is essential for parts that will experience friction, such as gears, brake discs, and machinery components.
-
Strength: Hardness is often correlated with tensile strength. A harder material usually exhibits higher strength, making it more suitable for high-load applications.
-
Corrosion Resistance: Increased hardness can sometimes improve the corrosion resistance of ductile cast iron by forming a more uniform surface layer that resists degradation.
Understanding the relationship between hardness and the overall mechanical properties of ductile cast iron is essential for engineers to select the right alloy and treatment process for specific applications.
2. Measuring Hardness in Ductile Cast Iron
There are various methods to measure the hardness of ductile cast iron. The most commonly used techniques include:
-
Brinell Hardness Test: This test involves pressing a steel or carbide ball into the surface of the material under a specified load. The diameter of the indentation left on the material surface is then measured and used to calculate the Brinell hardness number (BHN).
-
Rockwell Hardness Test: This test measures the depth of penetration of an indenter under a specific load. It is a quicker method and commonly used for metals that are harder or require less precision.
-
Vickers Hardness Test: A diamond pyramid indenter is used in this method, and the diagonal lengths of the indentation left are measured. It provides a more precise measurement for materials with fine-grain structures like ductile cast iron.
Each method has its advantages and is chosen based on the required accuracy and material thickness.
3. Factors Affecting Hardness in Ductile Cast Iron
Several factors influence the hardness of ductile cast iron, including:
-
Chemical Composition: The alloying elements such as carbon, silicon, and manganese significantly affect the material’s hardness. Higher carbon content generally increases hardness, but excessive carbon can make the material brittle.
-
Heat Treatment: Heat treatment processes such as annealing, normalizing, and quenching can alter the hardness of ductile cast iron. For example, quenching followed by tempering can increase hardness and tensile strength.
-
Graphite Morphology: The form of graphite in ductile cast iron impacts its hardness. Fine-grained graphite nodules lead to better mechanical properties and higher hardness.
-
Casting Process: The cooling rate during the casting process can influence the microstructure of ductile cast iron, which, in turn, affects hardness. Faster cooling rates typically result in a harder material.
4. Hardness vs. Other Mechanical Properties of Ductile Cast Iron
While hardness is an essential property, it is not the only one that defines the performance of ductile cast iron. Other mechanical properties, such as tensile strength, yield strength, elongation, and impact toughness, must also be considered.
| Property | Ductile Cast Iron | Gray Cast Iron | Steel |
|---|---|---|---|
| Hardness | Moderate to High | Low to Moderate | High |
| Tensile Strength | High | Moderate | Very High |
| Yield Strength | High | Low | Very High |
| Elongation | Moderate to High | Low | High |
| Impact Toughness | High | Low | Very High |
As seen in the table, ductile cast iron strikes a balance between hardness, strength, and toughness, offering a material that performs well in both wear and load-bearing applications.
5. Common Hardness Testing Methods for Ductile Cast Iron
Brinell Hardness Test
The Brinell hardness test is the most common method for testing ductile cast iron hardness. It is particularly useful for testing materials with coarse or heterogeneous structures, as it provides a good average hardness reading.
Rockwell Hardness Test
The Rockwell test is suitable for both small and large samples of ductile cast iron. It is often preferred due to its simplicity and speed.
Vickers Hardness Test
The Vickers test is used when very high accuracy is needed, and the material under test has a fine-grain structure. It is also widely used in research settings to evaluate the relationship between microstructure and hardness.
6. Standards and Specifications for Hardness of Ductile Cast Iron
Various international standards define the required hardness for ductile cast iron used in different applications. Some notable standards include:
-
ASTM A536: This standard specifies the mechanical properties and hardness requirements for ductile iron castings.
-
ISO 1083: This standard defines the grades of ductile cast iron and their corresponding hardness values.
-
DIN EN 1563: This European standard outlines the requirements for castings made of ductile cast iron.
These standards ensure that the material meets the necessary performance criteria for various applications, including automotive components, water pipes, and industrial machinery.
7. Applications of Ductile Cast Iron with Specific Hardness Requirements
The hardness of ductile cast iron determines its suitability for various industrial applications. Key applications include:
-
Automotive Industry: Engine components such as crankshafts, cylinder heads, and brake rotors require ductile cast iron with specific hardness values for durability and wear resistance.
-

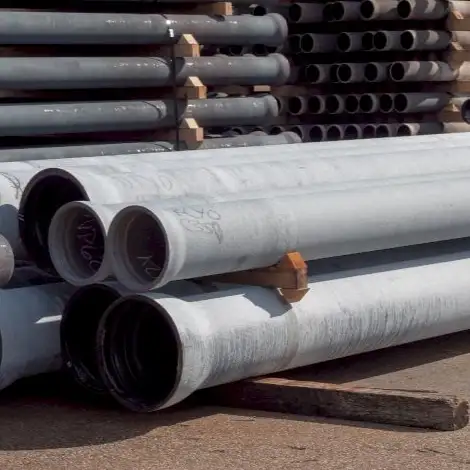

Pipes and Fittings: Ductile cast iron is widely used for water and sewage pipes, where hardness impacts the material’s resistance to corrosion and abrasion.
-
Machinery Parts: Gears, shafts, and other load-bearing components benefit from the higher hardness values of ductile cast iron for improved performance and longevity.
8. Advantages and Limitations of Ductile Cast Iron Hardness
Advantages
-
Enhanced Wear Resistance: Higher hardness leads to better resistance to wear and abrasion.
-
Improved Strength: The correlation between hardness and strength makes ductile cast iron suitable for heavy-duty applications.
-
Versatility: Ductile cast iron can be produced with a range of hardness values to meet different application needs.
Limitations
-
Brittleness at Higher Hardness: Excessive hardness can lead to brittleness, which might be a concern in applications subject to impact loads.
-
Difficult Machining: Harder ductile cast iron can be challenging to machine, requiring specialized equipment and techniques.
9. Frequently Asked Questions (FAQ)
1. What is the difference between ductile cast iron and gray cast iron in terms of hardness?
Ductile cast iron has higher hardness than gray cast iron due to the spherical shape of graphite particles, which provide greater resistance to deformation. In contrast, gray cast iron has flake-like graphite, which makes it more brittle and less resistant to wear. Ductile cast iron’s higher hardness makes it more suitable for high-strength applications.
2. How does heat treatment affect the hardness of ductile cast iron?
Heat treatment processes such as annealing, quenching, and tempering can significantly alter the hardness of ductile cast iron. Quenching, for example, increases the hardness by rapidly cooling the material, while tempering can reduce brittleness and maintain a balance between hardness and toughness.
3. Can ductile cast iron be used in high-temperature applications?
Yes, ductile cast iron is suitable for high-temperature applications as long as the hardness remains within the material’s tolerances. However, excessive temperatures can cause the material to soften, which can affect its strength and wear resistance. Engineers must select the appropriate heat treatment and alloy composition for high-temperature applications.
4. What are the benefits of high hardness in ductile cast iron for industrial applications?
High hardness in ductile cast iron improves wear resistance, making it ideal for parts that undergo constant friction or abrasion, such as gears, brake components, and industrial machinery. It also enhances the material’s ability to withstand high-pressure environments.
5. What are the standard hardness values for ductile cast iron according to ASTM A536?
ASTM A536 specifies that ductile cast iron should have a minimum Brinell hardness number (BHN) of 170 for Grade 60-40-18, and higher grades like 80-55-06 can reach BHN values above 200. These values ensure that the material has the necessary strength and durability for various applications.
6. How can I determine the hardness of my ductile cast iron component?
To determine the hardness of ductile cast iron, you can perform standard hardness tests like the Brinell, Rockwell, or Vickers tests. These tests will provide you with an accurate hardness measurement, which can then be compared to the material’s specification requirements to assess its suitability for your application.
