Dresser Couplings are a key component in the installation of ductile iron pipes, which are widely used for water distribution, sewage systems, and industrial applications. Ductile iron pipes are known for their strength, flexibility, and resistance to corrosion. When combined with Dresser Couplings, they form a robust and flexible pipe system that can withstand high pressures and provide secure, leak-proof connections.
Ductile Iron Pipes are made from an alloy of iron, carbon, and silicon, with small amounts of other metals such as magnesium, which impart greater strength and flexibility. Dresser Couplings, invented by the Dresser company, are mechanical devices used to join pipes together in a way that compensates for alignment and thermal expansion or contraction.
This guide will delve into the installation process, different coupling sizes, pricing structures, and key factors to consider when choosing Dresser Couplings for ductile iron pipes.
1. Understanding Dresser Couplings

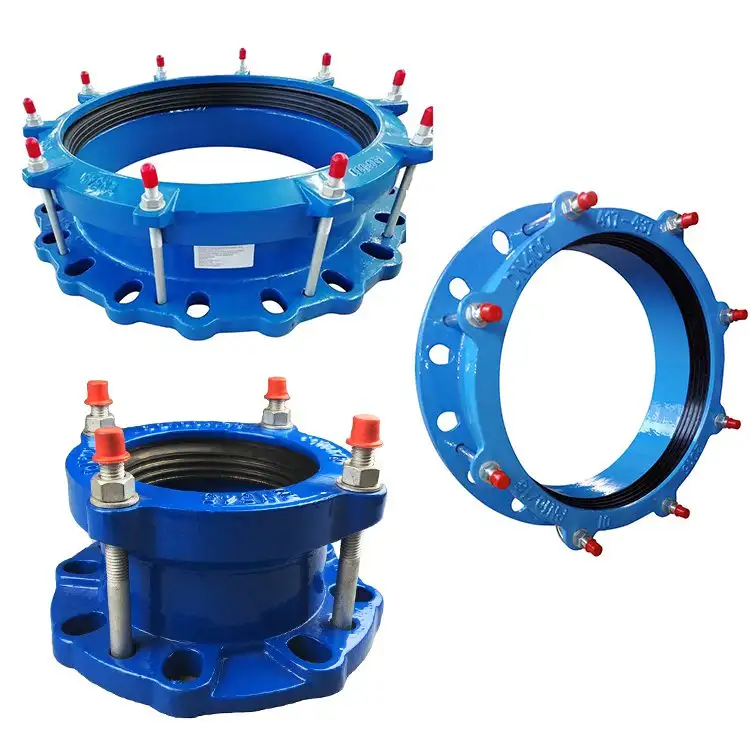

Dresser Couplings are mechanical devices used to join two pipes securely. These couplings can be used for a variety of pipe materials, but they are particularly effective when used with ductile iron pipes due to their ability to handle high pressure, provide secure seals, and allow flexibility during installation.
The coupling consists of a sleeve with rubber gaskets and steel bands. It is designed to connect pipes that are not perfectly aligned and can absorb minor movements, such as shifts in the pipe alignment due to thermal expansion or external forces. Dresser Couplings also provide the benefit of being reusable in most cases, making them a cost-effective option for repairs and replacements.
Key Components of a Dresser Coupling:
-
Steel Bands: These bands wrap around the coupling and compress the gasket to create a tight seal.
-
Rubber Gaskets: These gaskets sit between the pipes and the coupling, ensuring a leak-proof connection.
-
Sleeve: The sleeve covers the joint and houses the rubber gaskets and steel bands.
2. Types of Dresser Couplings for Ductile Iron Pipes
There are several types of Dresser Couplings designed to work with ductile iron pipes, and each type serves a different purpose depending on the pipe’s size and the nature of the application. Some of the most common types include:
-
Dresser 38 Coupling: One of the most widely used couplings, the Dresser 38 is designed for joining pipes with a standard 6-inch to 16-inch diameter range. It is ideal for water and sewage systems.
-
Dresser 90 and Dresser 92 Couplings: These couplings are ideal for larger pipes ranging from 16 inches to 36 inches. They are used for industrial systems that require large-scale water or sewage transport.
-
Dresser 50 and Dresser 53 Couplings: These are designed for connecting pipes under extreme pressure conditions. They are often used in systems that need to withstand high-stress environments like in oil and gas pipelines.
Each coupling is engineered to ensure that it can absorb thermal movements, seismic forces, and pressure fluctuations while maintaining a tight seal.
3. Benefits of Using Dresser Couplings with Ductile Iron Pipes
There are many advantages to using Dresser Couplings in combination with ductile iron pipes, including:
-
Leak Prevention: The rubber gasket system ensures that the connection between pipes is completely sealed, preventing leaks and water loss.
-
High Pressure Resistance: Ductile iron pipes are already known for their ability to handle high-pressure environments. When combined with Dresser Couplings, they provide even greater resilience to pressure fluctuations and stress.
-
Flexibility: Dresser Couplings allow slight movement between the pipes, which helps accommodate expansion and contraction due to temperature changes, reducing the risk of pipe damage.
-
Ease of Installation: Dresser Couplings simplify the installation process, as they don’t require welding or threading, reducing installation time and cost.
-
Durability: The combination of ductile iron and Dresser Couplings results in a system that is durable, with a long service life and minimal maintenance requirements.
-
Reusability: Dresser Couplings are often reusable, making them a cost-effective option for repairs and system upgrades.
4. Installation Process of Dresser Coupling Ductile Iron Pipes
The installation of Dresser Couplings for ductile iron pipes is straightforward but requires careful attention to detail to ensure the integrity of the system. The following steps are typically involved in the installation process:
-
Step 1: Preparation of Pipe Ends: The ends of the ductile iron pipes should be clean and free of debris, rust, or other contaminants. If necessary, use a pipe cutter to ensure that the ends are squared.
-
Step 2: Gasket Placement: Place the rubber gaskets into the grooves of the Dresser Coupling. Ensure that the gaskets fit properly and are not damaged.
-
Step 3: Coupling Installation: Position the Dresser Coupling over the pipe ends. The coupling should cover the ends of the pipes evenly.
-
Step 4: Tightening the Bolts: Tighten the bolts of the coupling in a star pattern to ensure uniform compression of the gaskets and a leak-proof seal.
-
Step 5: Final Inspection: Once the coupling is secured, inspect the joint for any signs of leakage or misalignment. Conduct a pressure test to ensure the system is ready for use.
5. Sizes and Specifications of Dresser Coupling Ductile Iron Pipes
Dresser Couplings are available in various sizes to accommodate a range of ductile iron pipes. The typical sizes for ductile iron pipe couplings are:
Pipe Size (Inches) | Dresser Coupling Type | Pressure Rating |
---|---|---|
6 to 8 | Dresser 38 | Up to 250 psi |
10 to 16 | Dresser 38 | Up to 250 psi |
18 to 24 | Dresser 90 | Up to 250 psi |
26 to 36 | Dresser 92 | Up to 250 psi |
48 to 60 | Dresser 50/53 | Up to 500 psi |
These sizes are designed to meet the needs of various applications, from residential water systems to large industrial pipelines.
6. Price of Dresser Coupling Ductile Iron Pipes
The price of Dresser Couplings for ductile iron pipes varies depending on the size, type, and pressure rating of the coupling. On average, you can expect the following price ranges:
Pipe Size (Inches) | Dresser Coupling Type | Average Price Range (USD) |
---|---|---|
6 to 8 | Dresser 38 | $50 – $150 |
10 to 16 | Dresser 38 | $100 – $250 |
18 to 24 | Dresser 90 | $200 – $400 |
26 to 36 | Dresser 92 | $300 – $600 |
48 to 60 | Dresser 50/53 | $500 – $1,000 |
Prices can vary depending on the manufacturer, region, and specific features (e.g., coatings or corrosion resistance). Always check with suppliers for accurate quotes.
7. Applications of Dresser Couplings in Ductile Iron Pipe Systems
Dresser Couplings are widely used in various industries and applications, including:
-
Water Distribution: For municipal water supply systems, ensuring a tight and secure connection between pipes.
-
Wastewater Systems: In sewer systems, where the pipework must withstand both pressure and the abrasive nature of the flow.
-
Industrial Pipelines: For industries that require high-pressure pipelines for transporting liquids or gases.
-
Oil and Gas Pipelines: Dresser Couplings are used in the oil and gas industry to ensure leak-proof connections in high-pressure environments.
8. Comparing Dresser Couplings with Other Coupling Types
There are several alternatives to Dresser Couplings, including mechanical couplings, flanged joints, and welded connections. Here’s how Dresser Couplings compare:
Feature | Dresser Coupling | Mechanical Coupling | Flanged Joint | Welded Joint |
---|---|---|---|---|
Ease of Installation | Easy | Moderate | Moderate | Difficult |
Flexibility | High | Low | Low | None |
Pressure Rating | High | High | High | High |
Cost | Moderate | Moderate | High | Low |
Dresser Couplings offer the best combination of ease of installation, flexibility, and pressure resistance.
9. Maintenance and Troubleshooting
Dresser Couplings are generally low-maintenance, but regular inspections are necessary to ensure the system’s integrity:
-
Inspect the Couplings Regularly: Check for leaks, wear, or damage to the rubber gaskets and steel bands.
-
Tighten Loose Bolts: Bolts should be checked periodically and tightened if necessary.
-
Replace Worn Gaskets: Over time, gaskets may wear out and need replacement to maintain the seal.
10. Frequently Asked Questions (FAQs)
1. What is the difference between single-flanged and double-flanged ductile iron pipes?
Single-flanged ductile iron pipes feature a flange at only one end of the pipe. The flange is typically attached using bolts, allowing for a secure connection to other pipes or fittings, such as valves or tees. This design simplifies installation in certain situations, particularly where space constraints limit the need for a full flange connection.
On the other hand, double-flanged ductile iron pipes have flanges on both ends. These pipes provide the advantage of creating two secure and independent connection points. This design enhances the flexibility of installation, making it easier to connect two pipes or systems without requiring additional adapters. The double-flanged option is more common for larger-scale systems, such as industrial or municipal water distribution systems, because it improves load distribution and allows for better alignment and pressure handling.
Key Differences:
-
Connection Points: Single-flanged has one, double-flanged has two.
-
Application: Double-flanged is more suitable for higher-pressure systems.
-
Installation: Double-flanged requires more space but provides stronger, more reliable connections.
-
Cost: Double-flanged pipes are often more expensive due to additional material and manufacturing complexity.
2. Can double-flanged ductile iron pipes be used in corrosive environments?
Yes, double-flanged ductile iron pipes can be used in corrosive environments, but specific considerations need to be made to protect the pipes from environmental degradation. Ductile iron is a durable material with excellent resistance to mechanical stresses and pressure. However, it is susceptible to corrosion if exposed to harsh chemicals or environmental factors like moisture and soil acidity. To address this issue, several protective coatings and linings are commonly applied to ductile iron pipes, including:
-
Cement Mortar Lining (CML): This is the most common coating for protecting ductile iron pipes from corrosion, especially in water supply systems.
-
Epoxy Coatings: Provides excellent resistance to both internal and external corrosion, particularly in wastewater and industrial applications.
-
Polyurethane and Polyethylene Coatings: Used in aggressive environments, such as soil with high sulfate or chloride content.
If the system is located in a particularly aggressive environment, such as chemical processing or acidic soils, it is critical to select the appropriate corrosion-resistant coating and ensure the pipes are properly maintained.
Key Factors to Consider:
-
Coatings and Linings: Use coatings like epoxy or cement mortar to enhance corrosion resistance.
-
Soil and Water Conditions: Evaluate the corrosiveness of the soil or water and select coatings accordingly.
-
Maintenance: Routine inspections and re-coating may be necessary in highly corrosive environments.
3. How do I ensure a secure connection when installing double-flanged ductile iron pipes?
Achieving a secure and leak-free connection when installing double-flanged ductile iron pipes involves following a few critical steps:
-
Proper Alignment: Ensure that the pipe ends are aligned correctly before installing the flanges. Misalignment can cause stress on the flanges, leading to leaks or pipe damage.
-
Gasket Selection: Use the correct type of gasket (e.g., rubber, elastomer, or graphite) depending on the application. The gasket provides the primary seal between the flanges and prevents leaks under pressure.
-
Torque Specifications: Follow the manufacturer’s recommended torque values when tightening the bolts. Over-tightening or under-tightening can result in uneven gasket compression, which can compromise the seal.
-
Use of Lubricants: Lubricate the bolts and the gasket contact surfaces to facilitate smooth tightening and to reduce the risk of damage to the gasket during installation.
-
Bolt Tightening Sequence: Tighten the bolts in a star pattern or in small increments, alternating between bolts to ensure even compression of the gasket and uniform sealing.
-
Inspection: After installation, perform a pressure test to check for leaks. Inspect all bolt connections and gaskets for proper sealing.
4. What is the cost difference between ductile iron pipes and other pipe materials?
The cost of ductile iron pipes generally falls between that of steel pipes and plastic pipes (like PVC or HDPE). While ductile iron is more expensive than plastic, it offers significant advantages in terms of strength, pressure resistance, and durability. Here’s a basic comparison of costs per meter for different pipe materials:
Pipe Material | Average Cost (per meter) | Durability and Lifespan | Pressure Rating |
---|---|---|---|
Ductile Iron | $10 – $30 | 50+ years | High (250 psi+) |
PVC | $2 – $10 | 25 – 40 years | Moderate (160 psi) |
HDPE | $4 – $12 | 50+ years | Moderate (160 psi) |
Steel | $20 – $50 | 50+ years | Very High (500 psi) |
Factors Affecting Price:
-
Installation Costs: Ductile iron requires specialized tools and labor, increasing installation costs compared to PVC or HDPE pipes.
-
Long-Term Value: Despite the higher initial cost, ductile iron pipes often have a longer lifespan and require less frequent replacement, offering a better return on investment over time, especially in high-pressure applications.
-
Corrosion Resistance: Coatings and linings for ductile iron pipes can add to the cost but provide additional protection in aggressive environments.
Conclusion: While ductile iron pipes are more expensive initially than plastic options, their superior durability and ability to withstand higher pressures make them a preferred choice for critical infrastructure.
5. How do I perform routine maintenance on double-flanged ductile iron pipes?
Routine maintenance of double-flanged ductile iron pipes is essential to ensure their longevity and proper function. Key maintenance tasks include:
-
Visual Inspections: Periodically inspect the pipe connections for signs of corrosion, damage, or leakage. Check the flanges and gaskets for any visible cracks, rust, or wear.
-
Check Bolts and Gaskets: Ensure that the flange bolts are properly tightened and show no signs of corrosion. Replace damaged or worn gaskets to maintain a secure seal.
-
Cleaning and Flushing: Regularly flush the pipe system to remove any debris, sediment, or buildup that could affect water flow or cause pipe corrosion.
-
Pressure Testing: Perform hydrostatic pressure tests to ensure that the pipe system can handle the expected pressures without leaks. This is especially important in high-pressure systems like water distribution or industrial pipelines.
-
Coating Maintenance: In corrosive environments, periodically inspect the protective coating on the pipes. If the coating is damaged, reapply it to ensure continued protection against corrosion.
-
Monitor Temperature and Alignment: Ductile iron pipes can expand or contract due to temperature changes, so monitor the system for any misalignments or shifts that may affect pipe integrity.
6. Are double-flanged ductile iron pipes suitable for residential water systems?
Double-flanged ductile iron pipes are generally not used in residential water systems due to their size, cost, and installation complexity. Instead, materials like PVC, PEX, or copper are more commonly used for residential plumbing due to their lower cost, ease of installation, and flexibility.
However, double-flanged ductile iron pipes may be used in certain residential applications under specific conditions:
-
Large Residential Complexes: In multi-unit buildings, commercial properties, or high-rise apartments, where durability, high pressure, and system reliability are more critical.
-
Water Distribution Systems: For the main water supply lines to a neighborhood or apartment complex, where the pipe may face higher pressures or external forces.
Why Double-Flanged Ductile Iron Pipes Are Less Common in Residential Systems:
-
Size and Weight: Double-flanged ductile iron pipes are larger and heavier, making them more challenging to install in confined residential spaces.
-
Cost: The cost of double-flanged ductile iron pipes is higher compared to other materials like PVC or PEX, which are more cost-effective for typical residential plumbing.
-
Installation Complexity: These pipes require specialized tools and labor, making installation more expensive and time-consuming for residential applications.
When Are Double-Flanged Ductile Iron Pipes Used in Residential Systems?
-
For high-pressure applications, such as water distribution systems for larger developments or industrial complexes.
-
Utility connections where long-term durability and high resistance to environmental stresses are needed.
In conclusion, while double-flanged ductile iron pipes are not common in traditional residential systems, they are used in specific applications where strength, pressure resistance, and longevity are crucial.
