Dismantling joints are crucial components in ductile iron piping systems, allowing for easy disassembly, maintenance, and reconfiguration of pipeline sections. These joints are typically installed at critical points in the system to facilitate quick and efficient access to pipelines without the need for cutting or removing entire sections.
This article provides a detailed overview of dismantling joint ductile iron installation, covering installation methods, sizes, pricing, and frequently asked questions.
1. What is a Dismantling Joint in Ductile Iron Pipelines?

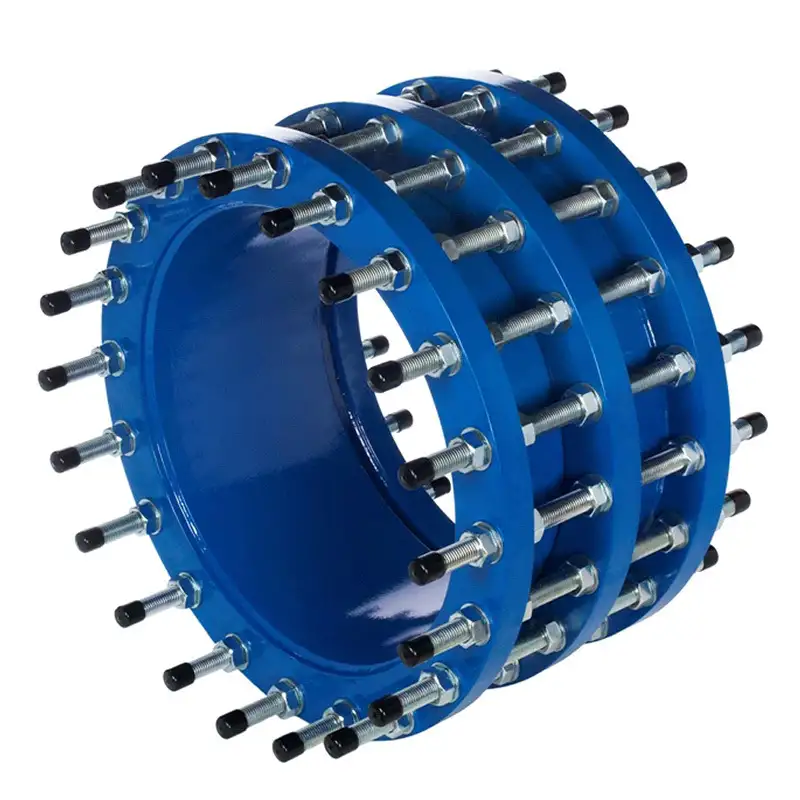

A dismantling joint is a specialized mechanical joint designed to facilitate the disassembly of sections of ductile iron pipes without the need for cutting, welding, or breaking the pipe. Dismantling joints are essential for maintenance tasks, such as replacing pipeline sections, installing valves, or accessing fittings for inspections.
Key Features:
-
Flexibility: Provides flexibility in pipeline construction and maintenance.
-
Sealing: Ensures tight, leak-proof seals when installed correctly.
-
Ease of Installation: Designed for simple installation without extensive equipment.
2. Benefits of Using Dismantling Joints in Ductile Iron Piping
The use of dismantling joints offers several advantages, including:
-
Cost Savings: Reduces the need for complex and expensive pipeline removal or cutting procedures.
-
Maintenance Efficiency: Makes maintenance tasks faster and less disruptive, as pipes can be easily separated and reassembled.
-
Increased Longevity: Dismantling joints help extend the life of a ductile iron pipe system by facilitating easier maintenance and repair.
Table: Advantages of Dismantling Joints in Ductile Iron Systems
| Benefit | Description |
|---|---|
| Reduced Downtime | Maintenance can be performed without affecting system operations. |
| Ease of Access | Provides easier access to critical components like valves and fittings. |
| Cost Efficiency | Eliminates the need for complete pipe removal or expensive repair services. |
| Enhanced Flexibility | Allows for pipe reconfiguration as required without system shutdown. |
3. Types of Dismantling Joints for Ductile Iron Pipes
There are different types of dismantling joints available for ductile iron pipes, designed to suit various installation scenarios. The most common types include:
-
Single-Piece Dismantling Joints: Made from a single component for easier handling, ideal for smaller pipelines.
-
Multi-Piece Dismantling Joints: Consist of multiple components for added strength and flexibility, suitable for larger or high-pressure systems.
-
Flanged Dismantling Joints: Used when a flanged connection is required, providing additional sealing power for high-pressure applications.
-
Flexible Dismantling Joints: These joints provide some flexibility in terms of alignment, making them ideal for pipes installed under conditions where slight misalignments are expected.
4. How to Install Dismantling Joints on Ductile Iron Pipes
Proper installation of dismantling joints ensures the long-term success and functionality of the pipeline system. The installation process typically follows these steps:
-
Preparation: Clean and inspect the pipe ends to ensure there are no burrs or damage.
-
Positioning the Joint: Place the dismantling joint on the pipe, ensuring that it aligns with the pipeline connection.
-
Securing the Joint: Tighten the bolts or fasteners that hold the dismantling joint in place.
-
Sealing: Check the gasket and sealing surfaces to ensure a proper, leak-free seal.
-
Final Inspection: Test the installed joint for leaks and proper alignment before putting the pipeline back into service.
5. Dismantling Joint Sizes for Ductile Iron Pipes
Dismantling joints come in a variety of sizes, tailored to fit different diameters of ductile iron pipes. The most common pipe sizes for dismantling joints range from 3 inches to 72 inches. It’s important to select the correct size for your specific project to ensure a tight fit and secure seal.
Common Sizes of Dismantling Joints:
-
3” – 6”: Ideal for small-scale water distribution systems.
-
8” – 12”: Suitable for medium-sized systems and industrial applications.
-
14” – 72”: Used for large-scale systems, such as municipal water and sewage pipelines.
Table: Size Range for Dismantling Joints
| Pipe Size Range | Common Use Applications |
|---|---|
| 3” to 6” | Residential and small business water systems |
| 8” to 12” | Industrial, municipal, and large-scale water networks |
| 14” to 72” | Major infrastructure projects such as sewage or irrigation systems |
6. Price Considerations for Dismantling Joints
The price of dismantling joints can vary depending on the size, material, and type of joint. Factors that influence the price include:
-
Size of the Joint: Larger joints tend to be more expensive due to the increased material and manufacturing costs.
-
Material Quality: High-quality materials, such as corrosion-resistant coatings or specialized gaskets, may increase the cost.
-
Brand: Renowned brands may charge higher prices for their established reputation and higher quality standards.
Price Range:
-
Small Sizes (3” – 6”): Typically range from $50 to $200 per unit.
-
Medium Sizes (8” – 12”): Range from $200 to $600 per unit.
-
Large Sizes (14” and above): Prices can range from $600 to $1,500 or more per unit.
7. Factors Affecting the Cost of Dismantling Joints
Several factors impact the cost of dismantling joints, such as:
-
Material Choice: Joints made from premium materials like stainless steel or with advanced corrosion resistance coatings tend to cost more.
-
Joint Configuration: Multi-piece and flanged dismantling joints generally cost more due to the complexity of design and additional components.
-
Supplier and Location: The cost may vary depending on the supplier, geographical location, and shipping costs.
8. Maintenance of Dismantling Joints in Ductile Iron Systems
Maintaining dismantling joints is crucial to ensure their longevity and functionality. Regular inspections should focus on the following:
-
Sealing Surfaces: Ensure that the seals are intact and free of any debris or damage.
-
Bolts and Fasteners: Tighten any loose bolts to maintain a secure joint connection.
-
Corrosion Checks: Inspect for any signs of corrosion or wear, particularly on metal components.
9. Common Challenges in Installing Dismantling Joints
While dismantling joints are designed to be efficient, there are some challenges that can arise during installation or maintenance:
-
Misalignment: If the pipe ends are not properly aligned, it can lead to leaks or an insecure connection.
-
Improper Seal: If the gasket or sealing surface is damaged or not properly installed, it can result in leakage.
-
Size Mismatch: Using the wrong size dismantling joint for a pipe can lead to fitting issues or failure to seal correctly.
10. FAQs About Dismantling Joint Ductile Iron Installation
1. What are dismantling joints, and why are they important in ductile iron piping systems?
Dismantling joints are mechanical joints designed to facilitate easy separation and reassembly of sections of ductile iron pipes. They are important because they provide easy access to pipelines for maintenance, repairs, and modifications without the need for cutting or removing entire sections of the system. This reduces downtime and maintenance costs.
2. Can dismantling joints be used in high-pressure applications?
Yes, dismantling joints are available in configurations designed for high-pressure applications, particularly those that require a flanged or multi-piece design. These joints can withstand high pressure and provide a secure, leak-proof connection. It’s important to select a joint that matches the pressure specifications of your pipeline.
3. What is the installation process for dismantling joints?
The installation process involves cleaning and preparing the pipe ends, positioning the dismantling joint, securing it with fasteners, and ensuring that the seal is intact. A final inspection is necessary to ensure the joint is correctly installed and leak-proof before the pipeline is pressurized.
4. What materials are dismantling joints made from?
Dismantling joints are typically made from ductile iron, though some models may include stainless steel or other corrosion-resistant materials. The material choice depends on the specific application, with stainless steel being preferred for environments exposed to harsh conditions, such as wastewater or corrosive environments.
5. How do I know which size dismantling joint to choose for my system?
Choosing the correct size dismantling joint involves knowing the diameter of the ductile iron pipe it will connect to. It’s important to select a joint that matches both the pipe size and the required pressure ratings for your system. Sizes typically range from 3 inches to 72 inches, and selection should be based on your project’s specific needs.
6. What is the typical price range for dismantling joints?
Prices for dismantling joints vary based on size, material, and brand. Small joints (3” – 6”) typically cost between $50 and $200, while medium-sized joints (8” – 12”) can range from $200 to $600. Larger joints (14” and above) may cost anywhere from $600 to $1,500 or more. Custom features or high-quality materials can increase the price.
Conclusion
Dismantling joint ductile iron installation is an essential aspect of pipeline maintenance and construction. Understanding the different types, installation processes, sizes, and pricing can help ensure that you make the right choice for your pipeline project. By following the recommended installation practices and using quality dismantling joints, you can improve the long-term functionality and efficiency of your ductile iron piping system.
