Direct tapping refers to the process of creating an opening in a ductile iron pipe to allow for a new connection, such as adding a branch line or inserting a valve. This method eliminates the need to interrupt the pipeline system for additional fittings and can save time and money in the installation process. It is essential to perform direct tapping correctly to avoid damage to the pipe and ensure a reliable, leak-free connection.
This article covers everything you need to know about direct tapping of ductile iron pipes, from the different types of tapping techniques to the installation process, tools required, and safety considerations.
1. Overview of Ductile Iron Pipes and Their Applications

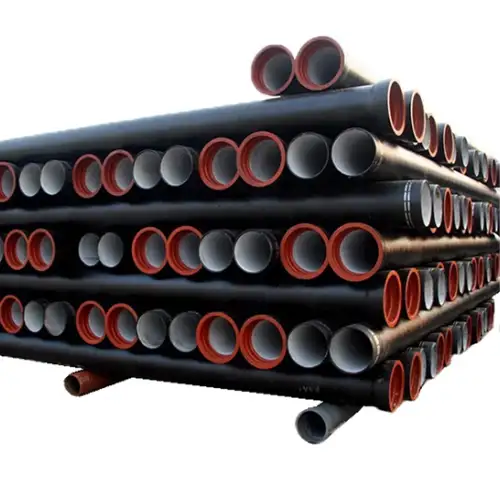

Ductile iron pipes are a type of cast iron that has been enhanced with graphite nodules to make them more flexible and stronger than traditional cast iron pipes. These pipes are widely used in water and wastewater distribution systems, as well as for fire protection, stormwater drainage, and gas pipelines.
Benefits of Ductile Iron Pipes:
-
High strength and durability.
-
Corrosion-resistant, especially when lined with cement mortar.
-
Ability to withstand internal and external pressure.
-
Longevity, with a typical service life of 50-100 years.
2. Why Choose Direct Tapping for Ductile Iron Pipes?
Direct tapping offers several advantages over traditional methods of adding branches or connections to ductile iron pipes. The main benefits include:
-
Cost-Effectiveness: Direct tapping reduces the need for expensive fittings and jointing materials.
-
Time Efficiency: The process is quicker compared to removing sections of the pipe for installation of tees or saddles.
-
Minimal Disruption: The installation process does not require shutting down the entire pipeline system, allowing continuous water or gas flow.
-
Improved Reliability: Properly executed direct tapping reduces the risk of leaks compared to older methods that may weaken pipe integrity.
3. Types of Direct Tapping Methods for Ductile Iron Pipes
There are several methods to perform direct tapping on ductile iron pipes, each suited to different applications and pipe conditions. The primary methods include:
-
Threaded Tapping: This method involves creating threads inside the pipe to screw in a fitting, often used for smaller diameter pipes.
-
Flanged Tapping: Involves adding a flange to the pipe to connect a valve or another pipeline. This method is often used in larger pipes or high-pressure systems.
-
Saddle Tapping: A special saddle is used to tap into the pipe, which creates a branch without compromising the pipe’s integrity.
-
Wet Tapping: This method involves tapping the pipe while it is still pressurized, often used for water systems to avoid downtime.
Table: Comparison of Direct Tapping Methods
| Method | Best For | Pipe Size Range | Advantages | Disadvantages |
|---|---|---|---|---|
| Threaded Tapping | Small diameter pipes | 2” to 6” | Simple and cost-effective | Limited to smaller pipes |
| Flanged Tapping | High-pressure systems | 6” and above | Suitable for high-pressure applications | More complex and expensive |
| Saddle Tapping | Large or medium pipes | 4” to 12” | Minimal disruption to system operation | Requires special tools and equipment |
| Wet Tapping | Water or gas pipelines | 4” to 12” | No need to shut down the system | Requires specialized tools and safety measures |
4. Tools and Equipment Required for Direct Tapping
The successful execution of direct tapping requires a specific set of tools, including:
-
Tapping Machine: A specialized tool that cuts the hole in the ductile iron pipe and installs the tapping valve.
-
Tapping Sleeve or Saddle: A device used to support the pipe during the tapping process.
-
Drill Bit: A heavy-duty drill bit is used to make an initial hole in the pipe.
-
Tapping Valve: This is used to create the connection between the new branch line and the existing pipeline.
-
Sealing Gasket: Ensures that the connection is leak-proof after tapping.
5. Step-by-Step Process for Direct Tapping Installation
-
Preparation: Ensure the pipe is clean and free of debris. Mark the spot where the tap will occur.
-
Pressure Relief: If necessary, depressurize the system before beginning the tap.
-
Install Tapping Machine: Secure the tapping machine and ensure it is properly aligned.
-
Drilling the Hole: Use the tapping machine to drill a hole into the pipe at the marked location.
-
Install the Tapping Valve: Attach the tapping valve to the hole and secure it in place.
-
Connect New Line: Install the new pipeline or branch by attaching it to the tapping valve.
-
Test the Connection: Once the new line is in place, pressure-test the system to ensure no leaks.
6. Safety Considerations During Direct Tapping
Safety is a paramount concern when installing direct taps on ductile iron pipes. Key safety measures include:
-
Personal Protective Equipment (PPE): Operators should wear appropriate PPE such as gloves, safety goggles, and hard hats.
-
Pipe Pressure Monitoring: Always monitor the pressure within the pipeline during the tapping process to avoid accidents.
-
Proper Equipment Use: Ensure all equipment is in good working condition and that operators are trained in the use of tapping machines.
-
Environmental Conditions: Avoid tapping under adverse weather conditions, such as extreme heat or cold.
7. Common Challenges and How to Overcome Them
Some challenges that may arise during the direct tapping process include:
-
Pipe Material Integrity: Ductile iron pipes may crack or deform if not properly handled during tapping.
-
Misalignment: Ensuring proper alignment of the tapping machine is essential to prevent leaks or weak connections.
-
Incorrect Pressure Levels: Tapping under the wrong pressure can result in system failure. Always monitor pressure levels during tapping.
8. Benefits of Direct Tapping vs Traditional Tapping Methods
Direct tapping is becoming the preferred method due to its efficiency and cost-effectiveness. In contrast to traditional tapping methods, such as cutting and rejoining sections of pipe, direct tapping minimizes disruptions and reduces the time needed for installation.
Table: Direct Tapping vs Traditional Tapping Methods
| Feature | Direct Tapping | Traditional Tapping |
|---|---|---|
| Installation Time | Faster | Slower |
| Disruption to Service | Minimal | Significant downtime |
| Equipment Cost | Lower | Higher |
| Complexity | Simple | More complex, requiring pipe removal |
| Risk of Damage to Pipe | Low | Higher |
9. FAQs About Direct Tapping Ductile Iron Pipes
1. What is the primary advantage of using direct tapping over traditional methods?
Direct tapping is faster and more cost-effective than traditional methods, which often require shutting down the entire system or removing sections of pipe. With direct tapping, a new branch can be added without disrupting the flow of water or gas, making it a highly efficient method.
2. Can direct tapping be performed on all sizes of ductile iron pipes?
Direct tapping can be performed on a wide range of ductile iron pipes, but the method is most effective on pipes ranging from 2 inches to 12 inches in diameter. For larger pipes, more specialized methods may be needed to ensure a secure and leak-free connection.
3. What equipment is necessary to perform direct tapping on a ductile iron pipe?
The necessary equipment includes a tapping machine, tapping valve, drill bit, and sealing gasket. Additionally, a tapping sleeve or saddle is often used to support the pipe during installation. Ensure all tools are designed for use with ductile iron to avoid damaging the pipe.
4. How does direct tapping affect the integrity of the pipe?
When done correctly, direct tapping does not compromise the structural integrity of the pipe. However, improper installation or the use of inadequate tools may lead to cracks or leaks. It’s crucial to follow proper installation guidelines and safety protocols.
5. Can direct tapping be done on a pressurized ductile iron pipe?
Yes, wet tapping allows the installation of a direct tap on a pressurized system without shutting down the water or gas supply. This method requires specialized equipment to safely drill the hole and install the tapping valve under pressure.
6. What are the common mistakes to avoid during direct tapping installation?
Some common mistakes include improper alignment of the tapping machine, failure to properly seal the tapping valve, and attempting to tap at the wrong pressure. These errors can lead to leaks or damage to the pipe. Always follow best practices and guidelines during installation.
Conclusion
Direct tapping is a highly effective and efficient method for adding connections to ductile iron pipes. Whether you’re working with water, gas, or wastewater systems, the benefits of direct tapping—such as reduced installation time, lower costs, and minimal disruption—make it a valuable technique. By following proper installation procedures and safety protocols, you can ensure a secure and reliable connection.
