Differences Between Grey Cast Iron and Ductile Iron: Properties, Applications

Time:2025-05-07

When choosing between grey cast iron and ductile iron (nodular iron) for piping, machinery, or construction, understanding their material differences is critical. Grey cast iron, known for its flake graphite structure, offers excellent vibration damping and castability but suffers from brittleness. In contrast, ductile iron’s spherical graphite nodules provide superior tensile strength (60-90 ksi vs. 20-30 ksi) and impact resistance, making it the preferred choice for modern water systems and high-stress applications.

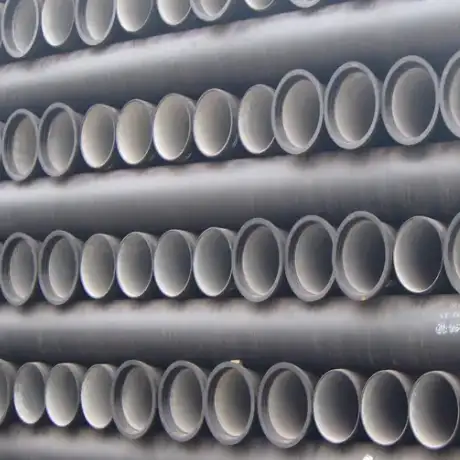

Differences Between Grey Cast Iron and Ductile Iron
Differences Between Grey Cast Iron and Ductile Iron

1. Introduction

Grey cast iron and ductile iron are two prominent materials in the world of metallurgy, each with unique properties that make them suitable for different applications. Understanding their differences is crucial for engineers, manufacturers, and designers when selecting the appropriate material for a specific purpose.


2. Material Composition and Microstructure

Grey Cast Iron

Grey cast iron, also known as gray iron, is primarily composed of iron, carbon (2.5–4.0%), and silicon (1.0–3.0%). The carbon in grey cast iron exists in the form of graphite flakes, which impart a grey appearance to fractured surfaces. This microstructure contributes to its excellent castability and machinability but also makes it brittle.

Ductile Iron

Ductile iron, or nodular cast iron, is produced by adding small amounts of magnesium to molten grey cast iron. This addition causes the graphite to form as spherical nodules rather than flakes, enhancing the material’s ductility and toughness. Ductile iron typically contains 3.4–4.0% carbon and 1.8–2.8% silicon.


3. Mechanical Properties Comparison

Property Grey Cast Iron Ductile Iron
Tensile Strength 150–250 MPa 400–900 MPa
Yield Strength 100–200 MPa 250–600 MPa
Elongation at Break 0.5–1.5% 7–18%
Hardness (Brinell) 180–300 HB 170–250 HB
Impact Resistance Low High

Ductile iron’s superior mechanical properties make it more suitable for applications subjected to dynamic loads and stresses.


4. Corrosion Resistance and Longevity

Grey Cast Iron

Grey cast iron has inherent corrosion resistance due to the protective oxide layer that forms on its surface. However, the presence of graphite flakes can lead to localized corrosion under certain conditions, potentially reducing its service life.

Ductile Iron

Ductile iron offers enhanced corrosion resistance, especially when coated or lined with protective materials. Its uniform microstructure contributes to more consistent performance over time, making it a preferred choice for underground and marine applications.


5. Thermal and Acoustic Properties

Thermal Conductivity

Grey cast iron exhibits higher thermal conductivity compared to ductile iron, making it suitable for applications requiring efficient heat dissipation, such as engine blocks and brake discs.

Acoustic Damping

The graphite flakes in grey cast iron provide excellent vibration damping properties, reducing noise and enhancing comfort in applications like engine components and machine bases.


6. Casting and Machining Considerations

Casting

Both grey cast iron and ductile iron can be cast using similar methods, including sand casting and centrifugal casting. However, the production of ductile iron requires precise control of the alloying process to ensure the formation of spherical graphite nodules.

Machining

Grey cast iron is easier to machine due to its lower hardness and brittleness. Ductile iron, while tougher, may require more advanced machining techniques and tools to achieve desired tolerances.


7. Cost Analysis and Economic Implications

Aspect Grey Cast Iron Ductile Iron
Material Cost Lower Higher
Production Complexity Simpler More Complex
Maintenance Cost Higher over time Lower over time
Lifespan Shorter Longer

While ductile iron has a higher initial cost, its durability and lower maintenance requirements can result in cost savings over the long term.


8. Environmental Impact and Sustainability

Both grey cast iron and ductile iron are recyclable materials, contributing to sustainability efforts in manufacturing. Ductile iron’s longer lifespan reduces the frequency of replacements, conserving resources and minimizing environmental impact.


9. Applications in Modern Industry

Grey Cast Iron

  • Engine blocks and cylinder heads

  • Flywheels and brake discs

  • Machine tool bases and frames

  • Pipes and fittings for non-critical applications

Ductile Iron

  • Water and wastewater pipelines

  • Automotive components (e.g., crankshafts, gears)

  • Structural components in construction

  • Marine and offshore structures


10. Maintenance and Repair Practices

Regular inspection and maintenance are essential for both materials. Ductile iron’s resistance to cracking simplifies repair processes, while grey cast iron may require more frequent interventions due to its brittleness.


11. Future Trends and Innovations

Advancements in alloying techniques and casting processes continue to improve the performance and versatility of both grey cast iron and ductile iron. Research into hybrid materials and surface treatments aims to combine the benefits of both materials, expanding their applicability in modern industry.


12. Frequently Asked Questions (FAQs)

1. What is the primary difference between grey cast iron and ductile iron?

The primary difference lies in their microstructure. Grey cast iron has graphite flakes, making it brittle, while ductile iron has spherical graphite nodules, enhancing its ductility and toughness.

2. Why is ductile iron preferred over grey cast iron in certain applications?

Ductile iron’s superior mechanical properties, such as higher tensile and yield strength, make it more suitable for applications subjected to dynamic loads and stresses.

3. Can grey cast iron be used in high-stress applications?

While grey cast iron can withstand compressive forces, its brittleness limits its use in applications involving impact or tensile stresses.

4. How does the corrosion resistance of grey cast iron compare to ductile iron?

Ductile iron offers enhanced corrosion resistance, especially when coated or lined with protective materials, making it more suitable for harsh environments.

5. Is ductile iron more expensive than grey cast iron?

Yes, ductile iron has a higher initial material cost. However, its durability and lower maintenance requirements can result in cost savings over time.

6. Can grey cast iron and ductile iron be used interchangeably?

While both materials are cast irons, their differing properties make them suitable for different applications. It is essential to select the appropriate material based on the specific requirements of the application.


Conclusion

Both grey cast iron and ductile iron have their places in industrial applications. However, the advancements in material science and engineering have made ductile iron the preferred choice for many modern applications due to its superior mechanical properties, corrosion resistance, and overall durability. When selecting between the two, it’s essential to consider the specific requirements of the application, including load conditions, environmental factors, and budget constraints.
