Cutting Steps and Safety Precautions for Ductile Iron Pipe Beveling

Ductile iron pipes are widely used in water distribution systems and other infrastructure projects due to their durability and strength. However, for these pipes to be properly installed and function effectively, accurate cutting and beveling are necessary. A ductile iron pipe beveler is a specialized tool designed to cut and bevel the ends of the pipe for smooth jointing during installation. This article provides an in-depth guide on the proper cutting steps and essential safety precautions when using a ductile iron pipe beveler. Whether you are a professional in the pipefitting industry or a DIY enthusiast, this guide will provide you with the knowledge needed to use a pipe beveler safely and efficiently.

1. Introduction to Ductile Iron Pipe Beveling

Ductile iron pipe beveling refers to the process of shaping the end of a ductile iron pipe to create a precise angle, typically used for connecting to other pipes or fittings. The bevel helps ensure a tight, secure joint when the pipe is joined with another piece, which is essential in maintaining a leak-free, durable pipeline. A beveler is a specialized cutting tool designed for this purpose, and understanding how to use it properly can significantly impact the quality of the installation.

What is a Ductile Iron Pipe Beveler?

A ductile iron pipe beveler is a machine or handheld tool used to cut the edges of ductile iron pipes at a specific angle. It helps to create a smooth, uniform bevel for welding, flanging, or joining with other pipes. The tool is designed to be robust and capable of handling the tough material properties of ductile iron, which can be challenging to cut without the right equipment.

Applications of Pipe Beveling

• Pipeline Construction: Beveling is used to prepare pipes for secure, leak-free connections.

• Maintenance: In repair or maintenance work, beveling ensures that replacement parts fit properly and securely.

• Flange Fittings: Beveling helps in preparing pipe ends for flange fittings, making it easier to align and tighten bolts.

2. Cutting Steps for Ductile Iron Pipe Beveling

Cutting ductile iron pipes requires precision and the right tools to ensure the bevel is uniform and effective for joining. Below is a detailed step-by-step guide on how to properly use a ductile iron pipe beveler.

Step 1: Preparation

Before beginning the beveling process, ensure that the ductile iron pipe is securely fixed in place. This prevents movement during cutting, which could affect the accuracy of the bevel. Clean the pipe’s surface to remove any rust, dirt, or debris that could interfere with the cutting process.

Step 2: Measure and Mark the Pipe

Measure the pipe’s length to determine where to cut. Mark the pipe at the desired bevel angle to ensure accuracy. It’s essential to measure carefully to maintain a consistent angle and avoid uneven beveling, which could affect the pipe’s ability to join with other components.

Step 3: Set the Beveler

Adjust the beveler to the correct settings, including the desired cutting angle. Most pipe bevelers have adjustable features that allow you to change the angle of the bevel. Common bevel angles range from 15° to 45°, depending on the project specifications.

Step 4: Cutting the Pipe

Place the beveler on the pipe, ensuring that the cutting head is aligned with the marked line. Start the beveler and allow it to move along the pipe’s edge, following the marked line. Apply steady, even pressure to achieve a consistent bevel depth and angle. Be sure to cut slowly to avoid overheating the tool or pipe.

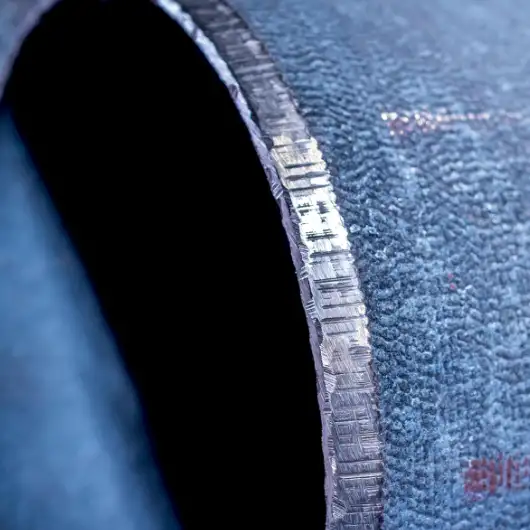

Step 5: Inspect the Bevel

After cutting, inspect the bevel to ensure it meets the required specifications. The bevel should be smooth, even, and free from burrs. If necessary, use a deburring tool to remove any sharp edges.

Step 6: Clean Up

Once the beveling is complete, clean the pipe’s edge again to remove any cutting debris. This step is important to prevent any debris from contaminating the joint when the pipe is connected to other components.

3. Types of Ductile Iron Pipe Bevelers

There are several types of bevelers available for cutting ductile iron pipes, each with unique features and capabilities. Selecting the right beveler for the job depends on the type of project, the size of the pipes, and the specific requirements of the job site.

4. Safety Precautions for Using a Ductile Iron Pipe Beveler

When using a ductile iron pipe beveler, safety is a top priority. The cutting process can generate debris, sparks, and heat, all of which pose risks to the operator. Following strict safety precautions will help prevent accidents and injuries.

Personal Protective Equipment (PPE)

Before using a ductile iron pipe beveler, make sure you are wearing the appropriate PPE:

• Safety Goggles or Face Shield: Protect your eyes and face from flying debris and sparks.

• Gloves: Wear heavy-duty gloves to protect your hands from sharp edges and the cutting tool.

• Ear Protection: Bevelers can be loud, so ear protection is essential to avoid hearing damage.

• Steel-Toe Boots: Protect your feet from falling tools or debris.

Work Area Safety

• Clear the Area: Ensure that the work area is clear of any obstructions or flammable materials. A clean work area minimizes the risk of accidents.

• Proper Ventilation: If you are working in a confined space, make sure the area is well-ventilated to prevent exposure to harmful fumes.

Tool Safety

• Inspect the Beveler: Always inspect the beveler before use to ensure that it is in good working condition. Check for any signs of wear, such as dull blades or loose parts.

• Secure the Pipe: Use clamps or other tools to securely hold the ductile iron pipe in place while beveling. This prevents movement, which could lead to inaccurate cuts or accidents.

• Turn Off the Tool When Not in Use: When not actively using the beveler, make sure it is turned off to prevent accidental activation.

5. Common Challenges in Ductile Iron Pipe Beveling

Beveling ductile iron pipes is not without its challenges. Several issues can arise during the process that may affect the quality of the bevel or cause delays in the project.

1. Pipe Movement

If the pipe is not properly secured, it may shift during the beveling process, resulting in an uneven bevel. This issue can be mitigated by using clamps or fixtures to hold the pipe firmly in place.

2. Overheating of the Beveler

Ductile iron is a tough material, and excessive cutting speeds or prolonged use of the beveler can cause the tool to overheat. This can lead to reduced tool life or damage to the pipe. To avoid this, take breaks to let the tool cool down and avoid high-speed cutting.

3. Inconsistent Bevel Angle

Achieving a consistent bevel angle can be difficult, especially for manual bevelers. Using a beveler with an adjustable cutting head can help ensure uniformity, but it is important to regularly check the angle during the process.

4. Debris and Dust

Cutting ductile iron can produce a significant amount of debris and dust. This material can be hazardous if inhaled or if it contaminates the pipe joint. Always use a vacuum or other methods to clean the work area, and wear appropriate PPE.

6. Maintenance and Care for Ductile Iron Pipe Bevelers

Proper maintenance of your ductile iron pipe beveler will extend its lifespan and ensure optimal performance. Regular cleaning and inspection are essential to keeping the tool in good working condition.

Cleaning the Beveler

After each use, clean the beveler to remove any dust, debris, or residue. This includes wiping down the cutting head and removing any buildup from the tool’s moving parts.

Inspecting for Wear

Regularly inspect the beveler for signs of wear, such as dull blades, loose bolts, or damaged electrical components. Replace worn parts promptly to maintain the tool’s effectiveness and safety.

Lubrication

Ensure that all moving parts are properly lubricated to reduce friction and prevent damage. This will also help extend the life of the beveler.

Frequently Asked Questions (FAQs)

1. What is the ideal bevel angle for ductile iron pipes?

The ideal bevel angle for ductile iron pipes typically ranges from 15° to 45°, depending on the project requirements. A 30° bevel is commonly used for most applications, but specific projects may require adjustments.

2. Can I use a manual beveler for large-diameter ductile iron pipes?

While manual bevelers can be used for smaller pipes, large-diameter pipes require more powerful bevelers, such as pneumatic or hydraulic bevelers. These tools provide the necessary power and precision for large-scale projects.

3. How do I prevent overheating during beveling?

To prevent overheating, take regular breaks during the beveling process. Use slower cutting speeds and ensure the beveler is not used for extended periods without rest.

4. Is it necessary to clean the pipe after beveling?

Yes, it is essential to clean the pipe after beveling to remove any debris or burrs. This ensures a secure, leak-free joint when the pipe is connected to other components.

5. How often should I inspect my beveler for maintenance?

It’s recommended to inspect your beveler after each use for any signs of wear or damage. Regular maintenance, such as cleaning and lubrication, should be performed periodically to ensure the beveler remains in optimal working condition.

References:

• ASTM A746 – Standard Specification for Ductile Iron Gravity Sewer Pipe and Fittings
• American Water Works Association (AWWA) Standards for Ductile Iron Pipe (e.g., AWWA C151)
• Ductile Iron – Wikipedia (Material Properties and Applications Overview)
• OSHA Personal Protective Equipment (PPE) Standards for Safe Use of Power Tools
• ISO 2531: Ductile iron pipes, fittings, accessories and their joints for water applications
