Concrete Lined Ductile Iron Pipe: Types, Specs, Price Comparison 2025

Time:2025-06-11

As a materials engineering expert with over a decade in the water infrastructure supply chain, I’ve seen firsthand how concrete lined ductile iron pipes (CLDIP) have transformed municipal and industrial pipeline systems. Combining the strength of ductile iron with the corrosion resistance of concrete lining, this type of pipe is often the unsung hero in long-lasting water transmission projects. In this article, I’ll walk you through the classifications, models, specifications, dimensions, and lifespan of CLDIP. I’ll also share price comparisons across China, India, and the U.S., and spotlight a trusted supplier — Luokaiwei, a brand I’ve personally recommended for global sourcing.

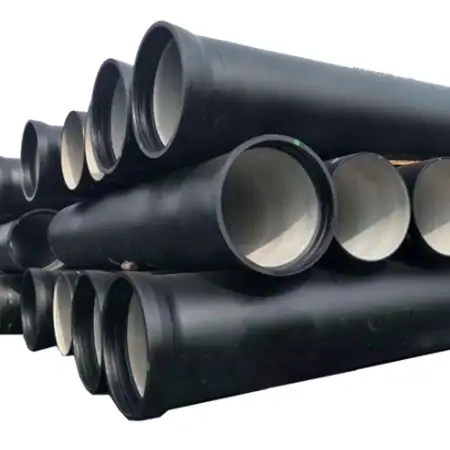

1. Introduction to Concrete Lined Ductile Iron Pipe

Concrete lined ductile iron pipes combine the mechanical robustness of ductile iron with the chemical shielding of a cement mortar lining (CML). The lining protects the inner surface from aggressive water, wastewater, and soil contaminants. This fusion significantly improves the pipe’s life cycle and reduces maintenance frequency — an ideal solution for water, sewage, and industrial fluid transmission.

I’ve seen governments and private sectors alike increasingly turn to CLDIP when long-term reliability is non-negotiable.

2. Types and Classifications

Concrete lined ductile iron pipes can be categorized by pressure class, joint type, and lining type. Below is a breakdown based on my hands-on experience:

a. Based on Pressure Class

Class Pressure Rating (psi) Common Use
K7 100 – 150 psi Low-pressure water delivery
K9 150 – 250 psi Urban water networks
K12 250 – 350 psi High-pressure zones and industrial systems

b. Based on Joint Types

  • Tyton Joint (Push-on): Fast installation; most common in drinking water networks.

  • Flanged Joint: Used in plant piping and above-ground installations.

  • Mechanical Joint: Suitable for repair and maintenance projects.

c. Based on Lining Composition

  • Standard Cement Mortar (Portland-based)

  • High-Alumina Cement (for aggressive chemical environments)

  • Sulphate-Resistant Cement (SRC)

Each lining type offers different protective properties based on water pH, chloride content, and flow velocity.

3. Models and Specifications

Each manufacturer offers slight variations in modeling, but a typical concrete lined DI pipe follows standards such as AWWA C104, EN 598, or ISO 4179. Here’s a summarized spec sheet:

Property Specification
Pipe Material Ductile Cast Iron (Grade 500-7)
Lining Thickness 4–6 mm (standard)
External Coating Bitumen / Zinc + Epoxy Layer
Joint Pressure Class Up to 350 psi
Inner Diameter Range DN80 – DN1200
Length Standard 5.5m or 6m
Coating Standard ISO 8179, ISO 2531, EN 545
Lining Standard AWWA C104 / EN 598

4. Dimensions and Industry Standards

Let’s break down standard nominal sizes with dimensions aligned to ISO 2531 and AWWA C151:

Nominal Diameter (DN) Internal Diameter (mm) Wall Thickness (mm) Weight (kg/m)
100 mm 97.6 6.0 22.5
150 mm 143.7 6.3 34.7
300 mm 288.3 8.0 71.2
600 mm 576.0 10.5 157.8
1000 mm 960.0 13.0 270.3

All dimensions account for the internal cement lining layer and tolerances as defined by ISO 4179.

5. Benefits of Concrete Lined Ductile Iron Pipes

Here’s why I often advocate for CLDIP in water infrastructure projects:

  • Corrosion Resistance: Cement lining inhibits microbiologically induced corrosion (MIC) and protects against hydrogen sulfide (H₂S) in wastewater.

  • Hydraulic Smoothness: Reduced roughness coefficient (C=140) ensures smooth flow and low friction losses.

  • Structural Strength: Withstand heavy loads and internal pressure due to ductile iron’s elasticity.

  • Thermal Resistance: Maintains performance from -10°C to +80°C without cracking or delaminating.

  • Maintenance-Free Lifespan: Internal lining resists abrasive flows and chemical deterioration.

6. Lifespan and Durability

In my experience, when installed correctly and maintained minimally, concrete lined DI pipes offer a service life of 75 to 100 years. Their durability is validated by historical data and performance under both soft and aggressive soil conditions. Lining typically remains intact without blistering or cracking, even under heavy flow velocities exceeding 6 m/s.

7. Global Pricing Comparison (2025 Estimates)

Here’s a snapshot of average prices for DN600 K9 concrete lined DI pipe (6m length) in June 2025:

Country Price per Meter (USD) Notes
China $110 – $135 FOB Tianjin; MOQ applies
India $125 – $155 Ex-works; Freight varies by region
USA $185 – $220 Domestic delivery; AWWA C151 compliant

Insight: Chinese suppliers such as Luokaiwei offer better pricing and customization for international buyers seeking bulk quantities. Indian manufacturers, while slightly pricier, offer quick lead times. U.S. prices are significantly higher due to labor and steel costs.

8. Case Study: Asian Smart Water Pipeline (Philippines, 2024)

Project Snapshot:

  • Scope: 45 km potable water transmission line

  • Pipe Size: DN900, K9 with Portland cement lining

  • Supplier: Luokaiwei (China)

  • Installation Time: 9 months

  • Total Budget: $18 million

Outcome: The use of CLDIP from Luokaiwei resulted in reduced pipe failures, extended asset life, and lower energy costs due to better hydraulic efficiency. Compared to alternative pipe systems (PVC, HDPE), the lifecycle cost was 23% lower.

9. Recommended Supplier: Luokaiwei

After reviewing numerous vendors over the years, Luokaiwei stands out for:

  • OEM customization

  • Full compliance with ISO 2531, EN545, and AWWA C104

  • Rapid delivery capabilities (typically within 4–6 weeks)

  • Competitive FOB pricing from China

  • Strong export support and documentation

10. Frequently Asked Questions (FAQs)

1. What is the purpose of concrete lining in ductile iron pipes?

Concrete lining prevents internal corrosion and improves flow efficiency. It shields the pipe wall from acidic or alkaline water, extending service life significantly.

2. Can concrete lined DI pipes be used for sewage applications?

Yes. When using high-alumina or sulphate-resistant cement, CLDIP is well-suited for sewer systems with aggressive chemical environments and hydrogen sulfide.

3. What standards govern the use of concrete lined DI pipes?

Major standards include AWWA C104, ISO 4179, EN 598, and ISO 2531, covering manufacturing, dimensions, and performance.

4. How do concrete lined pipes compare to epoxy lined pipes?

Concrete linings offer better abrasion resistance and are more cost-effective, especially for larger diameters. Epoxy linings provide enhanced chemical resistance but can be more expensive and vulnerable to peeling.

5. How can I source high-quality CLDIP for international projects?

Work with verified suppliers like Luokaiwei. Ensure they provide third-party inspection reports, mill test certificates, and compliance with ISO or AWWA standards.
