Clow Ductile Iron Fittings: Sizes, Pressure Ratings, and Cost Factors Explained

Clow valves and fittings are manufactured from high-quality ductile iron, which is a material known for its excellent mechanical properties, including strength, corrosion resistance, and flexibility. Ductile iron is an ideal material for fittings used in demanding applications, as it can withstand high internal pressures and external loads. Clow fittings are available in various types and sizes, designed to provide reliable connections for a range of piping systems.

LuoKaiWei has been producing these fittings for decades, establishing itself as a reputable brand in the industry. Clow ductile iron fittings meet industry standards for both durability and performance, making them a go-to solution for professionals in the water, sewage, and industrial sectors.

1. Applications of Clow Ductile Iron Fittings

Clow ductile iron fittings are used in a wide variety of applications, particularly in water and wastewater systems. Here are the primary sectors where these fittings are commonly used:

• Municipal Water Systems: Clow fittings play a critical role in municipal water distribution systems, ensuring that water can be safely and efficiently transported to households and businesses.

• Wastewater Systems: These fittings are used in sewer systems for both residential and industrial wastewater, ensuring long-lasting and secure connections in challenging environments.

• Fire Protection Systems: Clow ductile iron fittings are frequently employed in fire hydrant systems, where high-pressure tolerance and durability are essential.

• Industrial Applications: These fittings are also used in industrial piping systems, where robustness and reliability are required to handle various fluids under pressure.

• Irrigation Systems: Agricultural and irrigation networks utilize Clow fittings for water transportation, requiring fittings that can handle large volumes of water under moderate to high pressure.

2. Types of Clow Ductile Iron Fittings

Clow offers a variety of ductile iron fittings, each designed for specific functions within a piping system. Some of the most common types include:

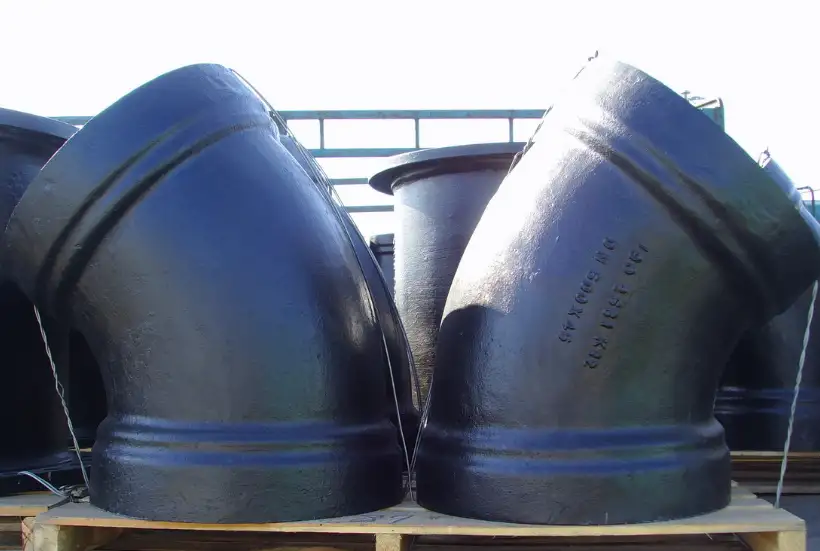

• Elbows: Used to change the direction of the pipe at 45° or 90° angles.

• Tees: Used to connect three pipes, often at a 90° angle, for branching purposes.

• Reducers: Employed to connect pipes of different diameters.

• Couplings: Provide a connection between two pipes of the same size, often used in repairs or extensions.

• Flanges: Used to join pipes or other components together with bolts.

• Caps: Used to seal the end of a pipe or fitting.

These fittings come with different joint types, including push-on, mechanical, and flanged joints, to accommodate varying installation requirements.

3. Clow Ductile Iron Fittings Sizes and Dimensions

Clow ductile iron fittings are available in a broad range of sizes to meet the demands of different projects. Sizes range from smaller fittings used in residential systems to large-scale fittings used in municipal or industrial applications. Below is an overview of common sizes and dimensions for Clow ductile iron fittings:

These dimensions and pressure ratings ensure that Clow ductile iron fittings are suitable for both low-pressure and high-pressure applications across various sectors.

4. Pressure Ratings and Performance

The pressure rating of Clow ductile iron fittings is a crucial factor when selecting the right fitting for an application. The fittings are designed to handle pressures ranging from 150 psi up to 350 psi, depending on the specific product and size. The pressure ratings ensure the fittings can withstand the demands of both municipal and industrial applications, ensuring reliable performance under high pressure.

For example, Clow fittings used in fire protection systems are designed to endure high pressure from water sources to hydrants, while those used in residential water distribution systems are rated for moderate pressures. The fittings are also highly resistant to external forces, making them suitable for underground installation in urban environments or harsh industrial settings.

5. Material Specifications and Coatings

Clow ductile iron fittings are made from high-quality ductile iron, which provides superior strength, flexibility, and impact resistance compared to traditional cast iron. The material properties of ductile iron include:

• Tensile Strength: Ductile iron has high tensile strength, meaning it can withstand heavy loads and stress without cracking or breaking.

• Ductility: The material’s ability to bend without fracturing makes it ideal for use in environments where flexibility is required.

• Corrosion Resistance: Clow fittings are coated with a corrosion-resistant lining, such as cement mortar or epoxy coatings, to protect them from rust and degradation over time.

These materials ensure that Clow fittings remain durable and effective even in challenging environments, providing long-lasting performance with minimal maintenance.

6. Pricing and Cost Factors

The cost of Clow ductile iron fittings varies based on size, type, and application. Prices can range from $10 to $300 or more per fitting, depending on the complexity and material requirements.

The main factors influencing the price of these fittings include:

• Size: Larger fittings tend to cost more due to the increased amount of material required.

• Type: Specialized fittings, such as flanged fittings or tees, tend to be more expensive than basic couplings and elbows.

• Coating: Fittings with advanced corrosion-resistant coatings, such as epoxy, may be priced higher due to the added protection they offer.

• Quantity: Bulk purchases often result in discounts, making large projects more cost-effective.

Overall, the cost of Clow ductile iron fittings represents a good value given their longevity, reliability, and performance.

7. Installation Guidelines

Proper installation of Clow ductile iron fittings is critical to ensure their long-term performance. Below are general installation guidelines for these fittings:

1. Preparation: Ensure the pipes and fittings are properly cleaned and free of debris before installation.

2. Align the Pipes: When joining fittings to pipes, ensure that the pipes are properly aligned to avoid stress on the joints.

3. Lubrication: Use a suitable lubricant on the joints to facilitate easy assembly and prevent damage to the seals.

4. Secure the Joints: Tighten mechanical or flange joints according to the manufacturer’s specifications to ensure a leak-free connection.

5. Inspection: After installation, inspect the system for any leaks or misalignments and make necessary adjustments.

8. Advantages of Using Clow Ductile Iron Fittings

Using Clow ductile iron fittings offers several benefits, including:

• Durability: Ductile iron’s high tensile strength and flexibility make it an ideal choice for long-lasting performance.

• Corrosion Resistance: Coatings such as cement mortar and epoxy help protect fittings from rust and environmental wear.

• Versatility: These fittings can be used in a wide range of applications, from residential water systems to industrial and fire protection systems.

• Cost-Effectiveness: While the initial cost may be higher than some alternatives, the long lifespan of Clow fittings ensures long-term savings through reduced maintenance and replacement costs.

9. Frequently Asked Questions (FAQs)

Q1: What are Clow ductile iron fittings used for?
Clow ductile iron fittings are used in a variety of applications, including municipal water systems, wastewater systems, fire protection, and industrial piping. They are designed to provide reliable connections in high-pressure environments.

Q2: What sizes are available for Clow ductile iron fittings?
Clow ductile iron fittings come in sizes ranging from 2” to 64” in diameter, making them suitable for small residential projects and large industrial systems.

Q3: Are Clow ductile iron fittings corrosion-resistant?
Yes, Clow ductile iron fittings are coated with cement mortar or epoxy coatings to ensure long-lasting protection against corrosion and rust.

Q4: How do I install Clow ductile iron fittings?
Proper installation involves cleaning the pipes and fittings, lubricating the joints, ensuring alignment, and tightening the connections according to the manufacturer’s specifications.

Q5: What is the cost of Clow ductile iron fittings?
The price of Clow ductile iron fittings varies based on size, type, and coating. Prices generally range from $10 to $300 per fitting.

Q6: What are the benefits of using Clow ductile iron fittings?
The main benefits include durability, flexibility, corrosion resistance, and versatility across various applications, making them an excellent long-term investment.
