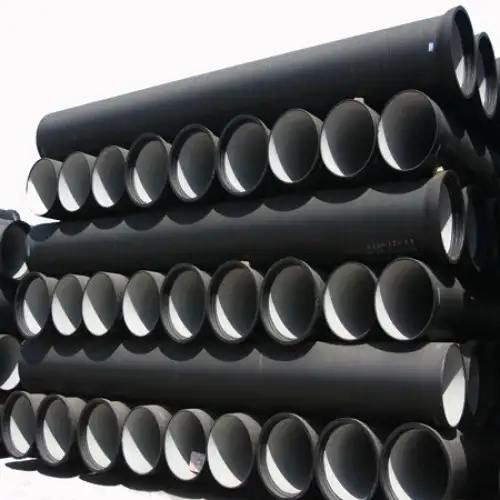

Class 350 and Class 52 are two different grades of ductile iron pipes that are often compared for their suitability in different applications. Understanding the differences between these two classes is crucial for selecting the right pipe for your specific needs.
Class 350 ductile iron pipes are designed to handle higher pressure applications, making them suitable for more demanding environments. In contrast, Class 52 pipes are designed for lighter-duty applications with moderate pressure requirements. These pipes are often used in water distribution systems, industrial piping, and even sewer systems.
1. Pressure Ratings and Strength
The pressure rating of a pipe is an important factor in determining its suitability for specific applications. Class 350 pipes are designed to handle higher pressures than Class 52 pipes, making them more robust in high-pressure systems.
Class 350 Ductile Iron Pipe Pressure Rating:
-
Pressure Rating: 350 psi (pounds per square inch) at ambient temperature.
-
Strength: High tensile strength and excellent resistance to internal pressure.
Class 52 Ductile Iron Pipe Pressure Rating:
-
Pressure Rating: 250 psi at ambient temperature.
-
Strength: Moderate tensile strength compared to Class 350 pipes.
Pressure Rating Comparison Table:
| Pipe Class | Pressure Rating (psi) | Tensile Strength | Suitable for High-Pressure Systems |
|---|---|---|---|
| Class 350 | 350 | High | Yes |
| Class 52 | 250 | Moderate | No |
2. Material Composition
Both Class 350 and Class 52 ductile iron pipes are made from ductile cast iron, but their composition and treatment processes differ, contributing to their varying strength and pressure handling capabilities.
Class 350 Ductile Iron Pipe Material:
-
Base Material: Ductile iron with higher levels of alloying elements.
-
Carbon Content: Higher carbon content to increase strength.
-
Heat Treatment: Higher-grade heat treatment for enhanced performance under high pressure.
Class 52 Ductile Iron Pipe Material:
-
Base Material: Ductile iron with lower alloy content.
-
Carbon Content: Lower carbon content compared to Class 350.
-
Heat Treatment: Standard heat treatment process.
Material Comparison Table:
| Pipe Class | Carbon Content | Alloying Elements | Heat Treatment |
|---|---|---|---|
| Class 350 | Higher | Higher levels of alloys | Advanced heat treatment |
| Class 52 | Lower | Lower levels of alloys | Standard heat treatment |
3. Applications and Use Cases
The different pressure ratings and material properties of Class 350 and Class 52 ductile iron pipes make them suitable for different applications.
Class 350 Ductile Iron Pipe Applications:
-
Water Transmission Lines: Used in high-pressure water supply and transmission systems.
-
Sewer Systems: Used in wastewater transportation systems where higher strength is required.
-
Industrial Piping: Suitable for systems with high-pressure requirements in manufacturing plants.
-
Fire Protection Systems: Essential for high-pressure fire protection systems in industrial settings.
Class 52 Ductile Iron Pipe Applications:
-
Water Distribution Systems: Commonly used for municipal water distribution lines with moderate pressure.
-
Sewer Lines: Ideal for sanitary and storm sewer systems with lower pressure requirements.
-
Irrigation Systems: Suitable for agricultural irrigation projects.
-
HVAC Systems: Used in heating and cooling systems with moderate pressure.
Applications Comparison Table:
| Application Type | Class 350 | Class 52 |
|---|---|---|
| Water Transmission | Yes | No |
| Sewer Systems | Yes | Yes |
| Industrial Piping | Yes | No |
| Fire Protection Systems | Yes | No |
| Water Distribution | No | Yes |
| Irrigation Systems | No | Yes |
4. Cost Comparison
The cost of ductile iron pipes varies significantly based on the class, material composition, and pressure rating. Generally, Class 350 pipes are more expensive than Class 52 pipes due to their higher strength and advanced heat treatment processes.
Class 350 Pipe Cost:
-
Cost: Higher due to increased material quality and pressure handling capabilities.
-
Market Price: Typically 10-15% more expensive than Class 52 pipes.
Class 52 Pipe Cost:
-
Cost: More affordable due to simpler material composition and lower pressure ratings.
-
Market Price: More cost-effective for moderate pressure applications.
Cost Comparison Table:
| Pipe Class | Estimated Cost (per foot) | Price Comparison |
|---|---|---|
| Class 350 | Higher | 10-15% more expensive |
| Class 52 | Lower | Cost-effective |
5. Durability and Longevity
Both Class 350 and Class 52 ductile iron pipes are durable, but their longevity can be influenced by factors such as pressure, temperature, and environmental conditions. Class 350 pipes, being designed for more demanding environments, typically offer a longer service life under extreme conditions.
Class 350 Ductile Iron Pipe Durability:
-
Service Life: 50+ years with proper maintenance.
-
Corrosion Resistance: High resistance to corrosion, particularly in high-pressure applications.
Class 52 Ductile Iron Pipe Durability:
-
Service Life: 40+ years with proper maintenance.
-
Corrosion Resistance: Moderate resistance to corrosion; suitable for less aggressive environments.
Durability Comparison Table:
| Pipe Class | Service Life (Years) | Corrosion Resistance | Durability Rating |
|---|---|---|---|
| Class 350 | 50+ | High | Excellent |
| Class 52 | 40+ | Moderate | Good |
6. Installation Considerations
When installing ductile iron pipes, proper handling and installation techniques are essential to ensure optimal performance and longevity. The installation process for both Class 350 and Class 52 pipes is similar, but Class 350 pipes may require more stringent handling due to their higher pressure ratings.
Class 350 Installation:
-
Handling: Requires careful handling to prevent damage during transport and installation due to the higher strength and pressure ratings.
-
Installation: Often used in more complex systems that may require additional support and reinforcement.
Class 52 Installation:
-
Handling: Easier to handle and install compared to Class 350 due to the lower pressure rating and material strength.
-
Installation: Common in simpler systems like water distribution and irrigation, where installation conditions are less demanding.
7. Standards and Certifications
Both Class 350 and Class 52 ductile iron pipes must adhere to certain industry standards to ensure safety, performance, and reliability.
Class 350 Standards:
-
AWWA C151: Standard for ductile iron pipe materials and pressure ratings.
-
ISO 2531: International standard for ductile iron pipes.
-
ASTM A536: Standard for ductile iron casting specifications.
Class 52 Standards:
-
AWWA C151: Standard for ductile iron pipe materials, applicable to both Class 350 and Class 52.
-
ISO 2531: Also applicable to Class 52, though with different pressure ratings.
8. Maintenance and Repair
Routine maintenance and proper repairs are necessary to maximize the lifespan of ductile iron pipes. Both Class 350 and Class 52 pipes can experience issues such as corrosion, joint failure, or leakage, though Class 350 pipes are more robust and may require less frequent maintenance.
Class 350 Maintenance:
-
Inspection Frequency: Regular inspections for high-pressure systems.
-
Common Issues: Corrosion, joint failure under extreme pressure, wear and tear in high-stress environments.
-
Repair: Typically involves replacing gaskets, reinforcing joints, and addressing corrosion.
Class 52 Maintenance:
-
Inspection Frequency: Moderate inspection requirements, depending on pressure and usage.
-
Common Issues: Wear and corrosion, but generally less frequent than in Class 350 pipes.
-
Repair: Simple repairs involving gasket replacement or pipe replacement in cases of failure.
9. Frequently Asked Questions (FAQs)
Q1: What is the key difference between Class 350 and Class 52 ductile iron pipes?
Answer: The primary difference between Class 350 and Class 52 pipes is their pressure rating. Class 350 pipes can handle pressures up to 350 psi, making them suitable for high-pressure applications, while Class 52 pipes are designed for moderate pressure applications, with a pressure rating of 250 psi.
Q2: How do I choose between Class 350 and Class 52 pipes for my project?
Answer: The choice between Class 350 and Class 52 depends on the pressure requirements of your system. If your application involves high-pressure conditions, such as water transmission or industrial piping, Class 350 is the better choice. For lighter-duty applications like water distribution and sewer lines, Class 52 is sufficient and more cost-effective.
Q3: Are Class 350 pipes more durable than Class 52 pipes?
Answer: Yes, Class 350 pipes are generally more durable than Class 52 pipes due to their higher pressure ratings and better resistance to corrosion, particularly in high-pressure environments. However, both types of pipes have a long lifespan when properly maintained.
Q4: Can Class 52 pipes be used in fire protection systems?
Answer: Class 52 pipes are not typically suitable for fire protection systems because these systems require higher pressure ratings. Class 350 pipes are more appropriate for fire protection due to their ability to withstand the high pressures common in such systems.
Q5: What is the cost difference between Class 350 and Class 52 ductile iron pipes?
Answer: Class 350 pipes are generally more expensive than Class 52 pipes due to their higher strength and pressure handling capabilities. The cost difference can be up to 10-15%, depending on the market and the supplier.
Q6: What standards apply to Class 350 and Class 52 pipes?
Answer: Both Class 350 and Class 52 ductile iron pipes are manufactured according to standards such as AWWA C151, ISO 2531, and ASTM A536, though the pressure ratings and material specifications differ between the two classes.
