Cement mortar lined ductile iron pipes (CMLDIPs) are a popular choice in the infrastructure industry, particularly for water and wastewater transportation. Known for their strength, durability, and resistance to corrosion, CMLDIPs combine the mechanical properties of ductile iron with the protective advantages of cement mortar linings. These pipes are primarily used in applications where high-pressure resistance, corrosion protection, and long-term reliability are essential.
1. What are Cement Mortar Lined Ductile Iron Pipes?

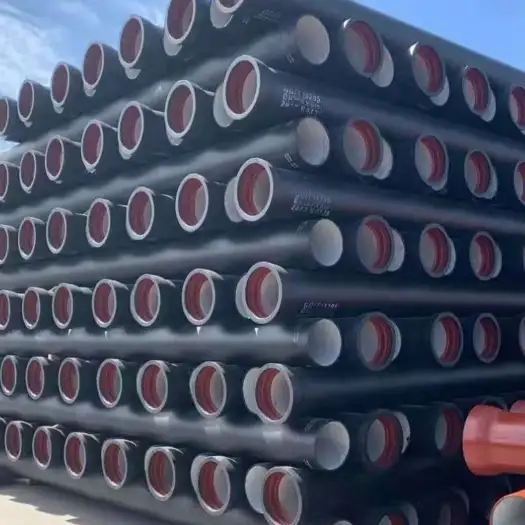

Cement mortar lined ductile iron pipes are pipes made from ductile iron that have an internal lining of cement mortar. Ductile iron itself is a versatile material that offers improved strength, flexibility, and resistance to internal pressure compared to traditional cast iron. It is created through a process that incorporates magnesium to achieve the desired ductility, making it an ideal material for pipes that need to withstand high pressures and mechanical stresses.
The cement mortar lining inside the pipe is designed to prevent corrosion, reduce internal wear, and protect the pipe from various environmental factors such as water and soil conditions. This lining is particularly effective in ensuring that the pipe remains free from the damaging effects of waterborne chemicals, bacteria, and abrasive materials that could degrade the pipe’s internal surface over time.
2. Benefits of Cement Mortar Lined Ductile Iron Pipes
Cement mortar lined ductile iron pipes offer a wide array of benefits, making them a preferred choice in many infrastructure applications:
Corrosion Resistance
One of the key benefits of cement mortar lined ductile iron pipes is their ability to resist corrosion. The cement mortar lining acts as a barrier between the pipe’s metal surface and the transported water or fluid, preventing rust and other forms of deterioration that can shorten the pipe’s lifespan.
Durability and Strength
Ductile iron pipes are known for their high tensile strength, which makes them more durable than many other materials. When combined with the cement mortar lining, these pipes can withstand high internal pressures, impacts, and even environmental challenges such as soil movement and temperature fluctuations.
Longevity
Cement mortar lined ductile iron pipes are designed for long-term service, with lifespans typically exceeding 100 years. The protective cement lining helps maintain the structural integrity of the pipes over time, reducing the need for frequent maintenance and replacements.
Smooth Internal Surface
The smooth surface of the cement mortar lining reduces friction, improving the flow of water or other fluids inside the pipe. This is especially beneficial in systems requiring high-efficiency transport of water and reduces the need for additional pumping power.
Environmental Safety
The materials used in the construction of cement mortar lined ductile iron pipes are environmentally friendly. The cement mortar lining is non-toxic, making it ideal for transporting drinking water and other potable fluids without contamination concerns.
3. Applications of Cement Mortar Lined Ductile Iron Pipes
Cement mortar lined ductile iron pipes are widely used in various industries and applications, primarily for water distribution and wastewater management. Some of the most common uses include:
Water Supply Systems
These pipes are ideal for municipal water distribution systems due to their ability to withstand high pressures and prevent corrosion, ensuring clean water delivery over long distances.
Sewage and Wastewater Systems
The cement mortar lining helps protect the pipes from the corrosive effects of sewage and wastewater, making them an excellent choice for sewage systems where pipes are constantly exposed to moisture and contaminants.
Industrial Applications
CMLDIPs are used in industrial settings for transporting chemicals, slurries, and other materials that require a durable and corrosion-resistant pipe system. Their ability to handle high flow rates and resist internal wear makes them suitable for a wide range of manufacturing processes.
Irrigation Systems
Due to their strength and longevity, cement mortar lined ductile iron pipes are used in large-scale irrigation systems where high-pressure water flow is needed to distribute water over large agricultural areas.
4. Manufacturing Process of Cement Mortar Lined Ductile Iron Pipes
The production of cement mortar lined ductile iron pipes involves several steps to ensure quality, strength, and durability:
Step 1: Ductile Iron Pipe Production
The process begins with the production of ductile iron pipe using molten iron and alloying elements such as magnesium, which are added to achieve the desired strength and flexibility. The iron is poured into molds and allowed to cool, forming the basic pipe structure.
Step 2: Cement Mortar Application
Once the ductile iron pipe has been cast, it is cleaned and prepared for the cement mortar lining. A cement mortar mixture is then sprayed or poured inside the pipe, creating a uniform and protective layer. This lining is typically made of Portland cement, sand, and other additives that improve the bonding properties and durability of the lining.
Step 3: Curing and Hardening
After the cement mortar lining is applied, the pipe is cured and allowed to harden. This process ensures that the lining adheres to the inner surface of the pipe and forms a strong protective barrier that can withstand high pressures and abrasive conditions.
Step 4: Quality Control
Each pipe undergoes rigorous testing to ensure it meets industry standards for strength, pressure resistance, and corrosion protection. Quality control procedures include inspecting the lining for uniformity, testing the pipe’s mechanical properties, and conducting pressure tests to verify its durability.
5. Comparison with Other Types of Pipes
There are several types of pipes commonly used for similar applications as cement mortar lined ductile iron pipes. Here’s a comparison of CMLDIPs with other pipe materials:
| Material | Price Range | Corrosion Resistance | Strength | Durability | Common Applications |
|---|---|---|---|---|---|
| Cement Mortar Lined Ductile Iron Pipe | Moderate to High | Excellent | High | Very High | Water and sewage systems, irrigation, industrial applications |
| PVC Pipe | Low to Moderate | Moderate | Low | Moderate | Residential plumbing, irrigation, drainage systems |
| Steel Pipe | High | Moderate to Poor | Very High | High | Gas transportation, industrial use |
| HDPE Pipe | Moderate | High | Moderate | High | Water systems, wastewater, storm drainage |
| Copper Pipe | High | Very High | Moderate | Moderate | Residential water systems, heating systems |
6. Installation and Maintenance of Cement Mortar Lined Ductile Iron Pipes
Proper installation and maintenance are essential for ensuring the long lifespan of cement mortar lined ductile iron pipes.
Installation
-
Site Preparation: The installation area should be free of debris, sharp objects, and conditions that could damage the pipe during installation.
-
Pipe Joining: Pipes can be joined using mechanical joints, flanged joints, or push-on joints, depending on the application and the size of the pipe.
-
Trenching: Pipes should be laid in trenches at a depth that protects them from external forces and ensures proper alignment for water flow.
Maintenance
-
Inspection: Regular visual inspections should be conducted to check for cracks or damage to the pipe.
-
Cleaning: Over time, sediment or debris may accumulate in the pipes. Cleaning procedures may include using high-pressure water or mechanical scrapers to clear the interior.
-
Corrosion Checks: Although the cement lining offers excellent corrosion protection, periodic checks should be made to ensure that no degradation occurs.
7. Frequently Asked Questions (FAQ)
Q1: What is the lifespan of cement mortar lined ductile iron pipes?
Cement mortar lined ductile iron pipes are designed to last over 100 years with proper installation and maintenance. The cement lining offers additional protection against corrosion, while the ductile iron provides strength and flexibility.
Q2: How do cement mortar lined ductile iron pipes compare with other materials in terms of cost?
While cement mortar lined ductile iron pipes tend to be more expensive than materials like PVC or HDPE, their long lifespan, durability, and corrosion resistance make them a cost-effective solution in the long term. Additionally, their strength allows them to handle high-pressure applications, which is not always the case with cheaper alternatives.
Q3: Can cement mortar lined ductile iron pipes be used for transporting drinking water?
Yes, cement mortar lined ductile iron pipes are approved for use in potable water systems. The cement lining is non-toxic and provides a protective barrier that prevents contamination, making it ideal for clean water transport.
Q4: How does the cement mortar lining enhance the durability of the pipe?
The cement mortar lining acts as a barrier between the ductile iron and the transported water, preventing corrosion, wear, and internal damage. This protection extends the lifespan of the pipe, especially in environments with corrosive or abrasive substances.
Q5: Are cement mortar lined ductile iron pipes easy to install?
Yes, cement mortar lined ductile iron pipes are relatively easy to install, as they come with various jointing options like mechanical joints or push-on joints. However, proper site preparation and alignment are crucial to ensure a secure installation.
Q6: How do environmental factors impact the performance of cement mortar lined ductile iron pipes?
Environmental factors such as soil conditions, temperature variations, and the presence of corrosive elements in water can impact the performance of the pipes. However, the cement mortar lining provides a robust layer of protection against these factors, ensuring that the pipes remain functional for many decades.
Conclusion
Cement mortar lined ductile iron pipes are a superior choice for infrastructure projects requiring strength, durability, and long-term corrosion resistance. By combining the benefits of ductile iron with the protective qualities of cement mortar, these pipes offer a reliable solution for water, sewage, and industrial applications. Understanding their manufacturing process, benefits, and maintenance requirements will help you make informed decisions for your next piping project.
