When it comes to the selection of materials for industrial, construction, and mechanical applications, cast iron and ductile iron are two popular choices. Both materials are iron-based alloys, but their compositions and properties differ significantly. These differences have a profound impact on their respective applications and performance in various sectors. This article will comprehensively explore the composition, characteristics, advantages, and applications of cast iron and ductile iron, comparing them in detail. Additionally, we will address the common concerns and questions related to these materials.
1. Understanding Cast Iron: Composition and Characteristics
Cast iron is an iron alloy that primarily consists of iron, carbon (2-4%), and silicon (1-3%). The higher carbon content gives cast iron its characteristic properties, making it relatively brittle compared to other materials. Here’s an overview of the composition and key characteristics of cast iron:
-
Carbon Content: Cast iron contains more than 2% carbon by weight, which is a significant factor in determining its mechanical properties. This high carbon content makes it easier to cast and mold but reduces its tensile strength.
-
Silicon: The silicon content in cast iron helps control the formation of graphite, which affects the material’s machinability and the ability to cast complex shapes.
-
Other Alloying Elements: Cast iron may contain small amounts of manganese, sulfur, and phosphorus, which influence its hardness, wear resistance, and fluidity during casting.
Types of Cast Iron:
-
Gray Cast Iron: The most common form, characterized by the presence of graphite flakes that give it its gray appearance.
-
White Cast Iron: Contains cementite (iron carbide), making it harder but more brittle than gray cast iron.
-
Malleable Cast Iron: A form of cast iron that has been heat-treated to soften it and improve its ductility.
-
Spheroidal Graphite Iron (SGI) or Ductile Iron: This is an alloy where graphite forms in spherical shapes, enhancing its toughness and flexibility.
2. Understanding Ductile Iron: Composition and Characteristics
Ductile iron (also known as nodular cast iron or SG iron) is a modified form of cast iron that features improved ductility and strength compared to traditional cast iron. The composition of ductile iron is designed to produce spherical graphite structures, which provide superior mechanical properties.
-
Carbon Content: Similar to cast iron, ductile iron has a carbon content of about 3-4%. However, the carbon is present in a different form (spherical graphite) than in traditional cast iron, which gives ductile iron its enhanced ductility.
-
Silicon: The silicon content is usually around 2-3%. Silicon plays an essential role in controlling the shape of graphite and ensuring the material’s fluidity during casting.
-
Alloying Elements: Ductile iron contains small amounts of other elements such as magnesium, which is used to promote the formation of spherical graphite. Manganese, sulfur, and phosphorus are also present in small quantities to enhance strength, wear resistance, and machinability.
Key Characteristics of Ductile Iron:
-
High Strength and Ductility: Ductile iron has excellent tensile strength and elongation properties, making it ideal for demanding applications like pipelines, heavy machinery, and automotive parts.
-
Improved Fatigue Resistance: The spherical graphite structure in ductile iron makes it more resistant to cracking under cyclic loading conditions.
3. Comparison of Cast Iron and Ductile Iron Composition
A direct comparison of the compositions of cast iron and ductile iron reveals the significant differences in the forms of graphite present and the alloying elements that contribute to their properties.
| Property | Cast Iron | Ductile Iron |
|---|---|---|
| Carbon Content | 2-4% | 3-4% |
| Silicon Content | 1-3% | 2-3% |
| Graphite Form | Flaky graphite (in gray cast iron) | Spherical graphite (nodules) |
| Tensile Strength | 150-300 MPa | 350-600 MPa |
| Elongation | 1-2% | 5-10% |
| Hardness | 170-250 HB | 180-300 HB |
| Ductility | Low, brittle | High, more flexible and tougher |
| Common Uses | Pipes, machinery, automotive parts | Water pipes, automotive components, heavy equipment |
4. Mechanical Properties: A Detailed Comparison
The mechanical properties of cast iron and ductile iron vary significantly, influencing their applications in different industries. Ductile iron’s ability to withstand higher tensile stress, elongation, and fatigue resistance gives it a significant edge over cast iron in many scenarios.
-
Tensile Strength: Ductile iron typically has higher tensile strength, making it ideal for structural applications where higher load-bearing capacity is required.
-
Ductility: Ductile iron’s ability to stretch before breaking is far superior to cast iron. This makes ductile iron much more reliable for applications involving shock and impact loads.
-
Fatigue Resistance: Ductile iron’s spherical graphite structure provides better resistance to fatigue, which is essential for applications like automotive suspension components or pressure-containing equipment.
5. Applications of Cast Iron vs Ductile Iron
-
Cast Iron: Cast iron is often used in applications where high wear resistance is needed, but the material does not need to withstand high tensile stresses or bending forces.
-
Common Applications: Machine bases, engine blocks, cookware, pipes for low-pressure water systems.
-
-
Ductile Iron: Ductile iron’s high strength, flexibility, and corrosion resistance make it ideal for high-stress applications.
-
Common Applications: Water pipes, manhole covers, automotive components, mining equipment, heavy machinery parts.
-
6. Durability and Corrosion Resistance

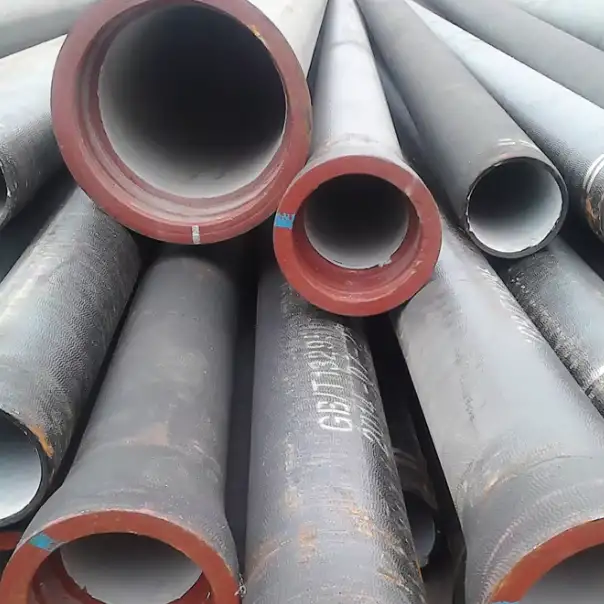

Both cast iron and ductile iron are highly durable and resistant to wear, but their corrosion resistance differs. Cast iron is more prone to corrosion and can become brittle over time, especially in harsh environments. Ductile iron, however, is more resistant to corrosion, especially when coated with protective layers like epoxy or cement mortar, making it suitable for underground applications such as water and wastewater pipelines.
-
Cast Iron: Susceptible to corrosion, particularly in damp environments. It requires protective coatings or regular maintenance to ensure longevity.
-
Ductile Iron: Better resistance to corrosion and environmental wear, especially with modern coatings. It is commonly used in water distribution systems.
7. Cost Considerations
-
Cost of Cast Iron: Generally, cast iron is cheaper to produce than ductile iron due to its simpler composition and casting process. However, cast iron’s brittleness and lower tensile strength can lead to higher maintenance costs in certain applications.
-
Cost of Ductile Iron: Ductile iron is more expensive to produce than cast iron due to the addition of magnesium and other alloying elements that help form the spherical graphite structure. However, its superior strength and longevity often justify the higher cost.
8. Environmental Impact and Sustainability
Both cast iron and ductile iron are recyclable, making them relatively sustainable materials. However, the production process for ductile iron tends to generate more emissions and energy consumption than cast iron due to the extra alloying steps. On the other hand, ductile iron’s greater durability and longer lifespan can lead to less waste over time.
9. Key Considerations for Engineers and Designers
When selecting between cast iron and ductile iron for a particular application, engineers must carefully assess:
-
Application Requirements: What are the expected stresses, loads, and environmental conditions?
-
Budget: What is the available budget, and does the long-term durability of ductile iron justify the extra investment?
-
Maintenance and Longevity: Consider the maintenance needs and the expected lifespan of the material in the intended environment.
FAQs
1. What is the key difference in the graphite structure between cast iron and ductile iron?
Cast iron contains graphite flakes that are dispersed throughout the material, making it brittle and prone to cracking. In contrast, ductile iron has spherical graphite nodules, which provide greater strength, flexibility, and resistance to impact and fatigue.
2. Is ductile iron stronger than cast iron?
Yes, ductile iron is significantly stronger than cast iron. Its tensile strength is higher, and it can endure more stress and deformation without breaking, making it ideal for heavy-duty applications.
3. What are the environmental benefits of using ductile iron?
Ductile iron has better durability, which translates into fewer replacements and repairs, contributing to less waste. Additionally, it is highly recyclable, reducing its environmental footprint.
4. Can cast iron be used for high-stress applications?
While cast iron is suitable for many applications, it is generally not recommended for high-stress or high-impact uses due to its brittleness. Ductile iron is a better option in these cases.
5. How does ductile iron’s corrosion resistance compare to cast iron?
Ductile iron has better corrosion resistance than cast iron, especially when coated. It is more suitable for applications in water systems, sewage pipes, and underground installations.
6. Why is ductile iron more expensive than cast iron?
Ductile iron is more expensive due to the additional alloying elements (like magnesium) required to produce the spherical graphite structure, as well as the more complex manufacturing processes.
