Ductile iron pipe, known for its strength and durability, is commonly used in water and wastewater systems. When modifications or repairs are necessary, cutting the pipe becomes essential. A prevalent question among professionals is whether a torch can effectively cut ductile iron pipe. This article delves into the methods, safety considerations, and best practices associated with torch cutting ductile iron pipe.
Understanding Ductile Iron Pipe
Ductile iron pipe is a type of cast iron pipe characterized by its nodular graphite inclusions, which provide enhanced strength and ductility compared to traditional cast iron. This material is widely utilized in various infrastructure projects due to its resistance to corrosion and ability to withstand high pressures.
Methods for Cutting Ductile Iron Pipe
1. Torch Cutting
Torch cutting involves using a fuel gas, typically acetylene, combined with oxygen to produce a high-temperature flame capable of melting and oxidizing the metal. This method is effective for cutting ductile iron pipe, especially in field conditions. However, it requires precision and proper technique to ensure clean cuts and to avoid compromising the pipe’s integrity.
Techniques for Torch Cutting
-
Preparation: Before cutting, mark the pipe to ensure a straight and accurate cut.
-
Settings: Adjust the torch to the appropriate oxygen and acetylene pressures.
-
Angle: Maintain a consistent angle, typically around 60 degrees, to ensure effective cutting.
-
Speed: Move the torch steadily along the marked line to achieve a uniform cut.
Proper training and experience are essential to perform torch cutting safely and effectively.
2. Abrasive Cutting

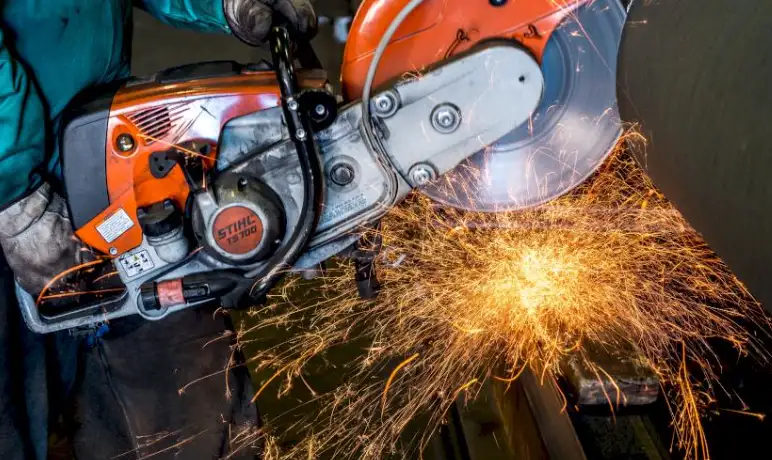

Abrasive cutting utilizes a high-speed rotating abrasive wheel or blade to grind through the ductile iron pipe. This method is commonly used for its efficiency and the cleaner cuts it produces compared to torch cutting.
Advantages of Abrasive Cutting
-
Clean Cuts: Produces smooth edges, reducing the need for additional finishing.
-
Efficiency: Faster cutting speeds, especially for thicker pipes.
-
Safety: Lower risk of fire hazards compared to torch cutting.
3. Mechanical Cutting
Mechanical cutting involves using tools like pipe cutters or saws to physically shear the ductile iron pipe. This method is suitable for smaller pipes and offers precise control over the cutting process.
Types of Mechanical Cutters
-
Pipe Saws: Handheld saws equipped with blades designed for metal cutting.
-
Rotary Cutters: Tools that wrap around the pipe and rotate to make the cut.
-
Hinged Cutters: Cutters that clamp onto the pipe and use a squeezing motion to sever the material.
Safety Considerations
Safety is paramount when cutting ductile iron pipe, regardless of the method employed. Each technique presents unique hazards that must be mitigated through proper safety measures.
Torch Cutting Safety
-
Personal Protective Equipment (PPE): Wear flame-resistant clothing, gloves, safety goggles, and a welding helmet to protect against heat and sparks.
-
Fire Safety: Ensure the work area is clear of flammable materials and have fire extinguishing equipment readily available.
-
Ventilation: Work in well-ventilated areas to avoid inhaling harmful fumes.
Abrasive and Mechanical Cutting Safety
-
PPE: Use safety glasses, hearing protection, and gloves to safeguard against debris and noise.
-
Tool Maintenance: Regularly inspect and maintain cutting tools to ensure they are in good working condition.
-
Work Area: Keep the cutting area clean and organized to prevent accidents.
Best Practices for Cutting Ductile Iron Pipe
-
Proper Training: Ensure all personnel are adequately trained in the chosen cutting method.
-
Correct Tools: Select the appropriate cutting tools for the pipe size and material.
-
Maintenance: Regularly maintain tools and equipment to ensure optimal performance.
-
Inspection: After cutting, inspect the pipe ends for any burrs or irregularities and address them promptly.
Alternatives to Torch Cutting
While torch cutting is effective, alternative methods may offer advantages in certain situations.
Plasma Cutting
Plasma cutting uses ionized gas to cut through metals, offering precision and speed. It is suitable for ductile iron pipes, especially in controlled environments.
Laser Cutting
Laser cutting provides high precision and is ideal for complex or intricate cuts. However, it requires specialized equipment and is typically used in manufacturing settings.
Conclusion
Torch cutting is a viable method for cutting ductile iron pipe, provided it is performed with the proper technique and safety precautions. Understanding the material properties, selecting the appropriate cutting method, and adhering to safety standards are crucial for successful and safe operations.
FAQs
1. Can I use a standard blowtorch to cut ductile iron pipe?
No, a standard blowtorch typically does not reach the temperatures necessary to effectively cut ductile iron pipe. An oxy-acetylene torch, which combines oxygen and acetylene gases, produces a flame hot enough to cut through ductile iron. Using the correct equipment is essential for safety and effectiveness.
2. What are the risks associated with torch cutting ductile iron pipe?
Torch cutting presents several risks, including exposure to high heat, flying molten metal, and the potential for fire hazards. Proper safety measures, such as wearing appropriate PPE and ensuring the work area is free of flammable materials, are crucial to mitigate these risks.
3. How do I prepare a ductile iron pipe for torch cutting?
Preparation involves marking the pipe to ensure a straight cut, setting the torch to the correct oxygen and acetylene pressures, and maintaining a consistent angle during the cutting process. Proper preparation ensures a clean and accurate cut.
4. Can torch cutting affect the integrity of the ductile iron pipe?
Improper torch cutting can introduce stresses or imperfections into the pipe, potentially compromising its integrity. Following proper cutting techniques and post-cutting procedures, such as smoothing and beveling the cut edges, helps maintain the pipe’s structural integrity.
5. Are there alternatives to torch cutting ductile iron pipe?
Yes, alternatives include abrasive cutting, mechanical cutting, plasma cutting, and laser cutting. Each method has its advantages and is suitable for different applications and environments.
6. What safety precautions should I take when cutting ductile iron pipe?
Safety precautions include wearing appropriate PPE, ensuring proper ventilation, keeping the work area clean and free of flammable materials, and following all manufacturer instructions and safety guidelines. Regular training and adherence to safety standards are essential.
