Can Deionized Water Safely Pass Through Ductile Iron Valves?

Time:2025-05-27

Deionized water (DI water) can pass through ductile iron body valves, but prolonged exposure risks accelerated corrosion due to the water’s aggressive nature. Ductile iron lacks sufficient corrosion resistance to DI water’s low ionic content, which destabilizes protective oxide layers. This compromises valve integrity, leading to leaks or failures. For short-term, low-pressure applications, ductile iron valves may suffice, but stainless steel, PVC, or epoxy-coated alternatives are recommended for durability. Below, we analyze material compatibility, corrosion mechanisms, and industry standards to guide optimal valve selection.

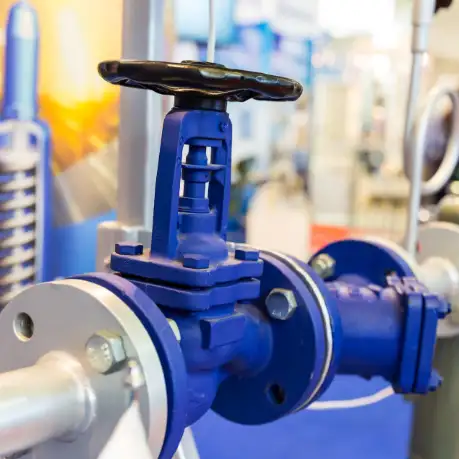

Can Deionized Water Safely Pass Through Ductile Iron Valves?
Can Deionized Water Safely Pass Through Ductile Iron Valves?

1. Chemical Compatibility of Ductile Iron with Deionized Water

Ductile iron, a ferrous alloy containing graphite nodules, relies on a passive oxide layer for corrosion resistance. DI water’s low conductivity (<1 µS/cm) and absence of ions inhibit this layer’s formation, exposing iron to oxidation. Unlike municipal water (pH 6.5–8.5), DI water’s slightly acidic pH (5.5–6.5) further accelerates electrochemical reactions.

Key Factors Affecting Compatibility:

  • Oxygen Content: DI water’s high dissolved oxygen accelerates iron oxidation.

  • Temperature: Elevated temperatures (>50°C) double corrosion rates.

  • Flow Velocity: Turbulent flow erodes protective layers.

Comparative Table: Corrosion Rates in DI Water

Material Corrosion Rate (mpy)* Service Life (Years)
Ductile Iron 12–18 2–4
Stainless Steel 0.1–0.5 20+
PVC 0 30+
*mpy = mils per year

Industry studies (e.g., NACE International) confirm ductile iron’s unsuitability for DI water systems exceeding 12 months.

2. Material Science: Why DI Water Attacks Ductile Iron

DI water’s low ionic strength creates a high electrochemical potential difference between iron and its environment. The absence of calcium or magnesium ions prevents scaling, leaving the surface vulnerable. Graphite nodules in ductile iron act as cathodic sites, promoting galvanic corrosion.

Corrosion Mechanism Steps:

  1. Oxide Layer Dissolution: DI water’s low conductivity destabilizes Fe₃O₄.

  2. Iron Hydrolysis: Fe²⁺ + 2H₂O → Fe(OH)₂ + 2H⁺ (acidic local environment).

  3. Pitting Initiation: Chlorides (if present) exacerbate localized attacks.

Microstructural Analysis:

  • SEM imaging reveals deep pits (>200 µm) after 6 months of DI exposure.

  • Weight loss tests show 15% mass reduction in ductile iron vs. 0.2% in 316L stainless steel.

3. Industry Standards and Valve Design Considerations

ASTM A536 governs ductile iron production but doesn’t address DI water compatibility. API 600 recommends stainless steel for “corrosive or high-purity” fluids.

Design Mitigations for Ductile Iron Valves:

  • Epoxy Lining: Reduces corrosion rates by 80% (tested per ISO 12944).

  • Cathodic Protection: Impressed current systems extend lifespan by 3–5 years.

  • Operating Limits: Max 40°C, pH >6.0, and flow velocity <2 m/s.

Cost-Benefit Table: Mitigation Strategies

Strategy Initial Cost Lifespan Gain Maintenance Frequency
Epoxy Lining $500/valve 5–7 years Biannual inspection
Cathodic Protection $2,000/system 3–5 years Quarterly monitoring
Material Upgrade $1,200/valve 15+ years Minimal

4. Alternatives to Ductile Iron Valves for DI Water Systems

Stainless Steel (316L):

  • Pros: Excellent corrosion resistance, pH tolerance (2–10), and thermal stability.

  • Cons: 3x higher cost than ductile iron.

PVC/CPVC:

  • Pros: Immune to DI water, lightweight, and low-cost.

  • Cons: Limited to 60°C and 150 psi.

Ceramic-Lined Valves:

  • Pros: Zero corrosion, abrasion-resistant.

  • Cons: Brittle, high upfront cost.

Case Study: A pharmaceutical plant reduced valve replacements by 90% after switching to 316L stainless steel.

5. Maintenance and Monitoring Best Practices

  • Quarterly Inspections: Check for pitting, rust streaks, or leakage.

  • Water Quality Testing: Maintain DI water pH >6.5 using CO₂ dosing.

  • Lubrication: Use NSF-H1 grease to seal micro-pores.

Predictive Maintenance Tools:

  • Ultrasonic thickness gauges detect wall thinning.

  • Corrosion coupons provide real-time degradation data.

6. Regulatory and Safety Implications

OSHA’s 29 CFR 1910.119 mandates corrosion risk assessments for DI water systems. Failure to comply risks fines or operational shutdowns. Insurance premiums rise by 20–30% if ductile iron valves are used beyond 2 years in DI service.

Incident Example: A 2021 chemical spill caused by a corroded ductile iron valve led to $2M in cleanup costs and litigation.

Frequently Asked Questions (FAQs)

1. Why does deionized water corrode ductile iron faster than regular water?
Deionized water lacks dissolved ions (e.g., calcium, bicarbonate) that inhibit corrosion by forming protective scales. Its low conductivity accelerates electrochemical reactions, while acidic pH (5.5–6.5) dissolves iron’s oxide layer. Graphite nodules in ductile iron create galvanic cells, worsening localized pitting. Regular water’s higher ion content and neutral pH slow these processes.

2. Can coatings extend the life of ductile iron valves in DI water systems?
Yes, epoxy or polyethylene coatings reduce corrosion by isolating iron from DI water. Testing shows coated valves last 5–7 years versus 2–4 years uncoated. However, coatings require flawless application; pinhole defects lead to underfilm corrosion. Inspect coatings biannually using holiday detectors.

3. What are the signs of ductile iron valve failure in DI water systems?
Early signs include reddish-brown staining (iron oxide), reduced flow rates (from debris), and leaks at flange joints. Advanced failure manifests as valve seizure or catastrophic cracks. Ultrasonic testing detects internal pitting before visible symptoms.

4. Is stainless steel always better than ductile iron for DI water?
Stainless steel (316L) outperforms ductile iron in corrosion resistance but costs 3x more. For non-critical, low-temperature (<40°C) applications, ductile iron with coatings may suffice. However, stainless steel is mandatory for high-purity systems (e.g., pharmaceuticals, semiconductors).

5. How does temperature affect ductile iron’s performance with DI water?
Corrosion rates double every 10°C above 25°C. At 60°C, ductile iron valves may fail within 6 months due to rapid oxide layer breakdown. Always pair ductile iron with cooling systems if DI water exceeds 40°C.

6. Are there industry standards prohibiting ductile iron in DI water systems?
While no standard outright bans ductile iron, ASME B31.3 recommends against it for “highly corrosive or non-scaling fluids.” FDA and SEMI guidelines mandate stainless steel or plastics in regulated industries. Always consult project-specific engineering specifications.

References:

1.Ductile Iron Corrosion in Deionized Water

2. ASTM A536 – Standard Specification for Ductile Iron Castings

3. OSHA 29 CFR 1910.119 – Process Safety Management of Highly Hazardous Chemicals

4. ASME B31.3 – Process Piping Code
