Water. It’s the lifeblood of our cities and towns. Think about it – that clean water flowing from your tap, the wastewater disappearing down the drain. It all relies on a hidden network, the silent arteries of modern civilization. And often, the material trusted to carry this vital flow, enduring immense pressure and the test of time, is Ductile Iron Pipe manufactured to BS EN 545. I’ve spent years working with water infrastructure, and I can tell you, choosing the right pipe isn’t just engineering; it’s about safeguarding public health and building resilient communities for decades. BS EN 545 isn’t just another standard; it’s the rigorous blueprint ensuring these pipes perform flawlessly, day in, day out.

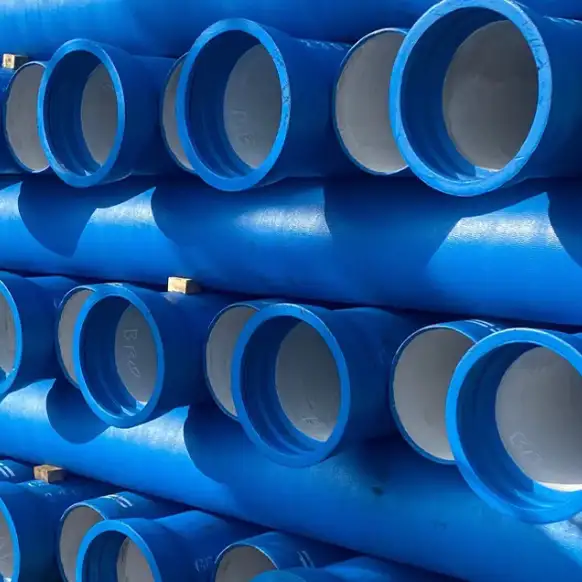

1. What Exactly is BS EN 545? The Gold Standard Defined
Let’s cut through the jargon. BS EN 545 stands for “British Standard European Norm 545: Ductile iron pipes, fittings, accessories and their joints for water pipelines – Requirements and test methods.” Quite a mouthful! But what does it mean in practice?
Simply put, this European Standard (adopted as a British Standard) defines everything about ductile iron pipes intended for water applications. It dictates:
-
Material Composition: The precise blend of iron, carbon, silicon, and other elements that give ductile iron its unique strength and flexibility.
-
Mechanical Properties: Minimum requirements for tensile strength, yield strength, and elongation – ensuring the pipe can handle pressure and ground loads without failing catastrophically. That crucial “ductility” means it bends before it breaks.
-
Dimensions & Tolerances: Exact internal and external diameters, wall thicknesses (designated by classes like K9, K10), and permissible variations. Precision here is vital for compatibility and joint integrity.
-
Protective Linings & Coatings: Mandating robust internal linings (like cement mortar or polyurethane) to protect water quality and external coatings (like zinc plus bitumen or synthetic resins) to fight corrosion. BS EN 545 specifies application methods and minimum thicknesses.
-
Joints: Requirements for common joint types – push-in rubber ring (the workhorse), flanged, mechanical – ensuring leak-tightness and ease of installation.
-
Testing Regime: Rigorous procedures every pipe must undergo: hydrostatic pressure testing to prove strength, coating adhesion tests, lining checks, and metallurgical analysis. No shortcuts.
Think of it as a comprehensive quality passport. A pipe bearing the BS EN 545 mark has been scrutinized against these exacting criteria. It’s the assurance utilities and engineers rely on. For demanding applications, suppliers like Luokaiwei rigorously adhere to this standard, ensuring their products meet these high benchmarks consistently.
2. Why Ductile Iron? The Material Advantage
Cast iron served us well historically, but it’s brittle. Ductile iron, developed in the mid-20th century, was a game-changer. Here’s why it dominates pressurized water mains:
-
Unmatched Strength-Durability Combo: Its tensile strength rivals steel, but its ductility allows it to absorb significant ground movement, impact, and pressure surges (water hammer) without fracturing. It handles deep burial and heavy traffic loads effortlessly.
-
Longevity Measured in Generations: Properly specified and installed BS EN 545 DI pipe has a proven service life exceeding 100 years. That’s infrastructure you build once. The protective linings and coatings are key players in this longevity.
-
Hydraulic Efficiency: Smooth internal linings (especially cement mortar) maintain excellent flow characteristics over time, minimizing pumping costs. Unlike some materials, it doesn’t roughen significantly with age.
-
Inherent Rigidity: It holds its shape under load, preventing deformation that can compromise flow or joint integrity. This also simplifies bedding requirements compared to flexible pipes.
-
Fire Safety: It doesn’t burn or emit toxic fumes, a critical factor for buried infrastructure near buildings or tunnels.
-
Sustainability Champion: Made primarily from recycled scrap iron, it’s highly recyclable at end-of-life. Its long lifespan means lower environmental impact through reduced replacement cycles.
3. Deciphering the Specs: Classes, Linings, Joints & Coatings
BS EN 545 pipes aren’t one-size-fits-all. Understanding the specifications is crucial for correct application:
-
Pressure Classes (K-Classes): Indicate the pipe’s nominal pressure rating (PN) in bars. Common classes include:
-
K9: PN 40 bar (Most common for general water mains)
-
K10: PN 50 bar (Higher pressure requirements, unstable ground)
-
K12: PN 64 bar (Very high pressure, deep installations)
-
Higher K numbers = thicker walls = higher pressure capability.
-
-
Internal Linings (Key for Water Quality & Flow):
-
Cement Mortar Lining (CML): Standard lining, provides excellent corrosion protection for the pipe wall and maintains high flow efficiency. Thickness specified in the standard.
-
Polyurethane (PUR) Lining: Used for highly aggressive waters (low pH, high sulfate) or where exceptional flow characteristics are paramount (e.g., raw water transport). Offers superior chemical resistance.
-
Special Linings: Epoxy or polyethylene for specific chemical resistance needs.
-
-
External Coatings (The Corrosion Shield):
-
Zinc + Bitumen: Traditional and effective. Zinc provides sacrificial protection, bitumen acts as a barrier. BS EN 545 specifies minimum zinc coating weight (200 g/m²) and bitumen thickness.
-
Zinc + Synthetic Resin (e.g., Polyurethane, Epoxy): Offers enhanced mechanical resistance (abrasion, impact) and superior chemical resistance compared to bitumen, ideal for aggressive soils or installation by trenchless methods.
-
Special Coatings: PE sleeving for very aggressive conditions.
-
-
Jointing Systems:
-
Push-in Rubber Ring (TYTON®, LOKHERM®, etc.): Fast, simple, reliable, and allows for slight deflection. The dominant joint type.
-
Flanged Joints: Used for connections to valves, fittings, or above-ground sections. Require bolting.
-
Mechanical Joints (MJ): Offer restraint (prevent joint separation under thrust forces), often used for fittings or connections to existing infrastructure.
-
Welded Joints: Less common, used for special applications.
-
Table 1: Key BS EN 545 Ductile Iron Pipe Specifications at a Glance
Feature | Options & Key Specifications | Primary Application/Advantage |
---|---|---|
Pressure Class (K) | K9 (PN40), K10 (PN50), K12 (PN64) | Defines nominal pressure rating. K9 most common; higher K = higher pressure/thicker wall. |
Internal Lining | Cement Mortar (CML): Standard thickness per DN. | Protects pipe from corrosion, maintains water quality, excellent hydraulic flow. Standard use. |
Polyurethane (PUR): Typically 400-500 microns. | Superior corrosion resistance for aggressive waters, ultra-smooth for max flow. Special cases. | |
Epoxy, Polyethylene | For specific, highly aggressive water chemistries. | |
External Coating | Zinc (200 g/m² min) + Bitumen (~70 microns): | Traditional, cost-effective protection for most soils. |
Zinc (200 g/m² min) + Synthetic Resin (e.g., PU/Epoxy ~150-250µm): | Enhanced mechanical & chemical resistance. Ideal for aggressive soils or trenchless methods. | |
Polyethylene Sleeving | Maximum protection in extremely aggressive environments (e.g., high chlorides, stray current). | |
Common Joint Types | Push-in Rubber Ring (e.g., TYTON®) | Fast installation, allows deflection, leak-tight, most common. |
Flanged | Connection to valves/fittings, above-ground pipe. Requires bolting. | |
Mechanical Joint (MJ) | Provides restraint against thrust forces (bends, tees, dead ends). | |
Nominal Diameter (DN) | DN 80 to DN 2000 (commonly DN 100 – DN 600 for mains) | Standardized sizes ensure compatibility. DN = approx. internal diameter in mm. |
4. Beyond the Pipe: Manufacturing, Installation & Sustainability
The journey of a BS EN 545 pipe is fascinating. It starts as recycled scrap iron, melted in a furnace. Magnesium is added in a precise treatment process – this is the magic that transforms the graphite within the iron from flakes (brittle) into nodules (ductile). The molten metal is spun centrifugally in water-cooled molds, forming a dense, homogeneous pipe structure. After cooling, annealing relieves stresses. Then comes rigorous quality control: hydrostatic testing at pressures far exceeding working pressure, dimensional checks, and verification of lining/coating thickness and adhesion.
Installation matters immensely. Even the best pipe can fail if installed poorly. Key principles:
-
Proper Trenching: Correct width, depth, and stable trench walls.
-
Adequate Bedding: Uniform support under the pipe barrel is critical, typically using well-compacted granular material. BS EN 1295 provides guidance on loads and bedding.
-
Careful Joint Assembly: Clean spigots and sockets, lubricate rubber rings correctly, ensure straight alignment during pushing. Avoid damaging coatings.
-
Controlled Backfilling: Layer-by-layer placement and compaction of suitable material, avoiding large rocks directly against the pipe. Protect the pipe zone.
-
Thrust Restraint: Properly anchor bends, tees, valves, and dead ends using thrust blocks (concrete) or restrained joint systems to counteract internal pressure forces.
Sustainability is inherent. The high recycled content (often >95%), minimal energy required for transport and installation compared to alternatives, extreme longevity reducing replacement needs, and 100% recyclability at end-of-life make BS EN 545 DI pipe a truly circular economy material. Its durability minimizes disruption from repairs.
5. Real-World Impact: A Case Study from Shandong, China
The Challenge: A major coastal city in Shandong Province faced recurring failures in a critical 12km DN 600 raw water transmission main. The existing pipeline (non-standard materials) suffered frequent leaks due to corrosion and ground settlement, disrupting supply to a treatment plant serving 500,000 residents. High chloride levels in the soil and water were accelerating corrosion. Repair costs were mounting, and reliability was plummeting.
The Solution: The municipal water authority mandated a complete replacement adhering to the highest standards. After thorough analysis, the project specified BS EN 545 Ductile Iron Pipe, specifically:
-
Class: K10 (PN50) for added security against pressure surges and deep burial sections.
-
Lining: Polyurethane (PUR) – essential for corrosion resistance against the aggressive raw water chemistry (low pH, high sulfates, chlorides).
-
Coating: Zinc + High-Build Polyurethane Resin – providing maximum defense against the highly corrosive saline soil conditions prevalent near the coast.
-
Joints: Push-in rubber ring joints for speed and reliability, with restrained joints at bends and anchor points.
Implementation: Working with experienced contractors and a reputable supplier like Luokaiwei known for consistent quality, the pipeline was installed using modern techniques. Emphasis was placed on perfect bedding and compaction, especially in areas with poor soil stability identified during trenching. Careful handling prevented coating damage.
The Outcome (5 Years On):
-
Zero Leaks: The pipeline has operated flawlessly since commissioning.
-
Flow Efficiency Maintained: PUR lining ensures minimal friction loss, keeping pumping costs optimal.
-
Corrosion Halted: Inspections show the PUR lining and polyurethane coating are performing exceptionally well in the harsh environment.
-
Reliability Restored: Consistent water supply to the treatment plant is now guaranteed.
-
Cost Savings Achieved: Elimination of emergency repairs and reduced maintenance has delivered significant operational savings, offsetting the initial investment in high-specification pipe. The utility now views BS EN 545 DI pipe, particularly with advanced linings/coatings for harsh environments, as the long-term solution for critical assets.
Frequently Asked Questions (FAQs)
-
Q: What does the “K” value (e.g., K9) mean in BS EN 545?
A: The “K” value designates the pressure class of the ductile iron pipe. It directly relates to the pipe’s wall thickness and its nominal pressure rating (PN) in bars:-
K9: Nominal Pressure Rating (PN) = 40 bar. This is the most commonly used class for standard water mains.
-
K10: PN = 50 bar. Used for higher pressure requirements, deeper burial, or less stable ground conditions.
-
K12: PN = 64 bar. Used for very high-pressure applications or exceptionally deep installations.
A higher K number means a thicker pipe wall, giving it greater strength to withstand higher internal pressures and external loads. The required K class is determined by the design operating pressure plus surge allowance, burial depth, and soil loading.
-
-
Q: Why are there different lining and coating options? How do I choose?
A: The choice depends entirely on the environment the pipe will operate in:-
Internal Lining:
-
Cement Mortar (CML): Standard for most potable water. Excellent protection, good flow. Cost-effective.
-
Polyurethane (PUR): Essential for aggressive waters – low pH (<6.5), high sulfate (>200 mg/L), high dissolved CO2, or seawater intake. Superior chemical resistance. Also offers the smoothest internal surface for absolute minimum friction loss (critical in long raw water lines). More expensive than CML.
-
Epoxy/Polyethylene: For highly specific, severe chemical exposures.
-
-
External Coating:
-
Zinc + Bitumen: Standard protection for most soils. Economical and effective.
-
Zinc + Synthetic Resin (PU/Epoxy): Required for aggressive soils – high chlorides, low resistivity, stray current risk, industrial contamination. Also mandatory for trenchless installation methods (like pipe bursting or directional drilling) due to superior abrasion and impact resistance. Better adhesion than bitumen.
-
Polyethylene Sleeving: Maximum protection in the most severe corrosive environments (e.g., very high chlorides, cinder fills, severe stray current). Conduct a thorough soil/water analysis before choosing!
-
-
-
Q: What is the expected lifespan of BS EN 545 ductile iron pipe?
A: When correctly specified for the environment (aggressive water/soil requires PUR lining/synthetic resin coating) and installed according to best practices, BS EN 545 ductile iron pipe has a demonstrable design life exceeding 100 years. Numerous pipelines installed over 70-80 years ago are still in excellent service. The combination of the robust iron material and the protective systems (lining/coating) working synergistically delivers this exceptional longevity. This is a key factor in its life-cycle cost advantage over many alternatives. -
Q: How are thrust forces managed in BS EN 545 pipelines?
A: Internal water pressure creates forces that try to push pipe joints apart at bends, tees, valves, reducers, and dead ends (hydraulic thrust). BS EN 545 pipes themselves are strong, but joints (especially push-in joints) need restraint. Two primary methods are used:-
Thrust Blocks: Large masses of concrete poured against the fitting (bend, tee, valve) and the undisturbed trench wall. They absorb the thrust force through passive soil resistance. Common for larger diameters or stable ground.
-
Restrained Joints: Special joints (like Mechanical Joints – MJ, or specific restrained push-in joints) that use grippers, wedges, or harnesses to mechanically lock the pipe spigot into the fitting’s socket, transferring the thrust force along the pipe itself. Requires sufficient restrained pipe length anchored in the soil. Often preferred in congested areas or unstable soils where large thrust blocks are impractical.
Proper thrust restraint design (using standards like AWWA M41) is absolutely critical to prevent joint separation and catastrophic failure.
-
Conclusion: Investing in Resilience
Specifying BS EN 545 ductile iron pipe isn’t just buying a product; it’s investing in the fundamental security and longevity of our water infrastructure. Its unparalleled combination of strength, durability, safety, hydraulic efficiency, and proven century-long service life makes it the rational choice for engineers and utilities worldwide. When you see that blue or green pipe being laid, know that it represents a commitment – a commitment to delivering clean water reliably and safeguarding this precious resource for generations to come. It’s the quiet, dependable backbone beneath our feet, built to last. Choosing a manufacturer with a strong reputation for quality control, like Luokaiwei, ensures this standard delivers on its full promise.
Authoritative References:
- BSI Standards Publication: BS EN 545:2010 – Ductile iron pipes, fittings, accessories and their joints for water pipelines. Requirements and test methods
- International Organization for Standardization (ISO): ISO 2531:2021 – Ductile iron pipes, fittings, accessories and their joints for water or gas applications
- Ductile Iron Pipe Research Association (DIPRA): Resources on Design, Installation, and Corrosion Control
- Water Research Centre (WRc): Information on Water Quality, Pipe Materials, and Asset Management
- Drinking Water Inspectorate (DWI – UK): Information on Regulations and Approved Products for Water Supply
