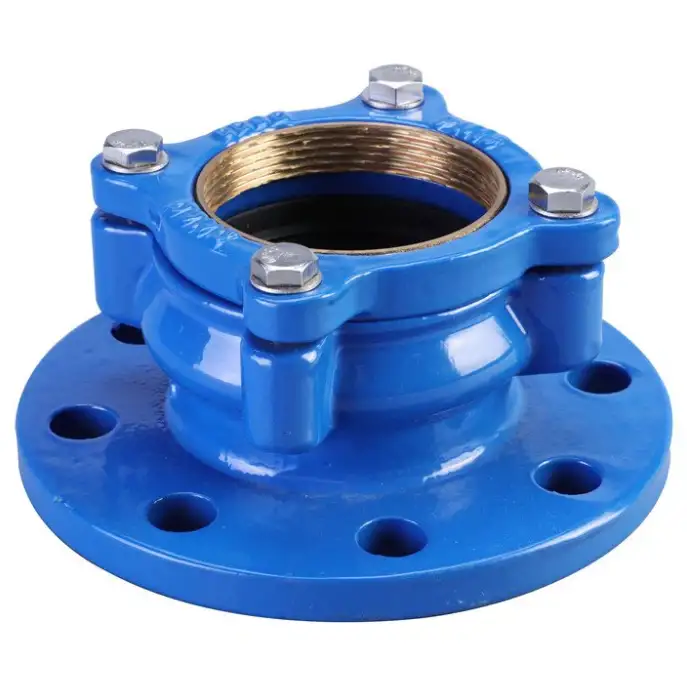

Ductile iron flange adapters are essential components in modern piping systems, facilitating the connection between plain-ended pipes and flanged fittings or valves. Their robust construction ensures leak-proof seals and accommodates various pipe sizes and configurations. This comprehensive guide delves into the specifications, installation procedures, and considerations for selecting the optimal ductile iron flange adapter for your project.

1. Understanding Ductile Iron Flange Adapters
Ductile iron flange adapters are designed to join plain-ended pipes, such as ductile iron, cast iron, or steel, to flanged components. They are particularly valuable in applications where flexibility, corrosion resistance, and ease of installation are paramount.
Key Features:
-
Material: Manufactured from ductile iron per ASTM A536 Grade 65-45-12, offering enhanced strength and ductility.
-
Pressure Ratings: Typically range from 100 psi to 250 psi, depending on size and design.
-
Flange Compatibility: Conforms to ANSI B16.1 Class 125 or Class 150 standards.
-
Sealing Mechanism: Utilizes elastomeric gaskets, often EPDM or NBR, to ensure a watertight seal.
2. Common Sizes and Dimensions
Ductile iron flange adapters are available in a variety of sizes to accommodate different pipe diameters. Below is a comparative table highlighting some standard sizes:
Nominal Size (inches) | Pipe O.D. (inches) | Bolt Hole Diameter (inches) | Pressure Rating (psi) |
---|---|---|---|
3 | 3.500 | 0.875 | 250 |
4 | 4.500 | 0.875 | 250 |
6 | 6.625 | 1.000 | 250 |
8 | 8.625 | 1.125 | 250 |
10 | 10.750 | 1.250 | 250 |
12 | 12.750 | 1.375 | 250 |
Note: Dimensions and pressure ratings may vary based on manufacturer specifications.
3. Material Specifications
The choice of material significantly impacts the performance and longevity of flange adapters. Ductile iron is preferred due to its superior mechanical properties.
Material Standards:
-
ASTM A536 Grade 65-45-12: Offers a balance between strength and ductility.
-
Coatings: Adapters are often coated with fusion-bonded epoxy or galvanized finishes to enhance corrosion resistance.
Alternative Materials:
Material Type | Advantages | Applications |
---|---|---|
Ductile Iron | High strength, corrosion-resistant | Water and wastewater systems |
Stainless Steel | Superior corrosion resistance | Aggressive environments |
Carbon Steel | Cost-effective | Non-corrosive applications |
4. Installation Guidelines
Proper installation ensures the reliability and longevity of the flange adapter connection.
Preparation:
-
Pipe End: Ensure the pipe end is clean, square, and free from burrs.
-
Lubrication: Apply a soap-based lubricant to the pipe end and gasket to facilitate easy assembly.
Assembly:
-
Gasket Placement: Position the gasket onto the pipe end, ensuring it sits evenly.
-
Adapter Alignment: Slide the flange adapter over the pipe end, aligning bolt holes with the mating flange.
-
Bolt Tightening: Insert and hand-tighten bolts, then torque them in a crisscross pattern to the manufacturer’s specified values.
Final Checks:
-
Inspection: Verify that all bolts are tightened uniformly and that the gasket is properly seated.
-
Pressure Test: Conduct a pressure test to ensure the integrity of the connection.
5. Types of Flange Adapters
Flange adapters come in various designs to suit different installation requirements.
Standard Flange Adapters:
-
Design: Simple, cost-effective solution for joining plain-ended pipes to flanged fittings.
-
Applications: Suitable for most standard piping systems.
Restrained Flange Adapters:
-
Design: Incorporates mechanical restraint to prevent axial movement under pressure.
-
Applications: Ideal for systems subject to high surge pressures or where additional thrust restraint is necessary.
Transition Flange Adapters:
-
Design: Facilitates connection between pipes of different materials or sizes.
-
Applications: Used in retrofit projects or where system modifications are required.
6. Pressure Ratings and Standards
Understanding pressure ratings is crucial for selecting the appropriate flange adapter.
Pressure Rating Classification:
-
Class 125: Suitable for pressures up to 125 psi.
-
Class 150: Suitable for pressures up to 150 psi.
-
Class 250: Suitable for pressures up to 250 psi.
Standards Compliance:
-
ANSI B16.1: Standard for cast iron flanges and flanged fittings.
-
AWWA C110: Standard for ductile iron and gray iron fittings.
-
AWWA C153: Standard for compact ductile iron fittings.
7. Maintenance and Troubleshooting
Regular maintenance ensures the continued performance of flange adapters.
Inspection:
-
Visual Checks: Look for signs of corrosion, cracking, or deformation.
-
Bolt Torque: Verify that bolts remain properly torqued.
Troubleshooting:
-
Leakage: May indicate gasket failure or improper bolt tension.
-
Corrosion: Check for environmental factors contributing to material degradation.
Maintenance Tips:
-
Cleaning: Regularly clean exposed surfaces to prevent buildup of corrosive materials.
-
Lubrication: Reapply lubricant to gaskets during maintenance to ensure ease of disassembly.
8. Applications in Various Industries
Ductile iron flange adapters are utilized across multiple sectors.
Water and Wastewater Systems:
-
Function: Connects pipes to valves, hydrants, and other flanged components.
-
Requirements: Must withstand internal pressures and external environmental factors.
Industrial Piping:
-
Function: Facilitates the transfer of fluids in manufacturing processes.
-
Requirements: Adaptable to various pipe materials and sizes.
Fire Protection Systems:
-
Function: Connects sprinkler systems to water supplies.
-
Requirements: Must meet stringent safety and pressure standards.
9. Selecting the Right Flange Adapter
Choosing the appropriate flange adapter involves considering several factors.
Factors to Consider:
-
Pipe Size and Material: Ensure compatibility with existing piping.
-
Pressure Requirements: Select an adapter with a pressure rating that meets or exceeds system demands.
-
Environmental Conditions: Consider factors like temperature, humidity, and exposure to chemicals.
-
Standards Compliance: Verify that the adapter meets relevant industry standards.
Selection Process:
-
Identify Pipe Specifications: Determine the nominal size, outside diameter, and material of the pipe.
-
Assess System Requirements: Evaluate the pressure, temperature, and environmental conditions the adapter will be subjected to.
-
Consult Manufacturer Guidelines: Refer to manufacturer datasheets and installation instructions for compatibility and specifications.
-
Verify Standards Compliance: Ensure the selected adapter complies with applicable standards and regulations.
10. Frequently Asked Questions (FAQs)
Q1: What is the difference between Class 125 and Class 150 flange adapters?
A1: Class 125 and Class 150 flange adapters differ primarily in their pressure ratings. Class 125 adapters are designed to handle pressures up to 125 psi, while Class 150 adapters can withstand pressures up to 150 psi. The choice between the two depends on the specific pressure requirements of your system. It’s essential to select an adapter that matches or exceeds the maximum operating pressure to ensure safety and reliability.
Q2: Can ductile iron flange adapters be used with PVC pipes?
A2: Yes, ductile iron flange adapters can be used with PVC pipes, provided the adapter is compatible with the outer diameter of the PVC pipe. Transition flange adapters are specifically designed to connect different pipe materials, such as PVC to ductile iron. When using ductile iron adapters with PVC pipes, it’s crucial to ensure that the gasket material is suitable for both materials and that the pressure rating of the adapter aligns with the system’s requirements.
Q3. What Are the Standard Sizes for Ductile Iron Flange Adapters?
A3:Ductile iron flange adapters typically follow AWWA C110/C153 and ANSI B16.1 standards, with sizes ranging from 3 inches to 48 inches in diameter. Common sizes for municipal water systems include:
-
4″ to 12″ (Most frequent for pipelines and pump connections)
-
14″ to 24″ (Used in large-diameter water transmission mains)
-
30″ and above (Specialized for industrial/stormwater applications)
Key Considerations:
-
Pressure Class: 150 psi (standard) to 250 psi (high-pressure).
-
Flange Types: MJ (Mechanical Joint), FF (Flat Face), or RF (Raised Face) for compatibility with valves/pumps.
Q4. How Do You Properly Install a Ductile Iron Flange Adapter?
A4:Step-by-Step Installation Guide:
-
Preparation: Clean pipe ends and check gasket seating surfaces.
-
Alignment: Use alignment pins to prevent bolt stress during assembly.
-
Torque Sequence: Follow AWWA torque specs (e.g., 75-100 ft-lbs for 8″ MJ adapters) in a crisscross pattern.
-
Leak Testing: Hydrostatic test at 1.5x operating pressure for 2+ hours.
Pro Tip: Always use EPDM gaskets for water applications and full-face gaskets for high-vibration systems.
Q5. Can Ductile Iron Flange Adapters Handle High-Temperature Fluids?
A5:While ductile iron adapters excel in water/wastewater systems (up to 120°F/49°C), their performance in high-temperature environments depends on:
-
Material Grade: Ductile iron ASTM A536 (65-45-12) resists thermal fatigue better than gray iron.
-
Coatings/Linings: Epoxy-lined adapters extend tolerance to 200°F/93°C.
-
Alternatives: For steam/oil applications above 250°F, consider stainless steel adapters (ASTM A351).
Safety Note: Thermal expansion can loosen bolts—schedule periodic re-torquing.
