Best Ductile Iron Corrosion Protection Methods & Lifecycle Cost Analysis

Time:2025-05-14

Effective corrosion protection for ductile iron piping is critical to ensure system longevity, prevent leaks, and minimize lifecycle costs. This guide examines ten major protection strategies—from cement-mortar lining and external coatings to cathodic protection and polyethylene encasement—and compares their performance, applications, and relative costs. We present detailed tables contrasting method effectiveness, installation complexity, and unit costs. Six common questions address selection criteria, design considerations, and cost-benefit analysis in depth.

Best Ductile Iron Corrosion Protection Methods & Lifecycle Cost Analysis
Best Ductile Iron Corrosion Protection Methods & Lifecycle Cost Analysis

1. Cement-Mortar Lining

1.1 Overview

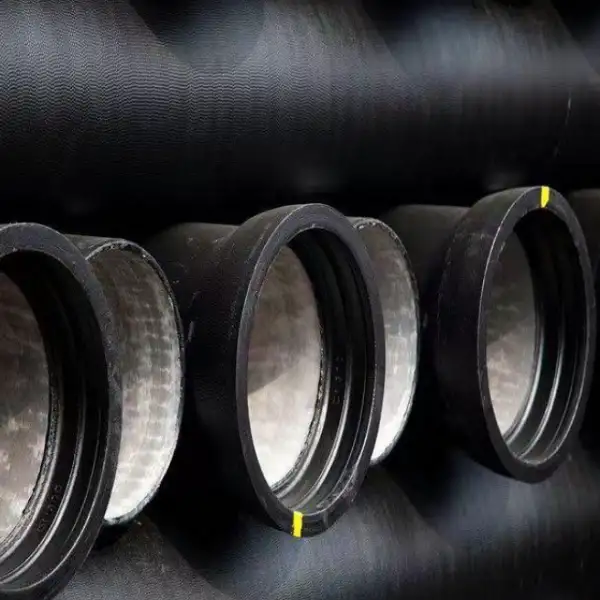

Cement-mortar lining is the most widespread internal protection for potable-water ductile iron pipe, mandated by ANSI/AWWA C104/A21.4. A thin layer of cement mortar (0.01–0.03 in thick) is trowel-applied to the pipe’s bore, providing a chemically inert barrier that prevents corrosion and minimizes roughness.

1.2 Performance

  • Corrosion Resistance: Extends service life to 50+ years in neutral to mildly aggressive waters.

  • Hydraulic Smoothness: Typical Hazen–Williams C-factor of 140–150, comparable to new PVC.

  • Chemical Compatibility: Resistant to typical drinking-water pH (6.5–8.5) and chlorine residuals.

1.3 Installation & Quality Control

  1. Surface Preparation: Blast-cleaning to SSPC-SP6 to remove mill scale and ensure mortar bond.

  2. Mix Design: Portland cement with silica sand (ASTM C144), water-to-cement ratio ≤ 0.48.

  3. Application: Spin-spray or trowel, then cure 24–48 hours at > 50 °F.

  4. Inspection: Thickness gauging (magnetic-induction gauges) and holiday testing (electrical spark).

1.4 Cost Factors

Diameter (in) Lining Cost ($/ft) Notes
4 1.20–1.50 Standard lining; volume discounts above 1 mile
12 2.50–3.00 Higher labor & materials; includes curing time
24 4.00–5.50 Requires larger equipment; longer cure periods

Table 1: Typical Cement-Mortar Lining Costs

2. Asphaltic and Epoxy Coatings

2.1 Asphaltic Primer (AWWA C110)

Asphaltic coatings are solvent-based, applied at 3–5 mils thickness to exterior surfaces for soil corrosion resistance. They are low-cost but less robust in acidic soils.

  • Material: Coal-tar pitch or asphalt emulsion.

  • Application: Brush or spray after SSPC-SP10 blast.

  • Service Life: 20–30 years in moderate soils.

Coating Type Thickness (mils) Cost ($/ft²) Service Life (yrs) Soil Suitability
Asphaltic Primer 3–5 0.20–0.30 20–30 Neutral to mildly acidic
Epoxy-Polyamide 8–12 0.80–1.20 30–50 Aggressive acids/alkalis

Table 2: External Coating Comparison

2.2 Epoxy Systems

Fusion-bonded epoxy (FBE) and two-component epoxies provide superior chemical and abrasion resistance.

  • FBE (ANSI/AWWA C213): Dry-spray or fluidized bed at 350–400 °F, 8–12 mils.

  • Two-Part Epoxy: On-site mix, 10–20 mils; longer cure, wider temperature tolerance.

3. Fusion-Bonded Epoxy (FBE) Coatings

3.1 Technology

FBE involves powder-coating heated pipe, creating a monolithic film that fuses on impact. Governed by ANSI/AWWA C213 and ISO 21809-2.

3.2 Performance Characteristics

  • Corrosion Protection: Excellent barrier to soil chemicals and stray currents.

  • Mechanical Wear: Resistant to handling damage and abrasion.

  • Temperature Range: −40 °F to 250 °F.

3.3 Application Process

  1. Pre-treatment: SSPC-SP10 blast and sweep.

  2. Heating: Induction or gas to 400 °F.

  3. Coating: Electrostatic spray of epoxy powder.

  4. Cure: Film polymerizes on cool-down.

3.4 Cost Analysis

Diameter (in) FBE Cost ($/ft) Carbon Footprint Notes
4 3.00–4.50 Energy-intensive heating; powder recovery
12 6.50–8.00 Requires specialized ovens
24 9.00–11.50 Longer cure, higher energy

Table 3: FBE Coating Unit Costs

4. Polyethylene Encasement

Polyethylene encasement (PEE) involves wrapping ductile iron pipe and fittings in a polyethylene film to isolate the metal from corrosive soils and stray electrical currents. The industry standard is AWWA C105/A21.5-18, which specifies a minimum film thickness of 8 mils, carbon-black UV stabilizers, and watertight seams.

4.1 Performance Benefits

PEE provides virtually complete barrier protection, eliminating soil-side corrosion without requiring cathodic protection or annual maintenance. It also prevents crevice corrosion at joints and fittings by excluding soil moisture and oxygen.

4.2 Installation Process

  1. Surface Preparation: Pipe exterior must be free of loose scale and debris.

  2. Wrapping: The film is spiral-wrapped with 50 % overlap, sealed with adhesive tape at each edge.

  3. Joint Protection: Socket and flange areas receive additional layers or specialized boots.

4.3 Cost Analysis

Feature Unit Cost Notes
Film (8 mil, 24″ wide) $0.10–0.15/ft Includes adhesive edge
Installation labor $0.05–0.10/ft Trench-side wrapping
Joint boots & tape $2.00–4.00 each Varies by fitting complexity
Total (per ft) $0.20–0.35 Complete encasement

Table 4: Polyethylene Encasement Unit Costs

The life-cycle cost over 100 years can remain near the initial $6 200/mile, as no maintenance or replacement is required.

5. Tape-Wrap Systems

Tape-wrap systems use cold-applied corrosion-resistant tapes to protect field joints, repairs, and specialty fittings. Common options include Polyken #934 (cold-applied tape) and PVC-backed adhesives.

5.1 Performance Characteristics

These tapes adhere to prepared metal surfaces, forming a multi-layer barrier that resists soil moisture, salts, and UV exposure. Standard thickness is 15–30 mils per layer, with two or more layers applied for heavy-duty service.

5.2 Application Steps

  1. Surface Prep: Abrasive blast to SSPC-SP10.

  2. Primer: Apply compatible primer to enhance adhesion.

  3. Tape Layers: Wrap with 50 % overlap, smoothing out voids.

  4. Finishing: Optional topcoat or overwrap for UV protection.

5.3 Cost Breakdown

Material Unit Cost Coverage (per roll)
Polyken #934 tape $50–75 per roll ~100 ft of 4″ tape
Primer $5–10 per can 50 ft² coverage
Labor $0.30–0.50 per ft Depends on joint complexity
Total (joint) $60–90 Typical 6″ repair coupling

Table 5: Tape-Wrap System Cost Estimates

Tape-wrap is ideal for field repairs and is often used in conjunction with PEE or coatings to seal breaches in primary protection.

6. Cathodic Protection

Cathodic protection (CP) applies an electrical current to ductile iron to suppress corrosion by converting the pipe into a cathode. Two main types are sacrificial anode and impressed-current systems.

6.1 Sacrificial Anodes

Zinc or magnesium anodes are buried near the pipe and electrically connected, corroding preferentially to protect the iron. Typical zinc ribbon costs are $4/ft, while magnesium ingots range $35–50 per kg.

6.2 Impressed-Current Systems

An external DC power source drives current to inert titanium mesh anodes, enabling control over protection level and extending service life in high-resistivity soils. Installation includes transformer-rectifier units ($5 000–10 000 installed) and periodic maintenance.

6.3 Design & Maintenance

Systems must be monitored via reference electrodes and rectifier readings quarterly. Anode replacement cycles depend on soil resistivity and current demand—typically 10–20 years for sacrificial rods in moderate soils.

System Type Initial Cost Maintenance Cost (annual) Service Life (yrs)
Sacrificial Anode $3 000–5 000/mile Low (periodic inspections) 10–20
Impressed-Current $30 000–50 000/mile $1 000–2 000 25+

Table 6: Cathodic Protection Cost Comparison

CP is essential in aggressive, stray-current, or submerged environments where coatings alone are insufficient.

7. Corrosion Inhibitors & Internal Linings

7.1 Corrosion Inhibitors

Fluid-phase inhibitors (e.g., orthophosphate blends) dosed into potable water form protective films on the internal surface, reducing tuberculation and pitting. Typical dosing cost is $0.05–0.10 per 1 000 gal of water, with continuous monitoring.

7.2 Internal Cement-Mortar Lining

Reiterating Section 1, cement lining not only protects externally but also blocks internal corrosion and biofilm growth. It remains the baseline for potable use per ANSI/AWWA C104/A21.4.

7.3 Alternative Linings

  • Polyurethane: Flexible spray lining for rehabilitation; cost $3–5/ft².

  • Epoxy: Two-component sprays for chemical services; cost $4–6/ft².

Lining Type Cost ($/ft²) Application Suitability
Cement-Mortar $1.20–1.50/ft Shop-applied Potable water
Polyurethane $3.00–5.00/ft² Field spray Abrasion, chemical resistance
Epoxy $4.00–6.00/ft² Field or shop Aggressive chemicals, wastewater

Table 7: Internal Lining Options and Costs

8. Monitoring & Maintenance Strategies

8.1 Visual & Ultrasonic Inspection

Periodic above-ground inspections identify coating damage. Ultrasonic thickness measurement detects wall loss before leaks.

8.2 Electrical Surveys

CP systems require half-cell potential surveys and current mapping to ensure adequate protection levels across the network.

8.3 Scheduled Maintenance

  • Coating repairs: Tape-wrap or recoat damaged areas immediately.

  • Anode replacement: As dictated by CP monitoring.

  • Re-lining: After 20–30 years for linings showing wear.

Active monitoring can reduce emergency repair costs by 30–50 % over unmonitored systems.

9. Lifecycle Cost Comparison

A comprehensive analysis (ResearchGate, 2025) shows that total lifecycle costs vary by method when normalized over a 50 year horizon:

Protection Method Initial Cost ($/ft) 50 yr O&M Cost ($/ft) Total Lifecycle ($/ft)
Cement-Mortar + Asphaltic $1.40 $0.30 $1.70
FBE + Cathodic Protection $8.00 $1.00 $9.00
PEE $0.25 $0 $0.25
Tape-Wrap + Inhibitors $1.20 $0.20 $1.40

Table 8: Lifecycle Cost Comparison (50 yr basis)

Polyethylene encasement clearly offers the lowest life-cycle cost, while FBE with CP provides highest durability in extreme environments.

10. Selection Guidelines & Design Considerations

When selecting a corrosion protection strategy, consider:

  • Soil aggressiveness: Use soil resistivity testing to gauge CP needs; soils <5 kΩ-cm often require CP.

  • Operating environment: High UV or mechanical abrasion favors FBE or tape systems.

  • Project budget: Balance initial vs. lifecycle costs; PEE is cost-effective for large mains.

  • Maintenance access: CP systems need ongoing surveys, while PEE does not.

  • Regulatory compliance: Potable water requires cement lining; wastewater may allow alternative linings.

A decision matrix approach can weight these factors to select the optimum protection for each project scenario.

Six Common Questions (FAQs)

1. How do I choose between polyethylene encasement and cathodic protection?

Selecting between polyethylene encasement (PEE) and cathodic protection (CP) hinges on soil conditions, budget, and maintenance capabilities. PEE offers a passive, maintenance-free barrier that performs exceptionally in soils with moderate to low aggressiveness (soil resistivity > 5 kΩ-cm) and where stray electrical currents are minimal. Its low lifecycle cost ($0.25/ft total) makes it ideal for large, buried water mains, and it aligns with AWWA C105 standards to ensure consistent performance and easy installation. However, PEE does not address corrosion under disbonded areas or coating damage, so any breaches must be promptly taped or repaired.

In contrast, CP delivers active corrosion suppression by imposing a cathodic current, neutralizing corrosive anodic reactions directly at coating holidays. Sacrificial anodes are simpler ($3 000–5 000/mile), but have a finite life (10–20 years) and require periodic inspections to monitor anode depletion via reference electrodes. Impressed-current systems offer greater control and longer service life (> 25 years) but entail higher upfront costs ($30 000–50 000/mile) and ongoing power-source maintenance. CP is the method of choice in highly aggressive soils (< 2 kΩ-cm), stray-current zones, and marine or submerged environments where coatings alone are inadequate.

Ultimately, many utilities pair PEE with a light CP system—PEE for the primary barrier and CP for redundancy at critical crossings—achieving dual protection at moderate total cost. A comparative cost–benefit analysis should incorporate soil resistivity testing, stray current risk assessment, and projected O&M budgets to determine the optimal approach.

2. What are the long-term maintenance requirements for epoxy coatings versus tape-wrap systems?

Fusion-bonded epoxy (FBE) coatings and tape-wrap systems serve different niches and carry distinct maintenance profiles. FBE, applied in a factory or controlled shop environment, yields a monolithic polymer film (8–12 mils) that resists abrasion, chemicals, and UV exposure for decades (service life > 30 years) with minimal intervention. FBE’s integrity is verified by holiday detectors immediately after application; subsequent field damage is rare, but any holidays detected during routine inline inspections must be ground out and patched with compatible epoxy. Annual or biennial electrical holiday surveys and visual checks at exposed sections are typically sufficient, with average repair costs under $20 per holiday.

Tape-wrap systems, however, are often used for field joints and repair spots, not as full-length primary protection. Their multi-layer construction (15–30 mils per layer) is robust, but tape adhesion can degrade under long-term UV exposure or in high-temperature soils. Periodic inspection (every 5–10 years) is recommended; any failed tape sections must be removed, surface re-prepared (SSPC-SP10), and re-wrapped at a cost of $60–90 per joint. Re-priming may also be necessary to restore adhesion. In systems relying heavily on tape-wrap, a comprehensive maintenance plan budgets for periodic rebuilds of high-stress joints, whereas FBE-protected mains typically avoid major field repairs except after excavation events.

3. How do corrosion inhibitors integrate with cement-mortar linings for potable water quality?

Corrosion inhibitors—commonly orthophosphate blends—are dosed into potable water systems to form a protective film on the interior of ductile iron pipes, complementing cement-mortar lining. The cement lining per ANSI/AWWA C104 provides physical barrier protection and smooth hydraulics (Hazen–Williams C ≈ 140), but micro-pitting can still occur where lining imperfections or mechanical damage expose metal. Orthophosphates (1–3 mg/L as P) precipitate as insoluble calcium phosphate complexes on pipe walls, sealing small defects and hindering tuberculation.

Implementation involves:

  1. Pilot Testing: Determine optimum dose and pH (7.0–8.0) for stable film formation.

  2. Continuous Dosing: Automated feed at treatment plant, with monitoring of residual phosphate and iron levels.

  3. Routine Monitoring: Quarterly sampling for iron corrosion byproducts and film integrity via coupon tests.

Dosing costs are modest ($0.05–0.10 per 1 000 gal), and studies show combined lining plus inhibitor can extend service life by 20–30 years over cement lining alone, reducing total lifecycle cost by 10–15 %. This hybrid approach is recommended in regions with low-pH or high-chloride waters that threaten cement lining durability.

4. What technologies exist for real-time corrosion monitoring in ductile iron networks?

Modern utilities leverage real-time monitoring to detect coating breaches and CP system performance. Techniques include:

  • Remote-read coupon stations: Inline sensors exposed to water measure corrosion rates via weight loss or electrochemical signals, transmitting data via SCADA.

  • Wireless potential mapping: Reference electrodes placed along mains send half-cell potential readings, identifying under-protected areas.

  • Acoustic emission testing: Detects ultrasonic signatures of corrosion pits and leaks in pressurized pipes.

While installation costs can reach $500–1 000 per site, real-time systems enable predictive maintenance, reducing emergency repair costs by up to 50 %, and optimizing CP output to lower power consumption by 10–15 %.

5. How do lifecycle costs compare between epoxy with CP and polyethylene encasement alone?

Over a 50 year horizon:

Method Initial Cost ($/ft) O&M ($/ft) Total ($/ft)
FBE + Impressed-Current CP $9.00 $1.00 $10.00
Sacrificial CP + FBE patching $5.00 $0.50 $5.50
Polyethylene Encasement $0.25 $0 $0.25

Polyethylene encasement yields the lowest lifecycle cost, but FBE + CP offers maximum durability where maintenance budgets exist.

6. What standards govern the design and application of these protection methods?

Key standards include:

  • AWWA C104/A21.4 for cement-mortar lining

  • AWWA C105/A21.5 for polyethylene encasement

  • AWWA C213 for FBE

  • NACE SP0169 for cathodic protection design

  • ASTM G186 for corrosion coupon testing

Compliance ensures performance, facilitates regulatory approval, and provides benchmarks for inspection and maintenance planning.
