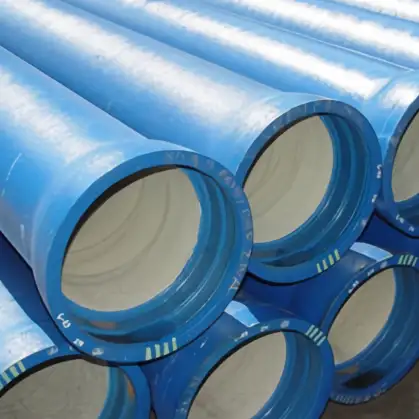

AWWA ductile iron pipes are widely used in water distribution systems and other industrial applications due to their superior strength, durability, and resistance to pressure. Ductile iron itself is a cast iron alloy that has been modified to offer enhanced mechanical properties, including greater flexibility and resistance to cracking. AWWA, or the American Water Works Association, sets the industry standards for ductile iron pipes, ensuring consistent quality and performance across the market.
Since their development in the mid-20th century, ductile iron pipes have become the go-to solution for water and sewer pipelines. These pipes provide the necessary strength and longevity to meet the demands of modern water infrastructure systems.
1. AWWA Standards for Ductile Iron Pipes
The AWWA sets comprehensive standards for the production, testing, and installation of ductile iron pipes. The most relevant standards for ductile iron pipes include:
-
AWWA C151: The standard for ductile iron pipe, which includes specifications for design, material properties, and pressure ratings.
-
AWWA C150: Covers the standards for the thickness of ductile iron pipe walls and helps to ensure that pipes meet the required mechanical strength for water transmission.
-
AWWA C153: Focuses on compact fittings, which are often used in conjunction with ductile iron pipes for efficient system layout.
These standards address factors such as pipe wall thickness, pressure class, installation methods, and coating options. AWWA standards are crucial in ensuring the long-term performance and reliability of ductile iron pipes, especially in challenging environments.
2. Ductile Iron Pipe Sizes: A Detailed Overview
Ductile iron pipes come in a variety of sizes to meet the needs of different applications. The AWWA standard includes a range of pipe sizes, classified by nominal diameter and wall thickness. The common sizes include:
| Pipe Diameter (inches) | Wall Thickness (inches) | Pressure Class |
|---|---|---|
| 4 | 0.25 | 150 |
| 6 | 0.25 | 150 |
| 8 | 0.25 | 150 |
| 12 | 0.375 | 200 |
| 16 | 0.375 | 200 |
| 24 | 0.5 | 250 |
| 36 | 0.75 | 350 |
| 48 | 0.75 | 350 |
The nominal diameter of a ductile iron pipe indicates its internal diameter, while the wall thickness determines its strength and pressure rating. AWWA C151 outlines the specifications for various classes of pipes, such as Class 52, Class 53, and Class 54, with the higher classes offering increased pressure resistance.
3. Pressure Ratings of AWWA Ductile Iron Pipes
Ductile iron pipes are classified by their pressure rating, which refers to the maximum pressure they can withstand without failure. The pressure rating is determined by the pipe’s thickness and material composition. Some of the common pressure classes include:
-
Class 52: Suitable for most water distribution systems with moderate pressure requirements.
-
Class 53: Offers higher pressure resistance, typically used in larger transmission systems.
-
Class 54: Designed for high-pressure applications, commonly used in industrial settings or large-scale water infrastructure projects.
The pressure rating is influenced by factors such as the pipe’s diameter, wall thickness, and the material’s ability to withstand internal stresses.
4. Material Composition of AWWA Ductile Iron Pipes
AWWA ductile iron pipes are primarily made of iron with carbon content, similar to traditional cast iron. However, ductile iron is alloyed with various elements such as nickel, manganese, copper, and silicon to improve its strength, flexibility, and resistance to corrosion. These pipes are often coated with materials like cement mortar or epoxy to provide additional protection against external corrosion.
The specific material composition varies depending on the pressure class and intended use of the pipes. The primary benefits of ductile iron pipes include high tensile strength, flexibility, and resistance to environmental factors such as soil corrosion, which makes them suitable for long-lasting, reliable infrastructure.
5. Installation Methods for AWWA Ductile Iron Pipes
Installing AWWA ductile iron pipes involves several key steps to ensure proper alignment, sealing, and durability. The process typically includes:
-
Trenching: Digging trenches to place the pipes at the correct depth.
-
Pipe Laying: Laying the pipes in the trench while ensuring that they are properly aligned and supported.
-
Joining: Pipes are connected using mechanical joints, push-on joints, or flanged connections, depending on the system requirements.
-
Sealing and Testing: After installation, the system is pressure tested to ensure there are no leaks.
Proper installation is essential to ensure the long-term integrity of the pipeline. Factors such as soil conditions, water pressure, and pipe diameter must be considered during the installation process.
6. Corrosion Resistance of AWWA Ductile Iron Pipes
One of the key advantages of AWWA ductile iron pipes is their excellent corrosion resistance. Ductile iron pipes are often coated with a layer of cement mortar or epoxy to protect them from external corrosion caused by soil, moisture, or chemicals. Additionally, the pipes are resistant to internal corrosion caused by water and wastewater.
For applications in highly corrosive environments, coatings and linings are selected based on the expected conditions. Some of the coatings include:
-
Cement Mortar Lining: Commonly used to prevent internal corrosion in potable water systems.
-
Epoxy Coatings: Often used for sewage or wastewater systems, as they provide a strong barrier against chemical attack.
-
Bituminous Coatings: Typically used for underground installations to prevent corrosion from soil contact.
7. Pricing of AWWA Ductile Iron Pipes
The price of AWWA ductile iron pipes varies based on several factors, including the size, pressure class, coating type, and quantity purchased. On average, ductile iron pipes can cost between $20 and $60 per linear foot, with larger and higher pressure-rated pipes costing more.
Other factors influencing cost include:
-
Coating and Lining: Specialized coatings, like epoxy or cement mortar, increase the overall price.
-
Installation Costs: These can add up depending on the difficulty of the installation process.
-
Volume Discounts: Purchasing in bulk can often reduce the cost per unit.
Estimating the total cost of a project requires considering the material cost as well as installation and maintenance expenses.
8. Applications of AWWA Ductile Iron Pipes
AWWA ductile iron pipes are used in a wide variety of applications, including:
-
Water Distribution: Ductile iron pipes are commonly used in municipal water systems due to their ability to withstand high pressure and environmental conditions.
-
Sewer and Drainage: Due to their corrosion resistance, ductile iron pipes are ideal for wastewater and stormwater systems.
-
Industrial Applications: Used in chemical plants, power stations, and other industries that require durable, high-pressure pipes.
-
Fire Protection: Often used in fire suppression systems due to their strength and reliability.
9. Future Trends in Ductile Iron Pipe Manufacturing
Ductile iron pipe technology is evolving with advancements in material science and manufacturing processes. Some future trends include:
-
Increased Sustainability: Manufacturers are focusing on reducing the environmental impact of ductile iron pipe production, using more recycled materials and adopting eco-friendly coatings.
-
Smart Pipes: The integration of sensors and monitoring technology to improve performance and detect issues before they become serious problems.
-
Improved Coating Technology: Advances in coatings and linings to provide even better protection against corrosion and environmental factors.
10. Frequently Asked Questions
1. What sizes do AWWA ductile iron pipes come in?
AWWA ductile iron pipes are available in a range of sizes, from small 4-inch pipes to large 48-inch pipes. The exact size you require will depend on the intended application and the pressure rating needed.
2. How do I determine the pressure rating for my AWWA ductile iron pipe?
The pressure rating of a ductile iron pipe is determined by its wall thickness and the material’s ability to withstand internal pressure. You can refer to the AWWA standards to select the appropriate pressure class for your project.
3. What is the cost of AWWA ductile iron pipes?
The cost of AWWA ductile iron pipes depends on factors such as size, pressure class, and coating. On average, prices range from $20 to $60 per linear foot, with larger pipes or specialty coatings pushing the price higher.
4. How do I install AWWA ductile iron pipes?
Installation typically involves trenching, laying the pipes, connecting them using joints, and pressure testing the system. It’s essential to follow proper guidelines for sealing and alignment to ensure the system’s integrity.
5. Are AWWA ductile iron pipes corrosion-resistant?
Yes, ductile iron pipes are highly resistant to corrosion. They are often coated with cement mortar or epoxy to protect them from external and internal corrosion.
6. Can AWWA ductile iron pipes be used for sewage and wastewater systems?
Yes, ductile iron pipes are commonly used in sewage and wastewater systems due to their resistance to corrosion and ability to withstand high pressure.
