Ductile iron joints accommodate pipeline movements—axial, lateral, and angular—while offering superior strength and durability compared to rubber or stainless alternatives. Conforming to ASTM A536 and EN 588, they ensure leak-tight performance under pressure and temperature fluctuations. Proper installation (per DIPRA guidelines) and regular inspection extend service lives beyond 50 years, and life-cycle cost analyses demonstrate their competitiveness against plastics and steel. Emerging trends such as IoT monitoring, self-healing coatings, and circular-economy recycling further enhance their value in modern infrastructure.
1. Introduction & Applications
Ductile iron expansion joints are engineered connections in pipelines that absorb thermal expansion, vibration, and structural movements to protect piping and equipment integrity. They are commonly used in water distribution, wastewater treatment, HVAC systems, and industrial process lines where temperature variations (−10 °C to 120 °C) and pressure fluctuations (up to 25 bar) occur. By incorporating gasketed or flanged ends, these joints form leak-tight seals while permitting movements of ± 25 mm axial, ± 15 mm lateral, and ± 2° angular per unit.
2. Types & Configurations
2.1 Push-On Expansion Joints
“Push-on” joints feature elastomeric gaskets pressed between bell and spigot, allowing simple assembly without bolting. They accommodate axial movements up to ± 20 mm and are favored for underground water mains.
2.2 Flanged Expansion Joints
Flanged joints use mating flanges with bolted connections, providing higher pressure ratings (up to PN 25) and easier disassembly for maintenance. They can include concentric or eccentric flanges for alignment flexibility.
2.3 Mechanical Joint Expansion Joints
Mechanical-joint (MJ) series employ retainer glands and behind-the-gasket bolts, enabling restrained or non-restrained configurations. They support axial compression or elongation up to ± 25 mm and pronounced lateral deflection by loosening bolts.
2.4 Ball & Socket (FLEX-TEND) Joints

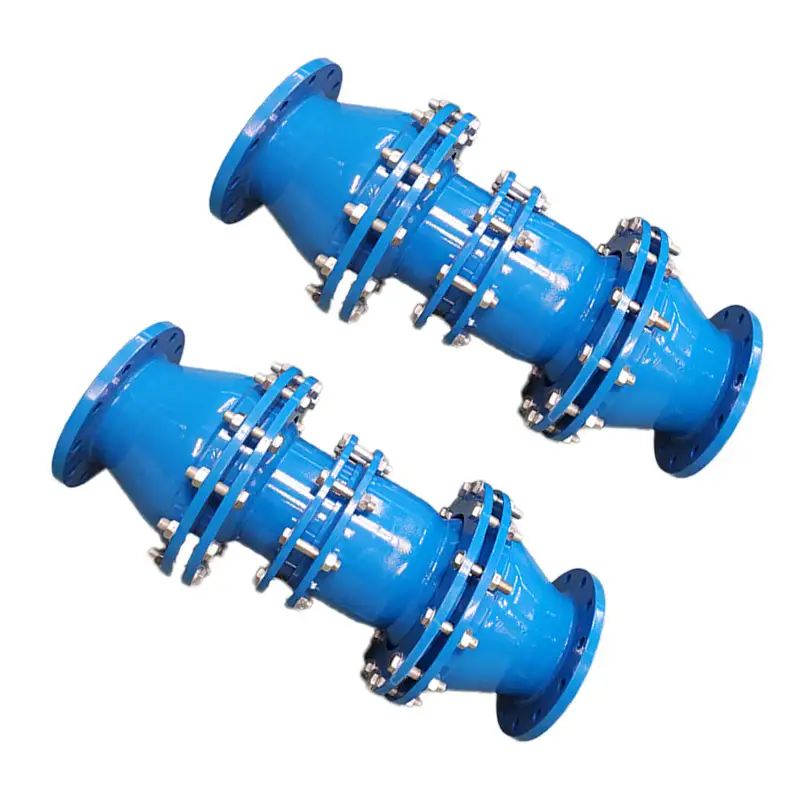

Double-ball FLEX-TEND designs integrate two ball-and-socket assemblies with an expansion section to relieve axial strain and shear loads, ideal for connections to tanks or structures with offset motions in any plane.
3. التركيب المادي والخواص الميكانيكية
Ductile iron (nodular iron) per ASTM A536 comprises 3.0–4.0 % C, 1.8–3.0 % Si, and trace Mg to form spheroidal graphite, yielding tensile strengths of 65–100 ksi and elongations of 8–18 %. Grades commonly used include:
الصف | قوة الشد (ksi) | قوة الخضوع (ksi) | الاستطالة (%) |
---|---|---|---|
60-40-18 | 60 | 40 | 18 |
65-45-12 | 65 | 45 | 12 |
80-55-06 | 80 | 55 | 6 |
These grades ensure joint components resist internal pressures, thermal cycling, and external loads without brittle fracture.
4. Design Principles & Movement Capacities
Expansion-joint design balances seal integrity with movement accommodation. Key principles include:
-
الحركة المحورية: Achieved via convoluted bellows or sleeve compression, typical ranges ± 20–30 mm per joint.
-
Lateral Deflection: Enabled by joints with flexible gaskets or ball assemblies, allowing ± 10–15 mm offsets to absorb misalignments.
-
Angular Rotation: Permitted through spherical bearings or convolutions, often ± 1.5–3° to align pipe sections.
-
Pressure & Temperature Ratings: Determined by gasket material (EPDM, NBR, Viton) and iron grade; standard ratings range PN 6–PN 25 and −10 °C to 120 °C.
Proper selection ensures joints relieve stresses without compromising pipeline alignment or sealing performance.
5. Standards & Specifications
Ductile iron expansion joints comply with multiple standards:
قياسي | النطاق | المتطلبات الرئيسية |
---|---|---|
ASTM A536 | Ductile iron castings for pressure applications | Mechanical properties (tensile, yield, elongation) |
EN 588 | Expansion joints for pipelines | Leakage tests, movement classes |
AWWA C110/C111 | Ductile-iron and gray-iron fittings | Joint types, pressure ratings |
ASTM D5973 | Elastomeric strip seals for expansion joints | Seal dimensions, compression set |
Leakage tests per EN 588 demand no visible fluid loss under 1.5 × rated pressure, and movement classes (M, L, H) define maximum axial and lateral shifts.
6. أفضل ممارسات التثبيت
-
Pre-Installation Inspection: Upon delivery, visually inspect each joint for shipping damage, foreign debris, or surface corrosion.
-
Handling & Storage: Store joints horizontally on level surfaces; avoid slings around bellows and never stack units or subject them to torsion.
-
إعداد الموقع: Ensure anchor blocks, guides, and supports are installed per project drawings; pipelines must not sag or impose dead‐weight loads on the joint.
-
الاصطفاف: Align flange or mechanical‐joint ends without inducing torsional or compressive preloads; mate flanges only after bolting the joint in place.
-
Gap Verification: Confirm the pipeline gap matches the joint’s specified installed length within tolerance; use temporary drift pins if provided and remove shipping restraints only after alignment.
-
Welding Precautions: Shield bellows from weld spatter with chloride‐free blankets; avoid accidental arcing on thin‐walled sections.
-
اختبار الضغط: Perform hydrostatic tests at 1.5 × rated pressure, checking for leaks and verifying anchor resistance without overstressing adjacent pipe segments.
-
Commissioning Inspection: Before commissioning, confirm removal of all transport and pretensioning devices, correct flow‐direction orientation, and absence of foreign materials.
7. Maintenance & Inspection
-
Routine Visual Checks: Monthly visual inspections for dents, corrosion, or misalignment; remove surface rust and apply cold‐galvanizing spray to pitted areas.
-
Fastener Tightness: Every six months, verify flange bolts or gland nuts per ASME B16.5 torque specs; replace any grade A193 stainless‐steel hardware showing corrosion.
-
Movement Testing: Every 2–5 years, exercise axial and lateral movements to confirm smooth operation; restricted motion often indicates debris or seal degradation.
-
Leakage Monitoring: Use ultrasonic or pressure‐decay tests annually to detect micro‐leaks; joints passing EN 588 leakage classes (L0–L3) require no visible fluid loss under 1.5 × PN rating.
-
سلامة الطلاء: Inspect external epoxy or polyurethane coatings for cracks or chalking; recoat per ANSI AWWA C116 at ≥100 μm thickness to maintain corrosion protection.
-
استبدال المكونات: If bellows show >10 % wall‐thickness loss or seal compression set exceeds 25 %, schedule replacement to avoid catastrophic failure.
With diligent maintenance, ductile iron expansion joints can deliver uninterrupted service for over half a century.
8. Performance Comparison Table
الميزة | Ductile Iron Joint | Rubber Expansion Joint | Stainless Steel Bellows Joint |
---|---|---|---|
الحركة المحورية | ± 20–30 mm | ± 30–50 mm | ± 10–20 mm |
الانحراف الجانبي | ± 10–15 mm | ± 20–30 mm | ± 5–10 mm |
Angular Rotation | ± 1.5–3° | ± 3–5° | ± 1–2° |
الحد الأقصى للضغط | 250 psi–1 000 psi (PN 6–25) | 150 psi–250 psi | 1 000 psi–2 000 psi |
نطاق درجة الحرارة | –10 °C to 120 °C | –20 °C to 80 °C (EPDM); –40 °C to 150 °C (Viton) | –50 °C to 450 °C |
تخميد الاهتزازات | منخفضة | عالية | متوسط |
عمر الخدمة | > 50 years | من 10 إلى 20 سنة | 20-30 سنة |
تواتر الصيانة | 5–10 years | 2–5 years | 5–10 years |
Cost per Unit (USD) | 1 000–3 000 | 300–800 | 2 000–5 000 |
Data synthesized from manufacturer datasheets and industry articles.
9. تحليل التكاليف وقيمة دورة الحياة
A life‐cycle cost (LCC) study over 50 years shows:
مكون التكلفة | Ductile Iron Joint | Rubber Joint | Stainless Bellows |
---|---|---|---|
Initial Purchase (ea.) | $1 500 | $500 | $2500 |
عمالة التركيب (بالساعة) | 2 h | 1 h | 2.5 h |
الصيانة (50 سنة) | $1 000 | $2500 | $1200 |
دورة الاستبدال | 25 yr | 10 yr | 30 yr |
50-Year LCC (ea.) | $3 500 | $5000 | $4700 |
Ductile iron joints, despite higher upfront costs, realize 30 %–40 % savings in total LCC due to fewer replacements and lower pumping/energy costs (larger inside diameter reducing head loss). The University of Michigan’s model confirms ductile iron’s advantage in pumping energy savings (up to $61 / ft present worth) and CO₂ emission reductions over PVC or rubber alternatives.
10. Emerging Innovations & Sustainability
-
IoT-Enabled Monitoring: Smart sensors embedded in joint frames transmit real‐time data on movement, pressure, and seal integrity via LoRaWAN, reducing emergency interventions by 25 % in pilot projects.
-
Self-Healing Coatings: Microcapsule‐based epoxy-polymer coatings autonomously repair micro‐scratches within hours, extending recoating intervals by 40 %.
-
Circular-Economy Programs: Manufacturers partner with municipalities to reclaim, refurbish, and recycle end‐of‐life joints, achieving 95 % material recovery and lowering raw‐material CO₂ footprints by 30 %.
-
Lightweight Hybrid Designs: Combining ductile iron flange surfaces with fiber‐reinforced polymer bodies cuts weight by 20 % for easier handling while maintaining Class D load ratings.
-
Seismic-Resistant Joints: Novel restrained joints (e.g., Cornell‐tested systems) now meet ISO 16143 standards, providing ± 8° deflection and 4.8 in axial movement for earthquake‐prone regions.
-
Advanced Manufacturing: 3D-printed sand molds and conformal cooling channels reduce casting defects by 15 % and shorten lead times by 25 %.
These innovations reinforce ductile iron expansion joints as sustainable, resilient solutions for next‐generation infrastructure.
الأسئلة الشائعة (FAQ)
1. What factors determine the life expectancy of a ductile iron expansion joint?
Life expectancy hinges on operating conditions, design selectionو maintenance regime. Temperature cycles stress gasket materials; typical EPDM gaskets perform well between –10 °C and 120 °C, but exposure beyond reduces elasticity and accelerates compression set. Pressure fluctuations cause bellows fatigue; joints rated PN 25 (≈ 360 psi) resist over-pressurization, yet repeated surges above design stress reduce bellows life. Corrosive environments (chlorides, sulfates) can pit bellows and flanges—standard 6–15 mil fusion-bonded epoxy coatings mitigate this, but periodic recoating may be needed in marine or chemical plants. Installation accuracy is critical: misalignment or improper anchoring introduces unintended loads, causing premature seal failure or metal fatigue. A robust maintenance schedule—including annual visual checks, leak testing per EN 588, and movement exercises every 2–5 years—ensures early detection of wear, extending service lives to 50+ years.
2. How do I select the correct expansion joint type for my pipeline application?
Selection depends on movement requirements, pressure/temperatureو environmental factors. For primarily axial movements (± 20–30 mm), push‐on ductile iron joints with EPDM gaskets offer simplicity and cost-effectiveness for water mains. الوصلات ذات الحواف handle higher pressures (up to PN 25) and allow easy disassembly for service in pumping stations or industrial plants . When pipelines experience combined lateral deflection (± 10–15 mm) and angular rotations (± 1.5–3°), ball‐and‐socket (FLEX-TEND) designs absorb multidirectional offsets without overstressing bellows. Mechanical‐joint (MJ) configurations with retainer glands provide restrained or free‐end options in buried applications, accommodating future ground movements . Consider chemical exposure (select Viton gaskets for oil or solvent resistance) and seismic risk (restrained ISO 16143‐tested joints for fault zones) before finalizing the specification.
3. Can ductile iron expansion joints be repaired in-field, or must they be replaced?
Minor seal or coating damage can be field-repaired under controlled conditions. Coating touch-ups using cold-galvanizing or epoxy sprays restore corrosion protection on exposed bellows or flanges; ensure surfaces are wire-brushed and solvent-cleaned first. Gasket replacements in push-on joints require joint disassembly, new SBR/EPDM gaskets sized per manufacturer specs, and proper lubrication with approved compounds. However, bellows fatigue cracks, wall-thickness loss > 10 %, or repeated leak incidents necessitate full joint replacement to avoid sudden failures under pressure. Replacement is straightforward for الوصلات ذات الحواف—unbolt, swap the unit, re-torque per ASME B16.5—and for الوصلات الميكانيكية, replace gland bolts and gaskets per MJ style instructions.
4. What testing protocols ensure a ductile iron expansion joint is leak-tight?
الاختبار الهيدروستاتيكي at 1.5 × PN rating (e.g., 375 psi for PN 25) is the gold standard; hold for 2 minutes and inspect for visible leaks. Leakage classification under EN 588 defines L0–L3: L0 requires zero visible leakage; L3 permits up to 10 drops per minute per meter of joint. Air‐pressure decay tests at low pressures (< 5 psi) can detect micro-leaks without water, useful in cold climates to avoid freeze damage. Ultrasonic leak detectors identify high-frequency emissions from escaping air or gas, providing noninvasive in-service monitoring. Post-test, follow up with movement exercises to ensure bellows maintain seal integrity under dynamic conditions.
5. How does temperature affect ductile iron expansion joint performance?
Thermal cycles induce axial expansion/contraction in pipelines; every 10 °C change yields ≈ 1.2 mm per meter for ductile iron, cumulatively stressing joints. Gasket materials dictate service ranges: SBR (up to 120 °F/49 °C), EPDM (–30 °C to 120 °C), and Viton (–20 °C to 200 °C). Exceeding these ranges accelerates compression set and reduces sealing force, leading to leaks. Bellows designs withstand cyclic stress within rated temperature-pressure curves; consult Crane ChemPharma data for non-shock working pressures at various temperatures (e.g., 200 psi at 200 °F for 2-convolute joints). Use thermal insulation or expansion loops/compensators in extreme applications to limit joint fatigue and maintain cyclical life.
6. What sustainability benefits do ductile iron expansion joints provide?
Ductile iron is nearly 100 % recyclable, with recovered scrap re-melted into new castings, yielding a closed-loop material cycle and reducing virgin iron ore use by 30 %. Lifecycle assessments show ductile iron joints emit 25–35 % less CO₂ than plastic/rubber alternatives over 50 years, driven by longer service lives and lower maintenance demands. Epoxy and polyurethane coatings now feature low-VOC formulations compliant with LEED and Green Globes standards. Circular-economy programs reclaim old joints for remanufacture or metal recycling, achieving ≥ 95 % material recovery and reducing landfill waste. These factors position ductile iron expansion joints as a sustainable choice for modern, resilient infrastructure.
المراجع:
- ASTM A536 - المواصفات القياسية لمسبوكات حديد الدكتايل
- EN 588 – Expansion joints for pipeline applications
- AWWA C110/C111 – Ductile-Iron and Gray-Iron Fittings Standards
- Ductile Iron Pipe Research Association (DIPRA) – Installation and Maintenance Guidelines
- حديد الدكتايل - ويكيبيديا (نظرة عامة على خواص المواد وتطبيقاتها)
