الفرق بين تآكل حديد الدكتايل والفولاذ المقاوم للصدأ

Ductile iron and stainless steel are two widely used metallic materials, each exhibiting distinct corrosion mechanisms, rates, and mitigation strategies under various environments. Ductile iron, a graphite-reinforced cast iron, offers high strength and toughness but is prone to uniform and pitting corrosion when unprotected. Stainless steel—a family of iron-chromium-nickel alloys—gains its superior corrosion resistance from a passive chromium oxide film but can suffer localized attack (pitting, crevice corrosion) in chloride‐rich media. This article systematically compares their chemical compositions, microstructures, corrosion mechanisms, environmental performance, protective coatings, inspection methods, cost-benefit trade-offs, and application guidelines.

1. Chemical Composition & Metallurgy

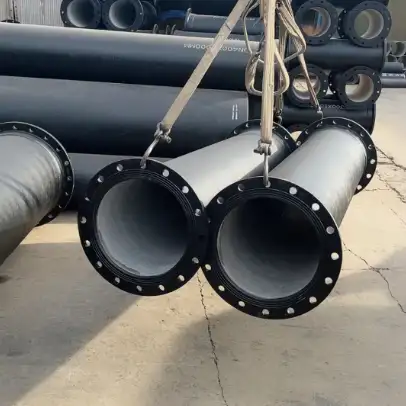

Ductile iron is an iron–carbon alloy containing 3.0–3.6 wt % carbon (in the form of spheroidal graphite) and 2.0–3.0 wt % silicon, often with inoculants of magnesium or cerium to promote graphite nodularity. The graphite nodules interrupt crack propagation, giving ductile iron high tensile strength (≥ 400 MPa) and elongation (≥ 10 %).

Stainless steels are iron‐based alloys with ≥ 10.5 wt % chromium, which forms a self-healing Cr₂O₃ passive film. Common grades include 304 (18 % Cr, 8 % Ni) and 316 (16 % Cr, 10 % Ni, 2 % Mo), where molybdenum enhances pitting resistance in chlorides.

While ductile iron’s graphite phase provides mechanical resilience, its matrix (ferrite/pearlite) can corrode. Stainless steel’s alloying elements (Cr, Ni, Mo) significantly improve corrosion resistance but are costlier and more challenging to weld properly.

2. Microstructural Features

2.1 Ductile Iron Microstructure

In ductile iron, graphite appears as discrete, spheroidal nodules uniformly dispersed in a ferritic or pearlitic matrix. Ferritic matrix offers better corrosion resistance but lower strength; pearlitic matrix increases strength at the cost of ductility and slightly higher corrosion susceptibility.

2.2 Stainless Steel Microstructure

Austenitic stainless steels (e.g., 304, 316) possess a face-centered cubic (FCC) austenite matrix providing toughness at low temperatures. Duplex grades (duplex 2205) combine ferrite and austenite, enhancing strength and chloride resistance. Martensitic grades (e.g., 410) have body-centered tetragonal structure, high hardness, but lower corrosion resistance compared to austenitics.

3. Fundamental Corrosion Mechanisms

Corrosion is an electrochemical process where anodic metal dissolution pairs with cathodic reduction (often O₂ → H₂O or H⁺ → H₂).

• حديد الدكتايل: Uniform corrosion predominates in neutral to alkaline waters; graphite nodules remain inert, forming a roughened surface as the matrix dissolves. Under low-oxygen or acidic conditions, rates accelerate; sulfide or chloride ions can induce localized attack.

• فولاذ مقاوم للصدأ: The passive film of Cr₂O₃ prevents anodic dissolution. Breakdown of this film in chloride-rich or acidic environments leads to pitting or crevice corrosion. At high temperatures, sensitization (Cr carbide precipitation at grain boundaries) can trigger intergranular corrosion.

4. Corrosion Rates under Varied Environments

All data approximate; actual rates depend on temperature, flow, and inhibitors.

5. Localized Corrosion: Pitting & Crevice Attack

5.1 Pitting Corrosion

Pitting initiates where the passive film is locally damaged (e.g., by Cl⁻). In stainless steel 304, critical pitting temperature (CPT) in 3.5 % NaCl is ≈ 30 °C; 316 raises CPT to ≈ 50 °C due to Mo. Ductile iron lacks a passive film; pits form around inclusions or sulfide nodules but generally less deep than stainless steel pits.

5.2 Crevice Corrosion

Crevices under deposits or gasketed joints create occluded cells. Stainless steels suffer severe crevice attack when local Cl⁻ concentration spikes. Ductile iron experiences accelerated uniform corrosion but less severe crevice depths. Proper design and sealing are crucial for both to mitigate crevice issues.

6. Protective Coatings and الحماية الكاثودية

Corrosion mitigation for buried or immersed ductile iron and stainless steel components relies on both barrier coatings and electrochemical protection systems.

6.1 Ductile Iron Coatings

• Loose Polyethylene Sleeving (LPS): A non-adherent, extruded polyethylene film that wraps around pipes and fittings, separating the metal from soil or water and restricting oxygen and electrolyte diffusion. It remains the most cost-effective external protection method, standardized by ISO 8180, AWWA C105, and BS 6076.

• Zinc-Rich Primers and Metallized Zinc Coatings: Zinc acts sacrificially, corroding preferentially and forming a protective ZnO barrier. Zinc primers (≥ 85 % Zn by weight) are applied under epoxy finishing coats to enhance pitting resistance at defects.

• البطانة الأسمنتية - الهاون: Internally, cement-mortar lining (CML) inhibits corrosion by providing an alkaline microenvironment (pH ≈ 12) that passivates the iron matrix; it also enhances hydraulic smoothness.

6.2 Stainless Steel Coatings

Stainless steels rely primarily on their alloy composition for corrosion resistance. External coatings are less common but may include:

• Organic Epoxy or Polyurethane Topcoats: Applied for aesthetic purposes or to prevent surface contamination that could spoil the passive film.

• Electroless Nickel or Chromium Plat­ing: Rarely used for stainless steel pipelines; typically reserved for small components requiring enhanced wear resistance.

6.3 Cathodic Protection (CP)

Cathodic protection supplements barrier coatings by making the metal a cathode in an electrochemical cell. For ductile iron pipelines, CP systems per NACE SP0169 can extend service life significantly:

• Sacrificial Anode Systems: Using magnesium or zinc anodes buried in the ground, these furnish electrons to the pipeline, reducing anodic dissolution at coat holidays.

• أنظمة التيار المتأثر: A DC power source drives current from inert anodes (e.g., mixed-metal oxides) to the pipeline, enabling CP in extensive networks or aggressive soils.
  Stainless steel, due to its passive film, seldom requires CP under normal conditions but may benefit when used as a junction element with more active metals to prevent galvanic coupling.

7. Inspection, Monitoring & Testing Methods

Ensuring long-term integrity demands periodic evaluation of both ductile iron and stainless steel installations.

7.1 Visual and Nondestructive Examination

• External Surveys: Aboveground piping and fittings can be inspected visually for coating defects, rust streaks (ductile iron), or discoloration (stainless steel).

• Ultrasonic Thickness Measurements: Evaluates remaining wall thickness in‐situ, detecting areas of metal loss that are not externally visible.

• Magnetic Flux Leakage (MFL): Applies to ductile iron pipelines; MFL pigs traverse the pipeline detecting local metal loss by magnetic field perturbations.

7.2 Electrochemical Techniques

• Electrical Resistance (ER) Probes: Small sensors welded to the pipe measure cumulative metal loss over time, providing a direct corrosion rate.

• Linear Polarization Resistance (LPR): Immersion probes determine instantaneous corrosion rates by applying a small polarization to the metal surface.

7.3 Advanced Monitoring

• Wireless Sensor Nodes: Integrate ER or LPR sensors with telemetry, enabling real-time corrosion monitoring, particularly in remote or critical installations.

• Pipeline Inspection Gauges (PIGs): Equipped with multi-sensor modules (MFL, ultrasonic, LPR), PIGs provide comprehensive internal assessments during routine pigging operations.

8. Environmental and Application Considerations

8.1 Soil and Water Chemistry

• pH and Resistivity: Low-pH or low-resistivity soils accelerate corrosion of ductile iron unless protected; stainless steel is less affected by pH but can suffer crevice attack in stagnant acidic waters.

• Chloride Content: Critical for stainless steel—chloride levels > 200 ppm can induce pitting in 304 SS; 316 SS tolerates up to ~1000 ppm before active attack at ambient temperatures. Ductile iron in chloride-rich soils requires enhanced coatings or CP.

8.2 Mechanical Stresses and Temperature

• Stress Corrosion Cracking (SCC): Austenitic SS may crack under tensile stress in chloride environments above ~60 °C; duplex SS offers higher SCC resistance, while ductile iron is immune to SCC but can exhibit graphitization at elevated temperatures.

• ركوب الدراجات الحرارية: Repeated temperature fluctuations can degrade coatings and cyclically break SS passive films, necessitating periodic re‐passivation in service.

8.3 Microbial Influences

• MIC (Microbiologically Influenced Corrosion): Anaerobic bacteria (SRB) in soils or water can produce sulfides that attack both ductile iron and SS; SS resists MIC better due to its passive film but may still require biocide dosing in warm, stagnant water systems.

9. Cost, Life-Cycle Analysis & Maintenance

9.1 Material and Installation Costs

• حديد الدكتايل: Lower raw-material cost ($0.50–1.00 per kg) and simpler welding/joint procedures; protective systems (LPS, CML) add 5–15 % to installed cost.

• فولاذ مقاوم للصدأ: Material cost 3–5× that of ductile iron; fabrication (welding, passivation) is more labor-intensive, driving installed cost 2–4× higher.

9.2 Life-Cycle and Maintenance

• Ductile Iron Pipelines: With proper coatings and CP, service lives of 75–100 years are common, with scheduled re‐lining or cathodic system replacement at 30–50 years.

• Stainless Steel Systems: Passive corrosion resistance often delivers 50+ years maintenance-free in benign environments; in chloride‐rich or high-temperature service, periodic inspections and potential repassivation may be required, but external coatings are rarely needed.

9.3 Total Cost of Ownership (TCO)

A detailed TCO model should account for initial capital, protective systems, inspection costs, unplanned replacement, and downtime. In aggressive soils, ductile iron with optimized protection can be more economical over 100 years than unprotected SS. Conversely, in ultra‐pure water systems (e.g., semiconductor plants), SS often prevails due to constraints on pipeline coatings and CP.

10. Design Guidelines & Best Practices

• Material Selection Matrix: Base choices on environment, mechanical loads, and budget. Use 316 SS or duplex SS for chloride‐rich or high-temperature service; ductile iron for buried water distribution with LPS+CP.

• Joint and Fitting Design: Ensure gasket materials are compatible with both metal and fluid chemistry. For ductile iron, use push-on or restrained joints with polyethylene encasement over bells; SS systems often employ weld-oriented butt joints with post-weld pickling.

• Coating and Application QA/QC: Verify coating thickness, holiday detection (holiday detectors), and proper sleeving installation. Conduct CP commissioning tests (instant off potentials).

• Monitoring Plans: Define inspection intervals based on risk profiles; incorporate smart sensors for critical spans. Document corrosion data and adjust protective measures proactively.

11. Comprehensive Comparison Table

12. Six Frequently Asked Questions (FAQs)

FAQ 1: What environmental factors most critically affect corrosion rates of ductile iron versus stainless steel?

Environmental chemistry—especially pH, chloride concentration, oxygen availability, temperature, and microbial presence—dictates corrosion behavior for both ductile iron and stainless steel. For ductile iron, low-pH soils (pH < 6) and high chloride levels accelerate uniform matrix dissolution unless robust coatings or cathodic protection (CP) are applied. Oxygen reduction drives cathodic reactions; in oxygen-depleted zones (e.g., beneath polyethylene sleeving), corrosion rates may paradoxically increase due to differential aeration cells.

Stainless steel’s passive chromium oxide film resists general attack across broad pH ranges (2–12) but fails in chloride-rich environments (Cl⁻ > 200 ppm for 304 SS, > 1000 ppm for 316 SS at 25 °C), leading to pitting and crevice corrosion. Elevated temperatures lower the critical pitting temperature (CPT), making high-temperature chloride-laden water systems especially risky. Additionally, microbiologically influenced corrosion (MIC) by sulfate-reducing bacteria can colonize both metals, although SS shows better resistance due to its passive film and lower affinity for biofilm formation. Thus, soil/water chemistry and oxygenation are the primary drivers, necessitating site-specific evaluations when selecting materials and protective systems.

FAQ 2: How do maintenance and inspection strategies differ between ductile iron and stainless steel pipelines?

Ductile iron pipe systems typically integrate cathodic protection (CP) monitoring—measuring pipe-to-soil potentials and ER probe readings—to ensure external coatings remain effective and CP currents sufficient. Routine ultrasonic thickness measurements and magnetic flux leakage (MFL) pigging every 5–10 years detect localized metal loss. Coating holidays are identified via holiday detectors; polyethylene sleeving integrity is verified during installation.

Stainless steel pipelines, owing to their passive film, require less frequent maintenance in non-aggressive environments. Visual inspections for discoloration, weld integrity checks, and periodic wall thickness measurements (every 10–20 years) suffice for most applications. In chloride-bearing or high-temperature services, crevice areas (gasketed joints, clamp zones) and welds are especially scrutinized, sometimes using electrolytic crevice testing or repassivation treatments (acid pickling) to restore film integrity. Overall, SS strategies emphasize visual and ultrasonic checks, while ductile iron demands integrated CP system oversight.

FAQ 3: Can ductile iron and stainless steel be used in the same piping network, and what precautions are necessary?

Yes, hybrid systems leverage the cost-effectiveness of ductile iron for bulk water conveyance and the corrosion resistance of stainless steel for critical segments (e.g., chlorinated or high-temperature zones). When joining dissimilar metals, galvanic corrosion is a primary concern: stainless steel (noble) will become cathodic and accelerate iron corrosion. To mitigate this:

1. Dielectric Unions or Flange Isolators: Non-conductive gaskets (e.g., phenolic inserts) block electrical connection.

2. Impressed Current CP: Adjust to protect both metals—SS must be monitored to avoid overprotection, which can cause hydrogen embrittlement.

3. Sacrificial Anodes: Select alloy anodes with potentials close to ductile iron to avoid driving SS dissolution.

4. Coating Continuity: Extend polyethylene sleeving over the SS transition with seal tight boots to maintain barrier.

FAQ 4: How does temperature influence the corrosion performance of ductile iron versus stainless steel?

Increasing temperature generally accelerates electrochemical reaction rates, raising uniform corrosion rates for both materials by roughly doubling every 10 °C (Arrhenius behavior). Ductile iron in hot, acidic fluids (pH < 7) can experience corrosion rates > 1 mm/yr unless lined internally with cement-mortar and coated externally.

Stainless steel’s passive film is thermally stable up to ~300 °C in non-oxidizing environments; above this, chromium carbide precipitation (sensitization) at grain boundaries initiates intergranular corrosion when cooled into the 400–850 °C range. In hot chloride media, both pitting and SCC risks intensify: example—316 SS CPT in 3.5 % NaCl drops from ~50 °C at ambient to < 30 °C at 60 °C. Consequently, system temperature profiles must inform material selection and protective measures (e.g., high-temperature coatings, active cooling).

FAQ 5: What factors should guide the life-cycle cost comparison between ductile iron and stainless steel?

Life-cycle cost (LCC) analysis must include:

• Capital Costs: Material, fabrication, installation, protective systems (LPS, CML, CP for DI; welding, pickling for SS).

• Inspection & Maintenance: Frequency and complexity of CP surveys, pigging, visual/ultrasonic checks.

• Replacement and Downtime: Estimated metal loss rates, reserve service life, cost of failures or unplanned outages.

• كفاءة الطاقة: Hydraulic losses differ; smooth SS interior vs rougher DI CML affects pumping costs over time.

In moderately corrosive soils, DI with polyethylene sleeving and CP can achieve LCC parity or advantage over SS for water distribution networks over 100 years. In ultra-pure or high-temperature services where coatings are restricted, SS’s low maintenance can offset higher capital expense.

FAQ 6: Are there emerging technologies that improve corrosion resistance for ductile iron and stainless steel?

• Graphene-Enhanced Coatings: Incorporating graphene nanoplatelets into epoxies yields ultra-thin, impermeable barriers that block chloride ingress and significantly reduce coating porosity; early studies show 5–10× improvement in barrier performance for ductile iron.

• Nanostructured Passivation for SS: Pulse-electrodeposited nanocrystalline Cr or Cr–Al layers augment the native passive film, increasing pitting potentials by 200–300 mV in chloride solutions.

• Self-Healing Polymers: Microcapsules embedded in coatings release corrosion inhibitors (e.g., cerium ions) upon damage, restoring barrier integrity.

• Smart Coatings with Embedded Sensors: Real-time moisture and pH sensors within coatings alert operators to barrier breaches before significant metal loss occurs.

These innovations show promise for extending service lives and reducing maintenance costs across both material classes.

المراجع:

• حديد الدكتايل - ويكيبيديا
• Stainless Steel – Wikipedia
• AWWA C105: Polyethylene Encasement for Ductile-Iron Pipe Systems – American Water Works Association (AWWA)
• NACE SP0169: Control of External Corrosion on Underground or Submerged Metallic Piping Systems – National Association of Corrosion Engineers (NACE)
• ISO 8180: Ductile Iron Pipes — Polyethylene Sleeving – International Organization for Standardization (ISO)
