When it comes to selecting materials for high-performance applications, particularly in industries like automotive, manufacturing, and construction, two materials that often come up are compacted graphite iron (CGI) و حديد الدكتايل. Both materials are iron-based alloys known for their excellent mechanical properties, but they each offer distinct advantages depending on the application. Understanding their differences is crucial for engineers, designers, and manufacturers to choose the right material for their specific needs.
This article provides a comprehensive analysis of CGI and ductile iron, covering their properties, benefits, applications, and key differences. We’ll explore these materials across various dimensions, including strength, ductility, cost, and their suitability for different environments.
1. Overview of Compacted Graphite Iron (CGI)
Compacted graphite iron, also known as vermicular graphite iron, is a type of cast iron that features a unique microstructure. The graphite particles in CGI are in a compacted form, meaning they are smaller and more tightly arranged than the graphite in traditional cast iron. This microstructure gives CGI enhanced strength, thermal conductivity, and fatigue resistance compared to traditional cast iron.
Key Characteristics of CGI:
-
Higher strength-to-weight ratio compared to standard gray cast iron
-
Improved fatigue and thermal properties
-
Suitable for high-stress applications
-
Enhanced machinability
2. Overview of Ductile Iron
حديد الدكتايل، المعروف أيضًا باسم حديد الزهر العقدي أو حديد الجرافيت الكروي الكروي, is another iron alloy that has graphite in the form of spheres rather than flakes. The spherical graphite structure gives ductile iron its excellent tensile strength, flexibility, and impact resistance. It is one of the most widely used materials in casting due to its versatility and high performance in a variety of applications.
الخصائص الرئيسية لحديد الدكتايل:
-
High tensile strength and elongation
-
Great resistance to wear and impact
-
Excellent corrosion resistance when alloyed with elements like copper and nickel
-
Easily machinable and weldable
3. Chemical Composition and Structure
Both CGI and ductile iron are primarily composed of iron, carbon, and silicon. However, their graphite structure and alloying elements vary significantly.
Compacted Graphite Iron (CGI):
-
Carbon content: 3.0–4.0%
-
Silicon content: 1.8–3.0%
-
Alloying elements: Manganese, copper, nickel, etc.
-
Graphite structure: Compacted or vermicular
حديد الدكتايل:
-
Carbon content: 3.0–4.0%
-
Silicon content: 2.0–3.0%
-
Alloying elements: Magnesium (to promote nodular graphite formation)
-
Graphite structure: Spheroidal (nodular)
المواد | الكربون | السيليكون | هيكل الجرافيت | عناصر السبائك |
---|---|---|---|---|
Compacted Graphite Iron (CGI) | 3.0-4.0% | 1.8–3.0% | Compacted (vermicular) | Manganese, Copper, Nickel |
حديد الدكتايل | 3.0-4.0% | 2.0 - 3.0% | كروي (عقدي) | Magnesium, Manganese, Copper |
4. Mechanical Properties Comparison
The mechanical properties of CGI and ductile iron make them suitable for different applications. The strength, toughness, and flexibility of these materials vary based on their graphite structure and alloying elements.
Mechanical Properties of CGI:
-
قوة الشد: 350–600 MPa
-
قوة المردود: 250–500 MPa
-
الاستطالة: 1–5%
-
الصلابة: 150–250 HB
-
صلابة التصادم: Moderate
Mechanical Properties of Ductile Iron:
-
قوة الشد: 420–800 MPa
-
قوة المردود: 250–700 MPa
-
الاستطالة: 5–20%
-
الصلابة: 170-250 هكتار
-
صلابة التصادم: عالية
الممتلكات | Compacted Graphite Iron (CGI) | حديد الدكتايل |
---|---|---|
قوة الشد | 350–600 MPa | 420–800 MPa |
قوة المردود | 250–500 MPa | 250–700 MPa |
الاستطالة | 1–5% | 5–20% |
الصلابة | 150-250 هكتار | 170-250 هكتار |
صلابة التصادم | معتدل | عالية |
5. Manufacturing Process
Both CGI and ductile iron are produced using similar casting methods, but the processes vary due to the need for different alloying elements.
-
CGI Manufacturing: The production of CGI involves the use of spheroidizing agents like cerium and magnesium to promote the formation of compacted graphite during the casting process. This requires precise control over cooling rates and alloying.
-
Ductile Iron Manufacturing: Ductile iron is made by adding magnesium to molten cast iron to produce the spheroidal graphite structure. This process is simpler compared to CGI but requires the precise addition of magnesium to ensure optimal ductility.
6. Applications of CGI and Ductile Iron
Compacted Graphite Iron (CGI):
-
Automotive industry: Engine blocks, turbocharger housings
-
الآلات الثقيلة: High-performance components
-
Heat exchangers and pumps: Due to its excellent thermal conductivity
حديد الدكتايل:
-

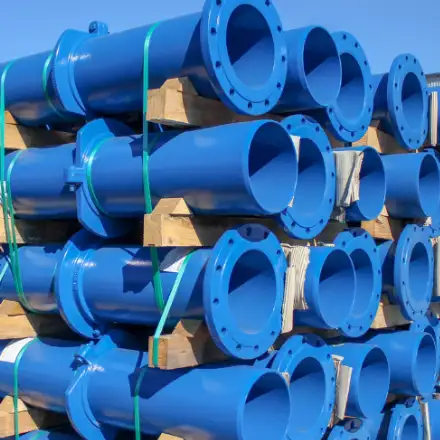

الأنابيب والتجهيزات: Water, gas, and sewer systems
-
مكونات السيارات: Crankshafts, gears
-
Industrial machinery: Components exposed to high stress
7. Cost Comparison
The cost of both CGI and ductile iron varies based on factors such as size, complexity of casting, and alloying elements. In general, CGI is more expensive than ductile iron due to its more complex manufacturing process and additional alloying requirements.
المواد | Cost per kg (approx.) |
---|---|
Compacted Graphite Iron (CGI) | $2.50–$5.00 |
حديد الدكتايل | $1.50–$3.50 |
8. مقاومة التآكل والمتانة
Both CGI and ductile iron offer excellent corrosion resistance, especially when coated. Ductile iron tends to have a slightly higher resistance to corrosive environments, especially in pipes and fittings. CGI, however, performs better in applications that involve thermal stresses or vibrations.
9. Environmental Considerations
Both materials are recyclable, making them environmentally friendly options. However, the production of CGI requires a more energy-intensive process due to its complex alloying elements. Ductile iron, on the other hand, is more commonly used in infrastructure projects, which often involve sustainability considerations.
10. Choosing the Right Material for Your Application
When selecting between CGI and ductile iron, the choice will depend on the specific application and performance requirements. CGI is ideal for high-strength, high-thermal applications, while ductile iron excels in applications requiring toughness, impact resistance, and high elongation.
الأسئلة الشائعة
Q1: Which material has higher strength, CGI or ductile iron?
CGI generally offers higher strength compared to ductile iron, particularly in terms of tensile strength, making it more suitable for high-stress applications such as engine blocks.
Q2: Is CGI more expensive than ductile iron?
Yes, CGI tends to be more expensive due to its more complex manufacturing process and the need for specific alloying elements.
Q3: What are the primary applications of CGI?
CGI is mainly used in the automotive and heavy machinery industries for high-performance components that require excellent thermal conductivity and strength.
س4: هل يمكن استخدام حديد الدكتايل في أنابيب المياه؟
Yes, ductile iron is commonly used for water pipes and fittings due to its excellent impact resistance and strength.
Q5: Which material has better corrosion resistance?
Ductile iron generally has superior corrosion resistance, especially when used in infrastructure like water and sewage pipes. CGI has good corrosion resistance but excels more in thermal performance.
Q6: Is CGI harder to machine than ductile iron?
Yes, CGI is typically more difficult to machine than ductile iron due to its higher hardness and compacted graphite structure.
