14-Inch Bell Joint Restraints for Ductile Iron Pipes: A Comprehensive Guide

Time:2025-05-23

The 14-inch bell joint restraint for ductile iron pipe is a critical component in ensuring the structural integrity and reliability of water distribution systems. By providing secure connections that prevent joint separation under pressure, these restraints are essential for maintaining system performance and safety.

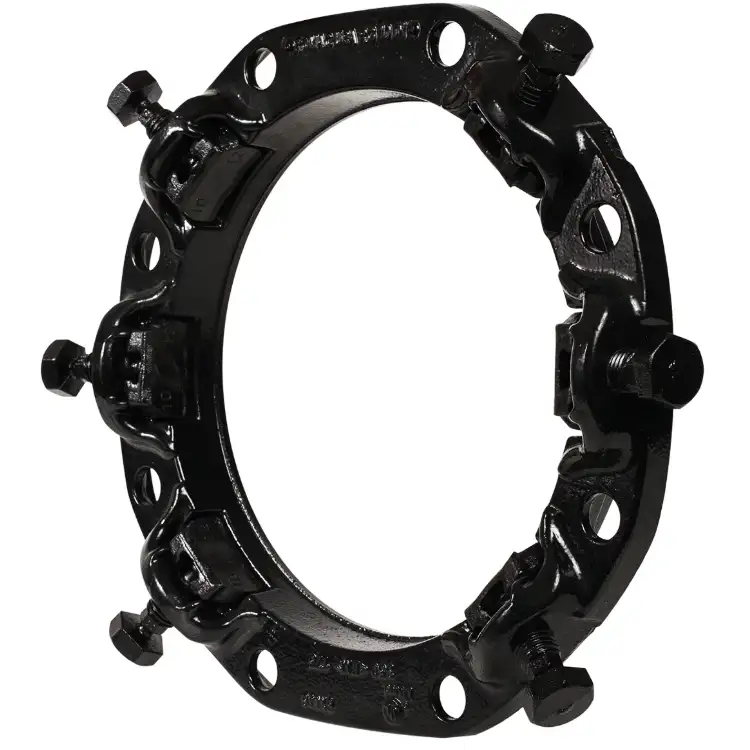

14-Inch Bell Joint Restraints for Ductile Iron Pipes
14-Inch Bell Joint Restraints for Ductile Iron Pipes

1. Overview of Bell Joint Restraints

Bell joint restraints are mechanical devices designed to prevent the separation of pipe joints, particularly in ductile iron piping systems. They are crucial in applications where internal pressure, external forces, or thermal expansion could compromise joint integrity.

Key Features:

  • Material Composition: Typically constructed from high-strength ductile iron, such as ASTM A536 Grade 65-45-12, ensuring durability and resistance to corrosion.

  • Design: Incorporates wedge-action or serrated mechanisms that grip the pipe securely, distributing forces evenly to prevent joint movement.

  • Coatings: Often coated with protective layers like alkyd enamel or fusion-bonded epoxy to enhance corrosion resistance.

Applications:

  • Water Distribution Systems: Ensures leak-free connections in municipal water supply networks.

  • Sewage Systems: Maintains joint integrity in wastewater pipelines.

  • Industrial Piping: Used in various industries where ductile iron piping is prevalent.

2. Technical Specifications

Understanding the technical aspects of 14-inch bell joint restraints is essential for proper selection and application.

Mechanical Properties:

  • Tensile Strength: Minimum of 65,000 psi, providing high resistance to pulling forces.

  • Yield Strength: Minimum of 45,000 psi, indicating the stress at which the material begins to deform plastically.

  • Elongation: At least 12%, allowing for some flexibility under stress.

Pressure Ratings:

  • Working Pressure: Typically rated up to 350 psi, suitable for most water distribution applications.

  • Test Pressure: Can withstand higher pressures during testing phases to ensure reliability.

Temperature Range:

  • Operating Temperature: Generally suitable for temperatures ranging from -20°F to 150°F, accommodating various environmental conditions.

3. Installation Guidelines

Proper installation of bell joint restraints is vital to ensure their effectiveness and longevity.

Preparation:

  • Inspection: Check the pipe and restraint components for any damage or defects.

  • Cleaning: Remove any debris, dirt, or corrosion from the pipe surface to ensure a secure fit.

Installation Steps:

  1. Positioning: Place the restraint around the bell joint, ensuring proper alignment.

  2. Assembly: Tighten bolts evenly to the manufacturer’s specified torque, typically around 60 ft-lbs for 14-inch restraints.

  3. Verification: Confirm that the restraint is securely attached and that there is no movement at the joint.

Safety Considerations:

  • Personal Protective Equipment (PPE): Always wear appropriate PPE, including gloves and safety glasses.

  • Torque Specifications: Adhere strictly to torque specifications to prevent over-tightening or under-tightening.

4. Maintenance and Inspection

Regular maintenance and inspection of bell joint restraints are essential to ensure ongoing performance and safety.

Inspection Schedule:

  • Initial Inspection: Conducted immediately after installation to verify proper assembly.

  • Periodic Inspections: Recommended annually or as per system requirements to detect any signs of wear or corrosion.

Maintenance Procedures:

  • Bolt Tightness: Check and retighten bolts to the specified torque as necessary.

  • Corrosion Assessment: Inspect for any signs of corrosion or coating degradation and address promptly.

  • Component Replacement: Replace any damaged or worn components to maintain system integrity.

5. Comparison with Other Joint Restraint Methods

Understanding how bell joint restraints compare to other methods helps in selecting the most appropriate solution for specific applications.

Restraint Method Advantages Disadvantages
Bell Joint Restraints High strength, easy installation May require periodic maintenance
Mechanical Joint Restraints Versatile, suitable for various pipe materials Potentially more complex installation
Welded Joints Permanent, high-pressure applications Requires skilled labor, not easily removable
Flanged Joints Easy disassembly for maintenance Bulkier, may require more space

6. Frequently Asked Questions (FAQs)

Q1: What is the primary function of a bell joint restraint in ductile iron piping systems?

A1: The primary function of a bell joint restraint is to prevent the separation of pipe joints under internal pressure or external forces. In ductile iron piping systems, these restraints secure the bell and spigot connection, ensuring a leak-free and structurally sound joint.

Q2: How do I determine the appropriate size and type of bell joint restraint for my application?

A2: Selecting the appropriate bell joint restraint involves considering the pipe diameter, pressure rating, and environmental conditions. For a 14-inch ductile iron pipe, ensure the restraint is specifically designed for that size and meets the required pressure specifications. Consulting manufacturer guidelines and industry standards is recommended.

Q3: Can bell joint restraints be reused after disassembly?

A3: While some bell joint restraints are designed for reuse, it’s essential to inspect all components for wear or damage before reinstallation. Replace any compromised parts to maintain joint integrity. Always follow the manufacturer’s recommendations regarding reuse.

Q4: What are the common signs of failure in bell joint restraints?

A4: Common signs of failure include visible corrosion, loose bolts, joint leakage, or misalignment. Regular inspections can help detect these issues early, allowing for timely maintenance or replacement to prevent system failures.

Q5: Are there specific standards governing the use of bell joint restraints in ductile iron piping systems?

A5: Yes, standards such as ANSI/AWWA C600 provide guidelines for the installation of ductile iron water mains and their appurtenances, including joint restraints. Adhering to these standards ensures compliance with industry best practices and enhances system reliability.

Q6: How does temperature variation affect the performance of bell joint restraints?

A6: Temperature fluctuations can cause expansion and contraction in piping systems. Bell joint restraints are designed to accommodate typical temperature ranges; however, extreme variations may impact their performance. It’s crucial to select restraints rated for the expected temperature conditions and to monitor the system for any signs of stress or movement.
