Ductile iron pipes are a cornerstone of modern infrastructure, particularly in water and wastewater systems. The cost of ductile iron pipes can vary depending on a number of factors including material grades, size, coating, installation methods, and geographical location. Understanding the key cost drivers and the various factors that influence the pricing of ductile iron pipes is crucial for project managers, contractors, and engineers in making informed decisions for infrastructure projects.
1. What is Ductile Iron Pipe?

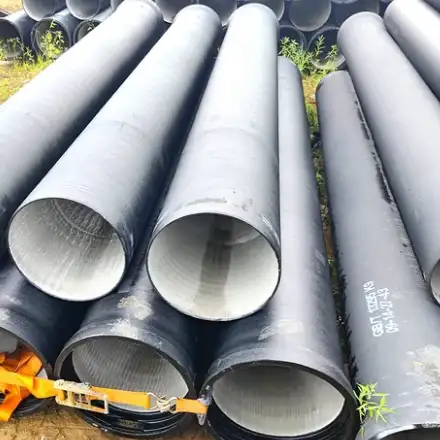

Ductile iron pipes, also known as spheroidal graphite iron pipes, are pipes made from ductile iron that is characterized by its enhanced flexibility and strength compared to traditional cast iron. These pipes are used primarily for water and wastewater transportation, offering high resistance to corrosion, excellent flow characteristics, and long-lasting durability.
The ductility of the material is achieved through an alloying process that introduces small amounts of magnesium, which results in a more flexible structure. This makes ductile iron pipes ideal for a variety of demanding applications, from municipal water supply systems to industrial pipelines.
2. Factors Affecting the Cost of Ductile Iron Pipes
There are several factors that directly influence the cost of ductile iron pipes:
a) Material Grade
The grade of the ductile iron plays a significant role in determining its price. Higher-strength grades, such as Grade 500, cost more than lower-strength grades like Grade 350 due to the differences in raw material and processing costs.
b) Pipe Diameter
Larger pipes require more raw materials and additional manufacturing steps, which increases their cost. The diameter of the pipe is a key determinant when estimating the overall project cost.
c) Pipe Length
The length of the pipe, while a secondary factor, still influences cost. Longer lengths often mean lower unit costs per meter, but they can increase transportation and handling expenses.
d) Coating and Lining Options
Coating options such as cement mortar linings, epoxy coatings, or polyurethane coatings are commonly applied to ductile iron pipes to enhance their corrosion resistance and prolong their lifespan. The type and thickness of the coating chosen will impact the cost.
e) Installation Methods
Installation costs can vary based on the terrain, labor costs, and the complexity of the installation. Costs will rise in challenging terrains such as rocky or urban environments where excavation is more difficult.
3. Cost Breakdown by Pipe Size
Ductile iron pipes come in a wide range of sizes, from small diameter pipes for residential use to large diameter pipes used in municipal infrastructure. The cost typically increases with the diameter of the pipe.
Here is an example of the cost breakdown for different pipe sizes:
| Pipe Diameter (inches) | Average Cost per Meter (USD) | Typical Use Case |
|---|---|---|
| 4″ | $20 – $30 | Residential water systems |
| 6″ | $30 – $40 | Small commercial or industrial |
| 8″ | $40 – $60 | Municipal water systems |
| 12″ | $60 – $90 | Large-scale municipal infrastructure |
| 24″ | $100 – $150 | Large municipal water and wastewater systems |
The costs shown above are rough estimates and can fluctuate based on market conditions.
4. Ductile Iron Pipe Grades and Their Impact on Cost
Ductile iron pipes are available in different grades, primarily based on the tensile strength and material properties. The most common grades include:
-
Grade 350: This is the most commonly used grade and offers a balance between cost and strength.
-
Grade 400: Offers higher strength and is often used in more demanding applications.
-
Grade 500: High-strength ductile iron used in high-pressure systems and large diameter pipes.
The higher the grade, the more expensive the pipe becomes. This is due to the additional processing and alloying required to produce higher-strength materials.
5. Coating Options and Their Effect on Pricing
Coatings and linings play a critical role in extending the service life of ductile iron pipes. Here are some common coating and lining options:
-
Cement Mortar Lining: The most widely used for water pipes due to its cost-effectiveness and adequate protection against corrosion.
-
Epoxy Coating: Offers better corrosion resistance and is often used in aggressive environments but is more expensive than cement mortar.
-
Polyurethane Coating: Typically used in very corrosive environments, it is the most expensive coating option.
Each coating adds a specific cost to the overall price of the pipe, and choosing the right one depends on the environment the pipe will be exposed to.
6. Installation Costs for Ductile Iron Pipes
The cost of installing ductile iron pipes depends on several variables:
-
Labor Costs: Skilled labor, especially for trenchless installation methods, can add significant costs.
-
Excavation: Installation in hard-to-reach or rocky areas can increase costs due to the extra effort required for excavation.
-
Distance: Transportation of pipes to the installation site can increase costs, particularly for long-distance deliveries.
In general, installation can represent a significant portion of the overall project cost, often ranging between 30% to 50% of the total cost of a ductile iron pipeline installation.
7. Geographical Location and Supply Chain Impact
Geographical location significantly impacts the cost of ductile iron pipes due to transportation and supply chain factors. In areas where ductile iron is readily available, such as regions with well-established manufacturing facilities, the cost will generally be lower. Conversely, remote or less industrialized areas may experience higher transportation costs.
Additionally, fluctuations in raw material prices and global trade conditions can lead to significant price variations, especially for large infrastructure projects.
8. Average Costs of Ductile Iron Pipes in Different Regions
The average cost of ductile iron pipes can vary greatly depending on location. For example:
-
North America: Costs generally range from $20 to $150 per meter, depending on the size and grade of the pipe.
-
Europe: Due to high demand and robust manufacturing, the prices can range from €25 to €120 per meter.
-
Asia: Prices are generally lower, with costs ranging from $15 to $100 per meter.
It’s essential to consider both local material availability and regional market conditions when estimating costs.
9. Cost Comparison of Ductile Iron vs. Other Pipe Materials
Ductile iron pipes are often compared with other materials such as PVC, steel, and concrete pipes. Here’s a quick comparison:
| Material | Cost per Meter (USD) | Durability | Maintenance | Corrosion Resistance | Ideal Use Case |
|---|---|---|---|---|---|
| Ductile Iron | $20 – $150 | High | Low | Excellent | Water, sewage, and industrial |
| PVC | $10 – $30 | Medium | Medium | Fair | Residential and light commercial |
| Steel | $50 – $100 | High | Medium | Fair | Heavy-duty and industrial |
| Concrete | $30 – $60 | High | Medium | Poor | Large infrastructure |
Ductile iron is often the preferred choice for infrastructure projects due to its combination of strength, flexibility, and corrosion resistance.
10. Common Myths About Ductile Iron Pipe Costs
Myth 1: Ductile Iron Pipes Are Always Expensive
While ductile iron pipes can be costly upfront, they offer significant long-term cost savings due to their durability and low maintenance needs.
Myth 2: Ductile Iron Pipes Are Heavy and Difficult to Install
Modern ductile iron pipes are engineered for ease of installation, and many projects use trenchless methods to minimize disruption.
11. Frequently Asked Questions (FAQs)
1. What factors contribute to the cost of ductile iron pipes?
Ductile iron pipe costs are influenced by a variety of factors, including the material grade, pipe size, coating options, installation methods, and geographical location. Each of these elements contributes to the overall pricing, and understanding these can help in making cost-effective purchasing decisions.
2. How does the grade of ductile iron affect the cost?
The grade of ductile iron affects the strength and overall durability of the pipe. Higher-grade pipes, such as Grade 500, are stronger and more resistant to external pressures, but they come with a higher price tag. Lower-grade pipes, such as Grade 350, are more affordable but may not be suitable for high-pressure applications.
3. Are there cheaper alternatives to ductile iron pipes?
Yes, materials like PVC and polyethylene can offer cheaper initial costs, but they often lack the strength and durability of ductile iron, especially in more demanding environments. For long-term projects, ductile iron pipes can often be more cost-effective when maintenance and replacement costs are considered.
4. How do installation costs vary for ductile iron pipes?
Installation costs can vary based on location, pipe size, and the method of installation. Labor, excavation, and trenchless technologies can all influence the final cost. Urban and remote installations typically carry higher costs due to logistical challenges.
5. What is the difference between ductile iron and cast iron pipes?
Ductile iron is more flexible and stronger than cast iron, which makes it more suitable for high-pressure applications. Cast iron pipes are more brittle and less durable, which is why ductile iron has largely replaced cast iron in modern infrastructure projects.
6. What are the benefits of cement mortar lining in ductile iron pipes?
Cement mortar linings are a cost-effective way to protect ductile iron pipes from corrosion. The lining helps maintain the integrity of the pipe over time, particularly in water systems, where corrosion is a significant concern.
12. Conclusion
Understanding the cost structure of ductile iron pipes is essential for making informed decisions in infrastructure projects. While ductile iron pipes may have a higher upfront cost compared to other materials, their durability, long lifespan, and low maintenance costs make them a wise investment in the long term. By considering factors such as material grade, size, coatings, installation methods, and geographic location, project planners can optimize their purchasing decisions and ensure the success of their projects.
