100 mm Ductile Iron Pipe Price 2025: Materials, Costs & Installation

Time:2025-05-16

The price of 100 mm (nominal 4″) ductile iron (DI) pipe varies widely by region, class (K7, K9, C30, C40, etc.), lining (cement-mortar, epoxy), joint type (push-on/tyton, mechanical), and purchase volume. In North America and Europe, you can generally expect $70–$90 per meter for Class 52, cement-mortar-lined DI pipe with push-on joints; in India, around ₹850–1 200 per m (≈$10–$15 per m); and in China, $425–720 per m for similar classes. Major cost drivers include raw-material steel prices, manufacturing process (centrifugal casting), lining/coating requirements, logistics, certifications (AWWA C151, ISO 2531, EN 545), and order quantities.

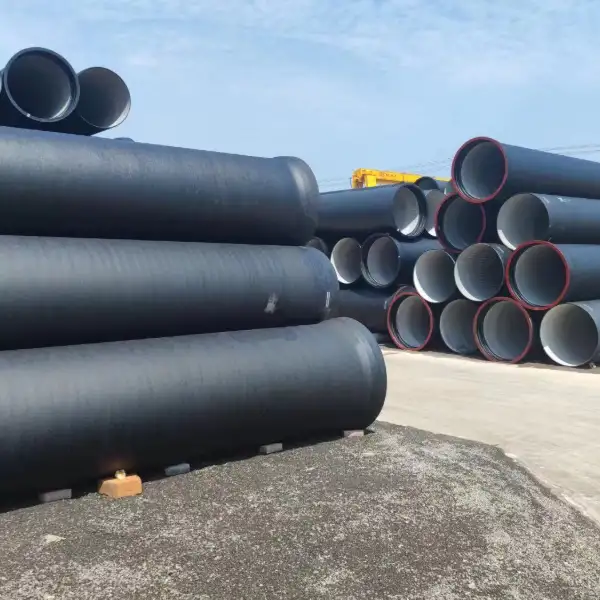

100 mm Ductile Iron Pipe Price 2025: Materials, Costs & Installation
100 mm Ductile Iron Pipe Price 2025: Materials, Costs & Installation

1. Nominal vs. Actual Dimensions

Ductile iron pipe is specified by nominal bore (DN100 for 100 mm) but has a slightly larger outer diameter (OD):

Standard Nominal DN OD (mm) Wall Thickness Range (mm)
ISO 2531 / EN 545 100 113 6.5–9.5
AWWA C151/Class 52 100 114.3 6.35–9.27

Thicker walls (Class C40/C50) increase weight—and thus price—by up to 40 % over thinner (K7) pipe.

2. Material and Manufacturing Factors

  1. Raw-Material Steel
    Global scrap-steel prices drive the base cost. A 100 mm DI pipe weighs ~18–24 kg/m; at $600/ton steel, raw steel costs $10–$14/m.

  2. Centrifugal Casting
    Ensures uniform walls; adds $5–$10/m in processing overhead.

  3. Lining / Coating

    • Cement-mortar lining (AWWA C104): +$4–$6/m

    • Epoxy or polyurethane: +$8–$12/m

    • External zinc or epoxy: +$3–$5/m

  4. Joint Type

    • Push-On (Tyton): standard, included.

    • Mechanical: +$2–$4/m.

Combined, these steps transform raw-steel cost ($10–$14/m) into a finished pipe price of $70–$90/m in Western markets.

3. Regional Price Benchmarks

Region Typical Price Range (USD/m) Notes
North America $75–$95 Class 52, cement-mortar, push-on
Europe €65–€85 (≈$70–$92) ISO 2531, EN 545, includes VAT
India ₹850–1 200 (≈$10–$15) Local steel, Class K9, no export duties
China $425–720 Per-m pricing varies by foundry and volume
Middle East / Africa $65–$85 Often imported; includes shipping

4. Cost Breakdown per Meter

Cost Component USD/m
Raw Steel (18–24 kg/m) $10–$14
Casting & Machining $5–$10
Internal Lining $4–$6
External Coating $3–$5
Joints & Accessories $2–$4
Subtotal (Materials) $24–$39
Fabrication Profit $10–$15
Logistics & Handling $5–$10
Total Ex-Works $39–$64
Delivery, VAT, Duty +$6–$10
Estimated Delivered $45–$74

In practice, suppliers add margin, so end-user price settles around $70–$90/m.

5. Volume Discounts & Lead Times

Order Quantity Discount Lead Time
10–50 m None 2–4 weeks
50–200 m 5 % 3–5 weeks
200–500 m 10 % 4–6 weeks
> 500 m 15–20 % 6–8 weeks

Bulk purchasing can therefore reduce the $70–$90 /m range down to $56–$72/m at high volumes.

6. Lifecycle Cost Comparison

Material Upfront (USD/m) 25-yr Lifecycle Cost (USD/m) Maintenance Notes
DI Class 52 $80 $95 Low corrosion, minimal upkeep
Carbon Steel (coated) $60 $110 Requires re-coating every 10 yr
PVC (Sch 40) $8 $50 Vulnerable to UV, brittle over time
HDPE $12 $60 Needs protection from flotation

Although DI has the highest upfront, its lowest 25-year cost makes it ideal for long-term projects.

7. Standards & Certifications

  • AWWA C151/C104/C110 (USA)

  • ISO 2531 / EN 545 / EN 598 (Europe)

  • ASTM A746 / A536 (Global)

  • NSF 61 for potable water approval

  • ISO 9001 quality-management certified foundries

Certifications add $2–$5/m for quality assurance.

8. Installation & Maintenance

  • Trenching & Bedding: $30–$50/m

  • Pipe Laying & Joining: $20–$40/m

  • Testing (Hydrostatic): $2–$4/m

  • Periodic Inspection: $0.50–$1/m-yr

Total installed cost can be 3–4× the ex-works material price.

9. Cost-Saving Strategies

  1. Optimize Class: Use lower-class (K7) for non-critical segments.

  2. Local Sourcing: Reduces $5–$10/m in shipping.

  3. Standard Lengths: Avoid custom cuts to save $2–$5/m.

  4. Bulk Orders: Leverage 10–20 % discounts.

  5. Lifecycle Planning: Balance higher upfront for lower maintenance.

YouTube Video Recommendation

“Installing Ductile Iron Pipe: Step-by-Step Guide”

Frequently Asked Questions

1. What drives the high upfront cost of DI pipe?

Ductile iron pipe’s higher initial cost—typically $70–$90/m in Western markets—stems from its robust material and production process. Raw steel alone accounts for $10–$14/m (18–24 kg of steel per meter at current scrap prices). Centrifugal casting ensures uniform walls but adds another $5–$10/m in energy and labor. Cement-mortar lining (AWWA C104) or epoxy coatings further contribute $4–$6/m or $8–$12/m respectively, plus $3–$5/m for external corrosion protection. Absent such treatments, iron would quickly corrode underground. Joint machining (push-on or mechanical) and accessories add $2–$4/m. Foundry profit margins, logistics, and compliance with stringent standards (AWWA C151, ISO 2531, NSF 61) add the remainder. Though each step increases cost, the result is a pipe rated for 16 bar+ pressure, 75–100 year life, and minimal maintenance—delivering unparalleled total-cost-of-ownership for critical water, wastewater, and industrial applications.

2. How Much Can Volume Discounts Reduce the Price of 100 mm DI Pipe?

When purchasing 100 mm ductile iron (DI) pipe, suppliers typically offer tiered discounts based on order quantity, with larger orders commanding deeper cuts in per-meter price.¹ For orders of 50–200 m, discounts of around 5 % are common, reducing a base price of $80/m to approximately $76/m. Increasing the order to 200–500 m often unlocks 10 % off, bringing the same pipe down to about $72/m. For project-scale runs exceeding 500 m, some foundries extend 15–20 % discounts, pushing unit costs as low as $64–$68/m. Lead times tend to lengthen with volume—small orders may ship in 2–4 weeks, while bulk orders might require 6–8 weeks due to capacity and curing periods for cement-mortar lining. Negotiating a multi-material bundle (pipe plus fittings, joints, and valves) can further boost savings by another 2–5 %, since suppliers consolidate production runs and logistics. Early-payment incentives—such as 2 % off for payment within 10 days—increase effective discounts, further driving down delivered cost per meter. Seasonal ordering also matters: placing orders during off-peak months (e.g., Q4 or Q1, when demand for infrastructure projects dips) can yield additional 1–3 % rebates or waived surcharges. By stacking these strategies—quantity tiers, bundled purchases, early payment, and seasonal timing—project managers can reduce list prices of $80–$90/m to $56–$68/m, equating to 20–30 % savings on large, well-planned procurements.

3. What Are Typical Lead Times for 100 mm DI Pipe?

Lead time for DN100 ductile iron pipe varies significantly by manufacturer, pipe class, lining, and global supply chain status.¹ Domestic foundries in North America and Europe generally quote 2–4 weeks for small to medium runs (<200 m) of Class 52, cement-mortar lined, push-on joint pipe. This window covers steel procurement, centrifugal casting, internal lining application (AWWA C104), and quality testing. For larger orders (200–500 m), lead times extend to 4–6 weeks as production queues lengthen and curing cycles for cement-mortar lining demand extra handling time. The longest lead times—6–8+ weeks—apply to orders exceeding 500 m, specialty classes (e.g., C50 or C65), or non-standard linings like epoxy or polyurethane, which require additional surface preparation and curing. Some suppliers now proactively manage capacity by quoting “up to 20 weeks” for peak seasons, but actual times often fall below this upper bound Regional differences also matter: Asian foundries may quote 3–6 weeks for large orders but include extra shipping time (4–6 weeks by sea) for export markets. Conversely, local mills near major infrastructure projects can offer 1–2 week turnarounds on standard classes, provided raw steel is in stock and the production line isn’t backlogged. To minimize schedule risk, project planners should lock in orders at least 3 months before required delivery, build in contingency for back-orders, and consider dual-source strategies across multiple foundries.

4. How Does Lining Choice Impact the Cost of 100 mm DI Pipe?

The internal lining selected for DN100 ductile iron pipe is a major cost driver, balancing durability, water quality, and upfront expenditure. Cement-mortar lining (per AWWA C104/A21.4) is the industry standard for potable water, offering excellent corrosion resistance and minimal leaching; it typically adds $4–$6 per meter to raw pipe cost. Epoxy linings—preferred for aggressive water chemistries or wastewater applications—require more complex surface prep (sandblasting, primer) and controlled application environments, increasing cost by $8–$12 per meter over unlined pipe. Polyurethane or polyglass linings, used when chemical resistance is paramount, can drive prices up by $10–$15 per meter, as they involve multiple spray coats and thermal curing cycles. External coatings (zinc, bituminous, or fusion-bonded epoxy) also influence price: a standard zinc coating adds $3–$5 per meter, while fusion-bonded epoxy can cost $6–$9 per meter. Some projects require dual-coating (internal mortar plus external epoxy) for marine or chemical plant service, cumulatively adding $12–$18 per meter; this specialized execution can extend lead times by 1–2 weeks due to handling and QA testing. When budgeting, engineers must weigh the 25-year lifecycle benefits of robust linings—reduced maintenance, fewer shutdowns, and compliance with drinking water standards—against the 10–20 % upfront premium compared to unlined or minimally lined pipe.

5. What Installation Costs Should I Expect for 100 mm DI Pipe?

Beyond material price, installation—including trenching, bedding, jointing, and testing—often doubles or triples the total installed cost of 100 mm ductile iron pipe. Trenching and excavation costs range from $30–$50 per meter, depending on soil type, depth, and site access. Pipe bedding with granular fill (sand or gravel) adds $5–$10 per meter, ensuring uniform support and mitigating point loads. Joint assembly (push-on Tyton or mechanical restraining rings) and thrust-blocking require skilled labor, costing $15–$25 per meter for both labor and materials. Hydrostatic testing to AWWA standards (ASTM D2774 or ISO 3452) adds $2–$4 per meter, covering pressure gauges, water supply, and test crews. Site restoration (backfill compaction, pavement repair, landscaping) can tack on $10–$20 per meter, particularly in urban settings with traffic control and permit requirements. Equipment rental (mini-excavators, trench boxes, compaction plates) runs $500–$1,000 per day, apportioned across meters installed. Summing these components yields $62–$109 per meter beyond the pipe itself—meaning a $80/m DI pipe can escalate to an installed cost of $142–$189 per meter. Large-scale contractors often bundle material and installation into a per-linear meter contract at $150–$175/m, leveraging efficiency and volume to manage risk and cash flow.

6. What Ongoing Maintenance Costs Are Associated with 100 mm DI Pipe?

Ductile iron’s reputation for longevity hinges on minimal maintenance requirements, but prudent lifecycle planning acknowledges periodic inspection and corrosion control expenditures. Annual condition assessments—via CCTV, ultrasonic thickness testing, or acoustic monitoring—cost $0.50–$1.00 per meter per year, covering equipment, labor, and data analysis. Cathodic protection (sacrificial anodes or impressed current systems) may be installed in aggressive soils or underwater crossings, with initial costs of $5–$10 per meter and annual maintenance budgets of $0.10–$0.20 per meter. Lining rehabilitation—such as spot epoxy repairs or cement-mortar touch-ups—occurs every 15–20 years, averaging $2–$4 per meter per intervention. Valve and fitting maintenance (greasing, seat replacement) can add $0.20–$0.40 per meter per year when spread across the network length. Emergency repairs—due to third-party damage or seismic events—are infrequent but costly, averaging $500–$1,000 per joint and often requiring shutdown, traffic control, and expedited materials. Over a 25-year horizon, these O&M expenses total $10–$15 per meter per year, increasing the lifecycle cost by $250–$375 per meter in present-value terms. When combined with upfront and installation costs, the true cost of 100 mm DI pipe averages $450–$600 per meter over 25 years—still highly competitive given its unmatched performance in pressure, durability, and water quality.
